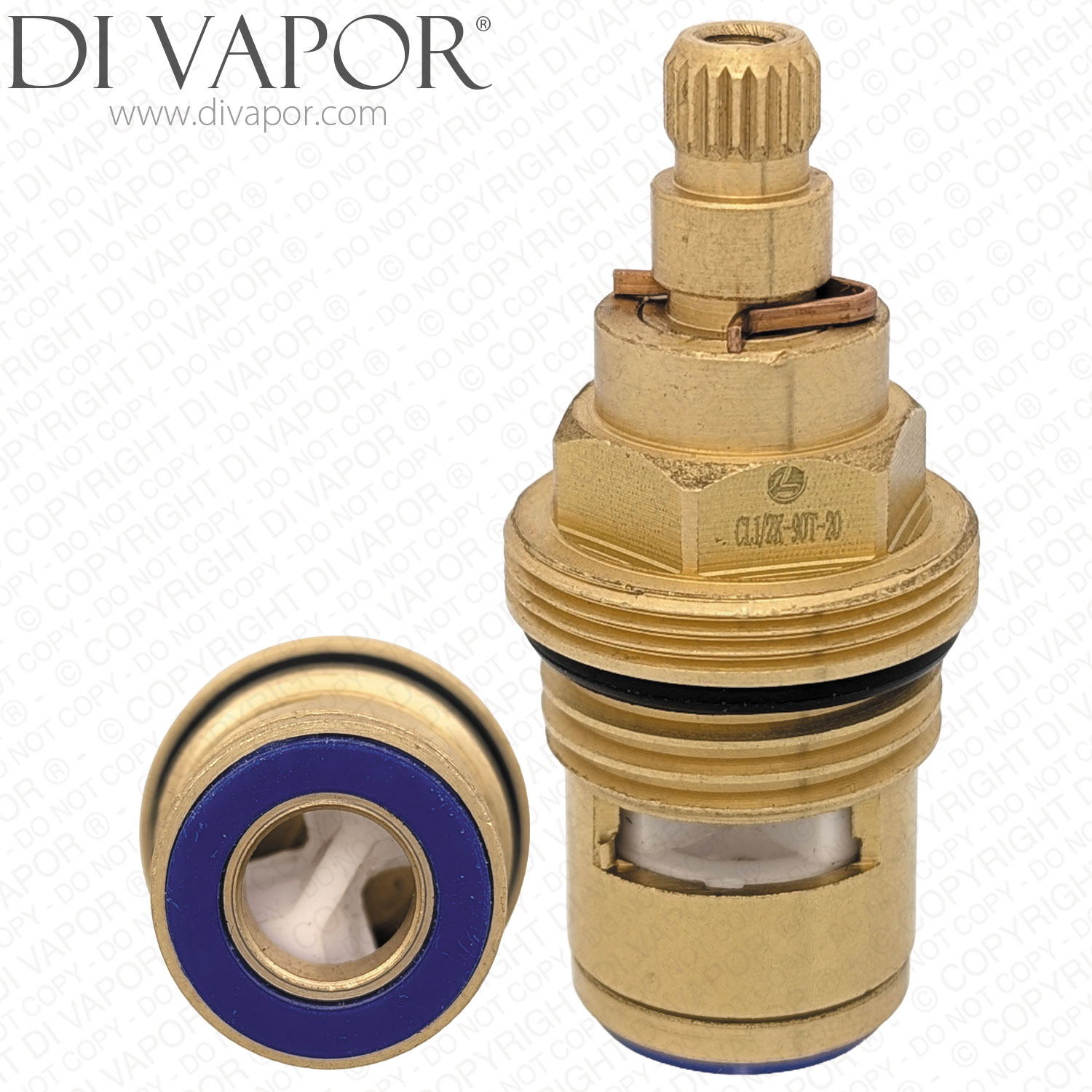

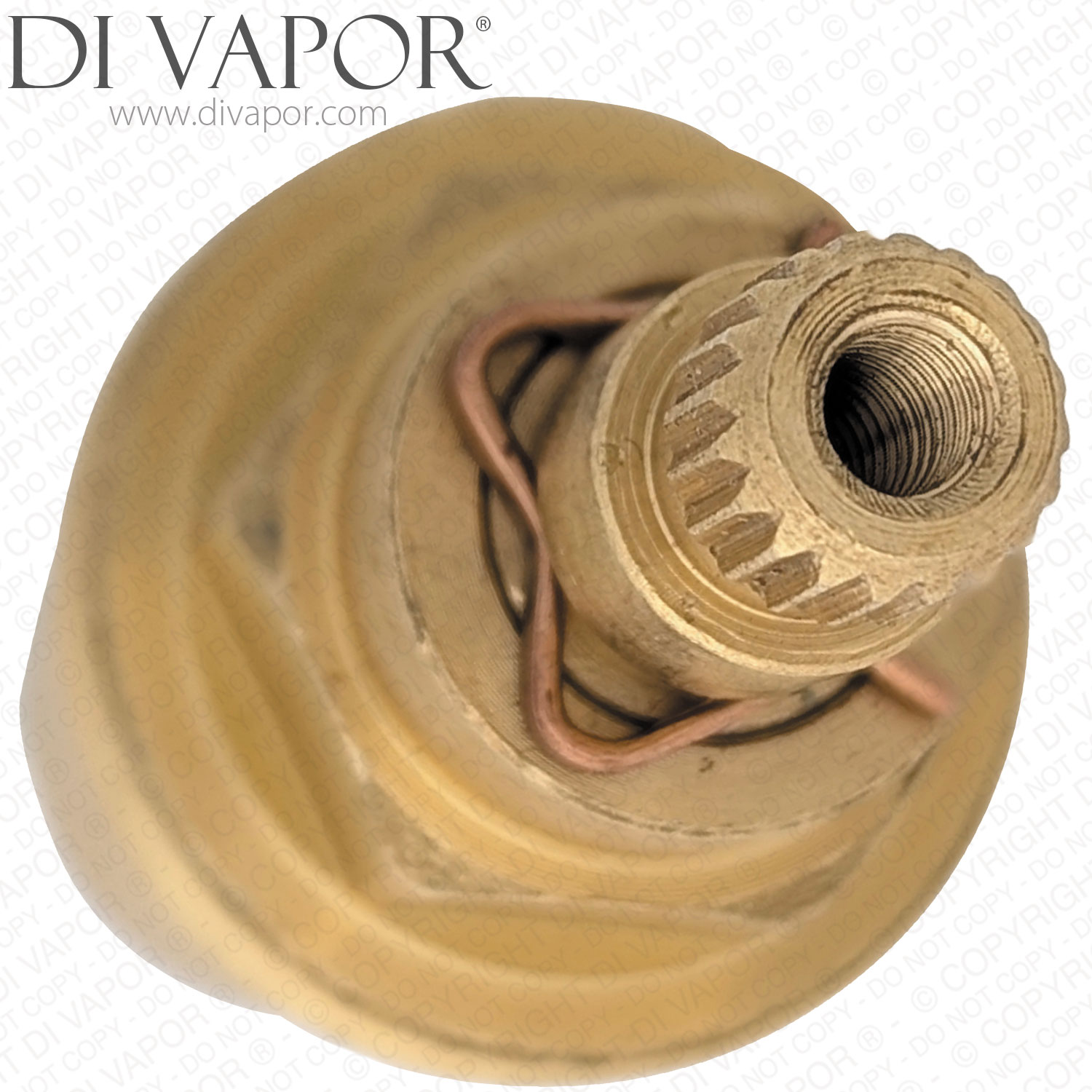

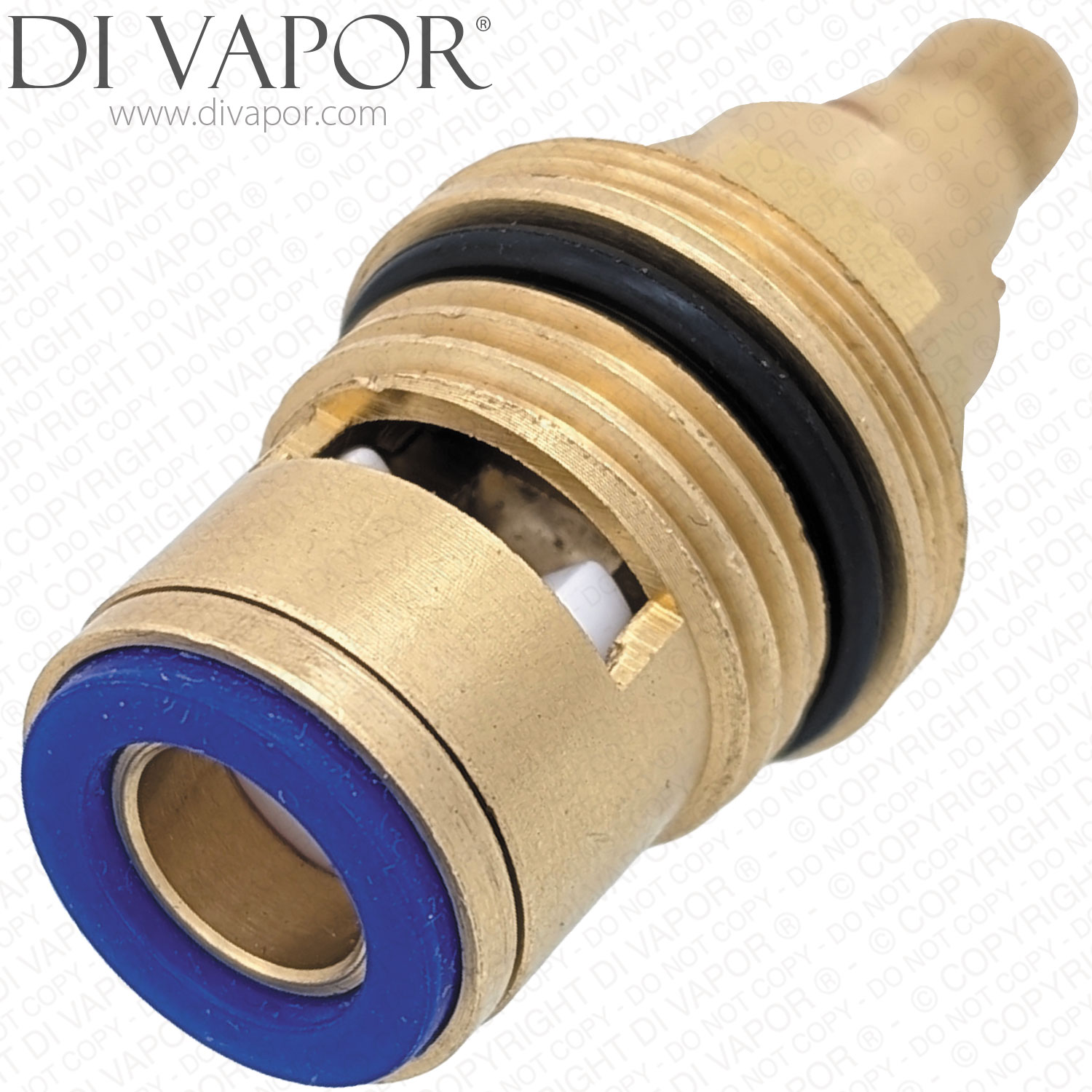

CL1/2K-90T-20 Anti-Clockwise Open Cartridge
SUMMARY
CL1/2K-90T-20-A is an anti-clockwise open ceramic disc flow cartridge for controlling water flow in a suitable shower valve or tap body that uses this headwork format.
This quarter-turn cartridge is used to open and close the water flow. A common symptom of a worn flow cartridge is water passing from the shower head or spout when the valve or tap is turned off, or poor shut-off at the handle.
Technical Details
- - Part Number: CL1/2K-90T-20-A
- - Operation: anti-clockwise open
- - Headwork type: quarter-turn ceramic disc cartridge
- - Thread size: 1/2 inch BSP male
- - Body material: brass
- - Seal details: NBR O-rings and silicone gaskets
- - Maximum working pressure: 10 Bar
- - Maximum operating temperature: 85°C
Check the cartridge code, thread size, stem profile, overall shape and opening direction against the removed cartridge before ordering. The clockwise-open version is a different handed cartridge and should not be used where an anti-clockwise-open cartridge is required.
Installation Note
Apply suitable silicone grease to the O-ring and bottom seal during installation to help the cartridge seat correctly and protect the seals.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
