Burlington SP581 Shower Valve On/Off Flow Top Cartridge
Send a photo of your item and we'll help confirm it.
Summary

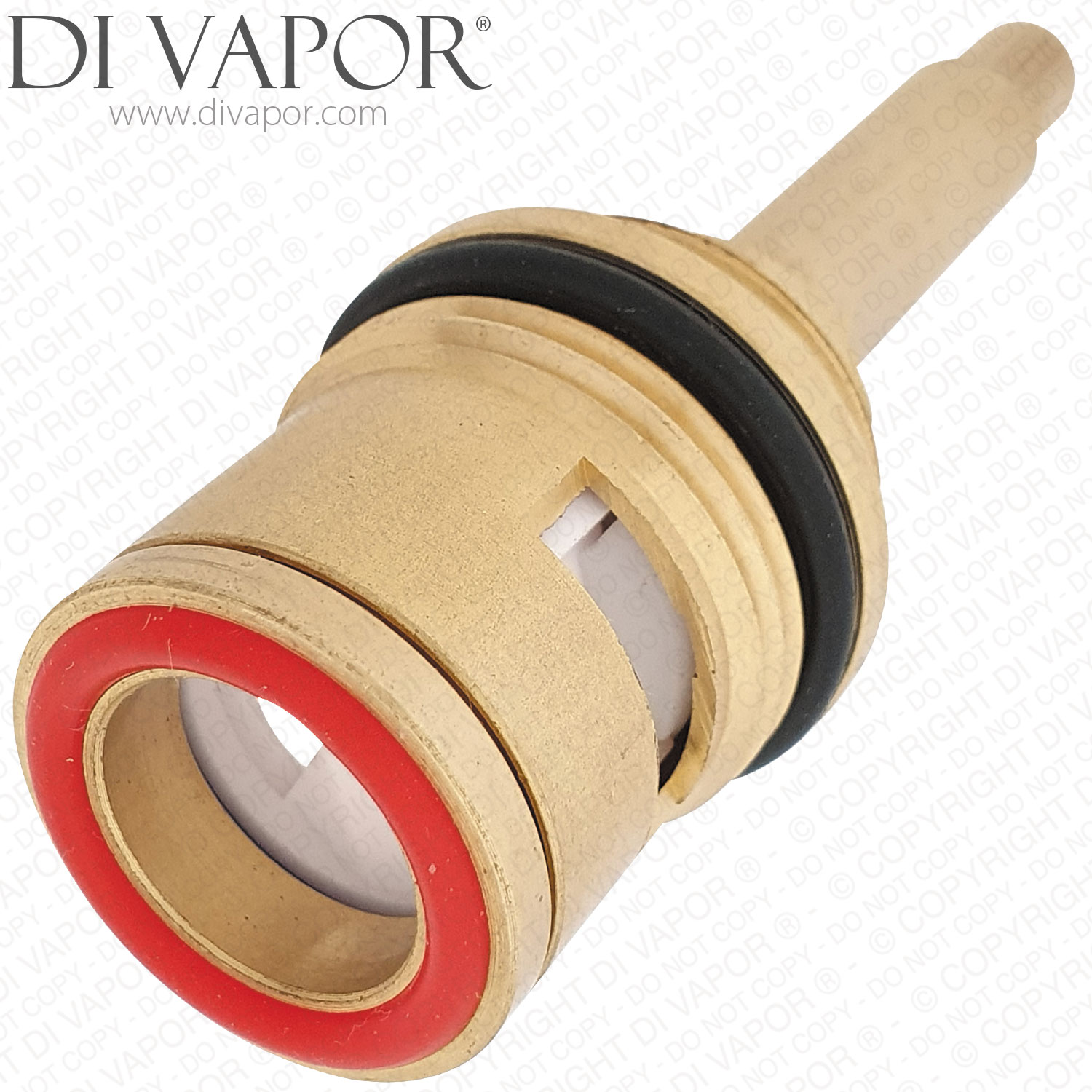

Burlington SP581 Shower Valve On/Off Flow Top Cartridge. The SP581 cartridge is used in the following Burlington valve models: BF1S, BF2S, BF3S
The Burlington SP581 is a shower valve on/off flow top cartridge used in selected Burlington Stour thermostatic exposed shower valves. This cartridge controls the top flow outlet and is used to turn the shower water flow on and off from the valve body.
The SP581 is used in Burlington BF1S, BF2S and BF3S Stour valve models. BF1S and BF2S are single outlet valves with the outlet controlled from the top flow control. BF3S is a two outlet valve, with SP581 used for the top flow control and SP582 used for the bottom flow control.
Technical Details
| Brand | Burlington |
|---|---|
| Product code | SP581 |
| Di Vapor Part Number | BL-SP581 |
| Part type | on/off flow top cartridge |
| Valve range | Burlington Stour thermostatic exposed shower valves |
| Position | top flow control cartridge |
| Function | controls shower flow on and off at the top outlet |
| Related bottom cartridge for BF3S two outlet valves | SP582 |
A worn or damaged flow cartridge can cause poor shut-off, stiff operation or water continuing to drip from the shower head or handset outlet after the valve has been turned off. Before ordering, compare the removed cartridge with the product image and confirm the valve model code where possible.
When fitting, isolate the water supply before work begins. Silicone grease should be applied to the cartridge o-rings and bottom seal during installation to help protect the seals and support smooth fitting.
Confirmed Used In
- Burlington BF1S Stour Thermostatic Exposed Shower Valve Spare Parts
- Burlington BF2S Stour Thermostatic Exposed Shower Valve
- Burlington BF2S-V16 | BF2S+V16 Stour Thermostatic Exposed Shower Valve Single Outlet Spare Parts
- Burlington BF2S-V17 | BF2S+V17 Stour Thermostatic Exposed Shower Valve Single Outlet Spare Parts
- Burlington BF2S-V60 | BF2S+V60 Stour Thermostatic Exposed Shower Valve Single Outlet Spare Parts
- Burlington BF3S Stour Thermostatic Exposed Shower Valve Spare Parts
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

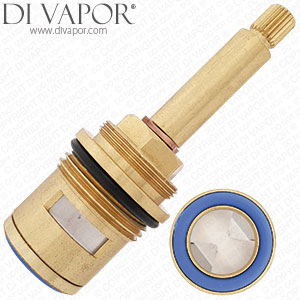

- Burlington SP582 Shower Valve On/Off Flow Cartridge (Bottom Cartridge)
- Burlington SP899: Top Flow Control of Product BF1S & BF2S & BF3S Complete
- Burlington SP32 Thermostatic Cartridge for Avon & Stour Valves
- Burlington SP1117: Flow Control & Decorative Head and Screw for BF2S & BF3S
- Burlington SP1286: Gear Sleeve for Stop Valve for BF2S & BF3S
- Burlington SP594: Thermostatic Lever for Stour Valves (Including Thread) with the Hot and Cold Indice
- Burlington Lever for Spey, Stour, Trent, Avon & Severn Shower Valves
