Bristan K22174A Cold Side 3/4" Cartridge. 3/4 x 24 splines x 52mm
Part number: K22174A
Out of stock - Ask a Question now
Price: £9.64
Sale: £8.20
You save: £1.44 (15%)
Price includes UK VAT (Region: UK▼)
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

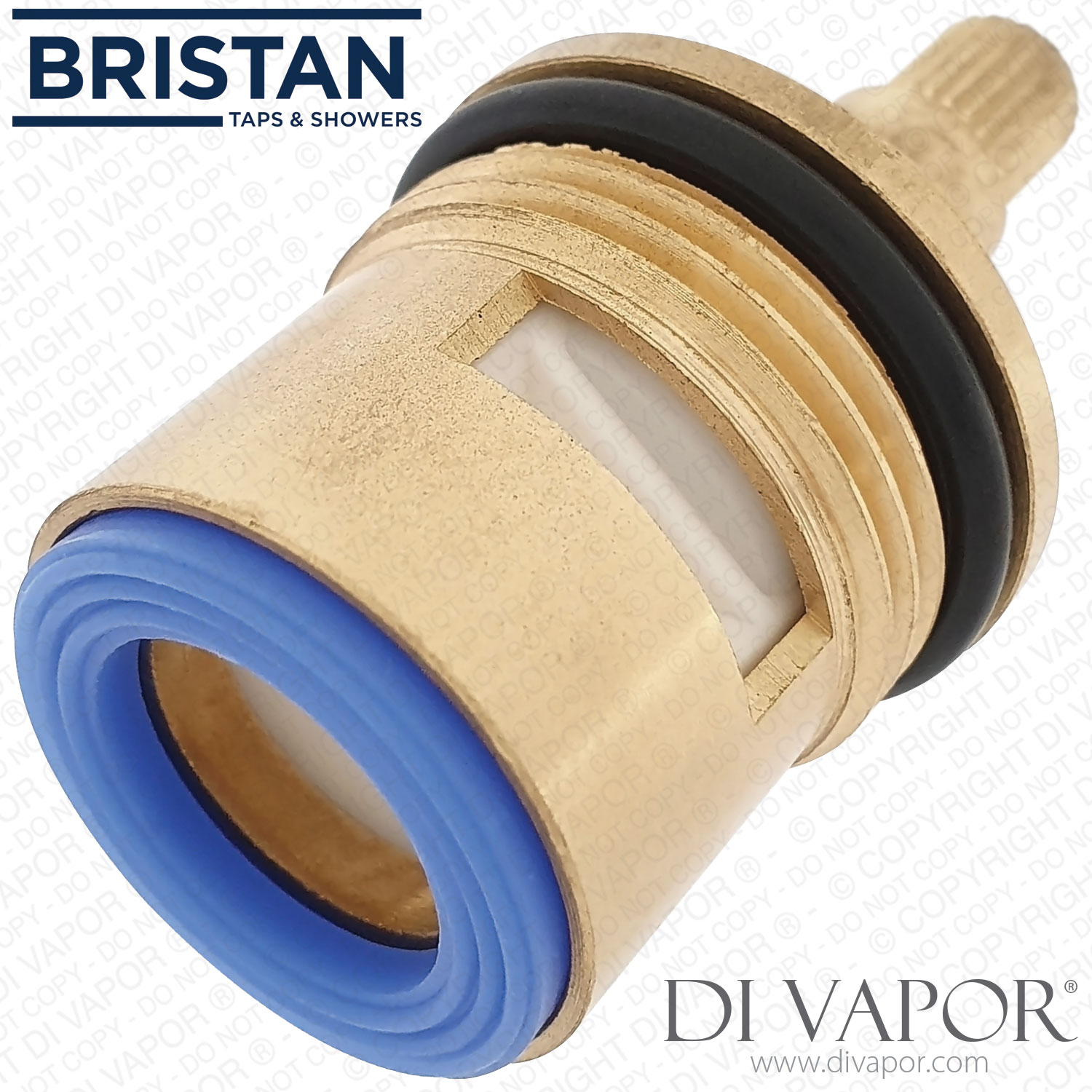

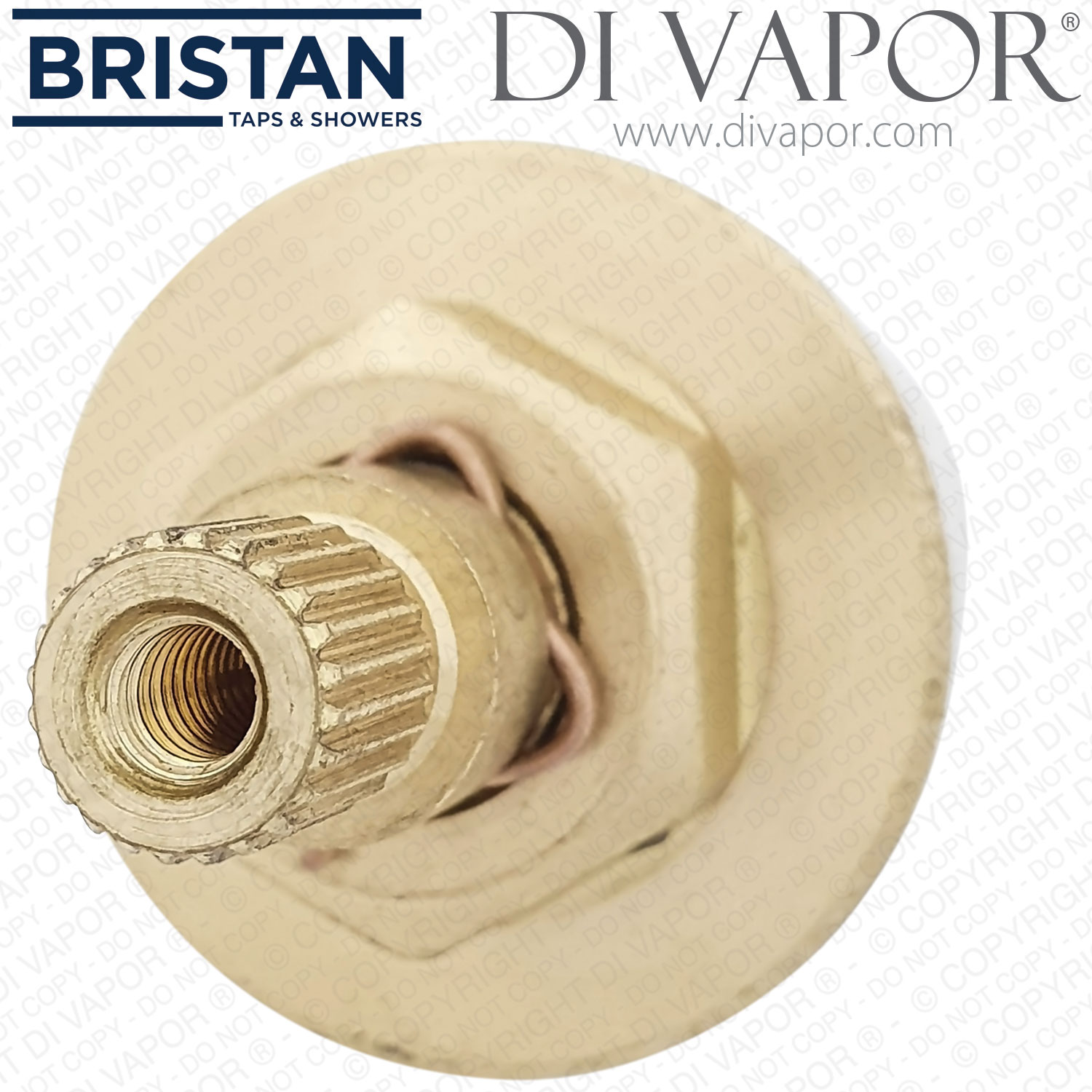

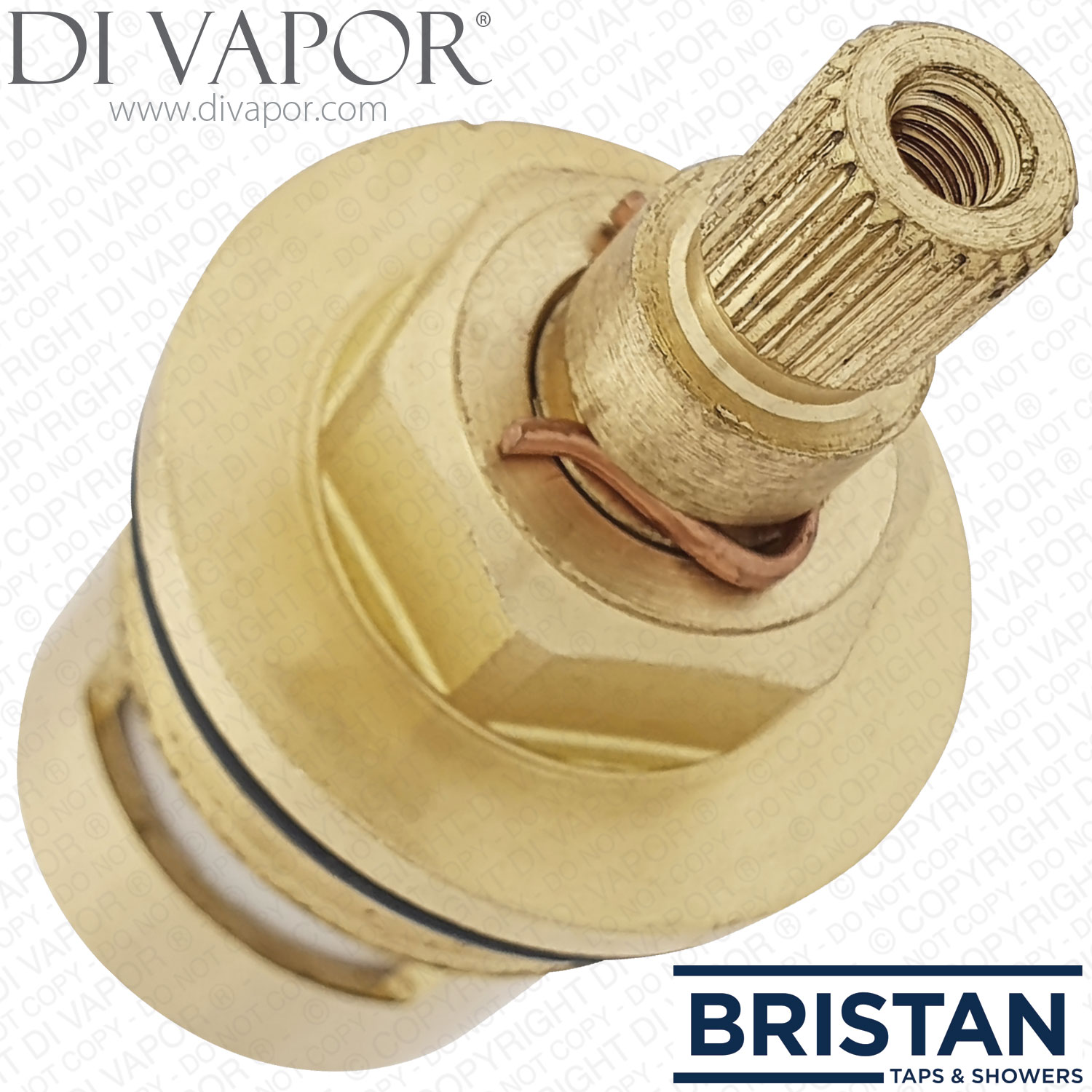

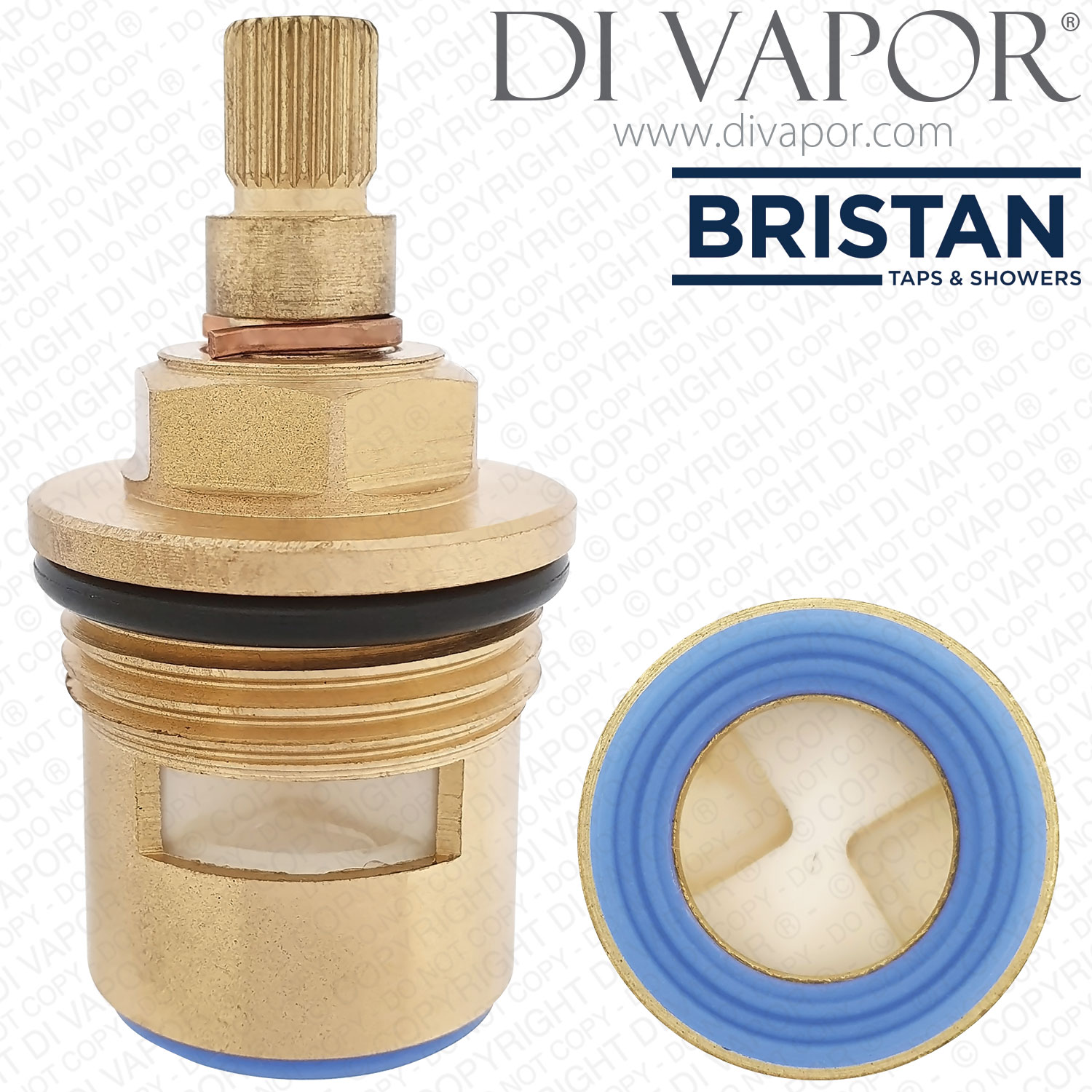

This Bristan K22174A cold-side 3/4 ceramic disc cartridge is used in selected Bristan Capri Jute and Java bath taps and bath shower mixers. It controls the cold water flow and shut-off on fittings that use this valve.
A worn cartridge can cause dripping from the spout when the tap is turned off, stiff quarter-turn operation, poor shut-off, or difficulty controlling the cold water flow. The matching hot-side cartridge is K22174B.
Technical details
- Cold-side ceramic disc flow cartridge.
- 3/4 inch body.
- 24 splines.
- 56mm overall height.
- Quarter-turn operation.
- Matching hot-side valve: K22174B.
Before ordering check
- Check the original cartridge is marked K22174A, where possible.
- Check the valve is the cold side and that the body size, spline count, and overall height match your original.
- Check which spline adaptor your tap uses, because some Capri and Jute show 81P20P52, while Java 01/08/2012 shows SA02.
Confirmed Compatible Models
- Bristan CAP 3/4 C Capri Bath Taps.
- Bristan CAP BF C Capri Bath Filler Tap.
- Bristan CAP BSM C Capri Bath Shower Mixer.
- Bristan CAP BSM E8 C Capri Bath Shower Mixer 8 Litre Flow Limit.
- Bristan JU 3/4 C Jute Bath Taps.
- Bristan JU BF C Jute Bath Filler.
- Bristan JU BSM C Jute Bath Shower Mixer.
- Bristan JU BSM E6 C Jute Bath Shower Mixer 6 Litre Flow Limit.
- Bristan JU BSM E8 C Jute Bath Shower Mixer 8 Litre Flow Limit.
- Bristan JU PBSM C Jute Pillar Bath Shower Mixer.
- Bristan J BSM C Java Bath Shower Mixer Tap 01/08/2012.
Related Spares You May Need
- Bristan K22174B Hot Side 3/4" Cartridge. 3/4 x 24 splines x 52mm.
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved.
- GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031).
- Bristan 81P20P52 Plastic Hexagonal 8x24 Spline Adaptor, for Capri and Jute applications that use this adaptor.
- Bristan 83T28174 Shower Bath Diverter for Jute BSM Valves, used in Jute bath shower mixer versions.
- Bristan CAP DIV BSM Diverter Mechanism for CAP BSM C, used in Capri bath shower mixer versions.
- Bristan 80D28174 Diverter Knob Chrome for JU BSM C, used on Jute bath shower mixer versions.
- Bristan SA02 Spline Adaptor 11*32 Red, used on the confirmed Bristan J BSM C Java Bath Shower Mixer Tap 01/08/2012 page.
