Bathstore 90000015240 Spare Bensham Bidet / Basin Cold Cartridge - Nov 2015 Onward
Send a photo of your item and we'll help confirm it.
Summary
Bathstore 90000015240 Spare Bensham bidet cold cartridge - Nov 2015 onward
Used in: BS 41500080000
Bathstore 90000015240: Bensham Bidet Tap Cartridge Buying Guide
Is the Bensham Bidet Tap dripping or having water flow rate problems? A replacement Bathstore 90000015240 might be needed.
For a bidet tap that is unbranded or of a different brand, please read through our simple buying guide that can help you identify if this flow cartridge is the part you need.
Please contact us if you need further assistance in finding a suitable spare part.
+ Find a Spare Part Service Page
+ WhatsApp: 07754 173340
Di Vapor is here to gladly serve your spares needs!

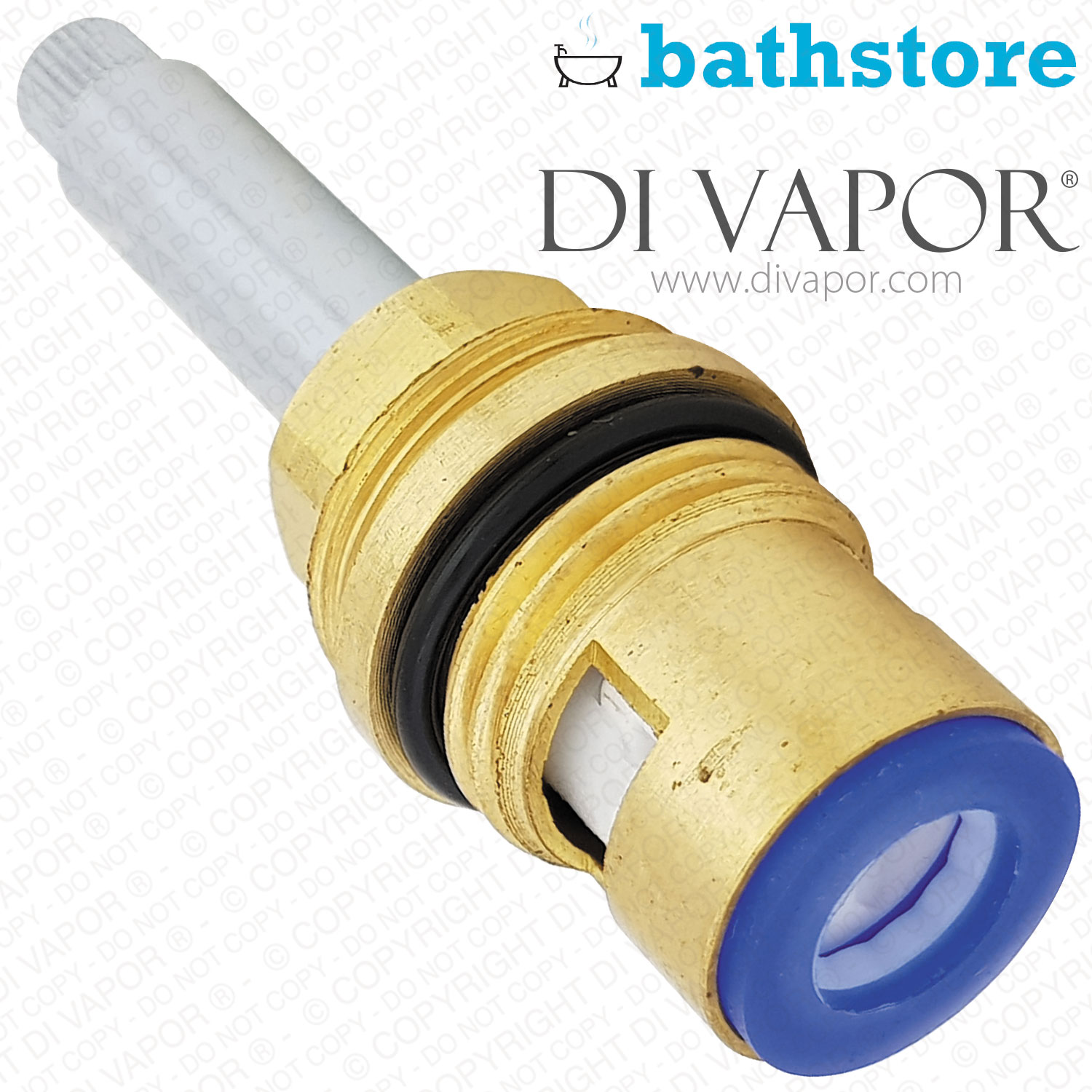

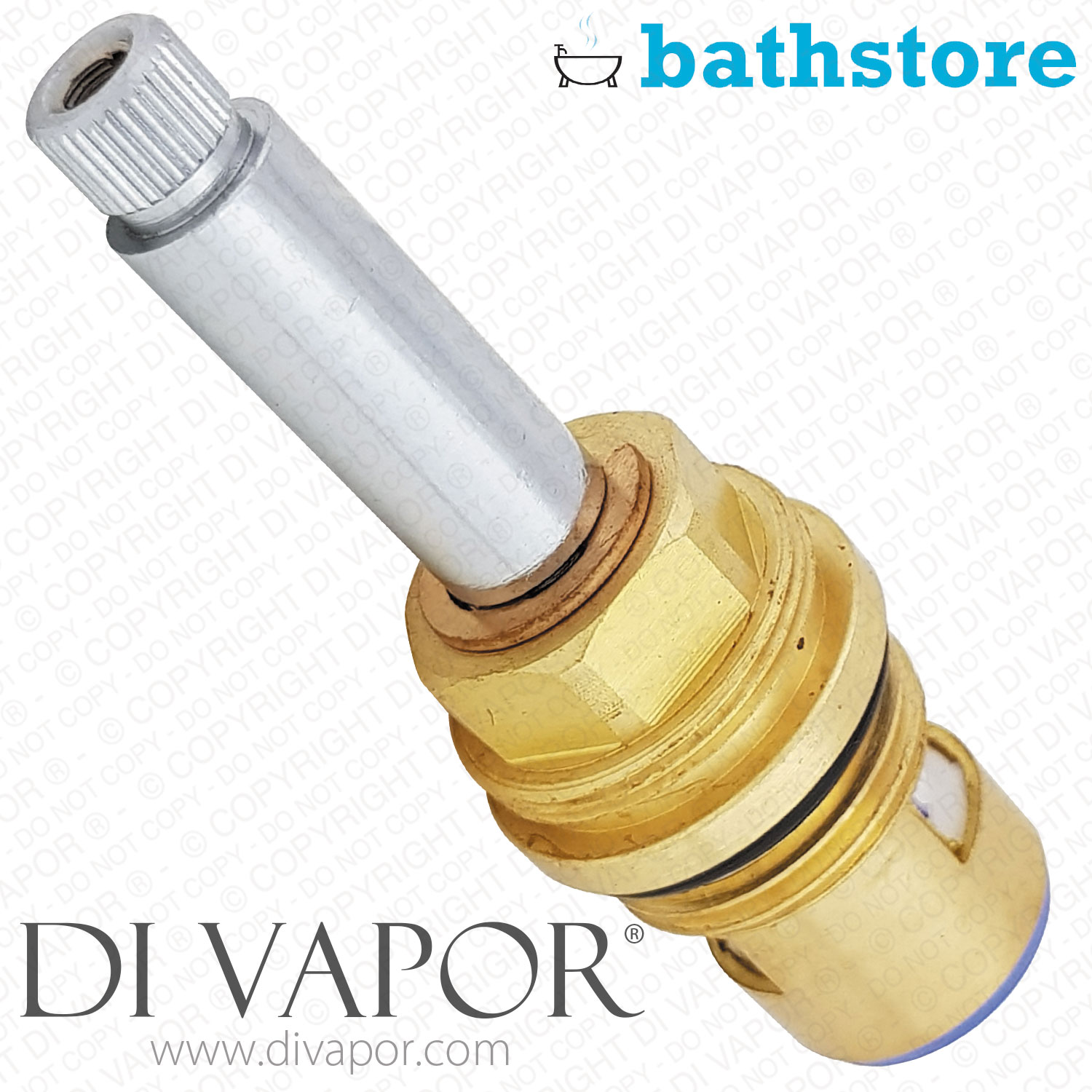

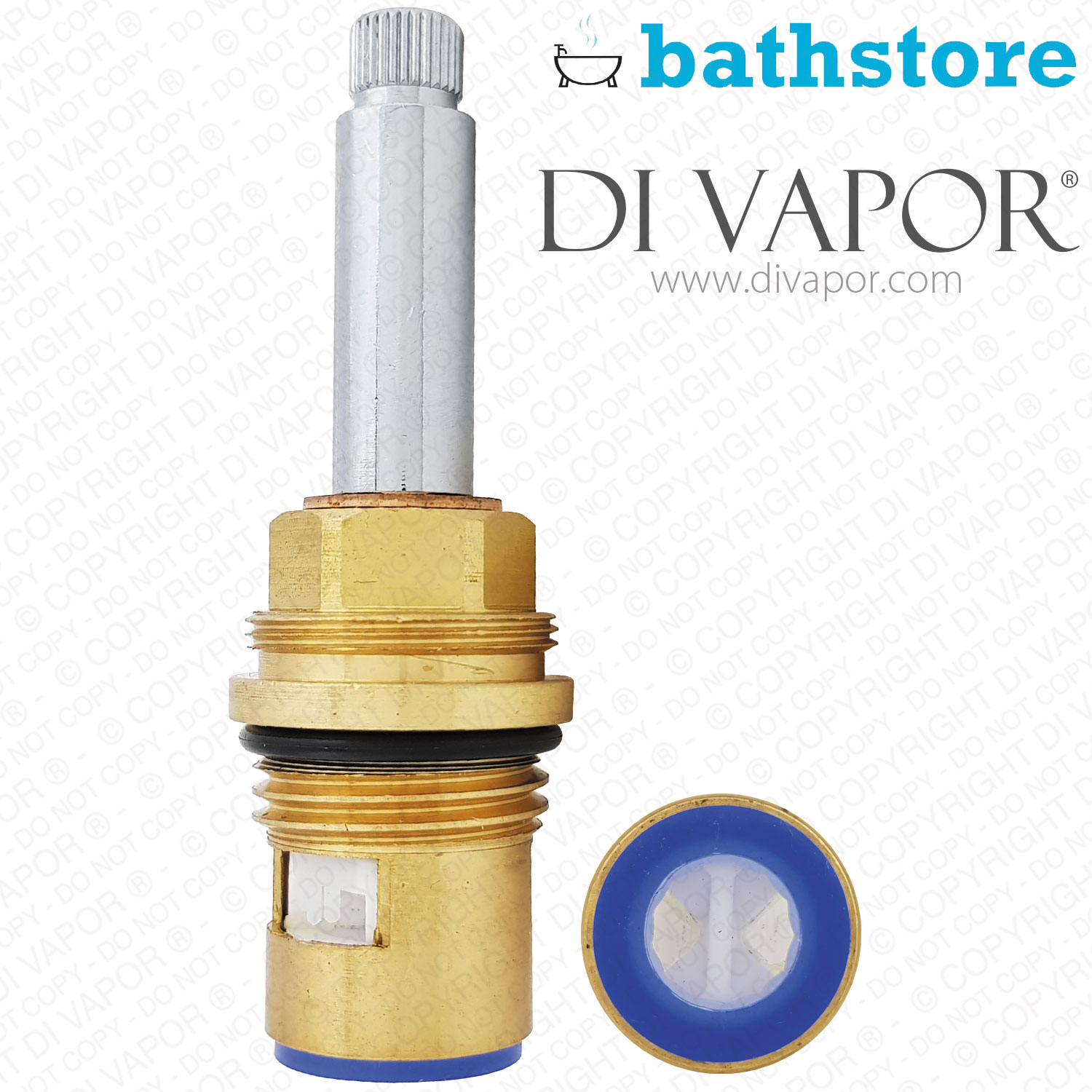

The Bathstore 90000015240 is a ceramic on/off cartridge or flow cartridge. In the right and left sides of the Bathstore Bensham Bidet Tap sits a cold and a hot cartridge. Please visit the hot cartridge page to see the FAQ.
These tap parts can either wear out or mineral deposits can collect between the brass barrel and the internal ceramic disc. This is when some of the most common tap problems occur (i.e. leaks and a decreasing rate of water flow). With this said, it could be best to replace both the hot and cold cartridge together.
If the tap you have to repair is a Bathstore Bensham Bidet tap, you can be certain the Bathstore 90000015240 is the corresponding cold cartridge. If you have a different tap, cartridge dimensions are one of the ways to find out the right spare part.
The most practical method to take the measurements of the cartridge is to use a simple ruler and estimate it with the measurements of the Bathstore 90000015240.
| Total Length (including bottom seal) | 72mm |
|---|---|
| Diameter at Widest Point | 23.9mm |
| Barrel Diameter | 18.4mm |
| Upper Thread (closer to spline) | 21.8mm |
| Lower Thread | 1/2" BSP |
| Top Spline Diameter | 8mm |
| Top Spline Teeth / Notches | 30 |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
Once you’ve taken the measurements, it is now time to count the spline notches. The spline exists as an anti-rotational and mating tool allowing the Bathstore 90000015240 cartridge to fit with the Bensham Bidet Tap handle.
When counting those tiny spline teeth marking one of the teeth with a pen will help you distinguish where to start and stop counting. This Bathstore 90000015240 has a total of 30 notches which must be the same with the cartridge you intend to replace.
