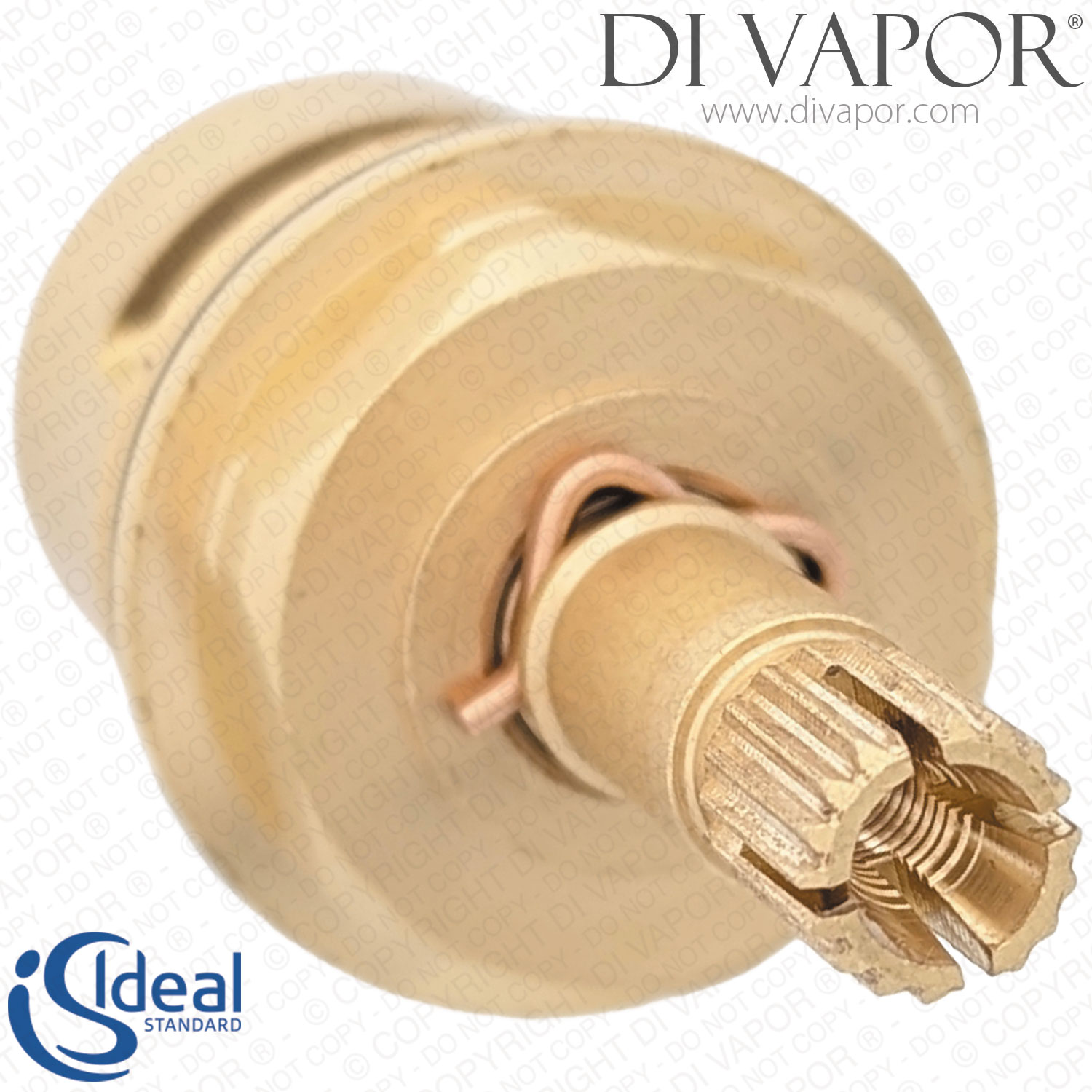

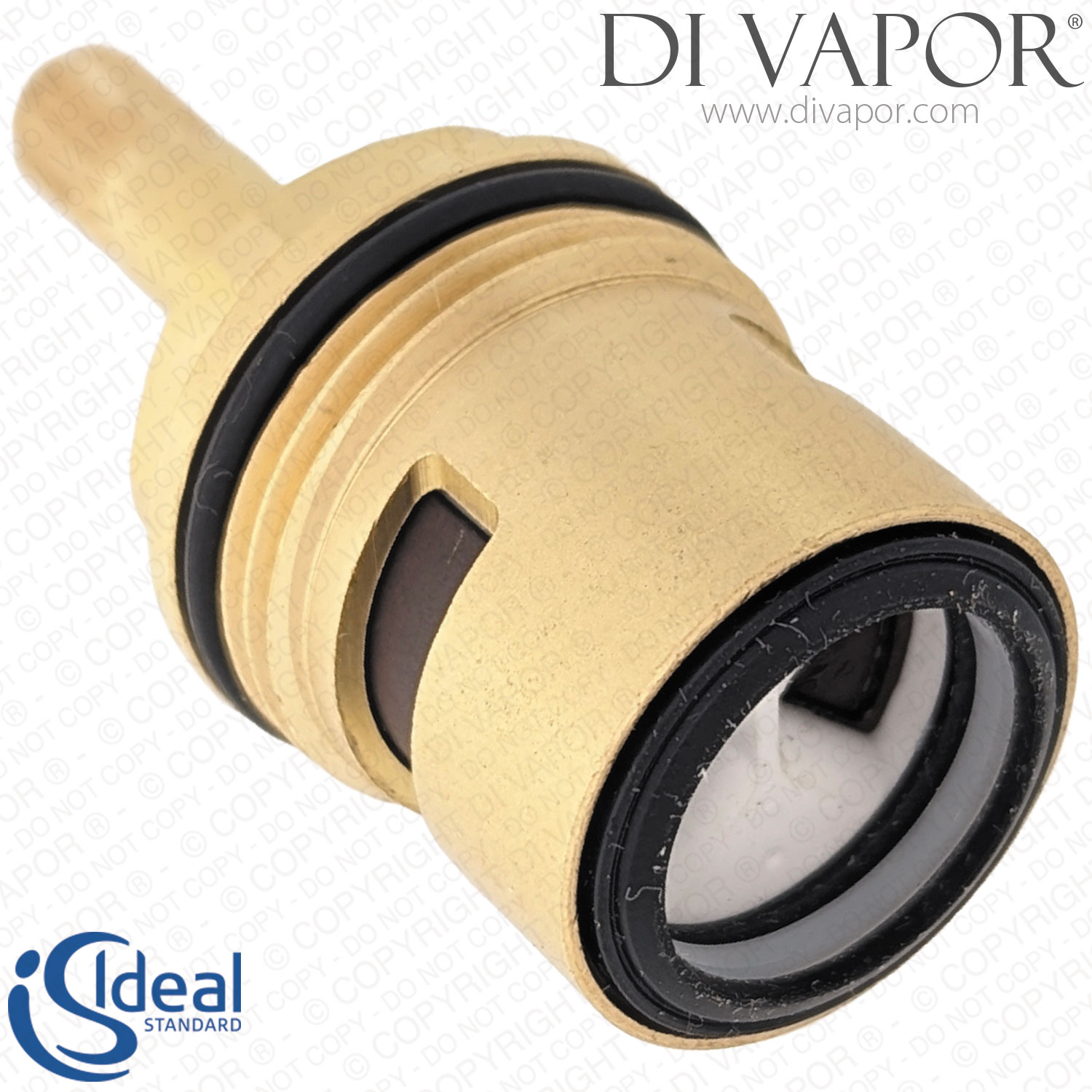

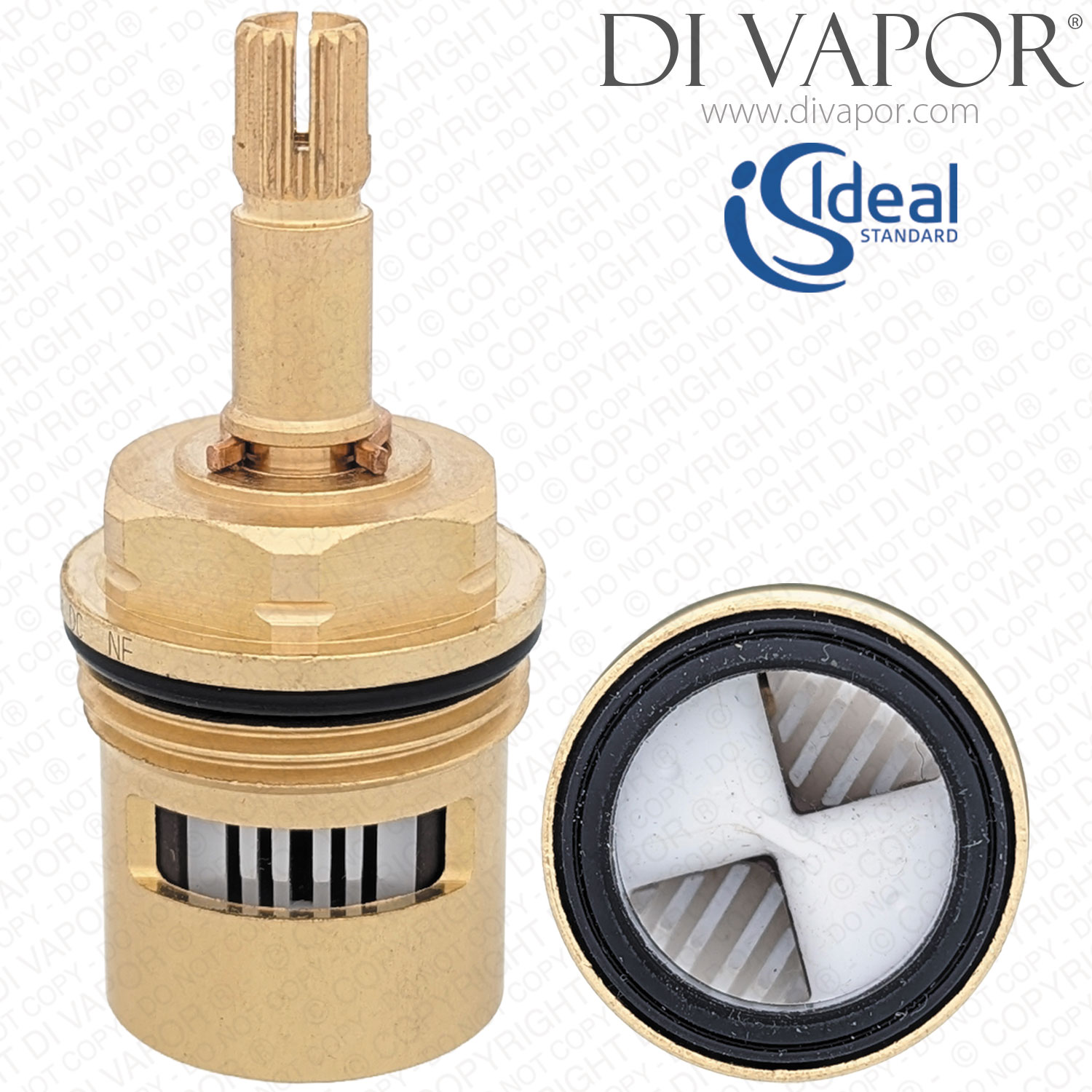

A954352NU11 Ideal Standard /​ Trevi 3/​4 Inch On/​Off Ceramic Disc Flow Cartridge for Taps and Shower Valves (Clockwise Close)

SUMMARY

A954352NU11 Ideal Standard Trevi 3/4 Inch Ceramic Disc Flow Cartridge for Bath Taps and Shower Valves Clockwise Close

NOTE: The new version of this cartridge may be fully brass.

A954352NU11 is an Ideal Standard / Trevi 3/4-inch SE ceramic disc on/off flow cartridge used in selected bath taps, bath fillers, bath/shower mixers and thermostatic shower valves. The cartridge operates as a clockwise-close shut-off valve, controlling water flow through one side of the fitting.

This cartridge is associated with post-2001 Ideal Standard ceramic disc bath fittings and selected Trevi shower valves. On documented Waterways fittings, the change to this cartridge arrangement occurred after May 2001, so the age and generation of the tap should be checked before ordering.

A worn or damaged flow cartridge can cause poor shut-off, stiff operation or water continuing to drip from the shower head or tap spout when the control is turned off.

Technical Details

- - Part Number: A954352NU11

- - Manufacturer's alternative code format: A 954 352 NU11

- - Part type: 3/4-inch SE ceramic disc on/off flow cartridge

- - Closing direction: clockwise close

- - Fitting type: screw-in cartridge

- - Manufacturer generation: post-2001

- - GTIN / EAN: 4015413810319

- - Opposite-direction cartridge: A954353NU11, anti-clockwise close

- - Manufacturer pair code: S960023NU, containing A954352NU11 and A954353NU11

- - Later documented replacement code: A960462NU

- - Construction: newer stock may be supplied as a fully brass version

The cartridge should not be selected solely according to whether it is fitted to the hot or cold side, because A954352NU11 is documented in different positions on different fittings. Match the exact model generation, part code and clockwise closing direction before ordering.

Confirmed Compatible Models

- - Trevi Ascari A3971AA shower valve

- - Trevi TT A3969NU built-in shower valve

- - Trevi Ascari L6835AA shower valve

- - Trevi Kurve L6836AA built-in thermostatic shower valve

- - Trevi Ascari L6837AA built-in thermostatic shower valve

- - Trevi Kurve L6838AA built-in thermostatic shower valve

- - Ideal Standard Trevi Oposta L6958AA built-in thermostatic shower valve

- - Ideal Standard Academy E0126AA dual-control one-taphole bath filler

- - Ideal Standard Academy E0136AA dual-control two-taphole bath filler

- - Ideal Standard Academy E0146AA dual-control one-taphole bath/shower mixer

- - Ideal Standard Academy E0156AA dual-control two-taphole bath/shower mixer

- - Ideal Standard Cone B5106AA bath pillar taps

- - Ideal Standard Cone B5110AA dual-control two-taphole bath filler

- - Ideal Standard Cone B5111AA dual-control two-taphole bath/shower mixer

- - Ideal Standard Senses Sphere B0169AA bath pillar taps - GEN1

- - Ideal Standard Waterways E0635AA dual-control one-taphole quarter-turn bath filler - Post-May 2001

- - Ideal Standard Waterways E0645AA dual-control one-taphole quarter-turn bath/shower mixer - Post-May 2001

- - Ideal Standard Waterways E0705AA dual-control two-taphole quarter-turn bath filler - Post-May 2001

- - Ideal Standard Waterways E0715AA dual-control two-taphole quarter-turn bath/shower mixer - Post-May 2001

- - Ideal Standard Waterways E0715NP dual-control bath/shower mixer - post-May 2001

- - Sottini Alchemy E1954AA dual-control two-taphole bath filler

- - Sottini Alchemy E1955AA dual-control two-taphole bath filler

- - Armitage Shanks Sandringham E5068AA dual-control bath/shower mixer

- - Armitage Shanks Sandringham E5069AA dual-control bath filler

- - Sottini Reprise E5145AA dual-control three-taphole bath filler

- - Sottini Reprise E5165AA dual-control four-taphole bath/shower mixer

- - Ideal Standard Ceramix E5412AA dual-control two-taphole bath filler

- - Ideal Standard Ceramix E5413AA dual-control two-taphole bath/shower mixer

- - Armitage Shanks Halo S7703AA dual-control two-taphole bath filler

- - Armitage Shanks Halo S7704AA two-taphole bath/shower mixer

- - Armitage Shanks Accolade S7022AA quarter-turn bath taps

- - Armitage Shanks Accolade S7591AA dual-control one-taphole bath filler

- - Armitage Shanks Accolade S7592AA dual-control two-taphole bath filler

- - Armitage Shanks Accolade S7593AA dual-control two-taphole bath/shower mixer

- - Ideal Standard Silver E0070AA dual-control three-taphole bath filler

Before Ordering

Check the original cartridge code, closing direction and exact tap or shower model before ordering. Waterways fittings made before May 2001 can use different cartridge codes, so the production generation is particularly important.

Not sure this is the right cartridge? Use the Di Vapor part identification service.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

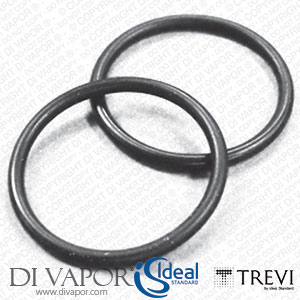

- - A961644NU Ideal Standard / Trevi Class O Ring for 1/2 Inch DX Cartridge

- - A954353NU11 Ideal Standard / Trevi 3/4 Inch Ceramic Disc Flow Cartridge Anti-Clockwise Close
