Dornbracht 35.104.970.90 3-Way Diverter Valve 3510497090 (3520397090)

SUMMARY

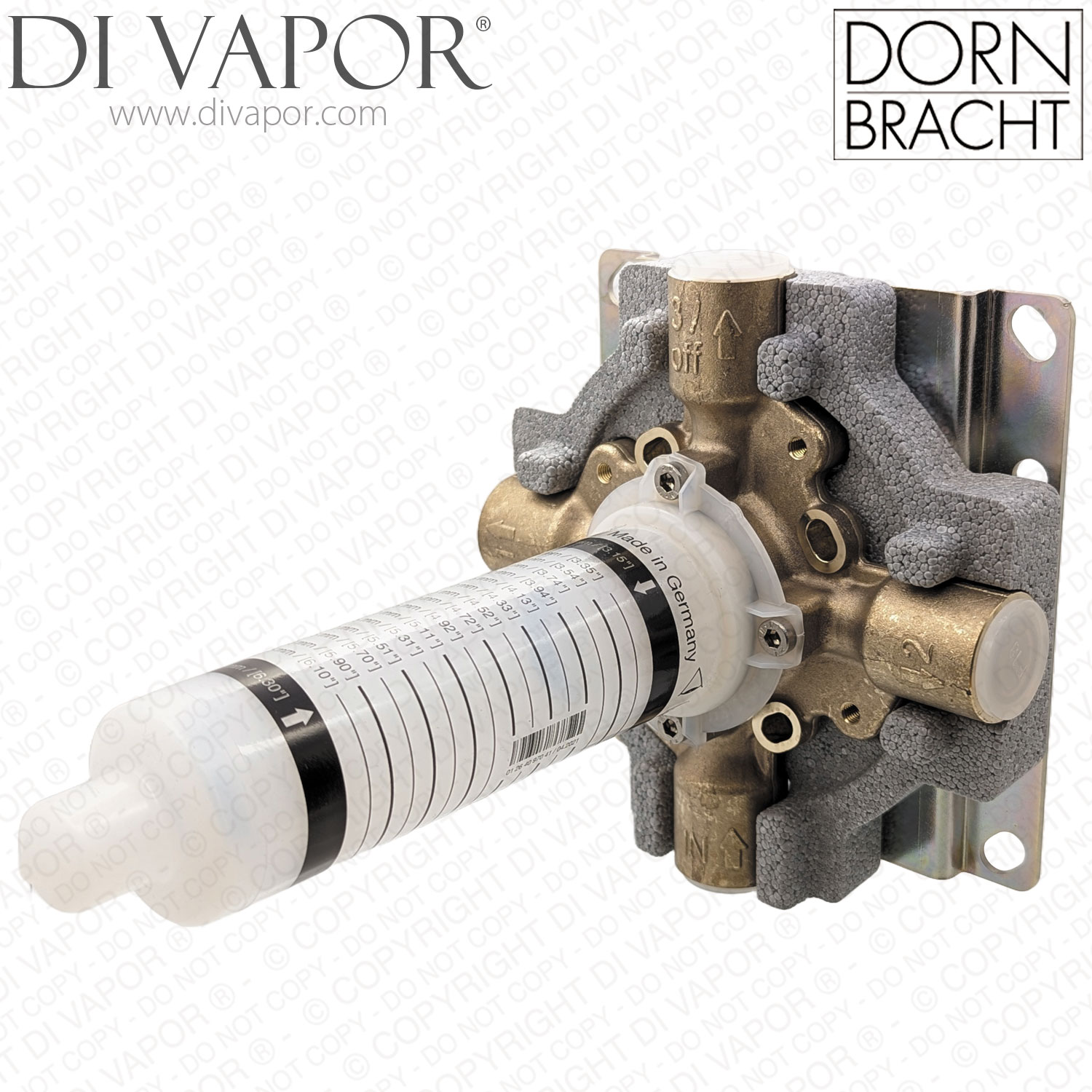

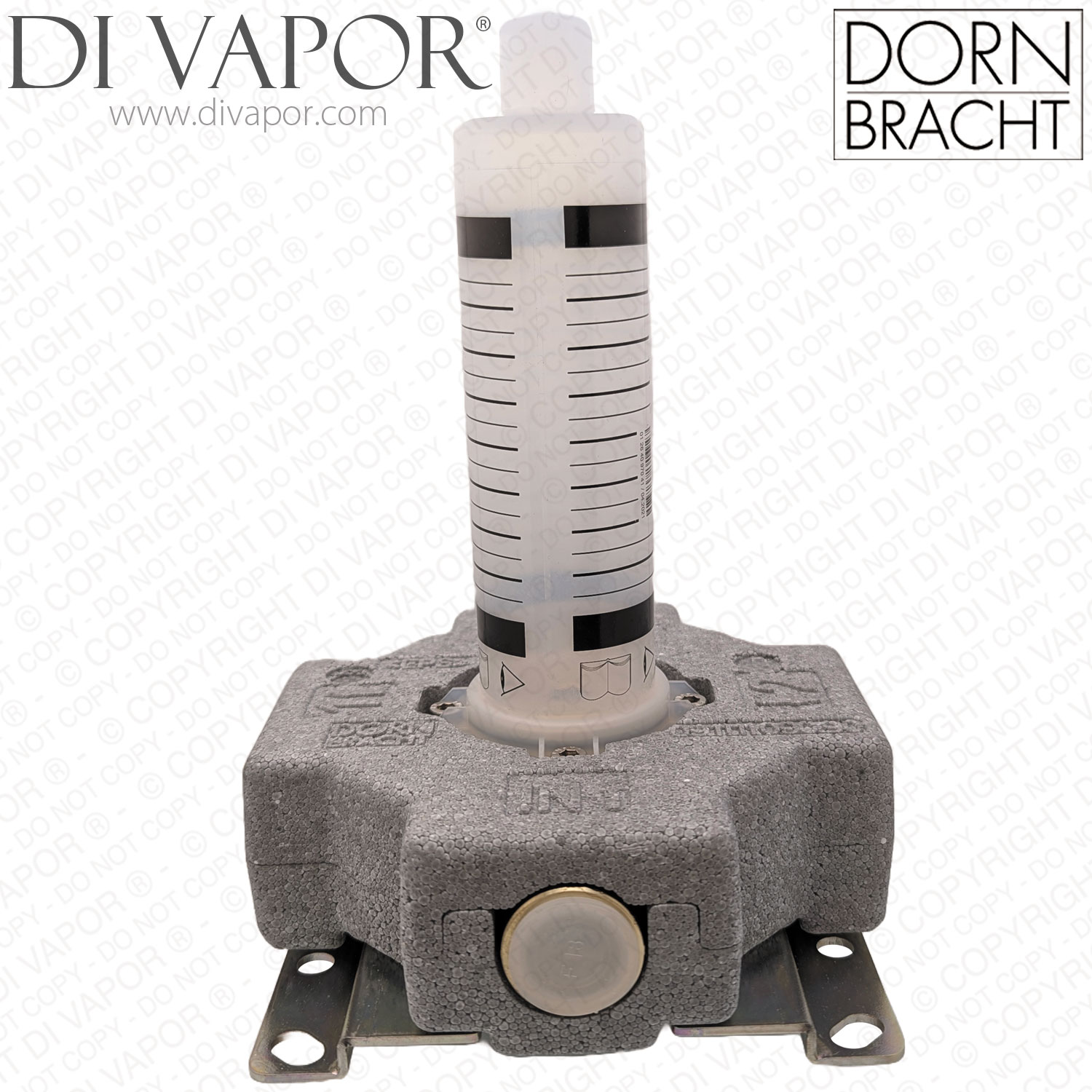

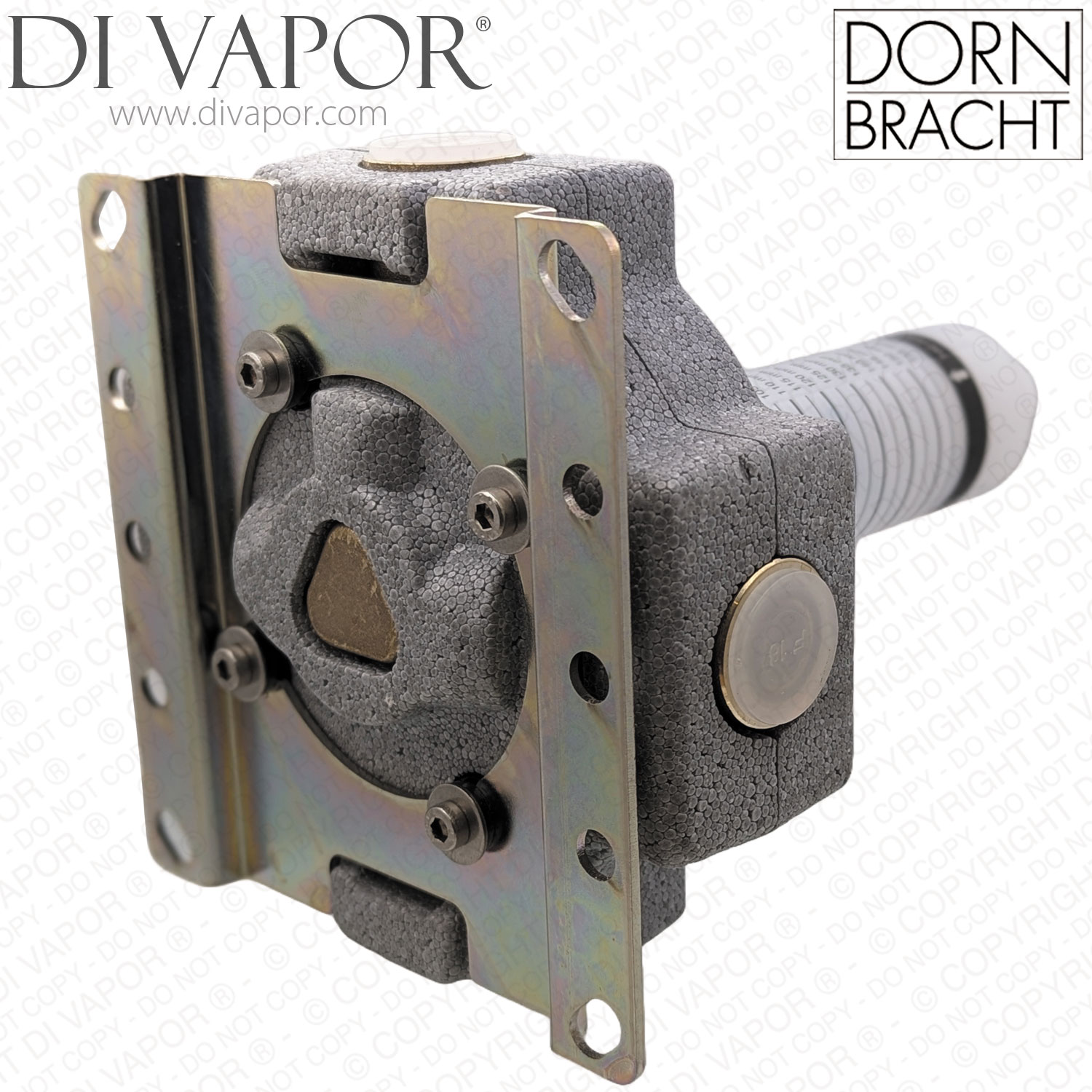

Dornbracht 35.104.970.90 is a concealed three-way diverter valve body for built-in shower and bath installations. Di Vapor identifies this valve with code 3510497090 and the cross-reference 3520397090.

This rough-in diverter is used behind the wall with matching Dornbracht 36 104 XXX exposed diverter trim sets to control outlet selection between three connected outlets. It should be selected by the concealed valve code and installation documentation rather than by handle appearance alone.

Technical Details

- - Exact Di Vapor Part Number: 35.104.970.90

- - Code variants shown for this valve: 3510497090 and 3520397090

- - Part type: concealed three-way diverter valve body / rough-in diverter valve

- - Application: Dornbracht concealed shower or bath diverter installations using 36 104 XXX trim sets

- - Construction: lead-free dezincification-resistant brass

- - Connections: 2x female-thread 1/2 inch connections and 3x female-thread 1/2 inch outlets

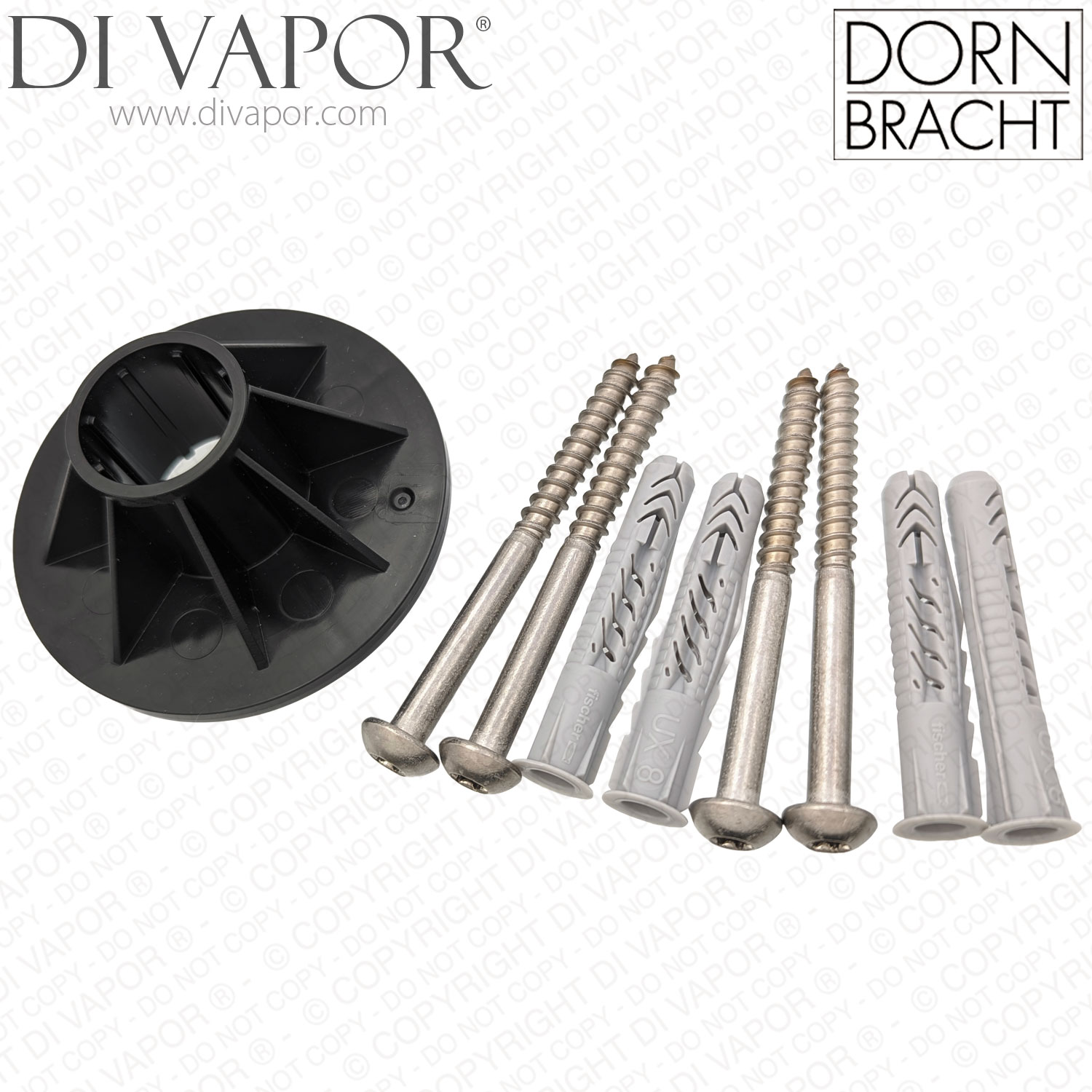

- - Supplied with cut-to-length spindle and sleeve protective casing anti-water sleeve and sound insulation

- - Check the wall depth and trim reference before ordering because the required installation depth varies by the selected exposed trim set

Confirmed Compatible Models

- - Dornbracht 36 104 900-FF DOMICIL exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 975-FF DS ONE exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 710-FF LULU exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 361-FF MADISON exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 371-FF MADISON FLAIR exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 965-FF JUST exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 730-FF SUPERNIOVA exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 892-FF TARA exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 882-FF TARA exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 819-FF VAIA exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 809-FF VAIA exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 782-FF MEM exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

- - Dornbracht 36 104 705-FF CL.1 exposed diverter trim for 35 104 970 90 / 35 104 970-90 0010 rough-in valve

Before You Order

- - Confirm the concealed rough-in valve code as 35 104 970 90 / 35.104.970.90 or 35 104 970-90 0010 before ordering this valve or its internal service parts

- - If outlet selection is stiff inconsistent or water passes to the wrong outlet check the diverter repair kit and internal spindle components as well as the complete concealed valve body

- - If water drips from a shower head or spout when the fitting is turned off also check the shut-off or flow control components for the full valve assembly because the diverter is not always the only possible cause

Related Spares You May Need

- - Dornbracht 9030110850090 Diverter

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Dornbrracht 09210212490 Mounting Block

- - Dornbracht 0418400770090 Spindle Assembly

- - Dornbracht 09121200290 Spline Adapter

- - Dornbracht 09184007790 Brass Sleeve

- - Dornbracht 9018400770090 Spindle Sleeve for Concealed Thermostatic Shower Valves
