Vola VR5400 Diverter Used in the Old 5400 Model

SUMMARY

Vola VR5400 Used in the Old 5400 Model

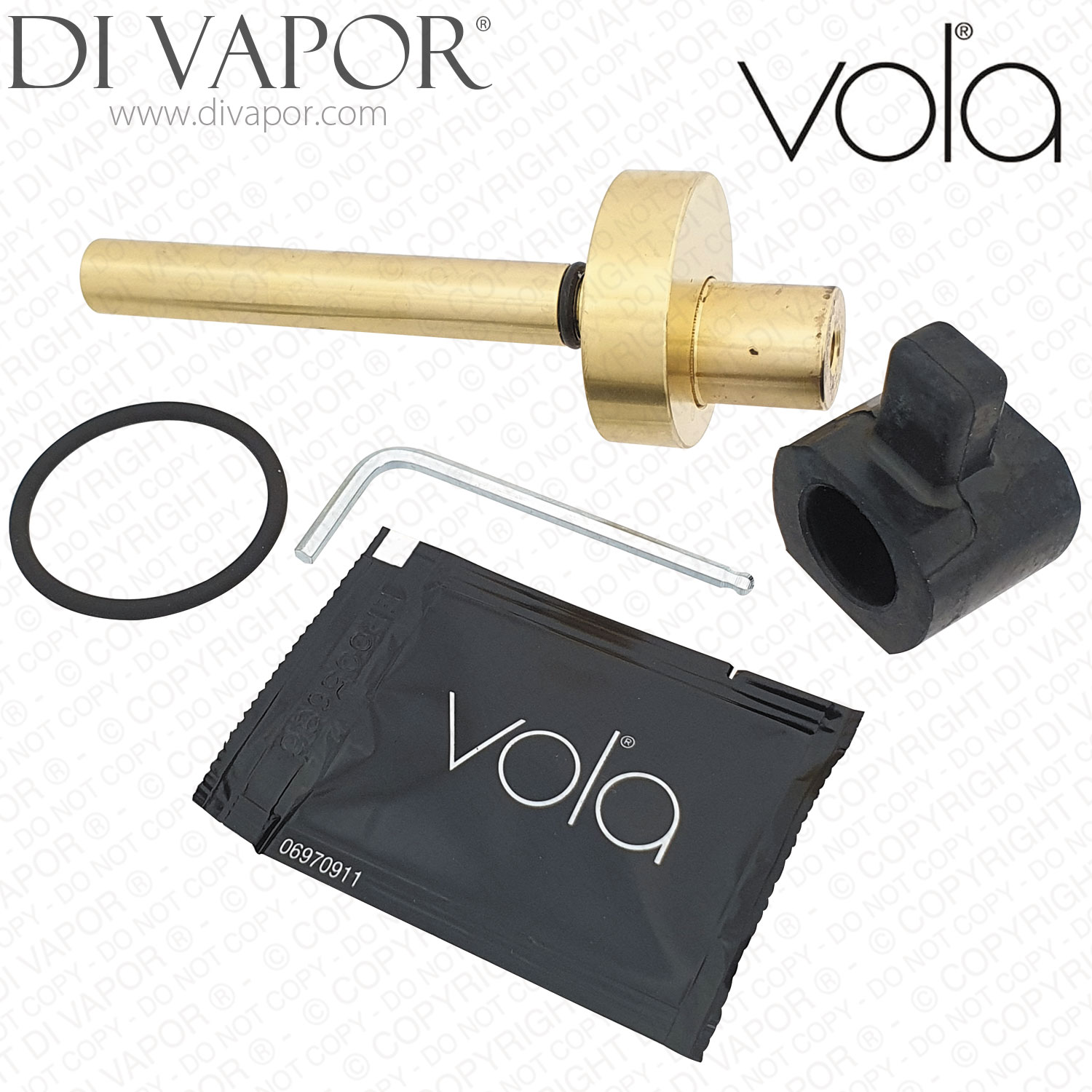

The Vola VR5400 is a diverter cartridge for the old Vola 5400 built-in thermostatic mixer. It is used on the earlier 5400 diverter arrangement and should be matched to the installed valve version before ordering.

This diverter controls outlet selection on the shower valve. A worn or scaled diverter cartridge can cause poor outlet selection, stiff operation, water passing to the wrong outlet or water dripping from the shower head or spout when the valve is turned off.

Technical Details

- - Brand: Vola

- - Part Number: VR5400

- - Part type: diverter cartridge

- - Application: old Vola 5400 built-in thermostatic mixer diverter

- - Manufacturer extension reference: VR5400 Standard for 3-15 mm wall coating with X measurement 37 - 49 mm from spindle top to finished wall

- - Later Vola 5400 and 5600 diverter applications from 01/01/2018 are listed separately by Vola as VR5410 so check the age and installed valve version before ordering VR5400.

Confirmed Model Use

- - Vola Thermostatic Mixer with Diverter and Two Separate Outlet Sockets 5400 Spare Parts - Old Model

Pre-Order Checks

- - Confirm the valve is the old Vola 5400 diverter version before 01/01/2018.

- - Measure from the spindle top to the finished wall where an extended diverter length may be required.

- - Check the existing diverter code and compare the wall build-up before choosing VR5400 or an extended VR5400 variant.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Vola VR5400+10 Used in the Old 5400 Model

- - Vola VR5400+20 Diverter Used in the Old 5400 Model

- - Vola VR5400+30 Used in the Old 5400 Model

- - Vola VR5400+40 Used in the Old 5400 Model

- - Vola VR5400+50 Used in the Old 5400 Model

If the installed diverter does not match VR5400 or the wall depth is outside the standard range, contact Di Vapor with a photo of the existing cartridge and valve trim for part identification before ordering.
