Vola VR5400+20 Diverter Used in the Old 5400 Model
Send a photo of your item and we'll help confirm it.
Summary

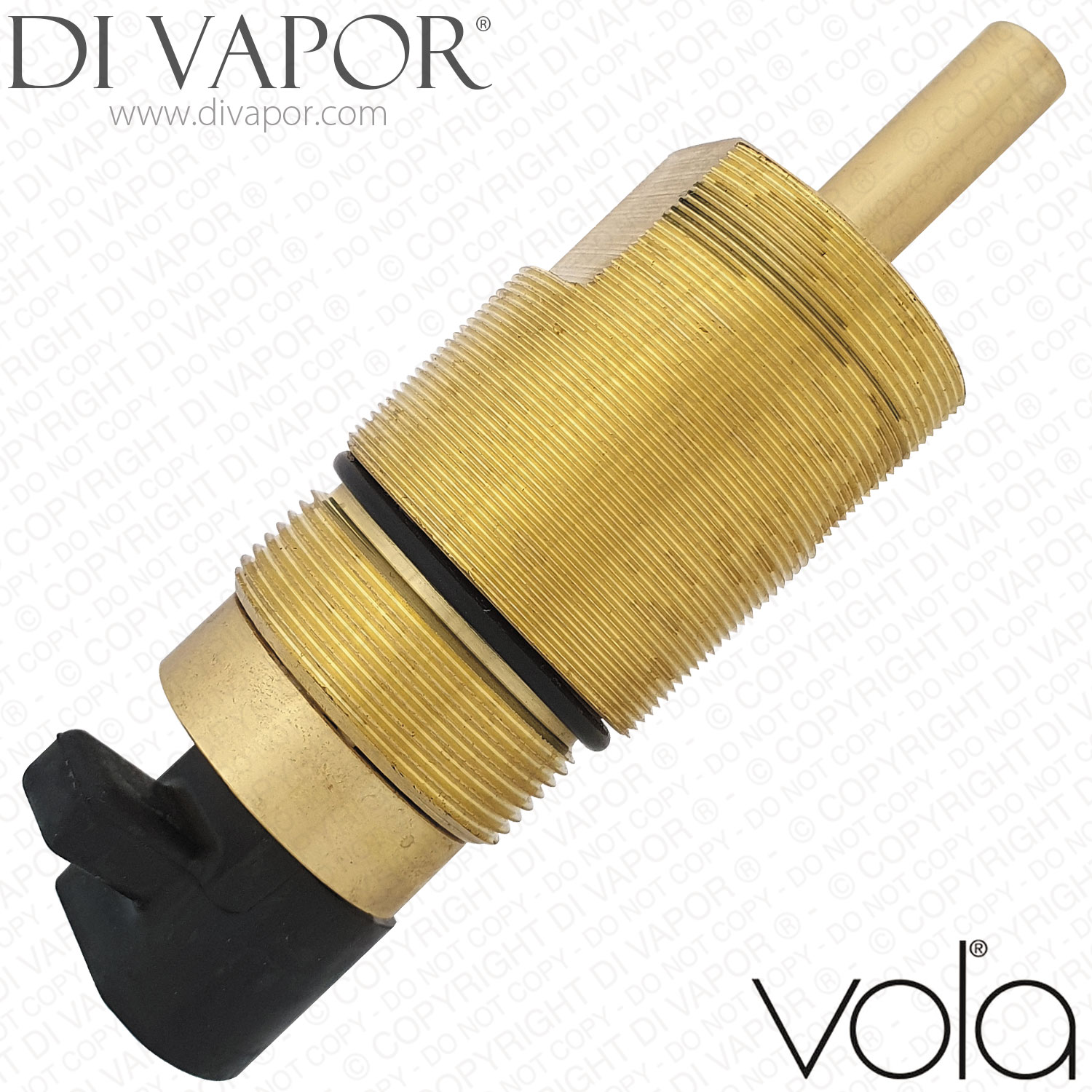

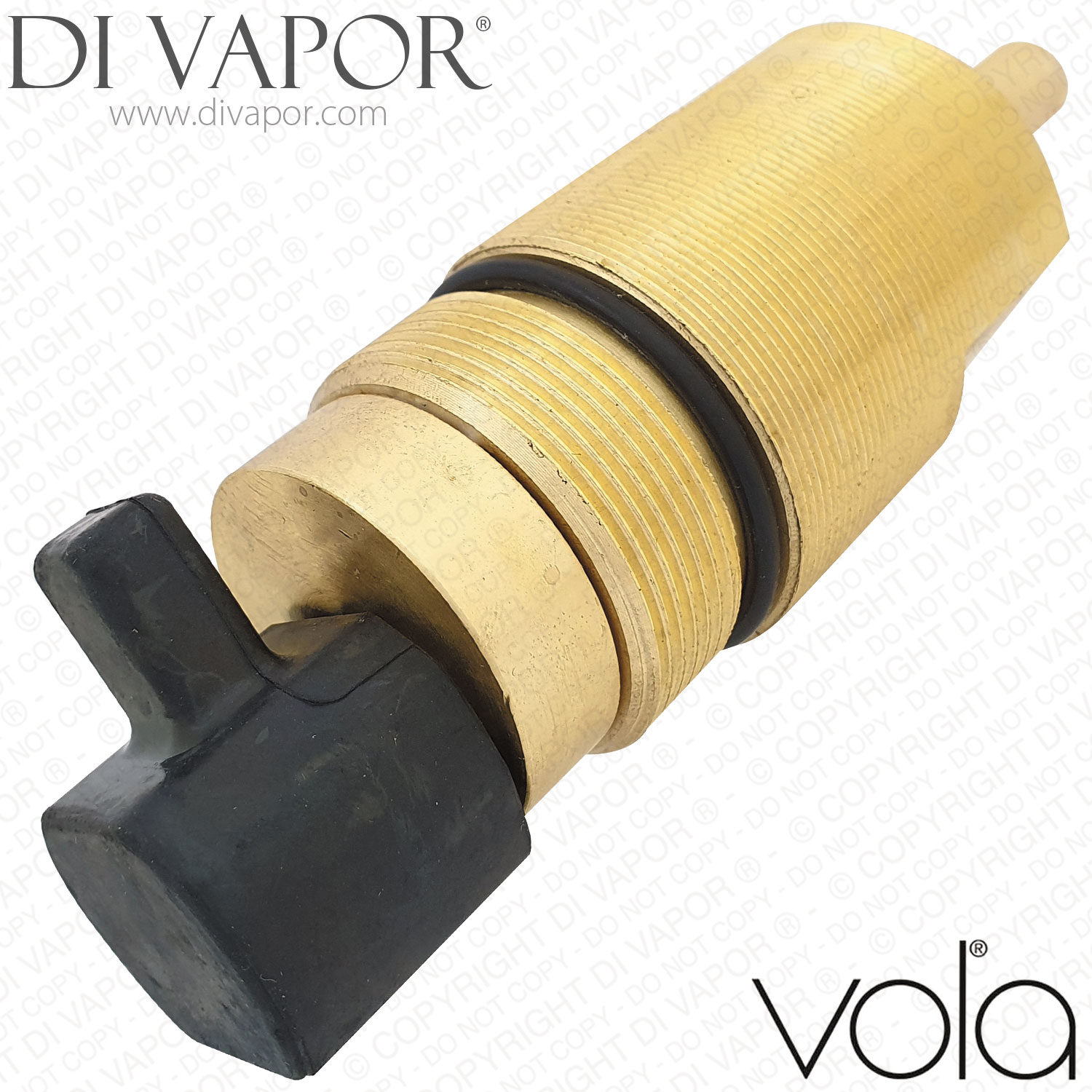

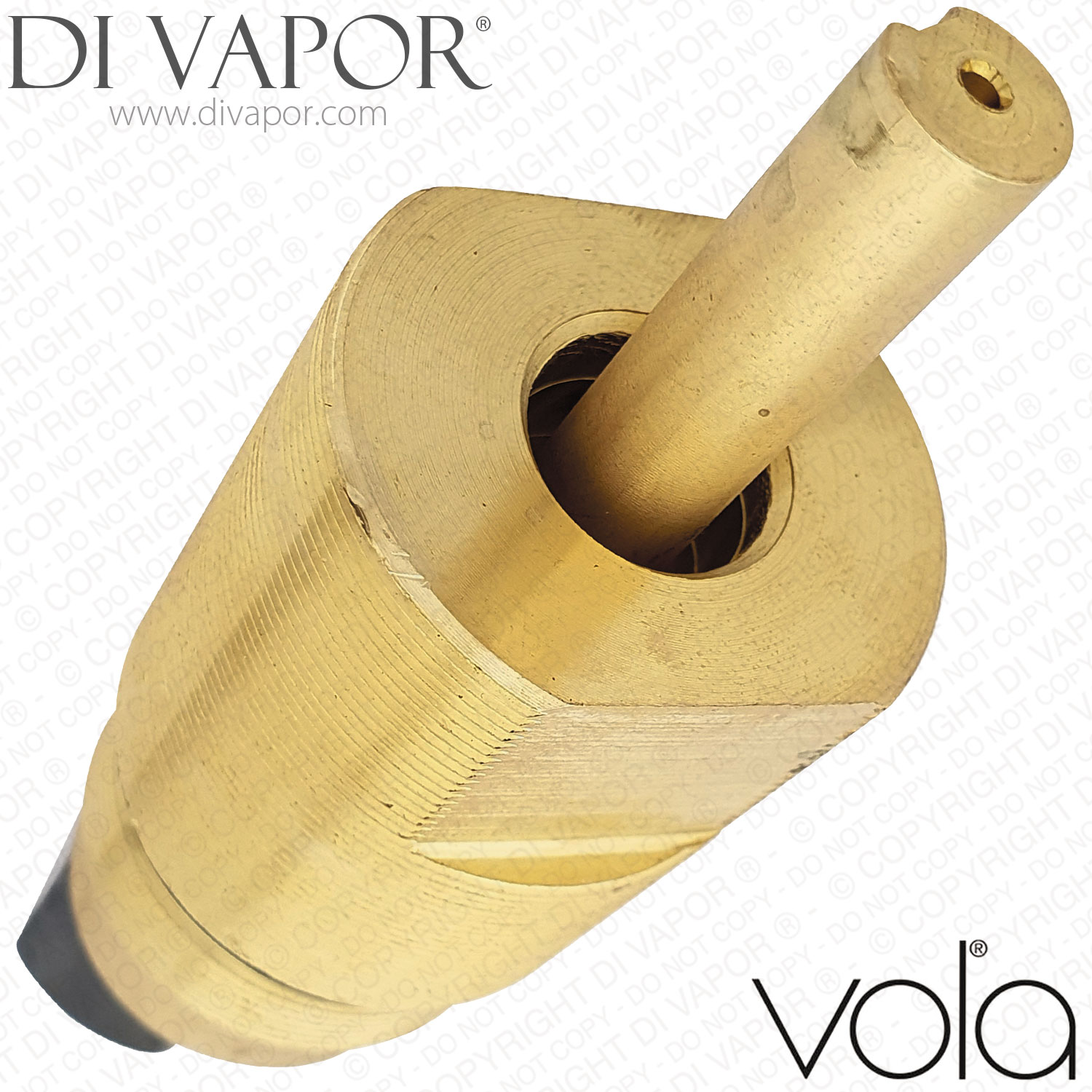

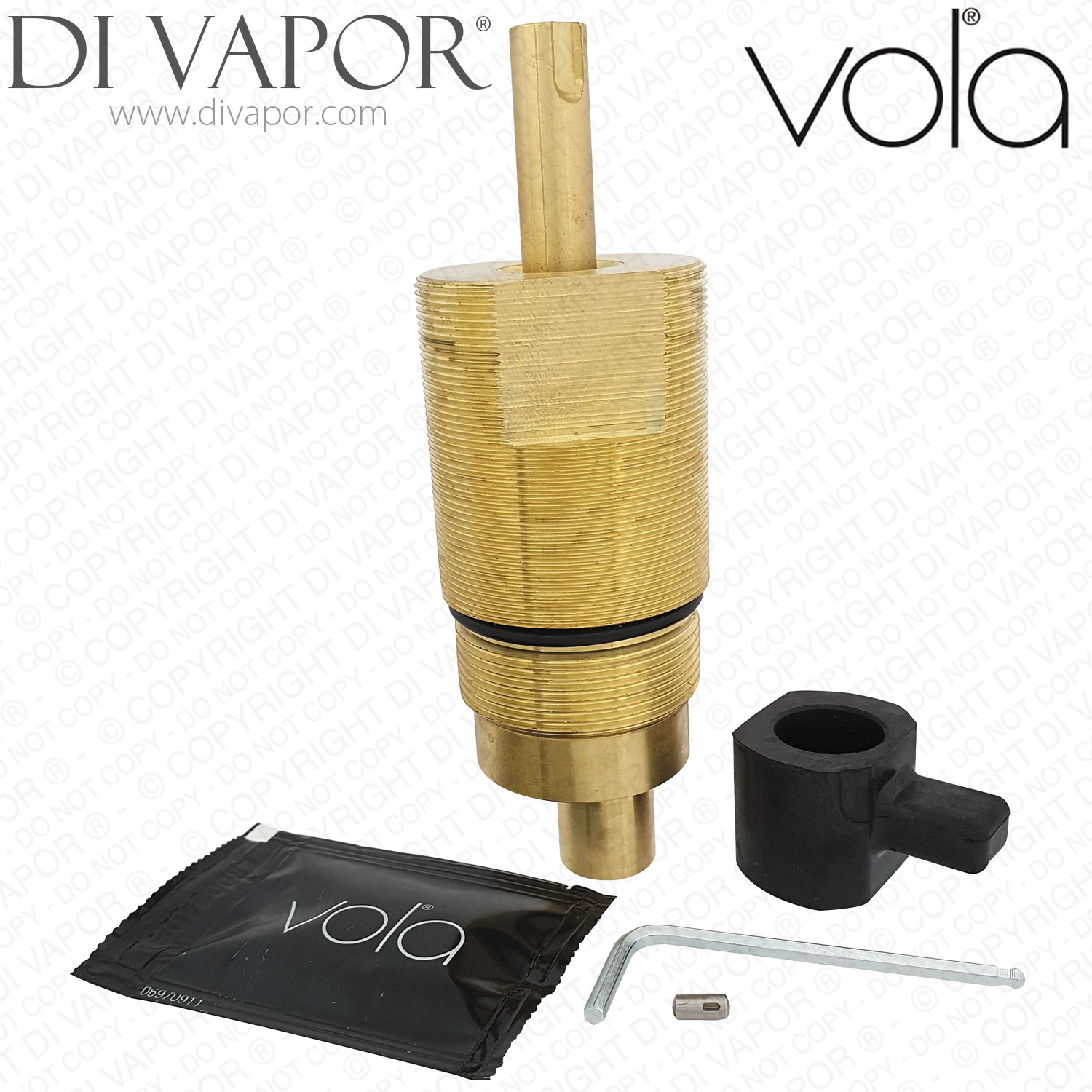

Vola VR5400+20 Used in the Old 5400 Model
Vola VR5400+20 is a diverter spindle cartridge for the old Vola 5400 thermostatic mixer with diverter. The +20 version corresponds to the VOLA VR5400 + 20 spindle size for old 5400 diverters before 01/01/2018, with VOLA’s listed T range of 25-35 mm and X measurement of 17-27 mm.
This part controls outlet diversion within the old 5400 diverter assembly. It is for the earlier 5400 diverter arrangement and should not be ordered as a substitute for later VR5410 or VR5268 assemblies unless the valve generation and installed measurements have been checked first.
Technical Details
| Part Number | VR5400+20 |
|---|---|
| Total length excluding black rubber part | 116 mm |
| Diameter at top thread | 39 mm |
| Diameter at bottom thread | 35.8 mm |
| VOLA +20 selection range | T 25-35 mm |
| VOLA X measurement for VR5400 + 20 | 17-27 mm from end of spindle to finished wall |
Check the existing diverter spindle length and wall-depth measurements before ordering. A common sign of a worn or scaled diverter cartridge is poor outlet selection or water continuing to pass to a shower head or outlet when the shower is turned off.
Confirmed Compatible Models
- Vola Thermostatic Mixer with Diverter and Two Separate Outlet Sockets (5400) Spare Parts - old 5400 diverter arrangement
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - apply to o-rings and bottom seals during cartridge installation
- Vola VR5268 4-Way Diverter Cartridge - check the valve generation before ordering as this is not presented as a direct substitute for VR5400+20
For uncertain identification send clear photos of the removed diverter spindle and the finished-wall measurement before ordering.
