Vado CEL-001F-V2-DIV Diverter Cartridge with Sleeve
Send a photo of your item and we'll help confirm it.
Summary

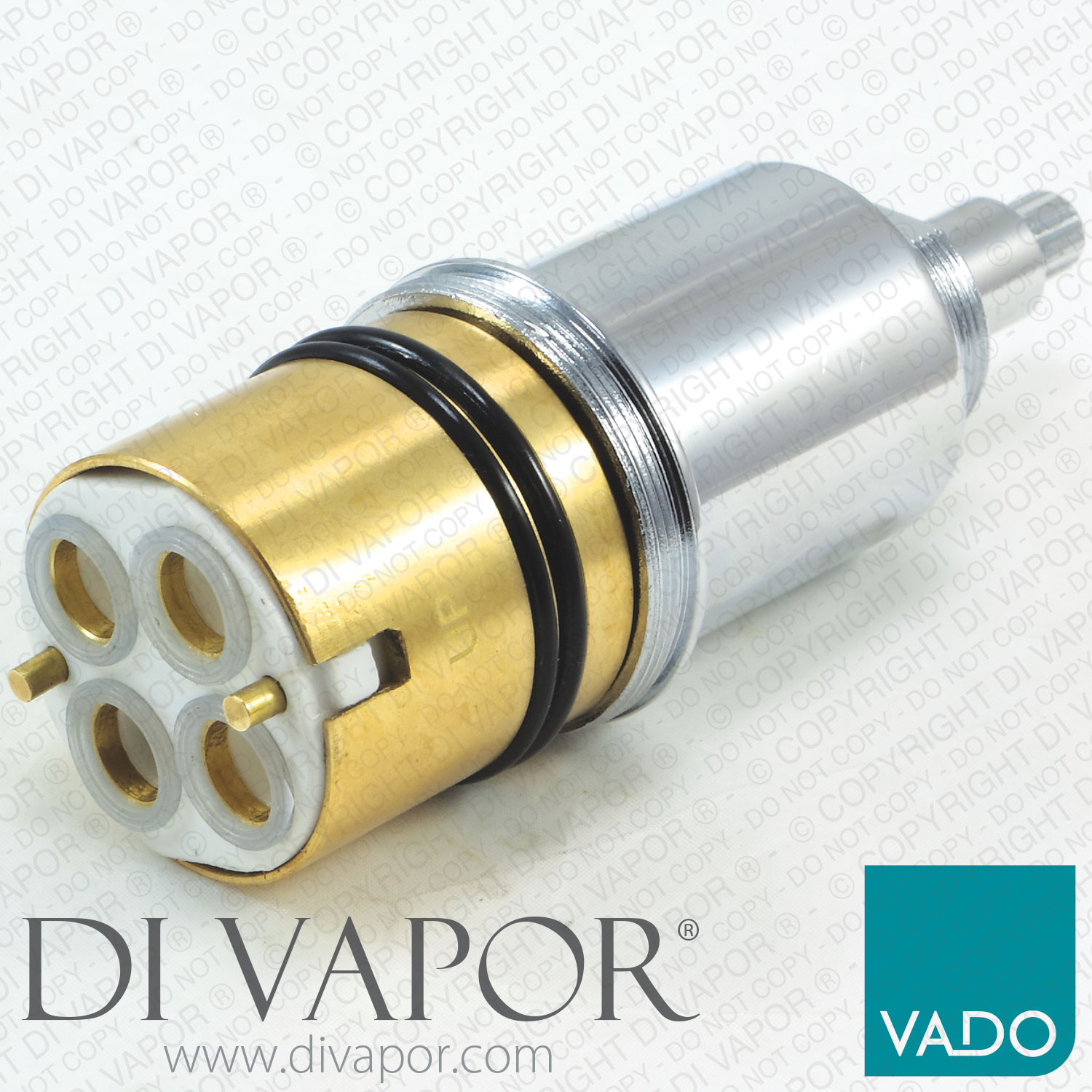

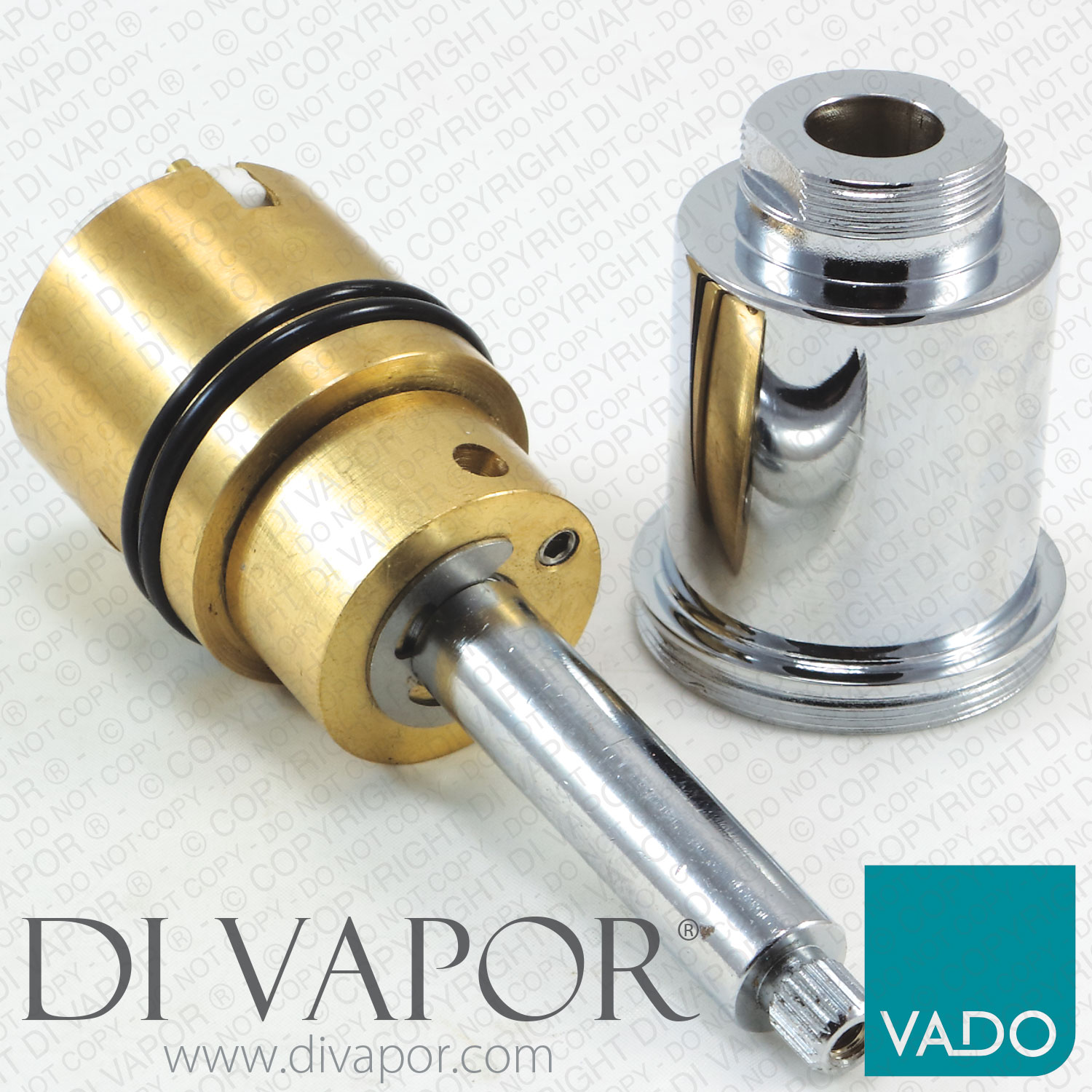

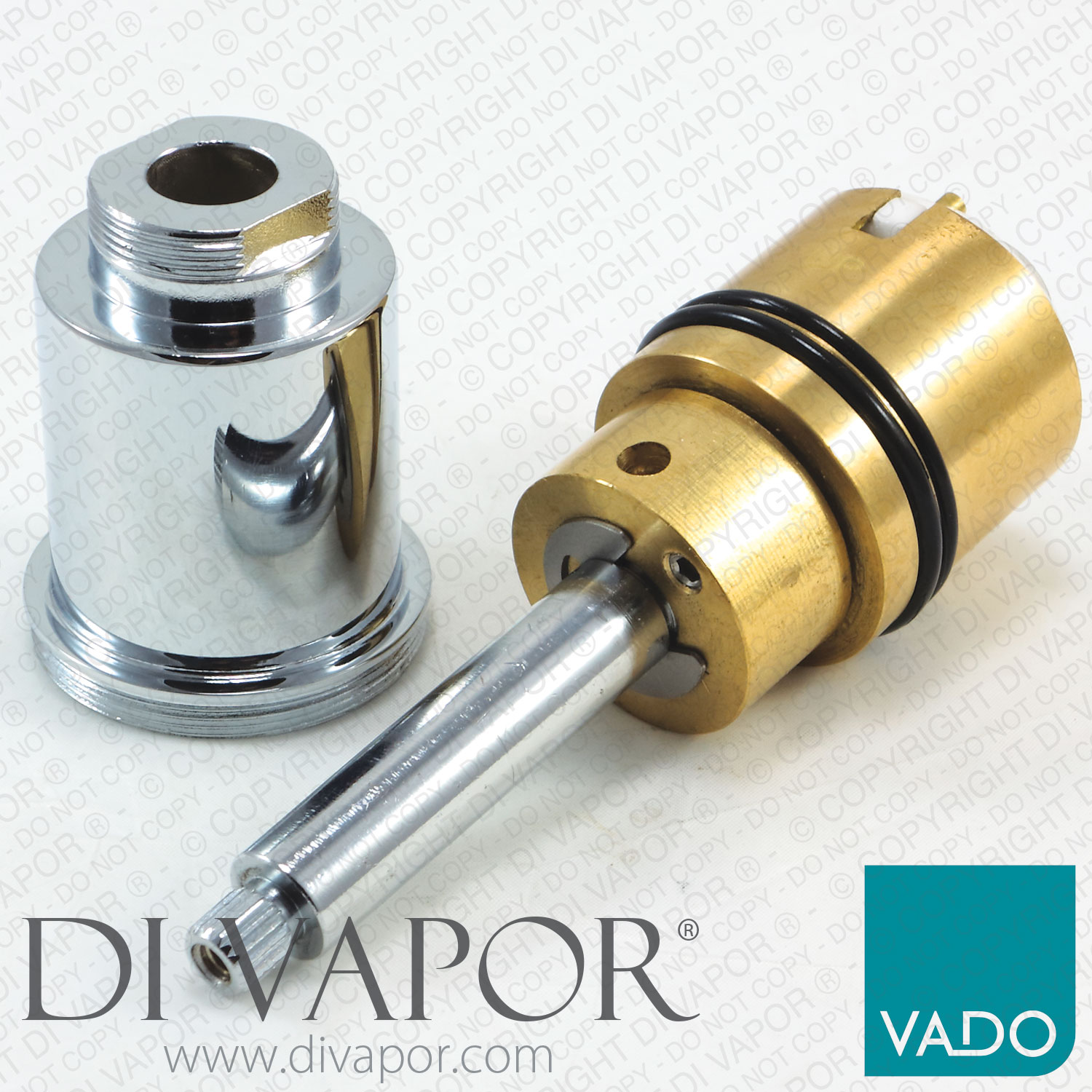

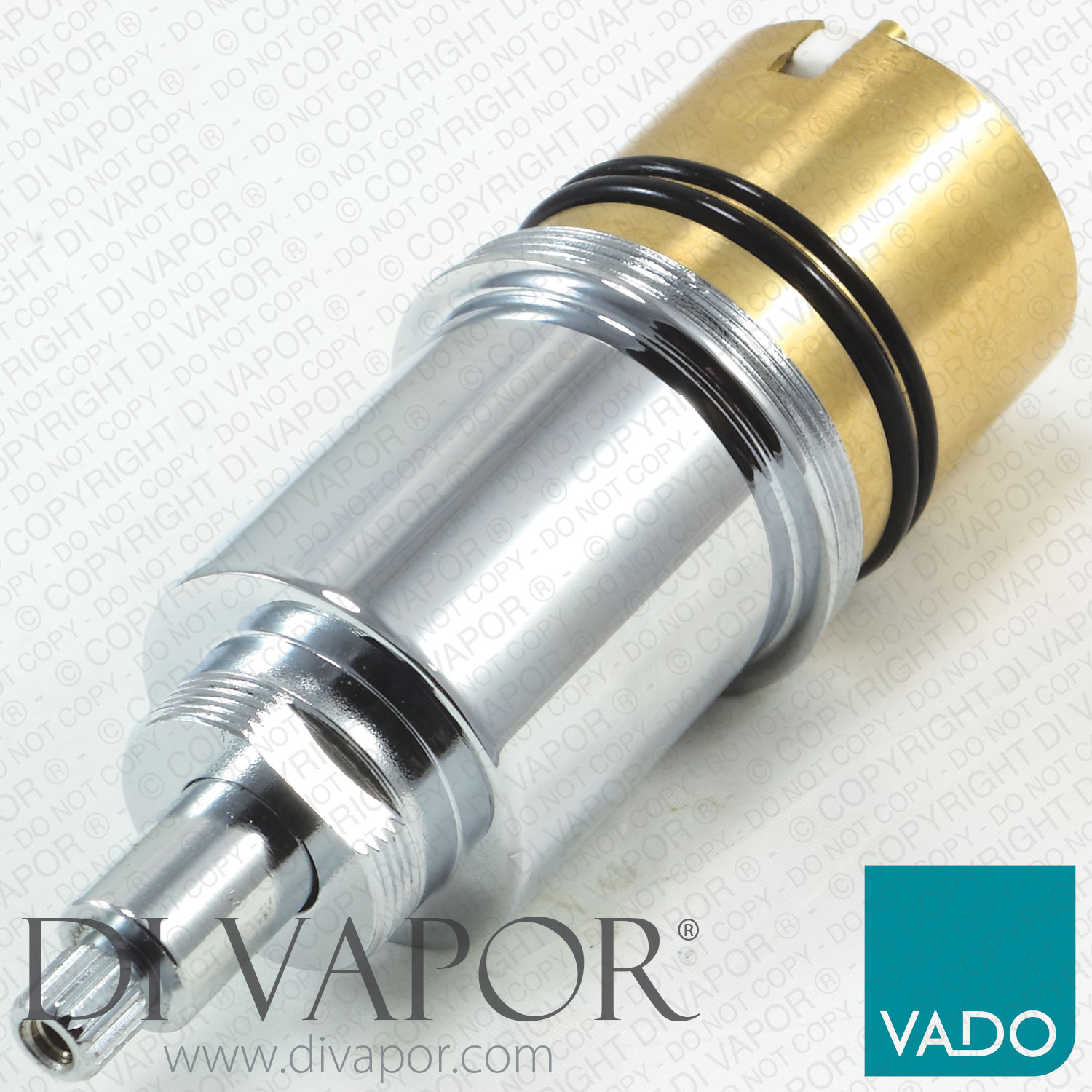

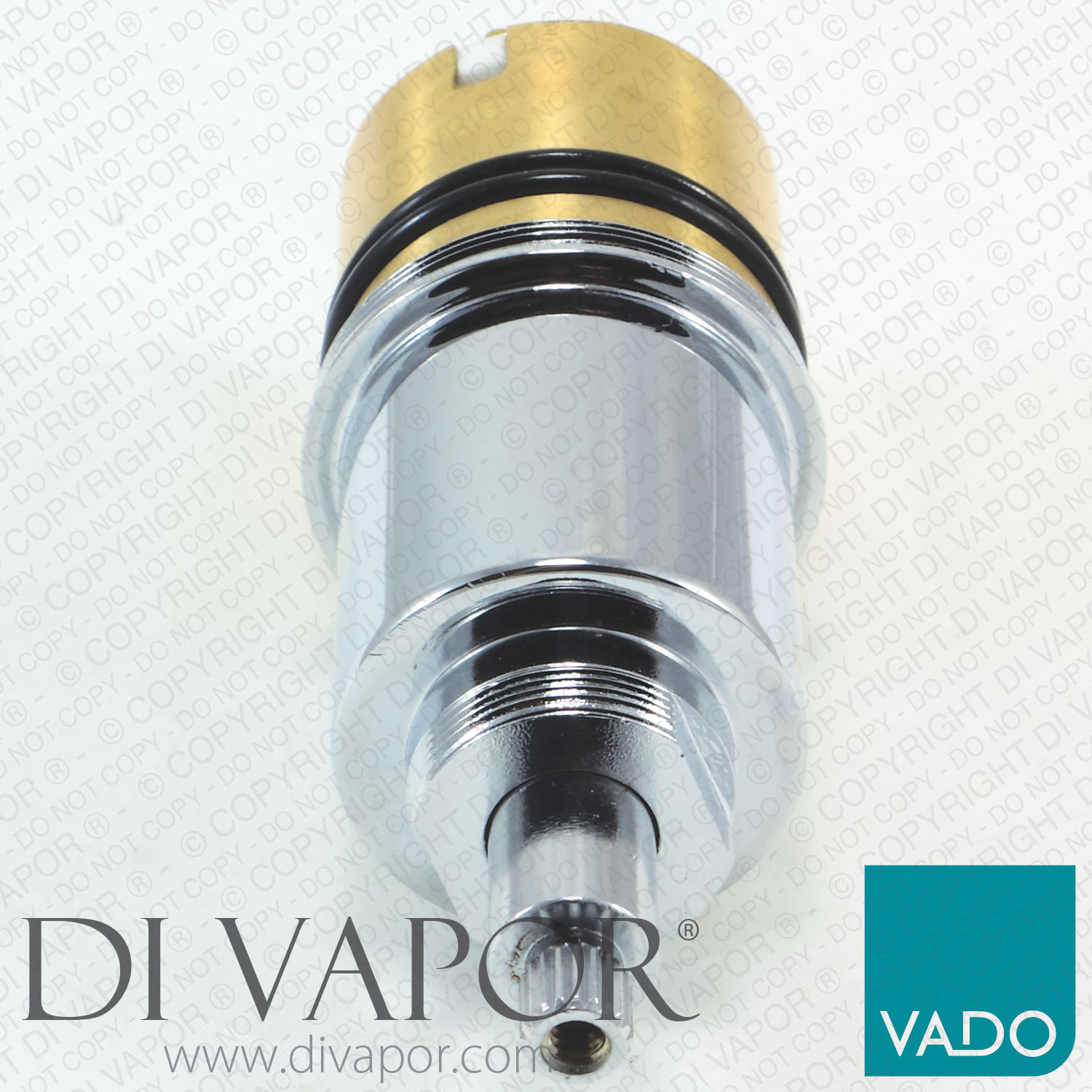

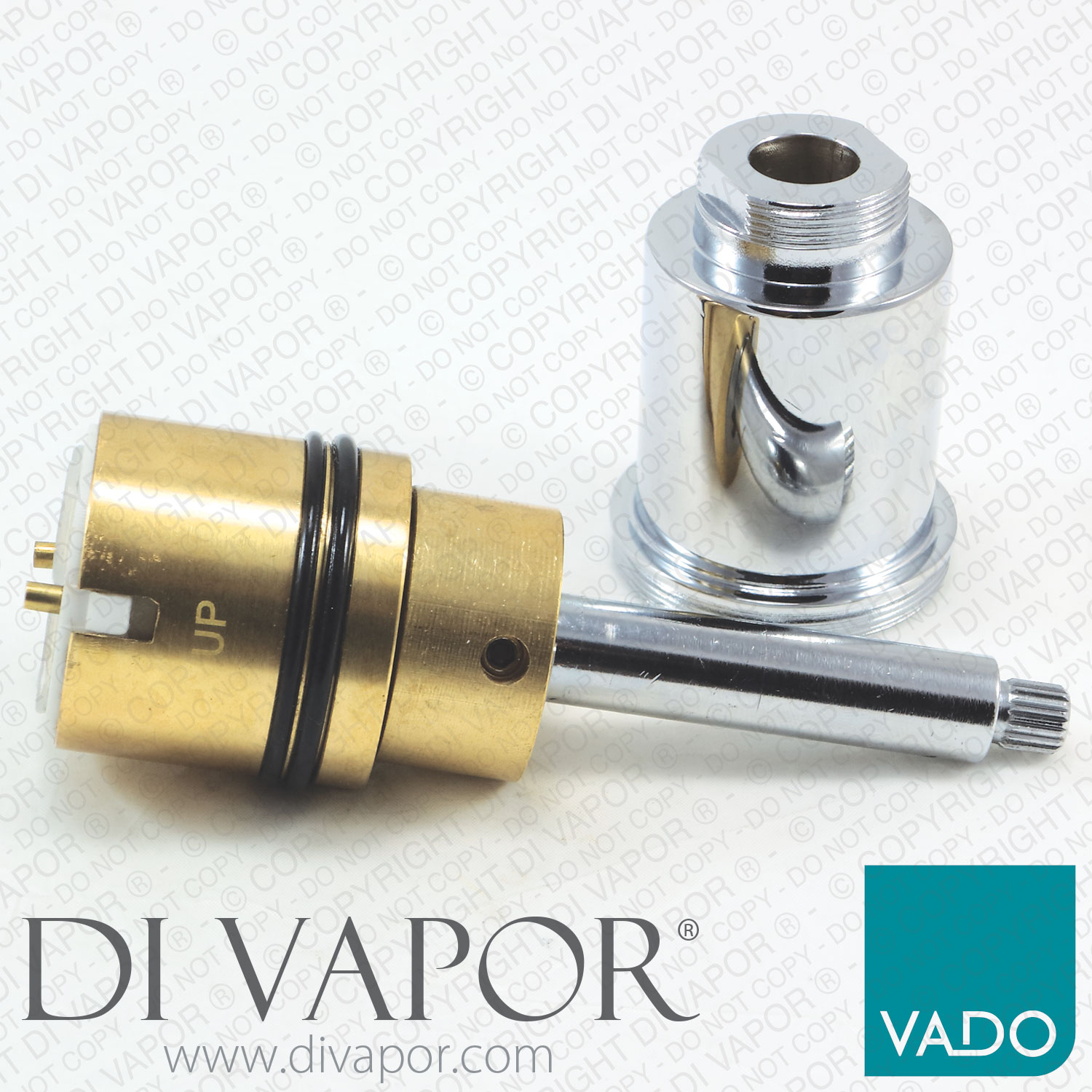

Vado CEL-001F-V2-DIV Diverter Cartridge with Sleeve
Overall length approximately 102mm with 40mm width at widest point.
| Brand | Vado |
|---|---|
| Product | Diverter Cartridge V2 including Sleeve |
| Number of External O-Ring | 6 |
Vado CEL-001F-V2-DIV Cartridge Measurements:
| Total Length (including bottom seal) | 111mm (excluding locating pins) |
|---|---|
| Diameter at Widest Point | 38mm (at o'ring) |
| Brass Spindle Length (Including Spline) | 58mm |
| Top Spline Diameter | 7.9mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 35.5mm to 36.5mm |
| Number of Function Outlets | 4 |
Distance Between Locating Pins at Bottom (Centre to Centre): 27mm
Chrome Collar Measurements:
| Total Length | 52mm |
|---|---|
| Diameter at Widest Point | 41mm (Above Bottom Thread) |
| Brass Spindle Length (Including Spline) | 58mm |
| Barrel Diameter | 35mm |
| Top Thread Diameter | 23.8mm |
| Bottom Thread Diameter | 40mm |
This Vado CEL-001F-V2-DIV Diverter Cartridge V2 is compatible with two- and three-way concealed thermostatic shower valves released by the manufacturer:
- Vado Celsius
- Vado Elements
- Vado Notion
- Vado Nuance
- Vado Origins
- Vado Soho
- Vado Tonic
Vado diverter cartridge CEL-001F-V2-DIV is similar to the now discontinued CEL-001F-DIV. Both cartridges are available at Di Vapor.
Relaying the flow of water from a bath tap to a showerhead requires the work of a Vado CEL-001F-V2-DIV diverter cartridge. Chambered inside the valve unit, small as the apparatus is, it can effectively shift the course of high pressure water flow without any leakage.
When water drips from the tap while using the shower or when water no longer diverts from one outlet to another, the cause of the problem might originate from the diverter cartridge. This is because of the usual wear and tear experienced by it through years of use.
A tip to help extend the life of a diverter cartridge is to revert water flow to the tap and let it flow for a couple of seconds before shutting it off.
Changing a Vado Diverter Cartridge CEL-001F-V2-DIV
To replace a diverter cartridge, ensure you have the right replacement part and cold and hot water supplies are completely isolated.
Unscrew the flow control and the thermostatic control handle. Proceed to remove all underlying rings (i.e. cover plate rings, flow valve ring, stop ring, and temperature valve ring) and the cover plate.
The diverter cartridge is usually located on the top part of the valve. Take the sleeve out.
Use an Allen key to undo the grub screw holding the diverter cartridge to extract it.
Prior to fitting the new CEL-001F-V2-DIV Vado diverter cartridge in, scan the valve for grit and other sediments. Clean it with a soft brush or cloth if necessary.
Layer a small amount of silicone lubricant on all the o-rings of the new cartridge. Align it with the lock pins as you install it. Secure and tighten using an Allen key. Place the new diverter sleeve on.
Begin to reassemble the valve by sliding the cover plate back and restoring the temperature valve ring, flow valve ring, cover plate rings, and the stop ring. Affix the flow and thermostatic control handles.
The CEL-001F-V2-DIV Diverter Cartridge with Sleeve is a genuine Vado replacement part. All shower spare parts purchased before 3:00 PM (Monday - Friday) will be dispatched on the same day.
