Vado CEL-001F-DIV Diverter Cartridge for 2-Way and 3-Way Valves
Send a photo of your item and we'll help confirm it.
Summary

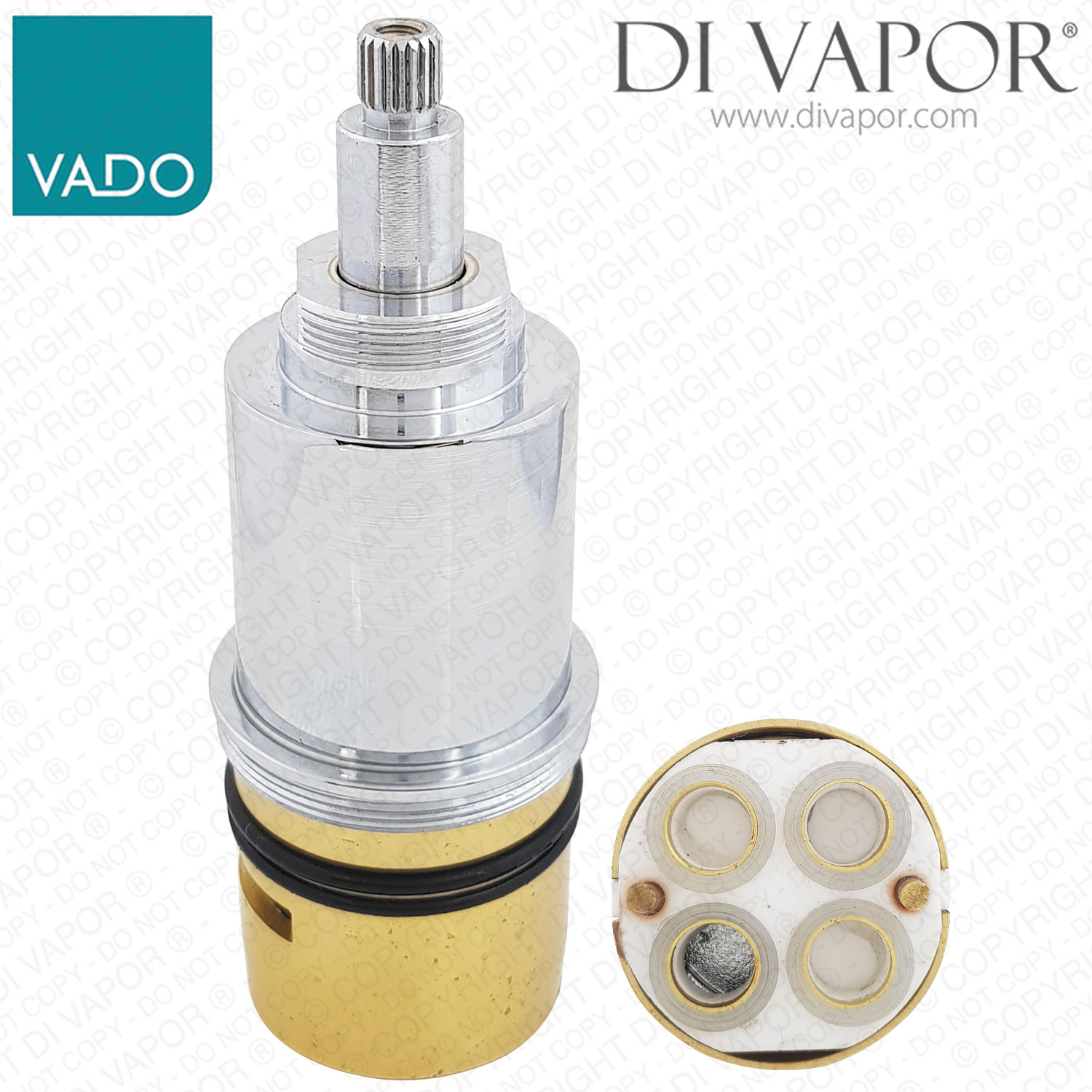

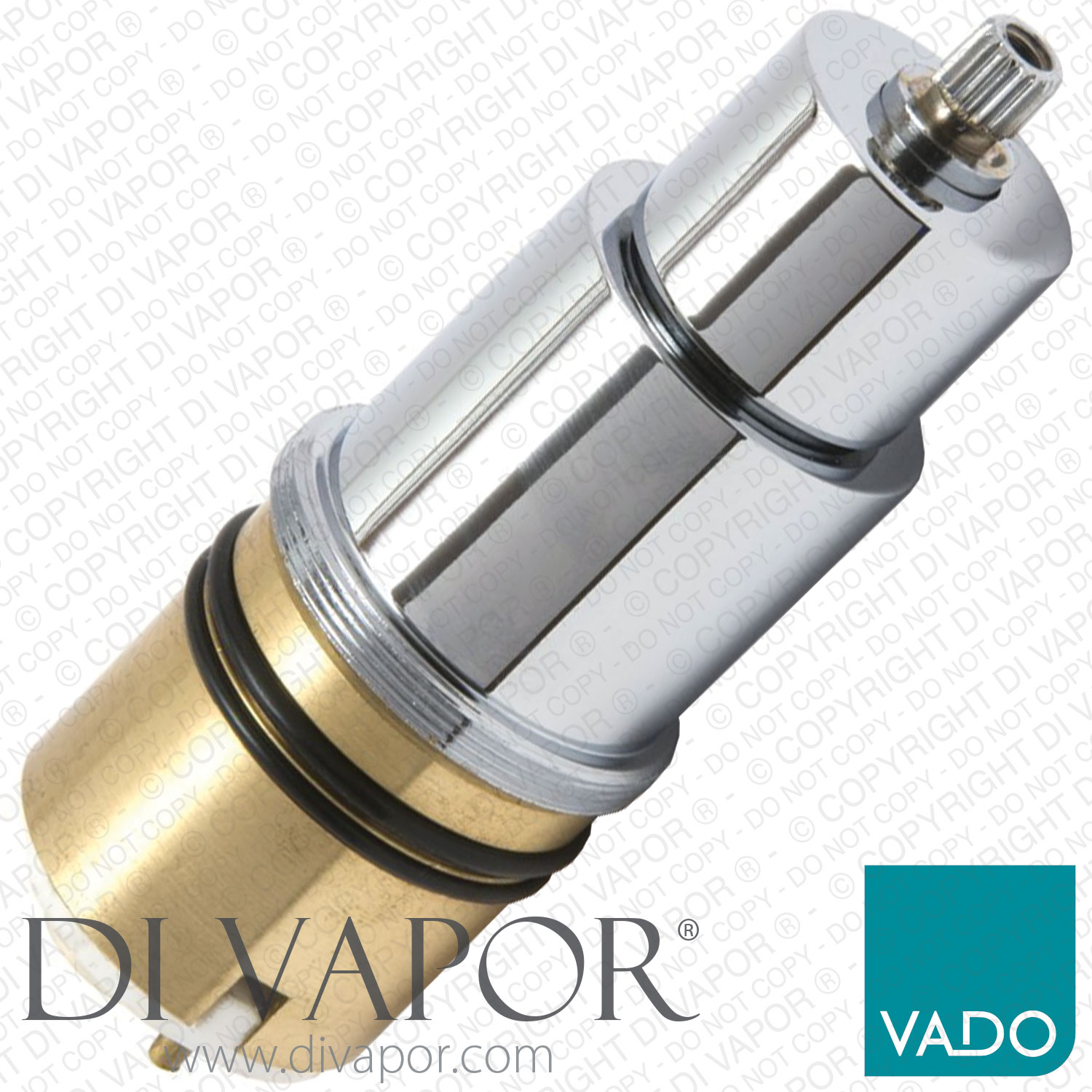

The Vado CEL-001F-DIV is a diverter cartridge for Vado 2-way and 3-way shower valves in the CEL-148/2 and CEL-148/3 Celsius valve range. It controls the diversion of water between shower outlets and is supplied as the diverter cartridge with chrome collar measurements listed for the valve assembly.
A worn or seized diverter cartridge can affect outlet selection and may cause water to pass to the wrong outlet or drip from the shower head or spout when the valve is turned off. Before ordering, compare the cartridge code and the key measurements below with the cartridge removed from the valve.
Technical Details
| Part Number | CEL-001F-DIV |
|---|---|
| Cartridge total length including bottom seal | 111mm excluding locating pins |
| Diameter at widest point | 38mm at o-ring |
| Brass spindle length including spline | 58mm |
| Top spline diameter | 7.9mm |
| Top spline teeth / notches | 20 |
| Barrel diameter | 35.5mm to 36.5mm |
| Number of function outlets | 4 |

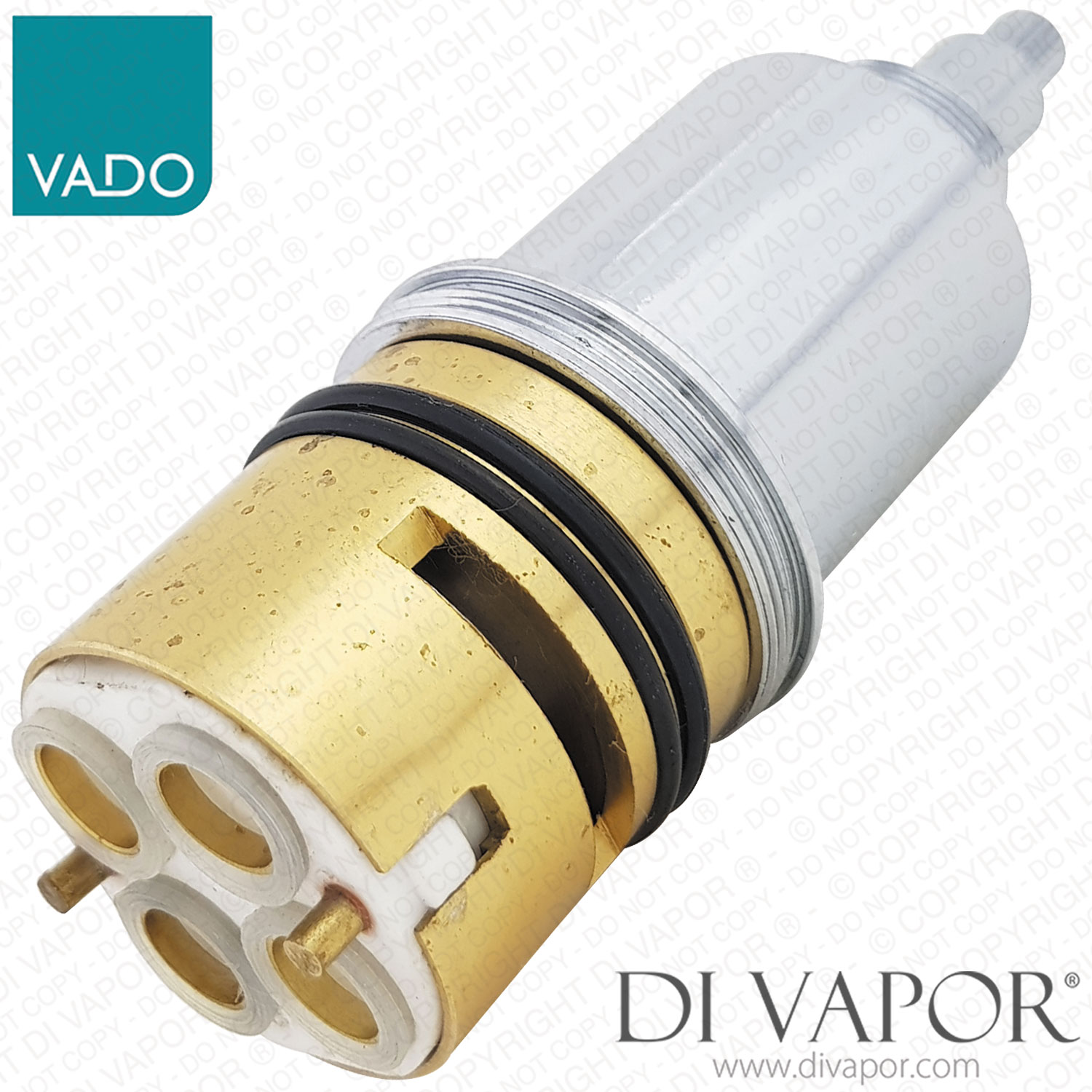

- Distance between locating pins at bottom centre to centre: 27mm

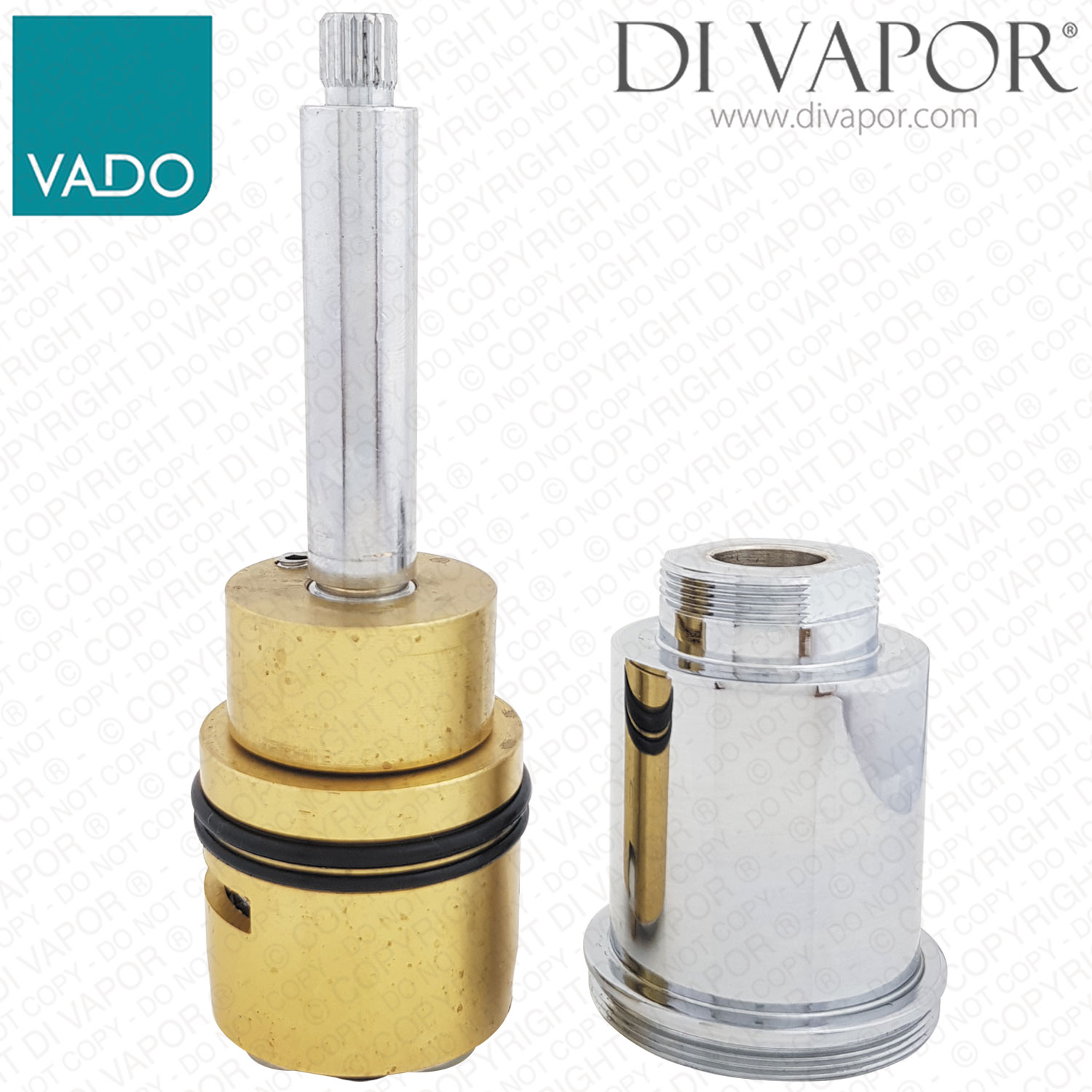

| Chrome collar total length | 52mm |
|---|---|
| Chrome collar diameter at widest point | 41mm above bottom thread |
| Chrome collar barrel diameter | 35mm |
| Chrome collar top thread diameter | 23.8mm |
| Chrome collar bottom thread diameter | 40mm |
Confirmed Compatible Models
Installation and Checking Notes
Isolate the hot and cold water supplies before removing the existing cartridge. Clean the valve body before fitting the replacement and apply a small amount of WRAS approved silicone grease to the o-rings and bottom seals. Make sure the locating pins are aligned correctly when the cartridge is seated.
Troubleshooting
- Symptom: Water no longer diverts correctly between outlets. Likely Cause: worn or damaged diverter cartridge. Solution: replace the diverter cartridge after checking the code and measurements.
- Symptom: Water drips from the shower head or spout when turned off. Likely Cause: diverter cartridge wear or debris inside the valve. Solution: inspect the cartridge and clean the valve body before installing the replacement.
