Triton 83316690 Diverter Cartridge
Send a photo of your item and we'll help confirm it.
Summary

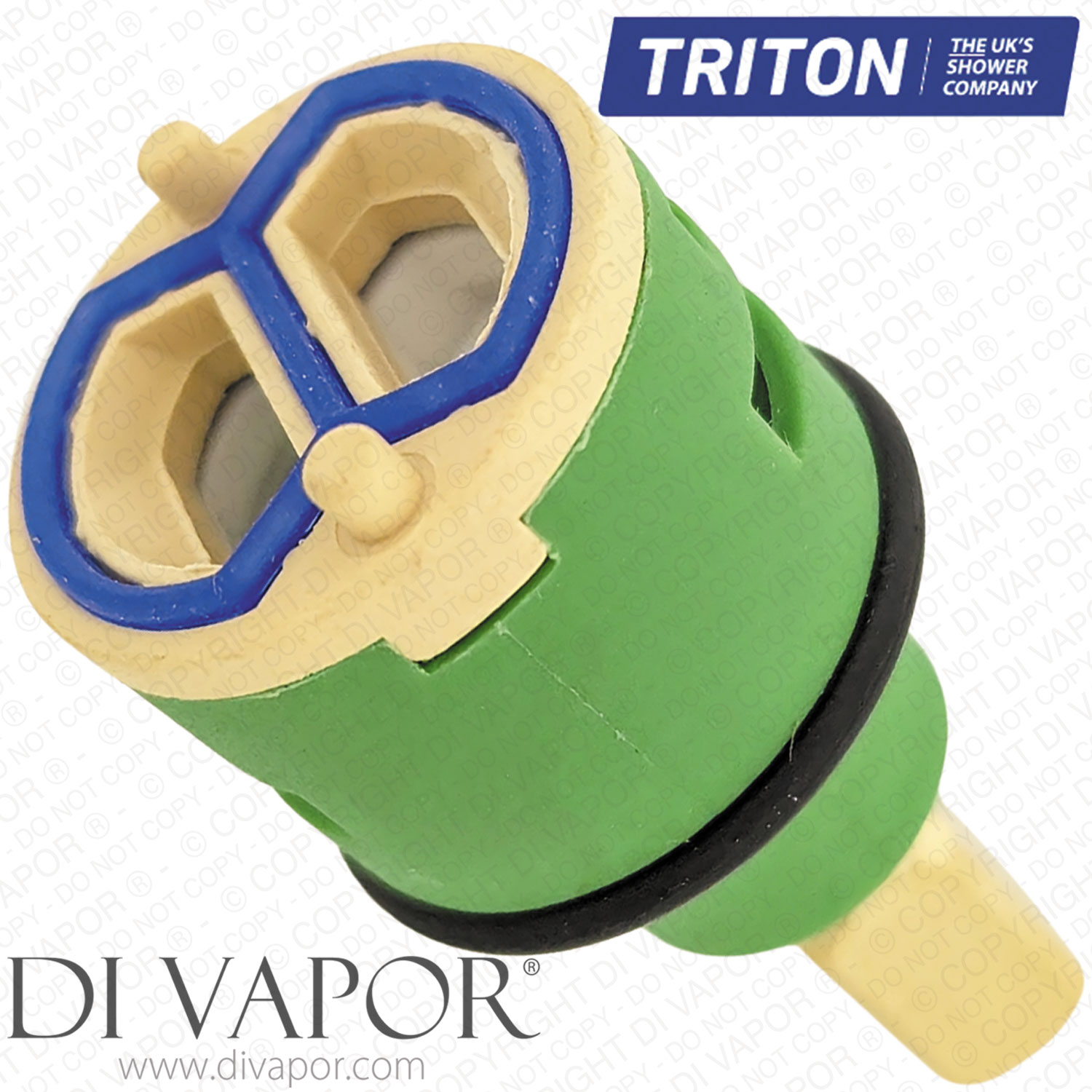

Triton 83316690 Diverter Cartridge. The cartridge colour has now changed from green to black.
The Triton 83316690 diverter cartridge is a 2 outlet shower diverter cartridge used in selected Triton bar mixer showers with a diverter function. It controls outlet selection between the overhead shower head and the hand-held shower head on matching Triton mixer shower systems.
This replacement cartridge colour has changed from green to black, so colour alone should not be used as the only identification point when matching the old cartridge.
Technical Details

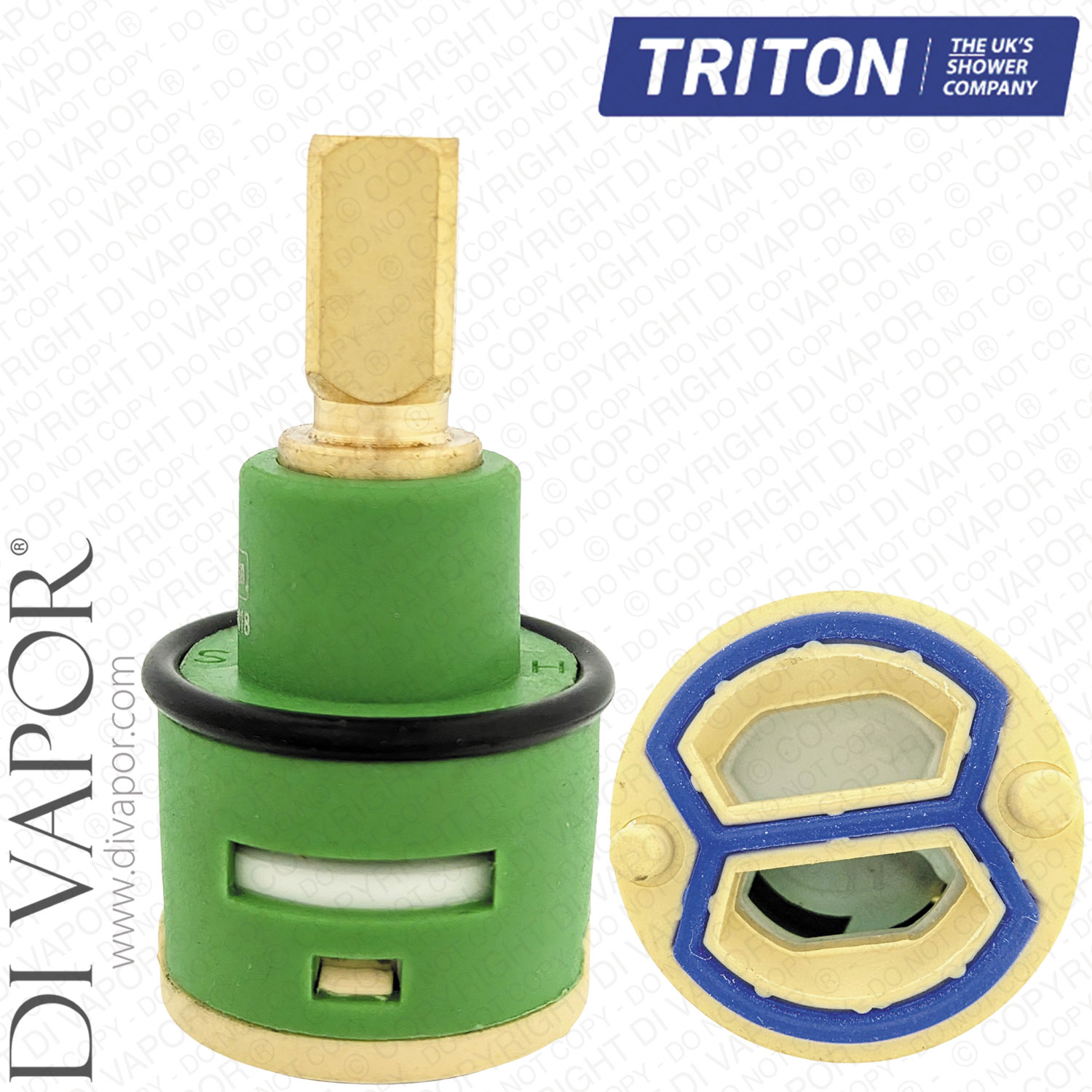

| Total length including bottom seal | 43.4mm excluding locating pins |
|---|---|
| Diameter at widest point | 23mm at o-ring |

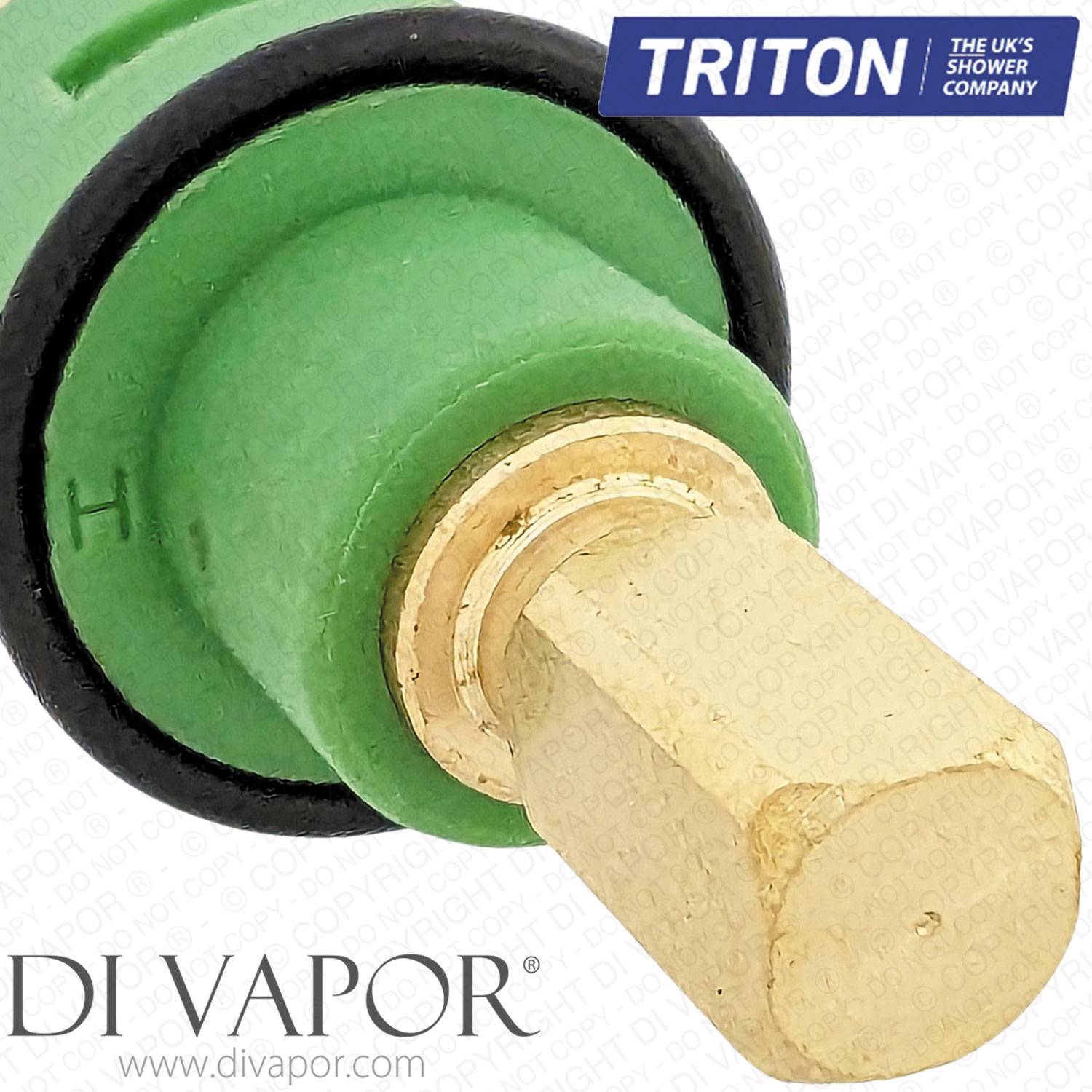

| Brass spindle length including spline | 15mm |
| Top spindle square diameter | 6.9mm x 6.9mm |
| Barrel diameter | 22mm |
| Number of function outlets | 2 |
- Distance between locating pins at bottom centre to centre: 18mm
Confirmed Compatible Models
- Triton SWTIATHBMDIV Tian Bar Shower Mixer with Diverter
- Triton Tian Bar Diverter Mixer Shower - October 2020 - TR DV 356
- Triton Benito Bar Diverter Mixer Shower - October 2020 - TR DV 352
- Triton UNDETHBMDIV Dene Bar Diverter Mixer Shower
- Triton UNDETHBMDIVLE Dene Lever Bar Diverter Mixer Shower
- Triton UNFITHBMDIV Fixate Bar Shower Mixer with Diverter
- Triton SFXLEVTHBMDIV Levano Chrome Bar Shower Mixer
- Triton REPIRTHBMDIV Pirlo Bar Diverter Mixer Shower
- Triton Carnival Bar Mixer Shower with Diverter - May 2019 - TR DV 375
- Triton Leona Bar Diverter Mixer Shower - November 2020 - TR DV 342
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Triton 83316190 Thermostatic Cartridge
- Triton 83308580 Compatible Thermostatic Cartridge for Dove | Capella | Senata | Levano | Excellente | Muse
- Triton 83308560 Diverter Assembly
- 150mm Universal Shower Hose - NXT734
Before You Order Check
Compare the existing cartridge against the measurements above and confirm the shower model or valve spare page before ordering. This diverter cartridge is for outlet selection between shower outlets; if the shower will not shut off, also check the flow control cartridge for your exact Triton model.
