Hansgrohe 96604000 3-Way 40mm Diverter Cartridge for Shower Valves, Shower Panels & Steam Showers
Send a photo of your item and we'll help confirm it.
Summary

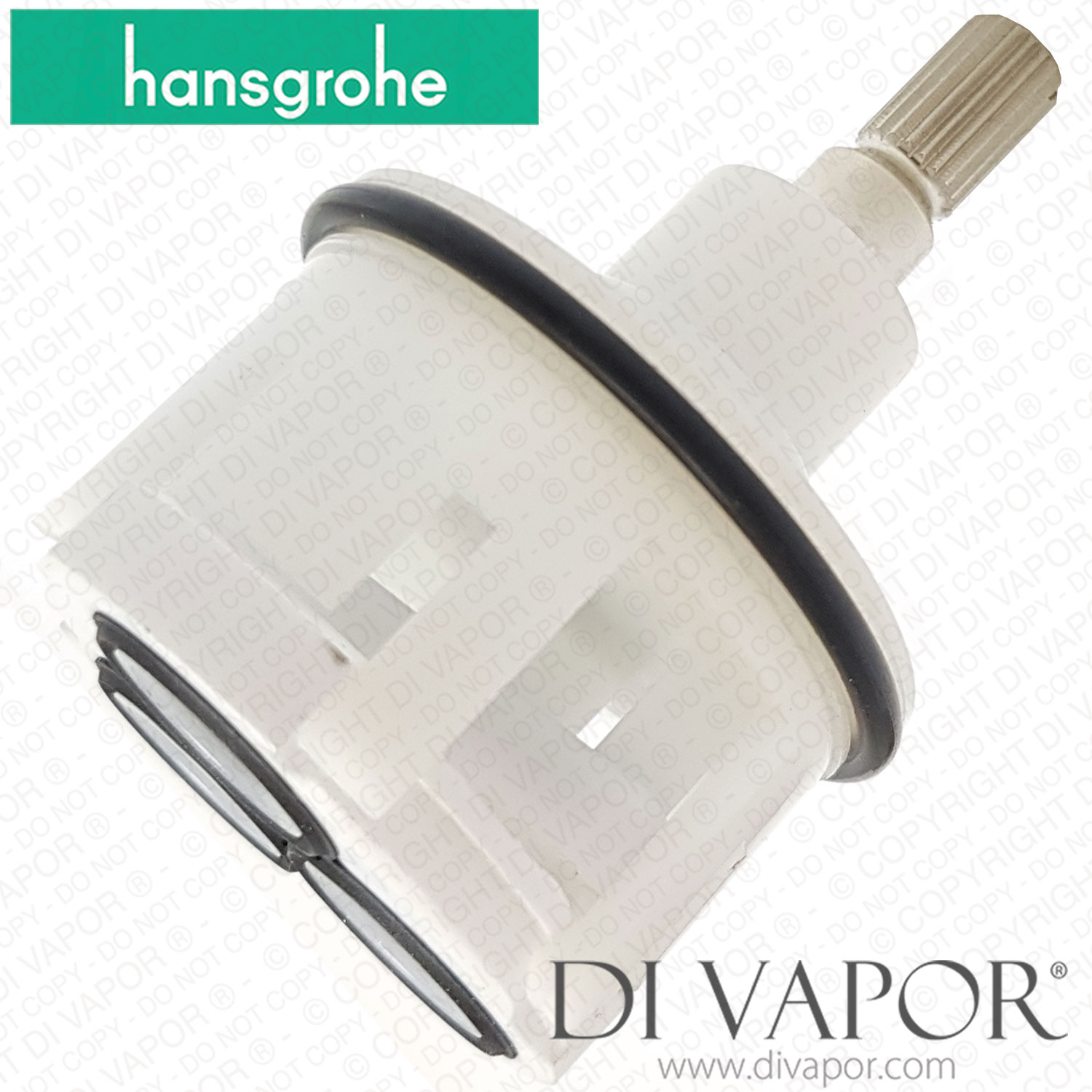

Hansgrohe 96604000 3-Way Diverter Cartridge for Shower Valves, Shower Panels & Steam Showers. This diverter cartridge is used to select the different water functions within your shower enclosure.

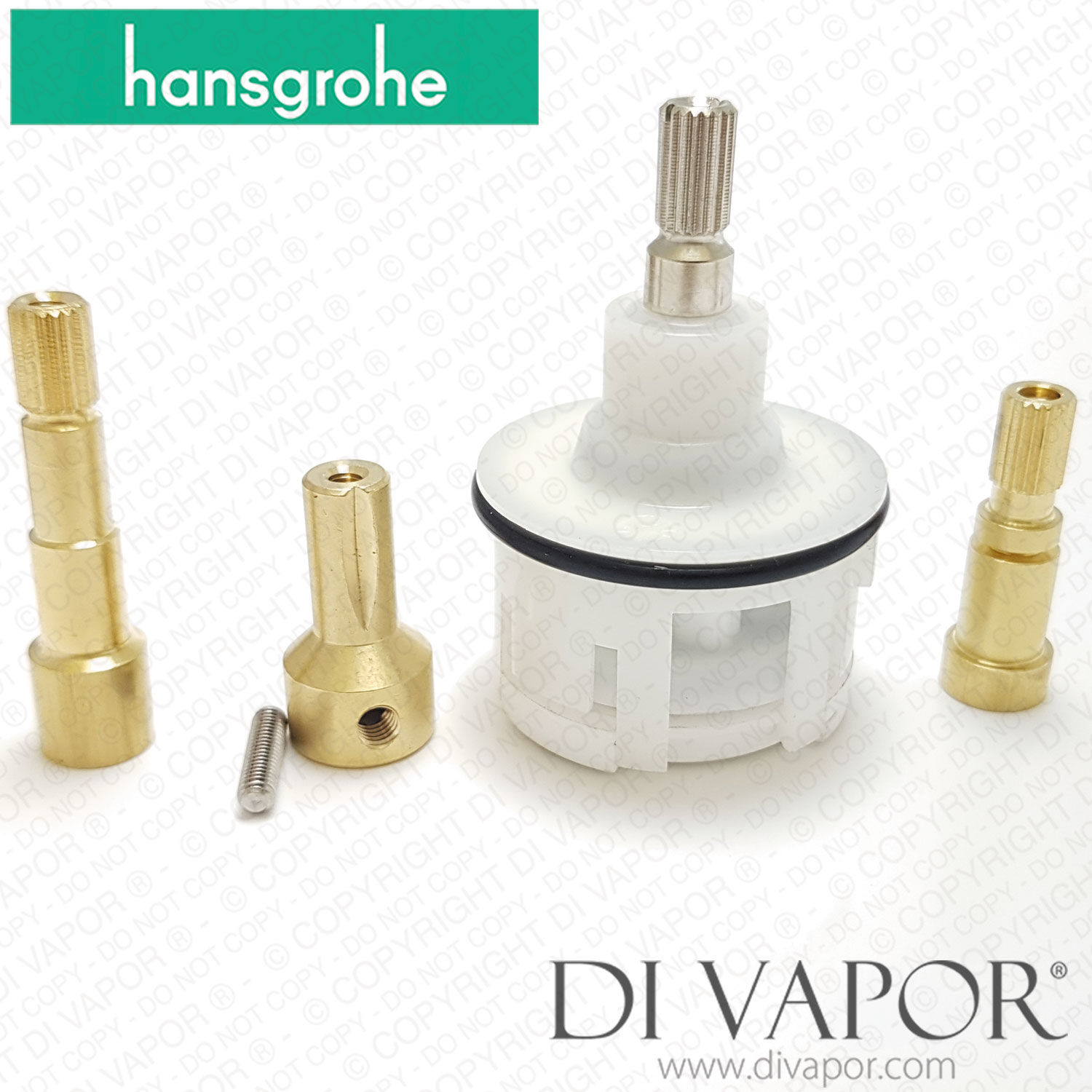

Included
- 1 x Plastic Diverter Cartridge

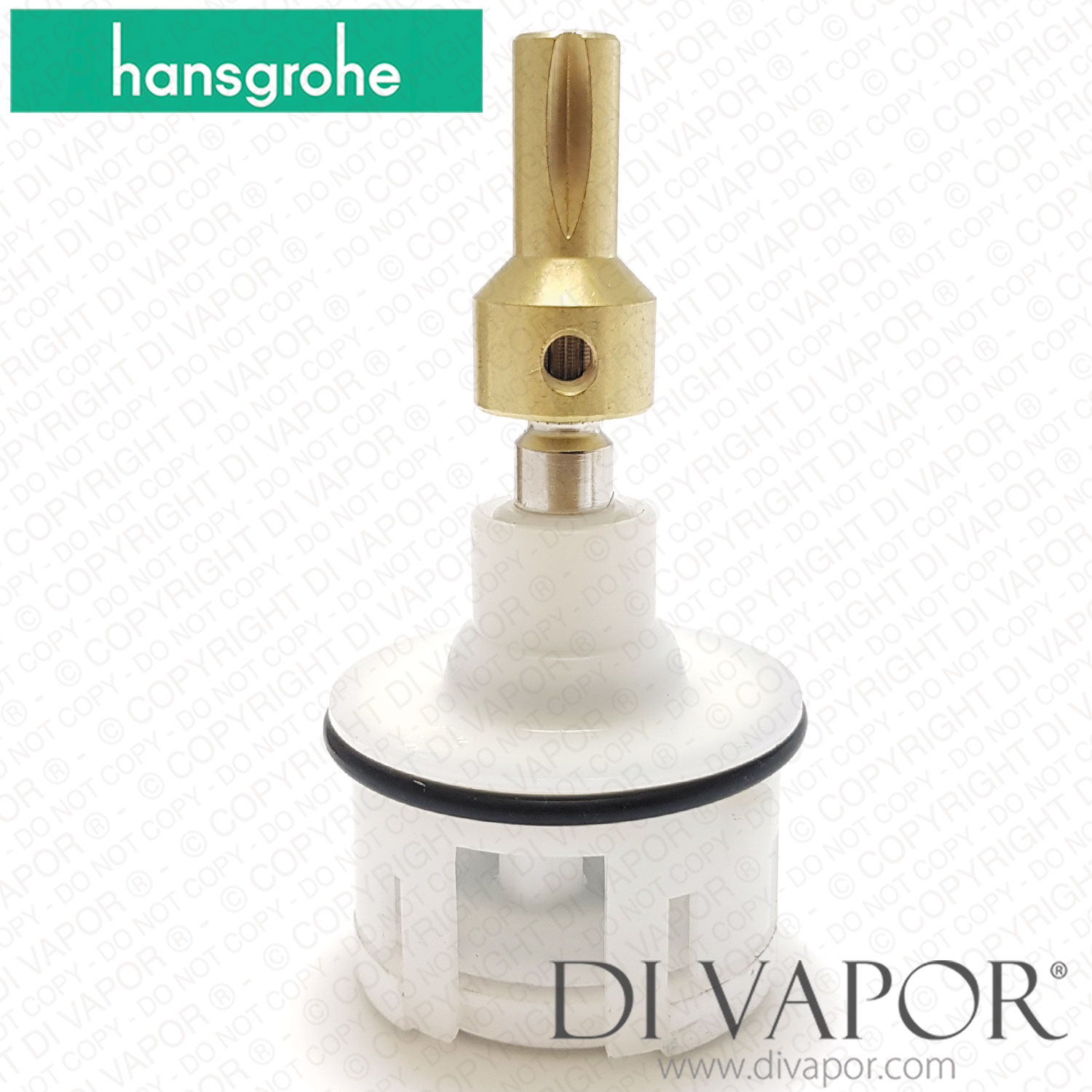

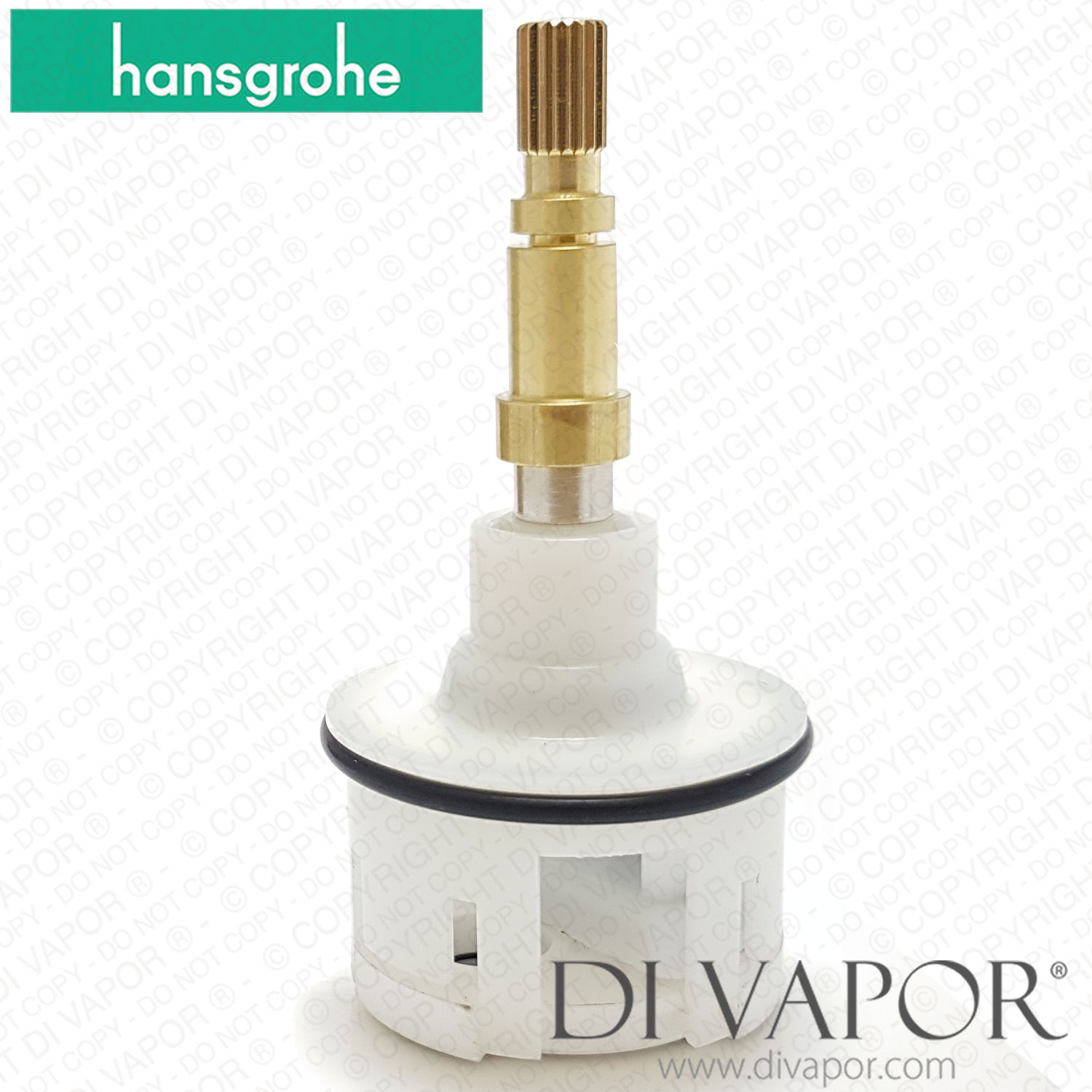

- 3 x Different Spindle Extensions
Hansgrohe 96604000 is a 3-way 40mm diverter cartridge for selecting water outlets in Hansgrohe shower valves, shower panels, steam showers and selected Quattro / Trio concealed diverter systems. Di Vapor part number HG-96604000.
The cartridge is used to route water between shower functions such as shower heads, body jets or other outlet combinations depending on the valve or panel assembly. A worn or faulty diverter cartridge can cause poor outlet selection, water passing to the wrong function or water dripping from a shower head or spout after the shower is turned off.
Technical Details
| Diameter at white plastic body | 40.4mm |
|---|---|
| Diameter at O-ring | 44.5mm |

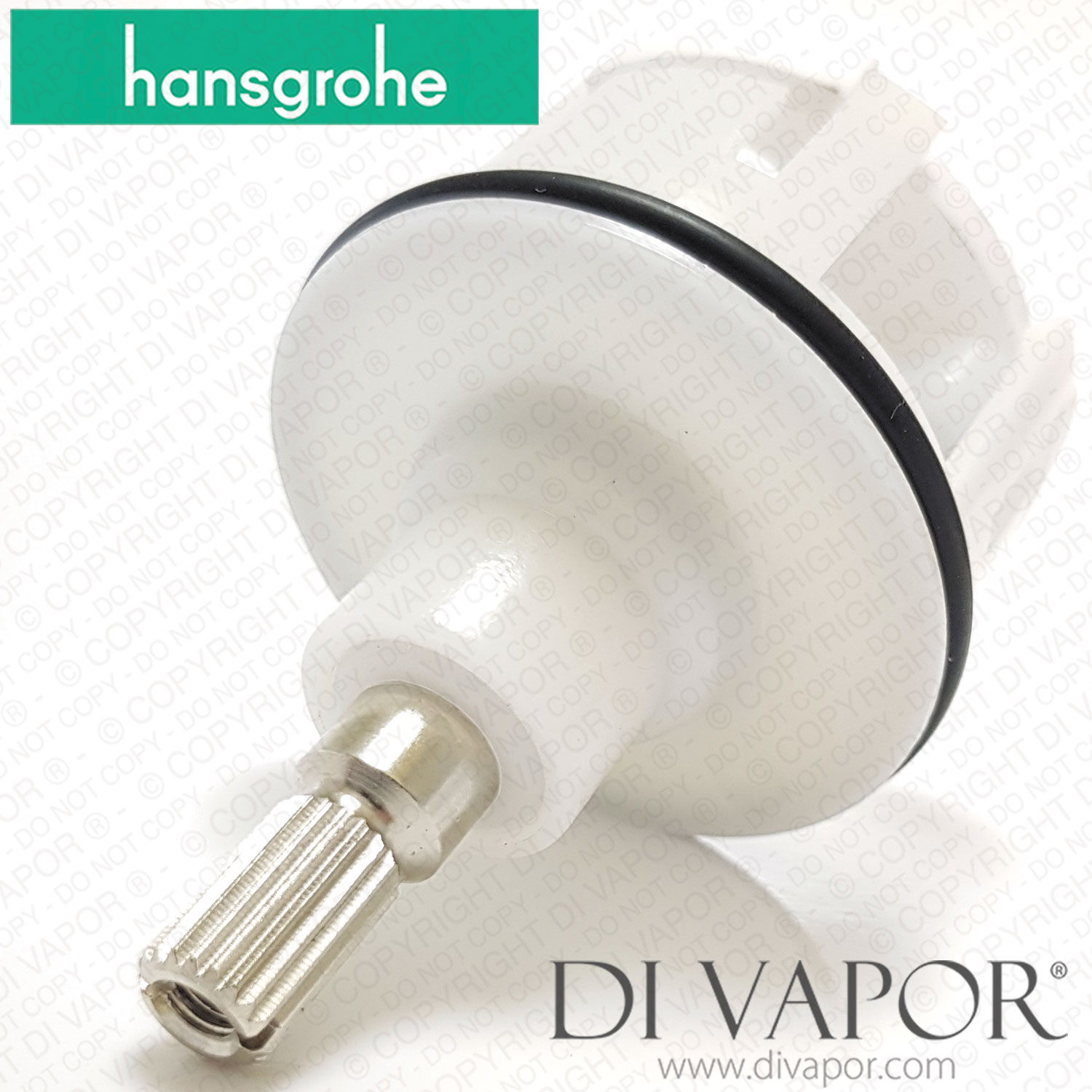

| Spline diameter | 7.4mm with 20 teeth |
| Total cartridge height from bottom to top | 65mm |
| Total height including spindle extension | 86.6mm |
| Total height including spindle extension | 104mm |
Check the existing cartridge shape, spline size, O-ring position and valve or panel model before ordering. Do not order from 40mm body diameter alone because this does not confirm fitment.
Confirmed Compatible Models
This Hansgrohe 96604000 Cartridge is used in the following models:

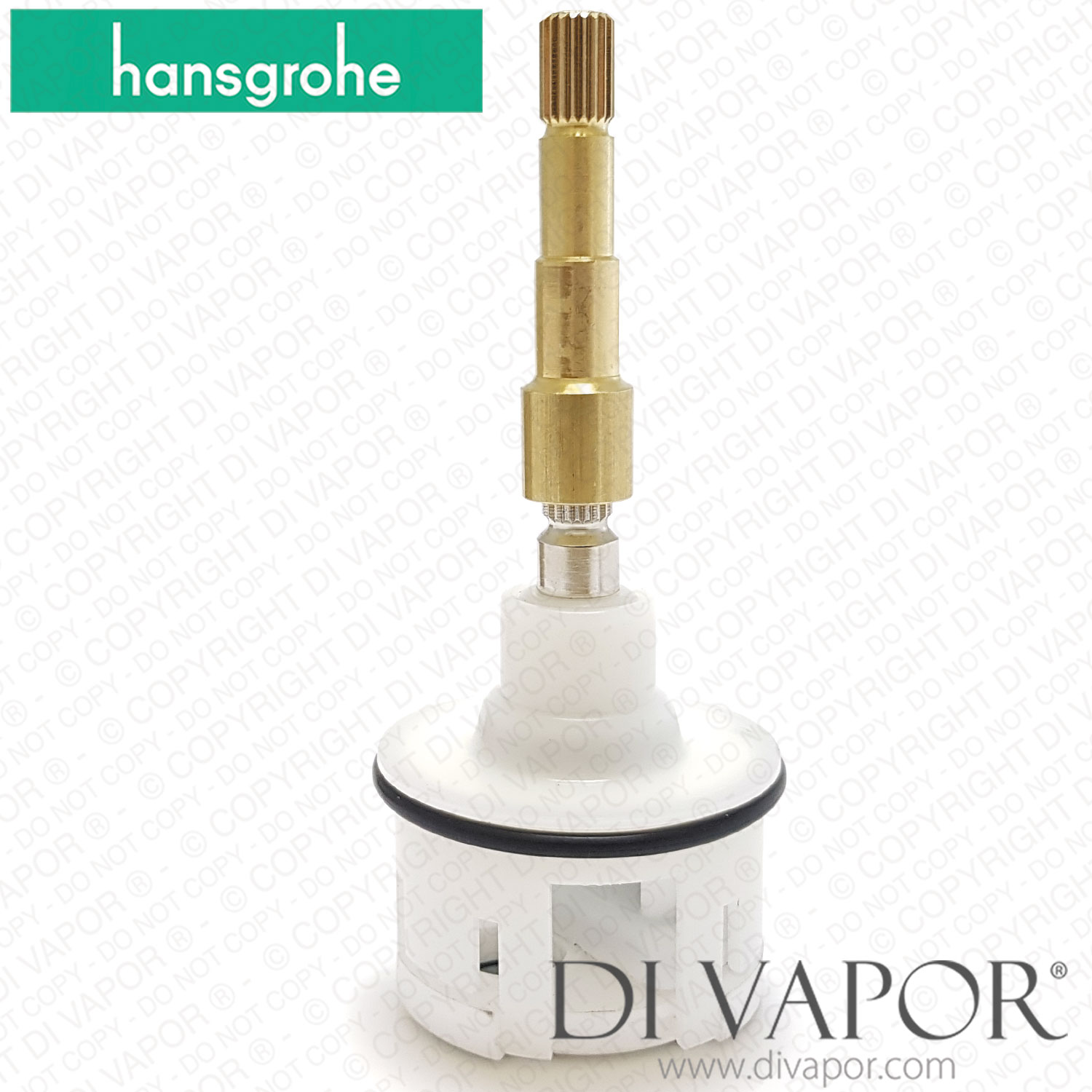

- Hansgrohe 15930180 Basic Set for Quattro Four-Way Diverter Valve for Concealed Installation from 05/01
- Hansgrohe 15981180 Basic Set for Trio Shut Off/Diverter Valve
- Hansgrohe 26512000 Shower Panel Moonlight ML 20 Wall/Corner Version with Lighting Manual 05/01 - 12/07
- Hansgrohe DP-E Shower Panels
- iModul until 08/2005
- Shower Temple
- Moonlight Shower Panel
- Havista Steam Shower Cabin
- Almeda Whirlpool Bath
- Kalona Whirlpool Bath
- Imaza Whirlpool Bath
- Montana Steam Shower
- Idaho Steam Shower
- Monola Whirlpool Bath
- Pareva Whirlpool Bath
- Solero Whirlpool Bath
- Ladiva Whirlpool Bath
- Iseda Whirlpool Bath
Installation Note

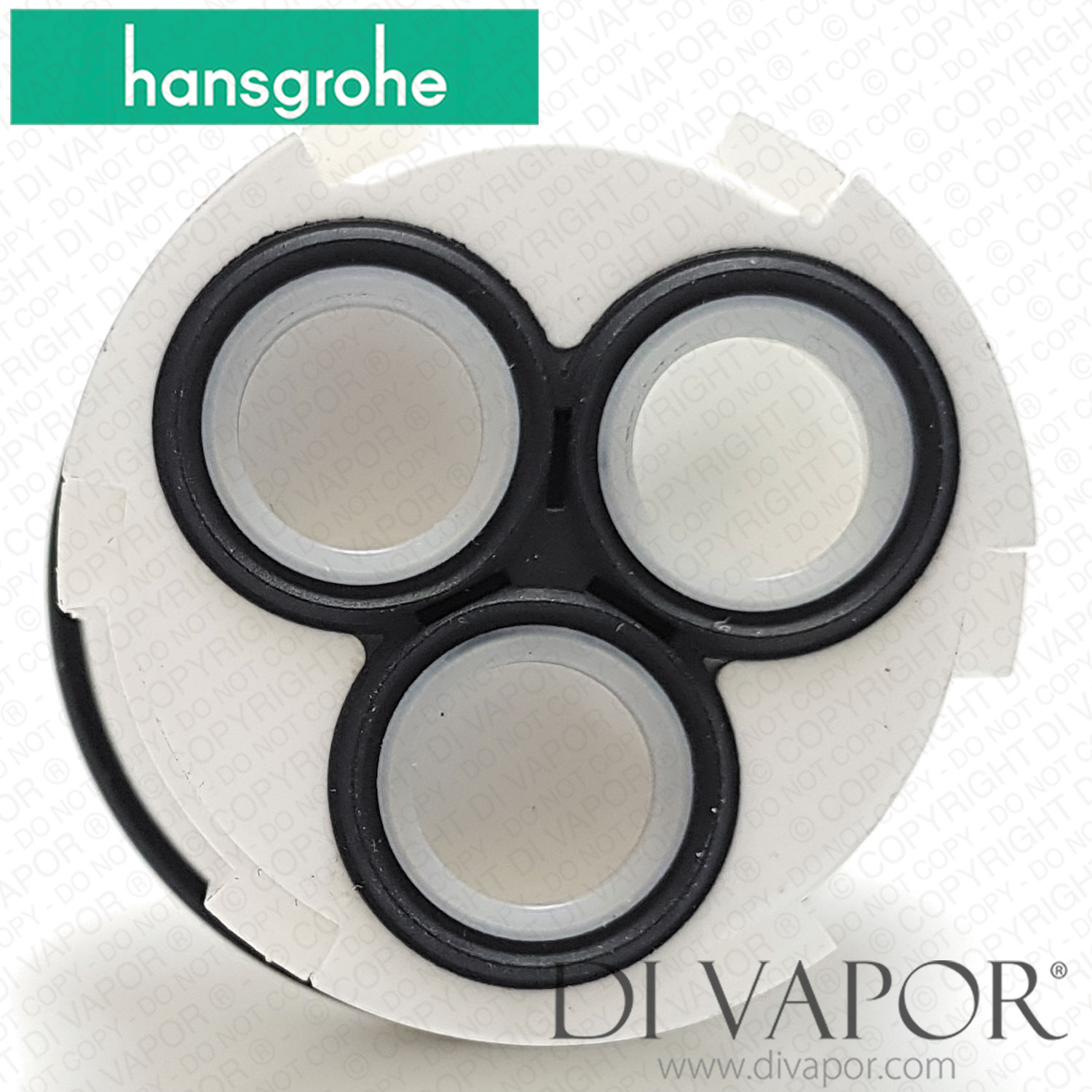

Flush the valve or panel pipework before fitting and make sure old seal debris or scale is removed from the cartridge chamber. Apply suitable silicone grease to the O-rings and bottom seals during installation to reduce seal drag and help the cartridge seat correctly.
