Burlington SP913

SUMMARY

Burlington SP913

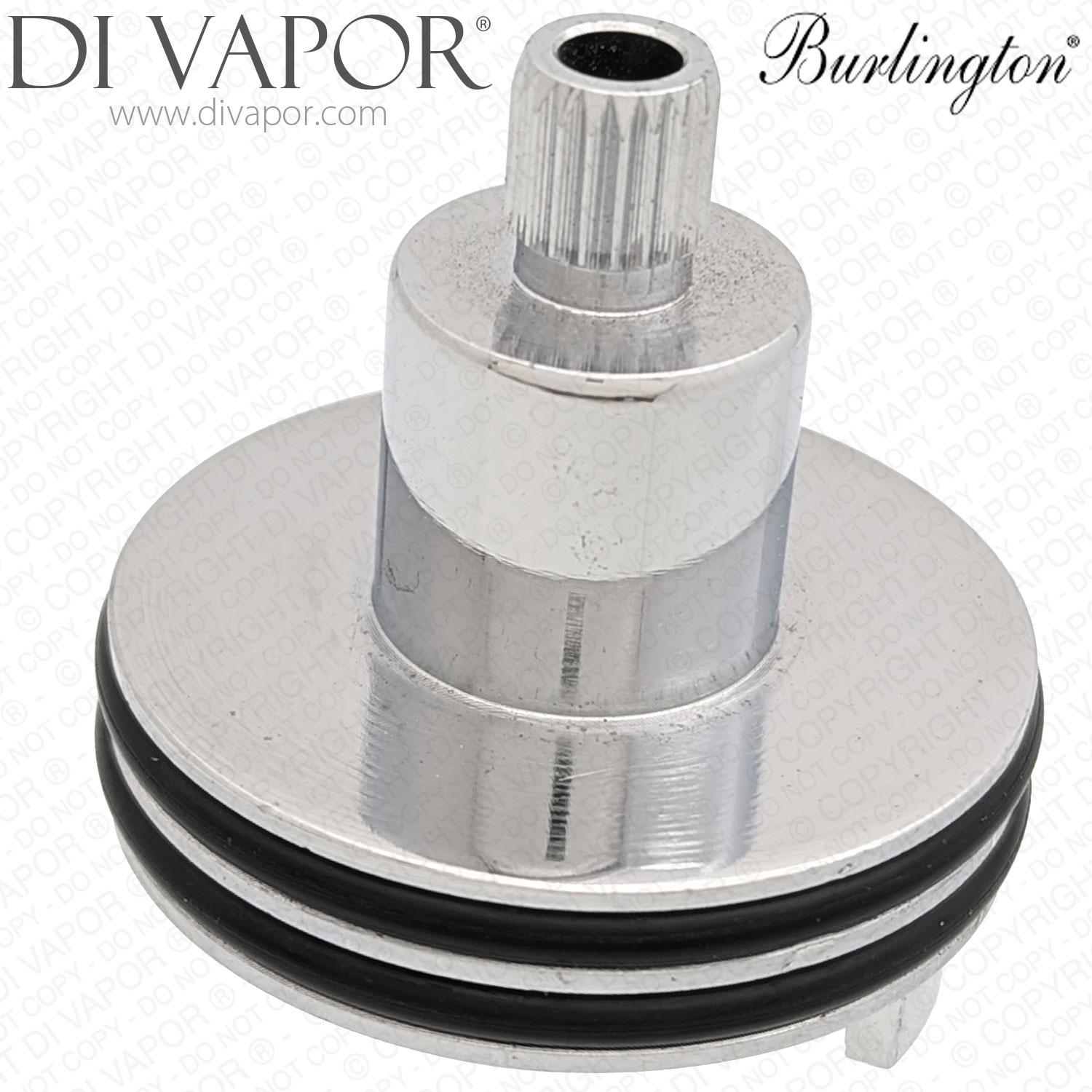

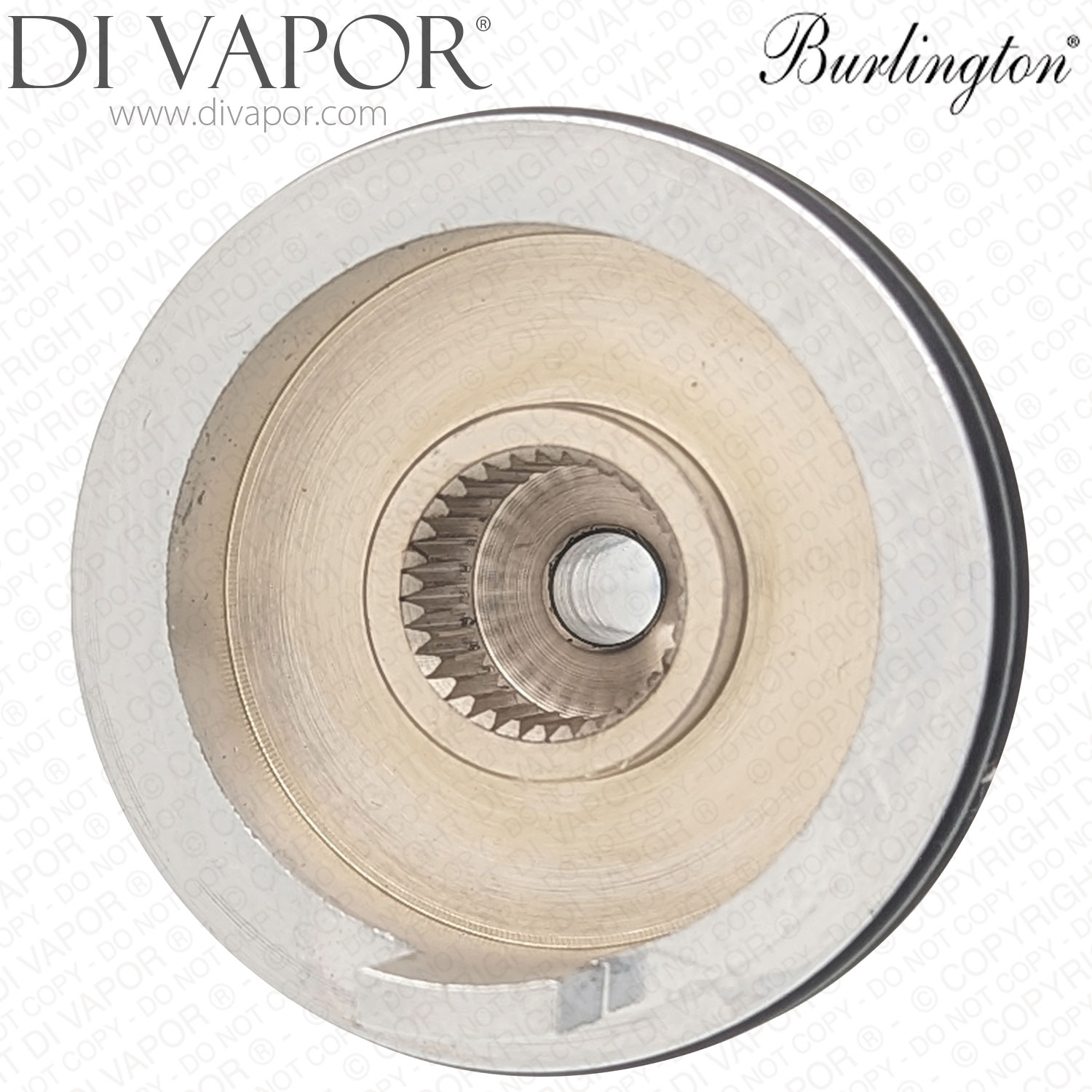

The Burlington SP913 is a chrome temperature stop and metal block for the thermostat control on Burlington Stour exposed thermostatic shower valves. This is not a thermostatic cartridge or flow cartridge; it is the stop block component used in the temperature control assembly.

The SP913 helps provide the temperature stop position within the Stour thermostat control. It should be checked against the existing valve group and removed part before ordering, especially where the handle assembly or thermostatic cartridge has previously been serviced.

Technical Details

- - Product code: SP913

- - Part type: Chrome temperature stop / metal block

- - Application: Burlington Stour thermostat control

- - Valve groups: BF1S BF2S BF3S Stour exposed thermostatic shower valves

- - Associated Stour valve inlet size: 22mm hot and cold inlets

Confirmed Compatible Models

- - Burlington BF1S Stour Exposed Thermostatic Single Function Brass Valve

- - Burlington BF2S Stour Exposed Thermostatic Single Function Brass Valve

- - Burlington BF2S-V16 | BF2S+V16 Stour Thermostatic Exposed Shower Valve Single Outlet Spare Parts

- - Burlington BF2S-V17 | BF2S+V17 Stour Thermostatic Exposed Shower Valve Single Outlet Spare Parts

- - Burlington BF2S-V60 | BF2S+V60 Stour Thermostatic Exposed Shower Valve Single Outlet Spare Parts

- - Burlington BF3S Stour Exposed Thermostatic Dual Function Brass Valve

- - Burlington BF3S-V16 | BF3S+V16 Stour Thermostatic Exposed Two Outlet Shower Valve Spare Parts

- - Burlington BF3S-V17 | BF3S+V17 Stour Thermostatic Exposed Two Outlet Shower Valve Spare Parts

- - Burlington BF3S-V60 | BF3S+V60 Stour Thermostatic Exposed Two Outlet Shower Valve Spare Parts

Related Spares You May Need

- - Burlington SP375 Adaptor Pair G3/4 Male Thread to 22mm Pipe

- - Burlington SP720 Pair of Inlet Adaptors 1/2 Male Thread to 22mm

- - Burlington SP424 Spare Ball Screw for V4 Valve

- - Burlington SP593 Bottom Lever Including Thread for Two Outlets Valves On/Off Indices

- - Burlington V29 Ceramic Telephone Handset

- - Burlington V10-2 Ceramic Levers for Avon & Clyde Dual Control Valves Pair

- - Burlington SP108 Burlington Ceramic Logo Ring Large

- - Burlington SP702 Cover Plate for V4 SF1S SF3S BF1S BF2S BF3S

- - Burlington SP478 1/2 Washers Including Filter for Shower Rose

- - Burlington SP554 Fixing Nut and Compression Ring of Inlet Elbow for SF1S SF3S BF1S BF3S BF2S

- - Burlington SP1117 Flow Control Decorative Head and Screw for BF2S BF3S

- - Burlington SP1286 Gear Sleeve for Stop Valve for BF2S BF3S

- - Burlington SP599 Grub Screw M4x4

- - Burlington SP612 Handset Cradle for Stour Including Grub Screw

- - Burlington SP581 Shower Valve On/Off Flow Top Cartridge

- - Burlington SP582 Shower Valve On/Off Flow Cartridge Bottom Cartridge

- - Burlington SP920 Vertical Riser for Stour Valves Including Washers

- - Burlington SP598 Riser Rail Mounted Straight Showering Arm Including Grub Screw for Stour

- - Burlington SP613 Soap Basket for Stour Including Grub Screw

- - Burlington SP719 Straight Inlet Adaptors of BF1S BF2S BF3S SF1S SF3S

- - Burlington SP1147 Bracket for BF3S BF2S SF3S V21 V22 Including Screws

- - Burlington SP1128 Screws and Expansion Tubes for Trent Avon Eden Valves 6 Sets

- - Burlington SP594 Thermostatic Lever for Stour Valves Including Thread with Hot and Cold Indice

- - Burlington SP899 Top Flow Control of Product BF1S BF2S BF3S Complete

- - Burlington SP32 Thermostatic Cartridge for Avon & Stour Valves

- - 150mm Universal Shower Hose NXT734

Before Ordering

Check that the shower valve is a Burlington Stour BF1S BF2S or BF3S exposed thermostatic valve and compare the removed metal stop block with SP913. If the temperature handle has been removed during servicing, confirm the thermostat control is correctly set before refitting the handle and stop components.
