Rangemaster Aquatrend TRE1BL Hot Tap Cartridge Compatible Spare - RMTRE1BL554
Send a photo of your item and we'll help confirm it.
Summary

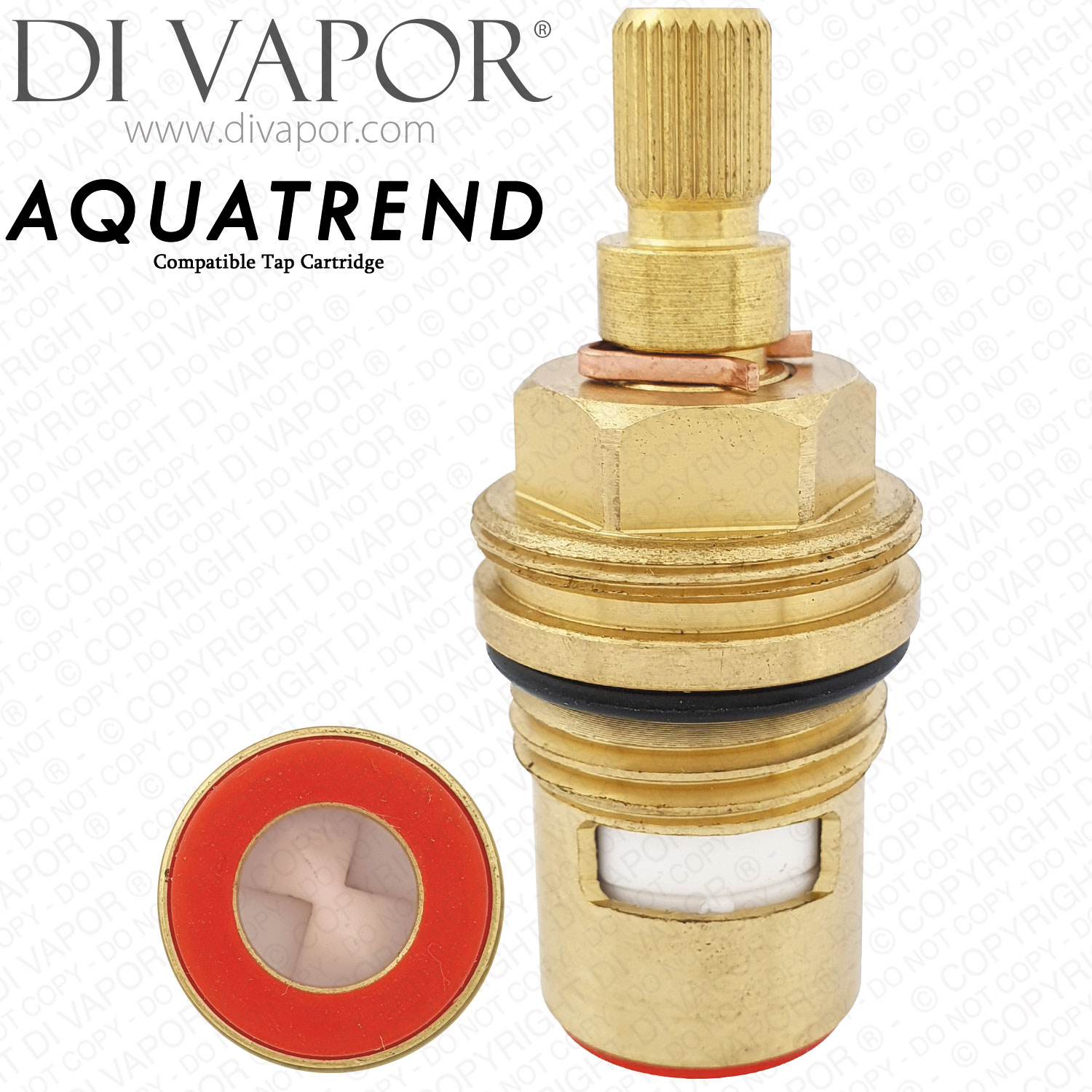

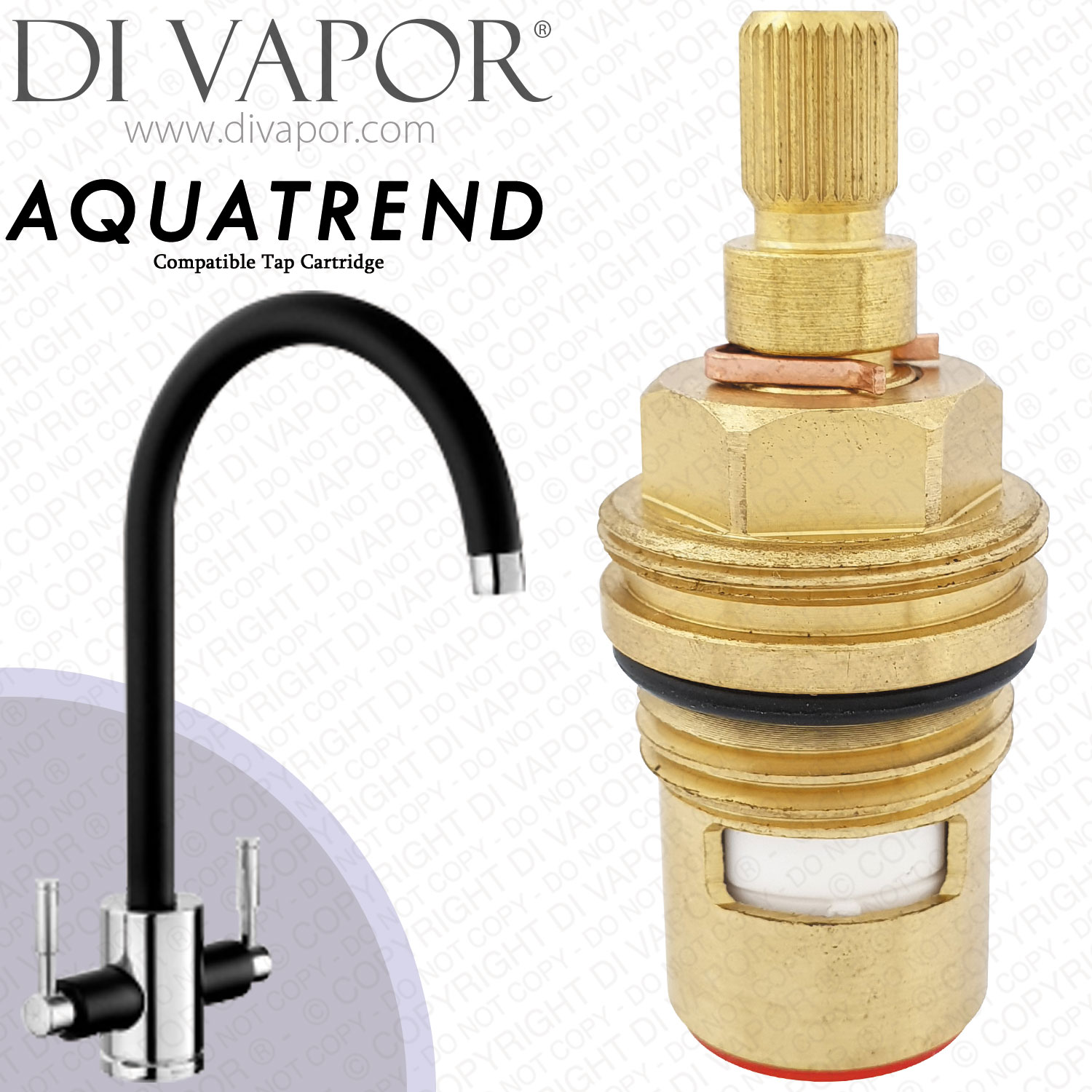

Rangemaster Aquatrend TRE1BL Hot Tap Cartridge Compatible Spare - RMTRE1BL554

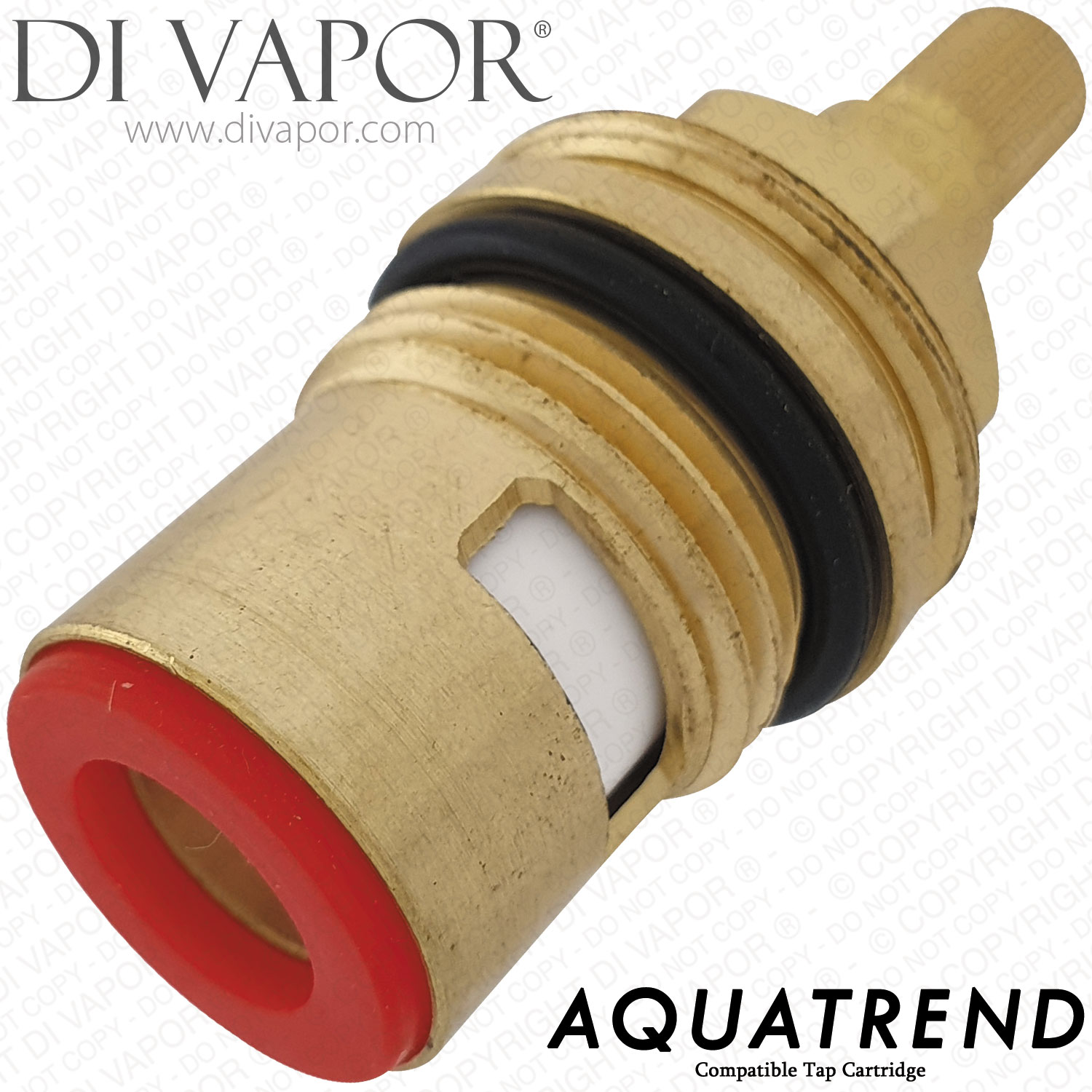

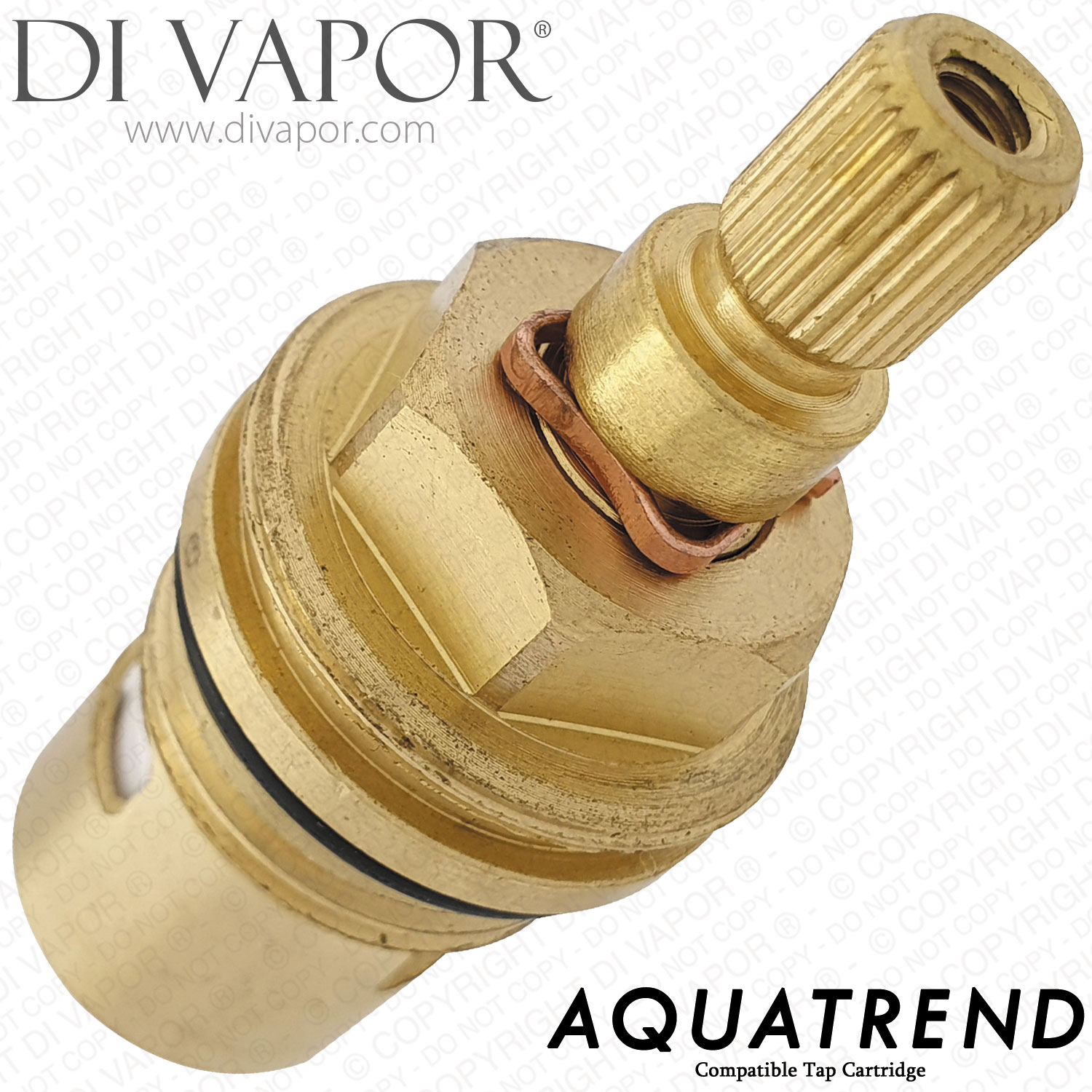

This is a quality replacement cartridge for Rangemaster Aquatrend taps. It is a ceramic disc valve with one O-ring and a red bottom seal. The turn direction of the spare part is clockwise to allow water flow.
Wear and tear can cause the seals of the Rangemaster Aquatrend cartridge to deteriorate leading to leaks. It might be high time to replace it.
- RMTRE1BL553 is the cold equivalent of this spare part.
Tap Repair Tips
1.) Since some manufacturers might have changed the specifications of the valve over time, knowing the measurements of the tap cartridge compatible with Rangemaster Aquatrend is of importance.

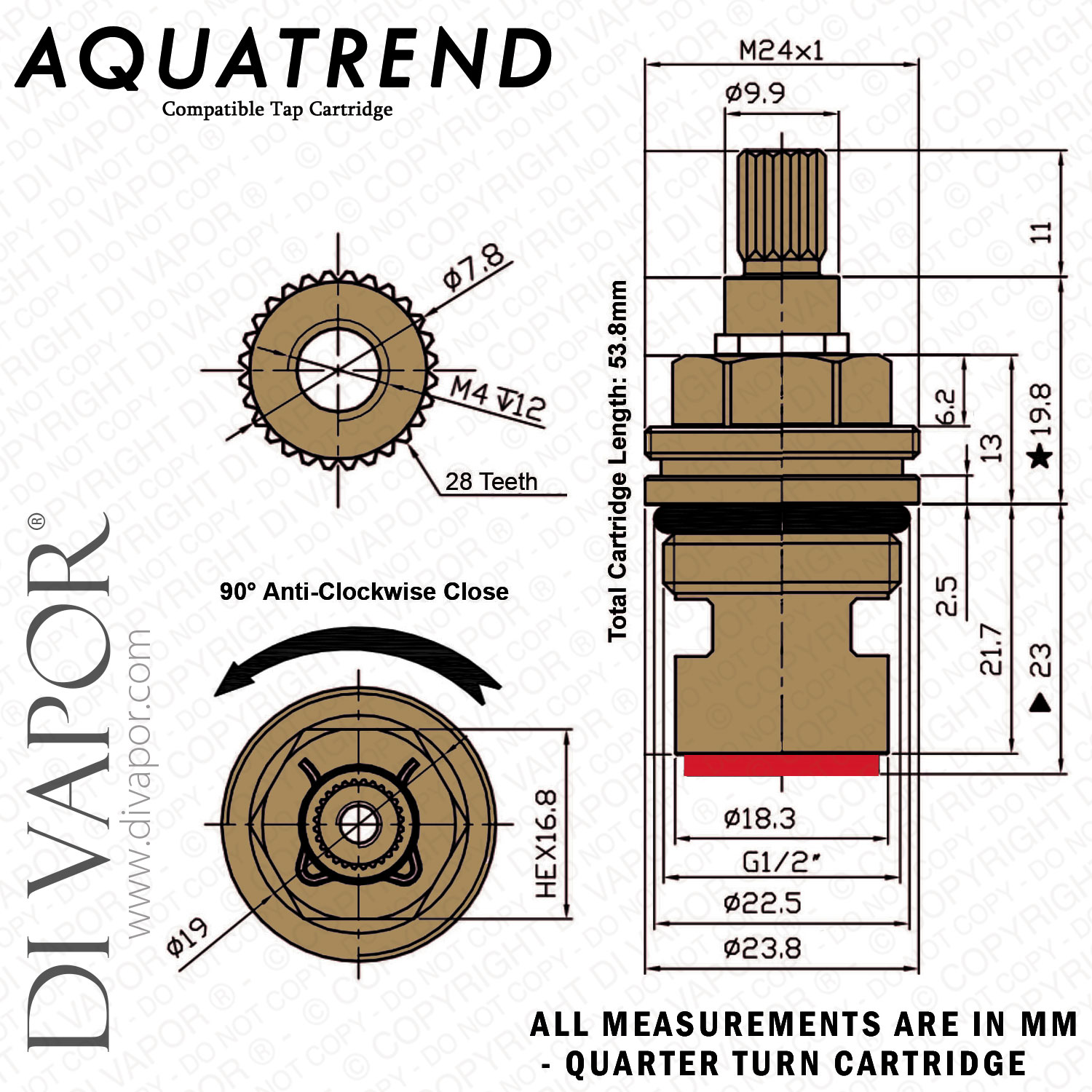

Here are the measurements of this replacement tap valve:
| Cartridge Length | 53.8mm |
|---|---|
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Spline | 7.8mm |
| Spline Teeth Count | 28 |
2.) A 17mm spanner size is used to remove the cartridge and to tighten it in place.
3.) If the handle refuses to separate from the tap even with the screw removed, extra force might be needed. Firmly hold the tap in place and pull. A loosening agent, such as WD-40, may also help.
4.) In the event the bush comes out with the Rangemaster Aquatrend tap cartridge and it is impossible to unscrew, getting the bush with the cartridge might be necessary.
- RMTRE1BL124 for hot side
- RMTRE1BL123 for cold side
Please enquire with us if you have questions and other concerns regarding spares.
| + Cartridge ID Service | https://www.divapor.com/find-a-part.php |
|---|---|
| 07754 173340 | |
| help@divapor.com |
We are happy to serve your spares needs!
