Franke Wave 3794R-H Tap Valve Cartridge - Hot Side (133.0358.053) - SP3308 / SP3794 / 115.0158.976 Compatible Cartridge

Part Number: FR-WA24
Out of stock - Ask a Question now
OUT OF STOCK - ON ORDER
Alert Me
Price: £29.99
Sale: £19.95
You save: £10.04 (33%)
Name:
Email:
-- or --
Phone:
Tick14 day money-back guaranteeTickEasy Returns if it doesn't fit

Part Details Delivery & Returns Payment & Security
Part Details

Summary

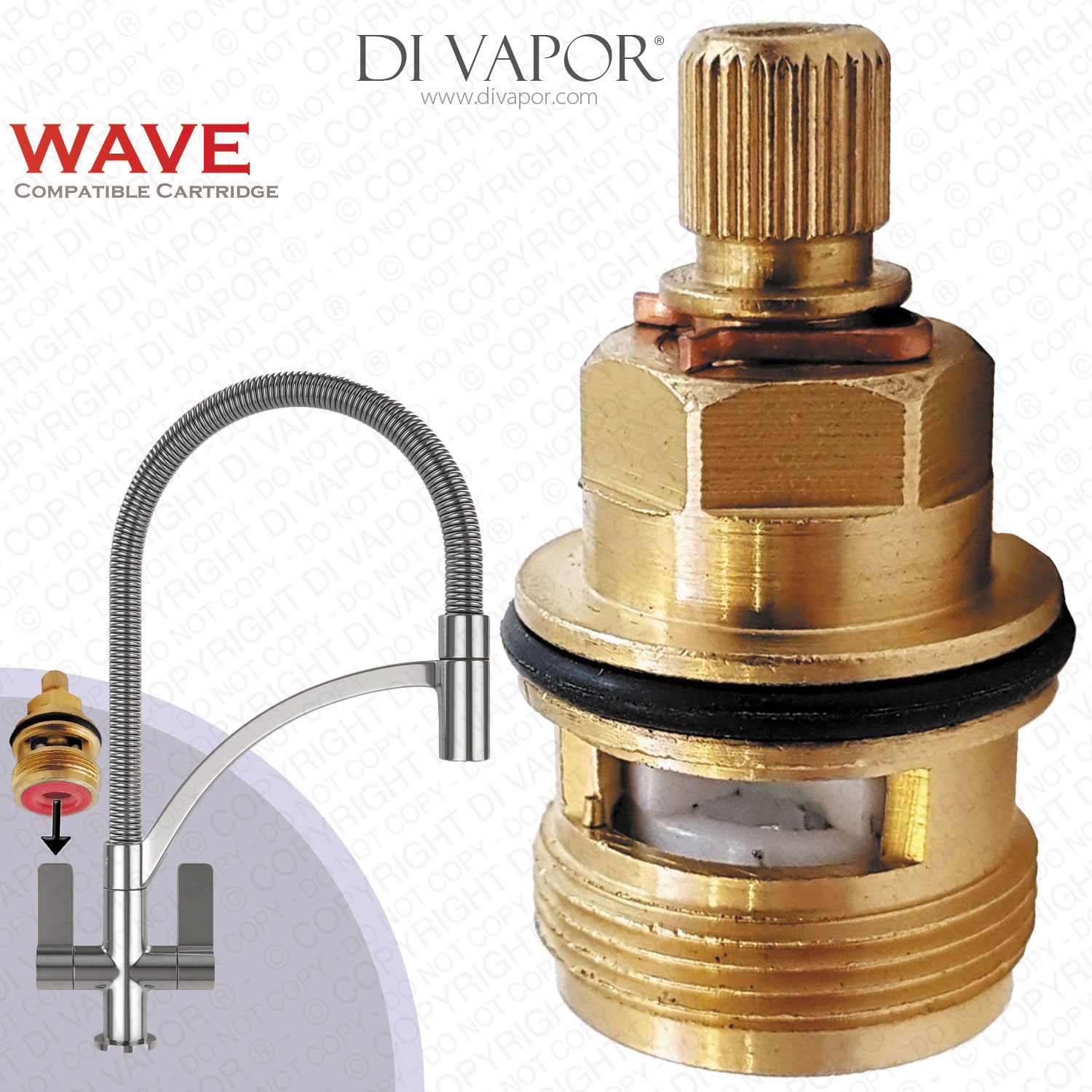

Franke Wave 3794R-H Tap Valve Cartridge - Hot Side (133.0358.053) - SP3308 / SP3794 / 115.0158.976 Compatible Cartridge used in Franke Wave 115.0277.034 kitchen taps from March 2013.

Cartridge Compatibility: Franke Wave
Spare Part: Tap Cartridge Hot Side
Installation: Screw In
Material: Brass

Cartridge 3794R-H is a Franke Wave compatible replacement part for the hot side of the tap. This spare part is compatible with the 3794R-H

Franke’s pull-out nozzle kitchen tap, Wave, has a hot flow rate of 1.70 liters per minute and a recommended hot water temperature of 65°C or 149℉. To prevent damaging the tap, water pressure must be limited to 75 PSI. The left side of the tap handle holds the cartridge for hot water regulation and delivery.

The cold equivalent of the replacement part is the 3794R-C.

Technical Information: Franke Wave Compatible Tap Valve Spare Cartridge
The hot side cartridge has a spline diameter measuring 7.8mm and a teeth count of 28. It opens with a clockwise ¼ turn and closes anticlockwise.

Cartridge Measurements:
Total Length (including bottom seal): 39.2mm
Diameter at Widest Point: 22mm
Thread Diameter: 20mm
Nut Height: 9mm
Bottom Seal Colour: Red for Hot

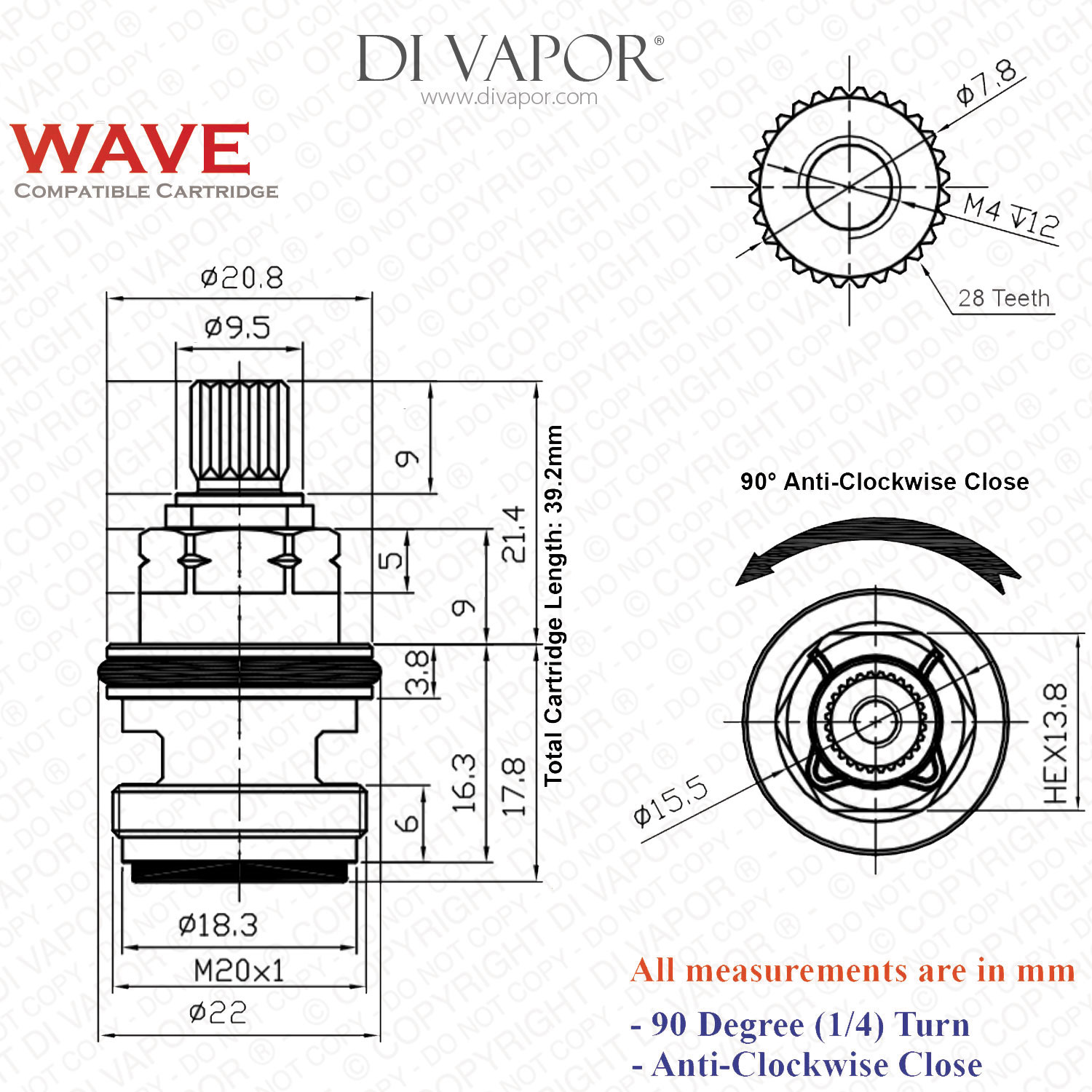

Please refer to the second image above for an illustration of the full measurement information.

Have further queries?
- Please contact us and we will help you identify the right tap cartridge spare part you need.

Replacement Procedure: How to Fit the 3794R-H in the Franke Wave
Cartridges will deteriorate due to the presence of hard water, excessive water pressure, or the normal wear and tear. As a safety precaution, turn off both water supply lines before beginning the replacement.

- Accessing the cartridge implies removing the tap’s left side handle by loosening the grub screw located underneath. Next, undo the screw of the insert sitting on top of the cartridge. Then, release the cartridge using a spanner.

- Flush the valve with water to remove dirt.

Sparsely layer silicone grease on the O-ring of the new Franke Wave tap spare and install it in the tap unit. Reassemble the valve handle.

Tap Facts: How Hard Water Affects Taps and Cartridges
Since soft water passes through slate or granite, it contains a much lesser amount of minerals and impurities. Hard water flows through limestone or chalk, taking with it minerals, chlorides, bicarbonates, and sulfates. As a consequence, limescale deposits build up inside and around the tap valve. The accumulation of scale, along with dirt, can block the path where water flows which includes supply pipes, tap spout, and cartridge.

In Britain, over 50 percent of homes are affected by hard water. Cities known to have high levels of hard water are Brighton, Bristol, Lincoln, London, and Southampton. (Please refer to our Water Hardness Map to see different hard water areas in the UK.)

Calcification build-up entails the need for a new replacement cartridge.

The Franke Wave tap spare cartridge is eligible for next day delivery provided it is
