Franke Filterflow Kubus SP3561-H Hot Tap Valve Cartridge (133.0194.088) - 1/2" BSP - SP3561 Compatible Kitchen Tap Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Franke Filterflow Kubus SP3561-H Hot Tap Valve Cartridge (133.0194.088) - 1/2 Inch BSP - SP3561 Compatible Kitchen Tap Cartridge
Franke Filterflow Kubus Tap Cartridge SP3561 / 133.0194.088 Measurements and Other Information
This tap spare part is compatible with the Franke Filterflow Kubus SP3561 (133.0194.088) tap cartridge. It can also be used in other taps. The measurements given can help you determine if this replacement cartridge can be fitted in the tap you have. You can also send us a message if you need any assistance in tap spare part identification. Our UK spares experts will gladly respond to your queries.
Measurements:
| Total length (from top to bottom of cartridge) | 53.8mm (5.38cm) |
|---|---|
| Diameter at widest part | 23.8mm (2.38cm) |
| Diameter of spline | 7.8mm |
| Spline teeth count | 28 |

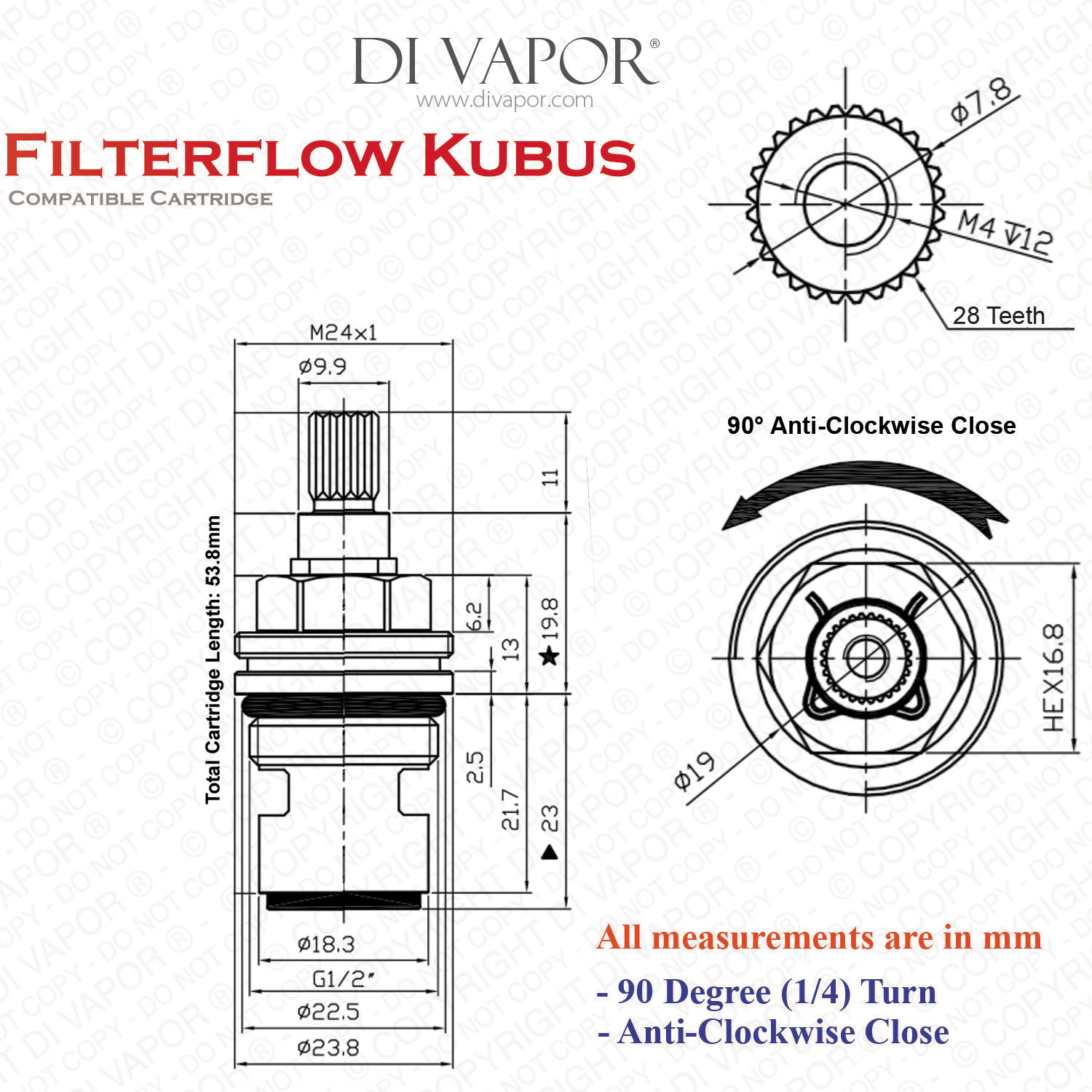

The second image in the gallery above is an illustration of the measurements of the Franke Filterflow Kubus compatible tap cartridge.
Other information:
| Bottom seal colour | Red (Hot) |
|---|---|
| Close and open direction | Anti-clockwise close (Clockwise open) |
| Cold valve compatible cartridge | FR-FK58 |
(Please visit to see the tap and spare part guide, and other FAQs.)
Original spare part number: SP3561-H and 133.0194.088
Fitting the Franke Filterflow Kubus Tap Cartridge
Fitting the SP3561-H / 133.0194.088 compatible Franke Filterflow Kubus tap cartridge is an easy process that will only take a few minutes. Please turn off the tap’s water supplies before starting the repair.
1. The screw is located under the tap’s hot side handle. Use an Allen key to loosen the screw.
2. When the screw is adequately loosened pull the handle to remove it from the tap valve.
3. Unscrew, in an anti-clockwise direction, the valve cover by hand.
4. Grip a spanner on the nut part of the old SP3561-H / 133.0194.088 hot valve cartridge. Turn the spanner anti-clockwise to remove the part.
5. Grease the seal (O-ring) of the replacement Franke Filterflow Kubus tap cartridge. Seat the cartridge in the valve and screw the part in using the spanner.
6. Restore the valve cover. Turn it clockwise to secure it in place.
7. Put the tap handle back and tighten the screw till hand-tight.
Tap Repair Tip:
Use only silicone-based and heat resistant plumbing grease on the seals and rubber parts of the replacement Franke Filterflow Kubus tap cartridge. Other lubricant types may damage the seals and cause premature deterioration.
*Please jump to the last section of the page for the available plumber’s silicone grease which is made specifically for plumbing purposes.
