Franke Bern SP3308 Tap Valve Cartridge Spare (133.0358.053) - Hot Side (3749R-H & 3308R-H) - Compatible Cartridge made from March 2010 onwards.
Cartridge Compatibility: Franke Bern
Product: Hot Side Cartridge Spare for faucet valves
If in stock, this Franke Bern compatible cartridge replacement for your tapâ€™s hot side can be dispatched on the next working day when ordered before 3:00 PM, Monday to Friday.
The SP3308 tap valve cartridge spare part â€“ hot side â€“ is suitable for the Franke Bern swivel spout model kitchen taps. It has a teeth spline count of 28 and a top spline diameter of 7.8mm. It opens with a 90-degree quarter turn and turns counterclockwise to close.

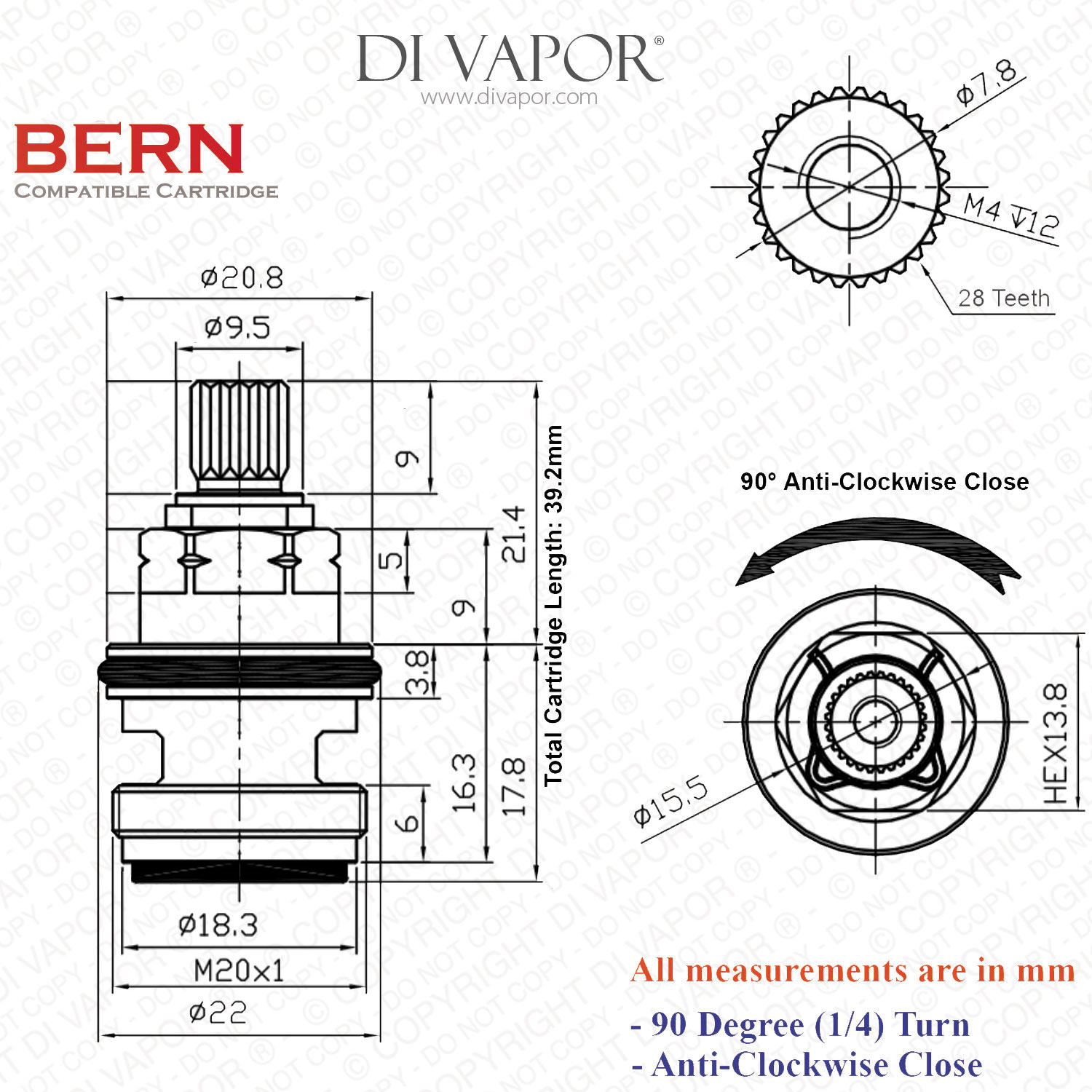

Please see the technical diagram above for more detailed information.
Total Length: 39.2mm
Width at Widest Point: 22mm
Width of the Body: 18.3mm
Nut Height: 5mm
Frequently Asked Questions
Q: What are the indications a tap cartridge needs to be replaced?
A: An issue with regulating the waterâ€™s temperature or water starts to drip from the tapâ€™s spout might be indications your kitchen tapâ€™s cartridge needs replacing.
Q: What are the sizes available for quarter turn kitchen tap cartridges?
A: Quarter turn kitchen tap cartridges are readily available in thread sizes Â½ inch and Â¾ inch British Standard Pipe (BSP).
Investigating Kitchen Tap Leaks: Does Your Tap Cartridge Need to be Replaced?
Leaks from a faucet may come from its spout or from some other inconspicuous place. It may be caused by dilapidated O-rings or a damaged cartridge. If you notice or suspect water is seeping from your tap, look into these three areas around your kitchen sink fixture:
A small leak from a tapâ€™s spout might seem trivial. But over time, the leak tends to worsen. There are several causes connected to a leaking spout. One cause is a damaged washer; another is high pressure in the plumbing system. To remedy the situation, the compression valve has to be replaced or reduce the water pressure.
Base of the Tap
Even an insignificant amount of water pooling on the circumference of the faucet base is a sign of leakage around this area. The leak happens when the faucet is in use and a worn out O-ring could be the reason. If changing the O-ring does not work, it may be necessary to change the tapâ€™s cartridge.
Under the Sink
Since leaks originating from under the kitchen sink drips onto the floor, it can be detrimental to a homeâ€™s flooring. To identify the source of the leakage, check the connections of the water supply pipes, tubes, and valves. Once the source is spotted, tighten the fitments to put an end to the leak. In case the leak persists, the supply tube, the shut-off valve, or the tap itself needs to be replaced.
