Franke 133.0251.375 Kitchen Tap Cartridge - F3540R/C
Send a photo of your item and we'll help confirm it.
Summary

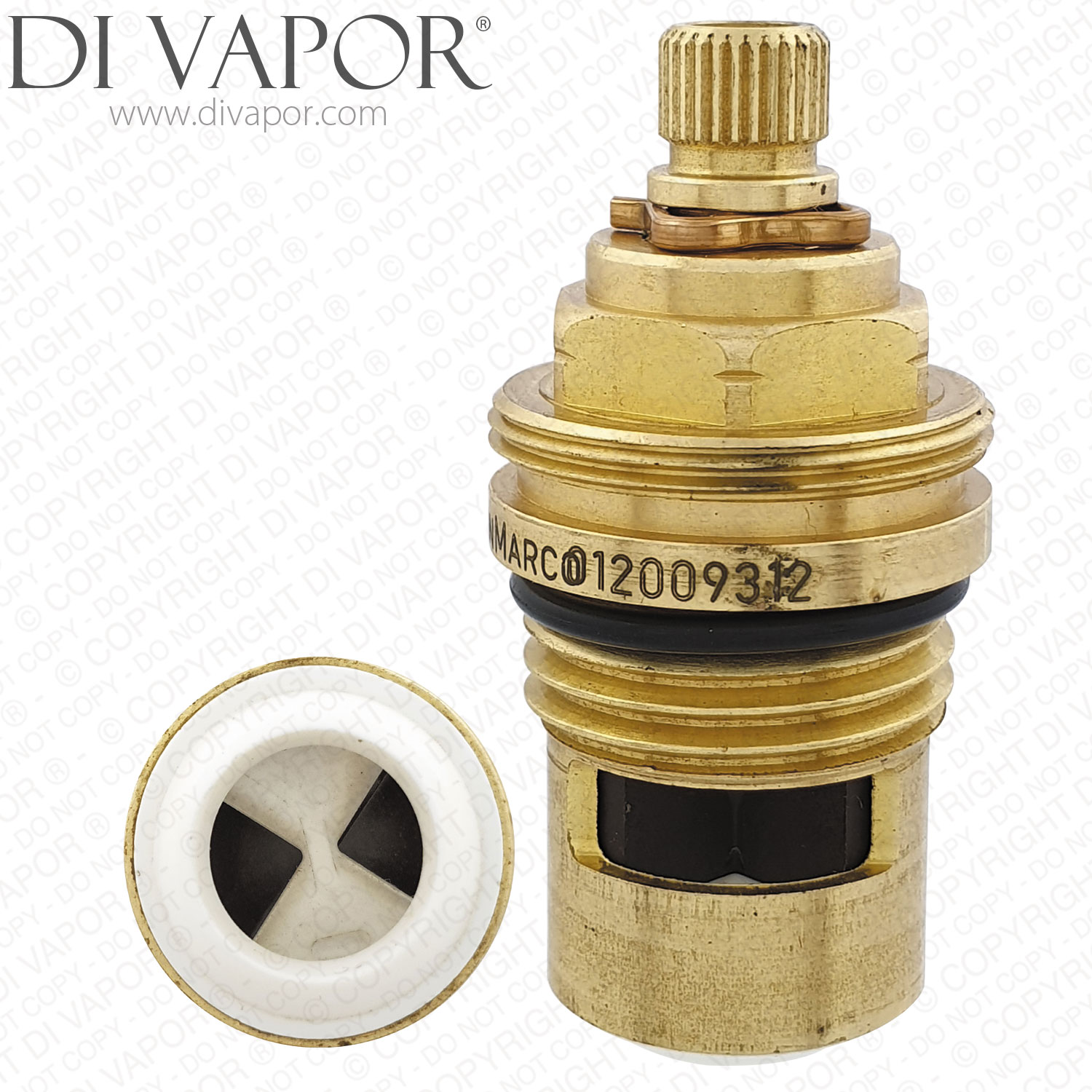

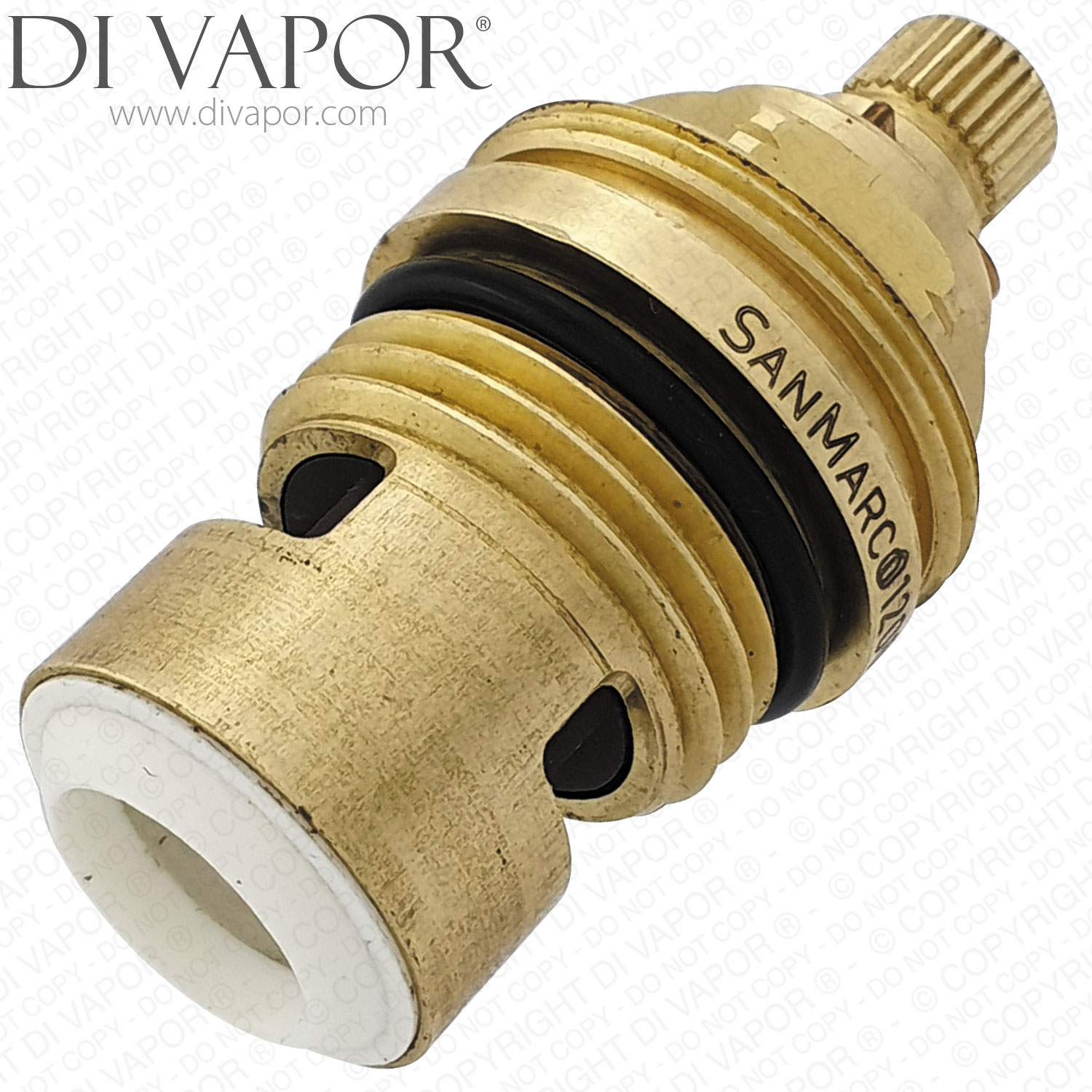

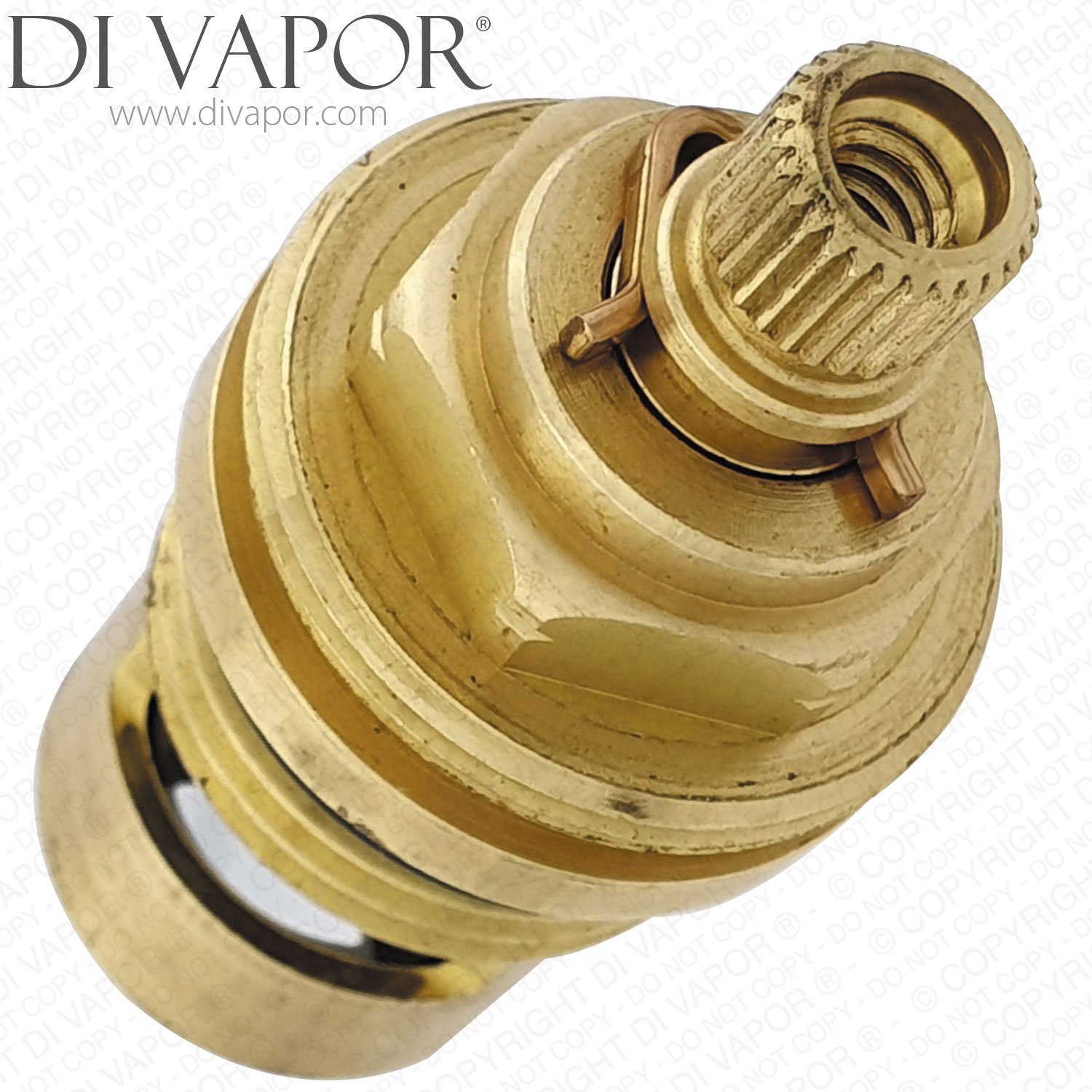

Franke 133.0251.375 Kitchen Tap Cartridge - F3540R/C - Anti-Clockwise Open
The Franke 133.0251.375 F3540R/C is a cold-side quarter-turn kitchen tap cartridge for selected two-handle Franke and Carron Phoenix kitchen taps. It is the anti-clockwise open cartridge, closing clockwise, and is used to restore shut-off and handle control on the cold side of the tap.
This ceramic disc tap valve is typically changed when the cold handle becomes stiff, will not fully shut off, or water continues to drip from the spout when the tap is turned off. Match the part code, handedness, spline count, thread and cartridge dimensions before ordering, especially where a tap range has production-date or variant-specific cartridges.
Technical Details
| Part Number | 133.0251.375 |
|---|---|
| Cartridge code | F3540R/C |
| Side | Cold |
| Operation | Anti-clockwise open |
| Close direction | Clockwise close |
| Turn | Quarter turn 90 degrees |
| Total length including bottom seal | 47mm |
| Diameter at widest point | 23.7mm |
| Top spline diameter | 7.8mm |
| Top spline teeth | 28 |
| Lower thread diameter | 27.8mm |
| Barrel diameter below lower thread | 18.5mm |
| Upper thread closer to spline | 23.7mm |
| Bottom seal colour | White |
Confirmed Compatible Models
- Carron Phoenix Desire Duo Tap
- Carron Phoenix Waverley Tap
- Franke Muri
- Franke Rigi Kitchen Tap
- Franke Textura J Spout Kitchen Tap Cartridge - March 2020
- Franke Textura Semi Pro Kitchen Tap - March 2020
- Franke Textura U Spout Kitchen Tap - From March 2020
Before Ordering
Remove the existing cartridge and compare the spline count, spline diameter, thread diameter, overall length, bottom seal colour and open direction. This is the cold-side valve, so do not order it for the hot side unless the existing cartridge markings and operation match this exact specification.
Related Spares You May Need
- Franke 133.0251.374 Kitchen Tap Cartridge - F3540R/H
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Carron Phoenix Desire Duo Tap Cartridge Cold - 28 Spline 1/2 Inch 133.0251.375 Compatible Tap Valve
- Carron Phoenix Waverley Tap Cartridge Cold - 28 Spline 1/2 Inch 133.0251.375 Compatible Tap Valve
- Franke Muri SP3982 / 3540R-C Kitchen Tap Valve - 28 Teeth Spline - Cold Side - 133.0251.375 Compatible Cartridge
- Franke Rigi Kitchen Tap Valve - 28 Teeth Spline - Cold Side - 133.0251.375 Compatible Cartridge
- Franke Textura J Spout Cold Compatible Kitchen Tap Cartridge - March 2020 - FR-1081
- Franke Textura Semi Pro Cold Compatible Kitchen Tap Cartridge - March 2020 - FR-1071
- Franke Textura U Spout Cold Side Compatible Cartridge - From March 2020
