Franke 133.0251.374 Kitchen Tap Cartridge - F3540R/H
Send a photo of your item and we'll help confirm it.
Summary

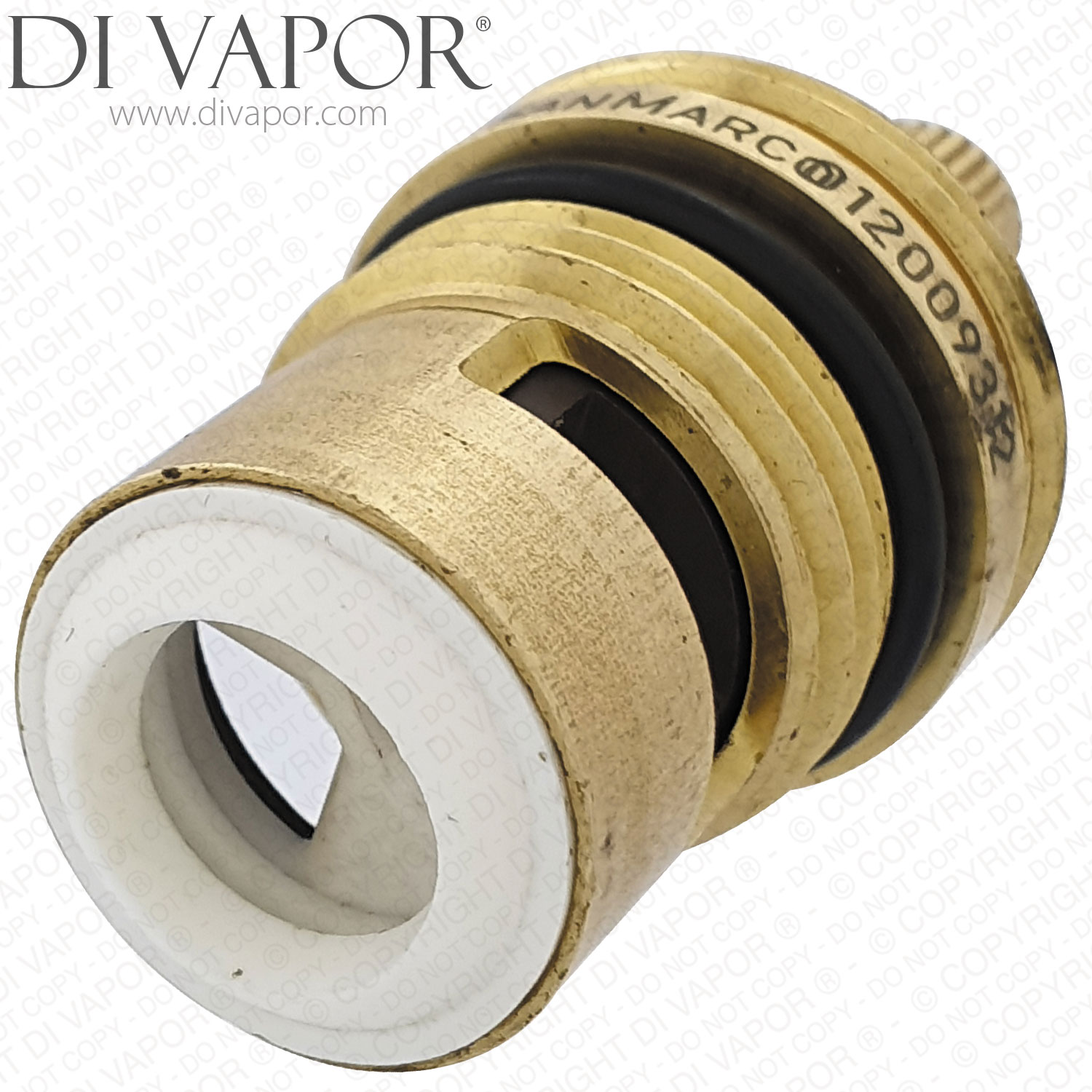

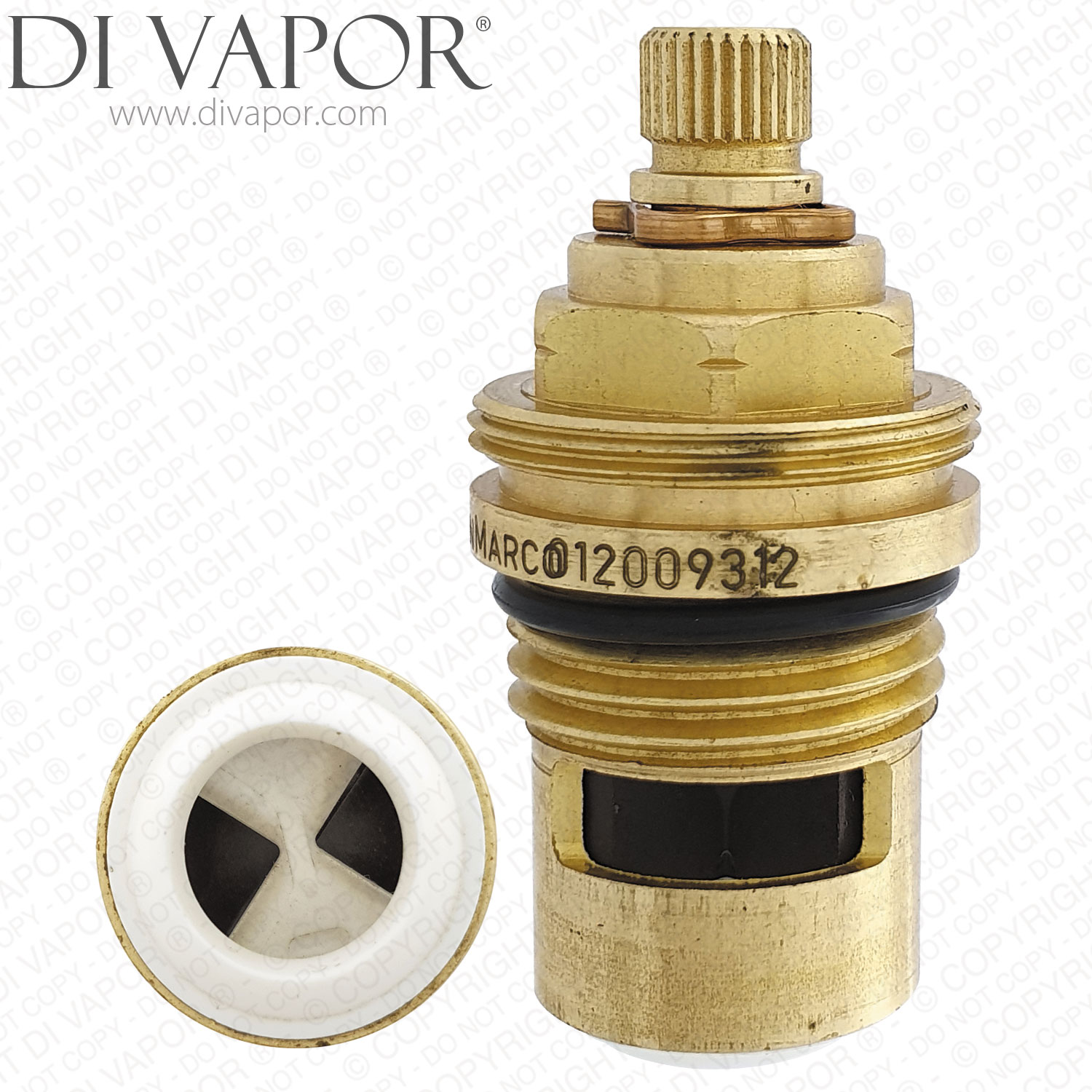

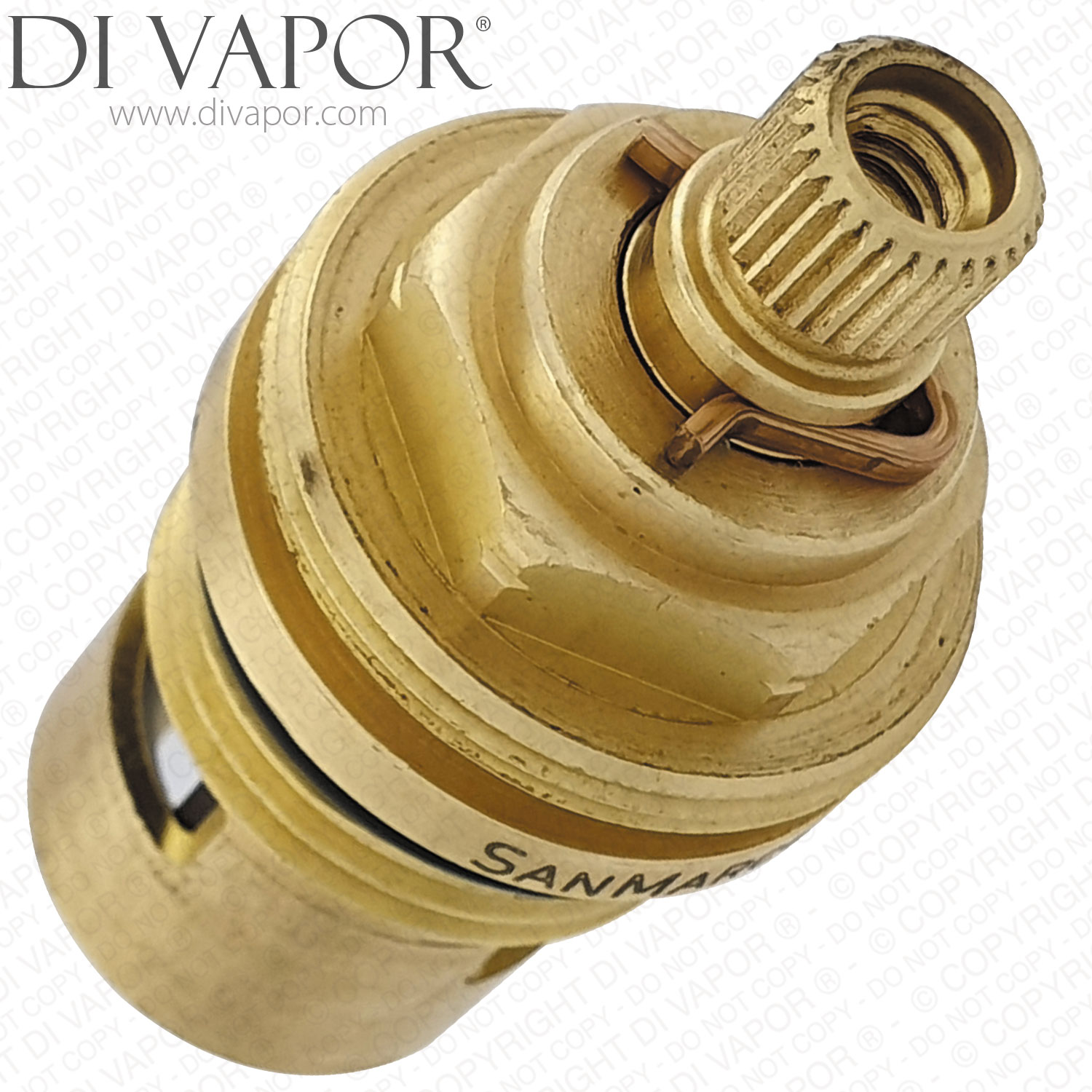

Franke 133.0251.374 Kitchen Tap Cartridge - F3540R/H - Clockwise Open
The Franke 133.0251.374 is a hot side ceramic disc kitchen tap cartridge for selected Franke twin handle kitchen mixer taps. It is also identified as F3540R/H and 3540R-H in Franke tap spares information.
This cartridge controls hot water flow through the tap handle and provides quarter turn on/off operation. A common sign of a worn tap cartridge is water dripping from the spout when the tap is turned off; leaks around the swivel spout base should be checked separately because they can indicate worn O-rings rather than a failed cartridge.
Technical Details
| Part Number | 133.0251.374 |
|---|---|
| Code references | F3540R/H and 3540R-H |
| Side | hot side |
| Operation | clockwise open and anti-clockwise close |
| Turn | 1/4 turn 90 degrees |
| Total length including bottom seal | 47mm |
| Diameter at widest point | 23.7mm |
| Top spline diameter | 7.8mm |
| Top spline teeth / notches | 28 |
| Lower thread diameter | 27.8mm |
| Barrel diameter below lower thread | 18.5mm |
| Upper thread closer to spline | 23.7mm |
| Bottom seal colour | white |
Confirmed Compatible Franke Kitchen Tap Models
- Franke Muri
- Franke Rigi
- Franke Anteleo
- Franke Textura J Spout
- Franke Textura U Spout
- Franke Textura Semi Pro
- Franke Cresta
- Franke Desire Duo
- Franke Waverley
Before Ordering 133.0251.374 Franke Cartridge
Check the hot side cartridge against the existing valve before ordering, especially the opening direction, spline count, thread diameters and total length. For Cresta taps, check the existing valve reference carefully because Franke spares references can vary by tap version.
