Clearwater Emporia Hot Tap Cartridge with Collar Compatible Spare - 20 Spline Version - CW-EP87-20
Send a photo of your item and we'll help confirm it.
Summary
Clearwater Emporia Hot Tap Cartridge with Collar Compatible Spare - 20 Spline Version - CW-EP87-20

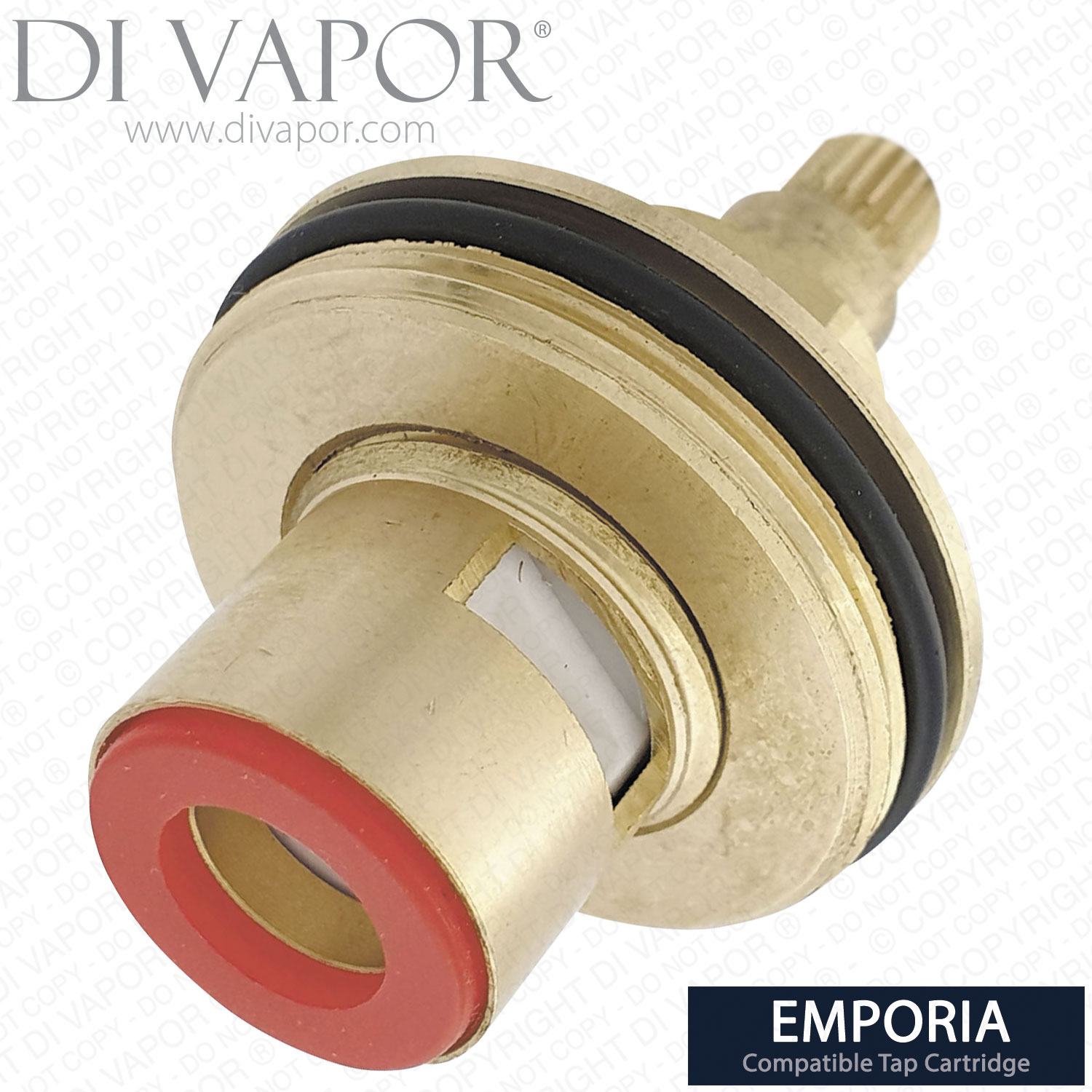

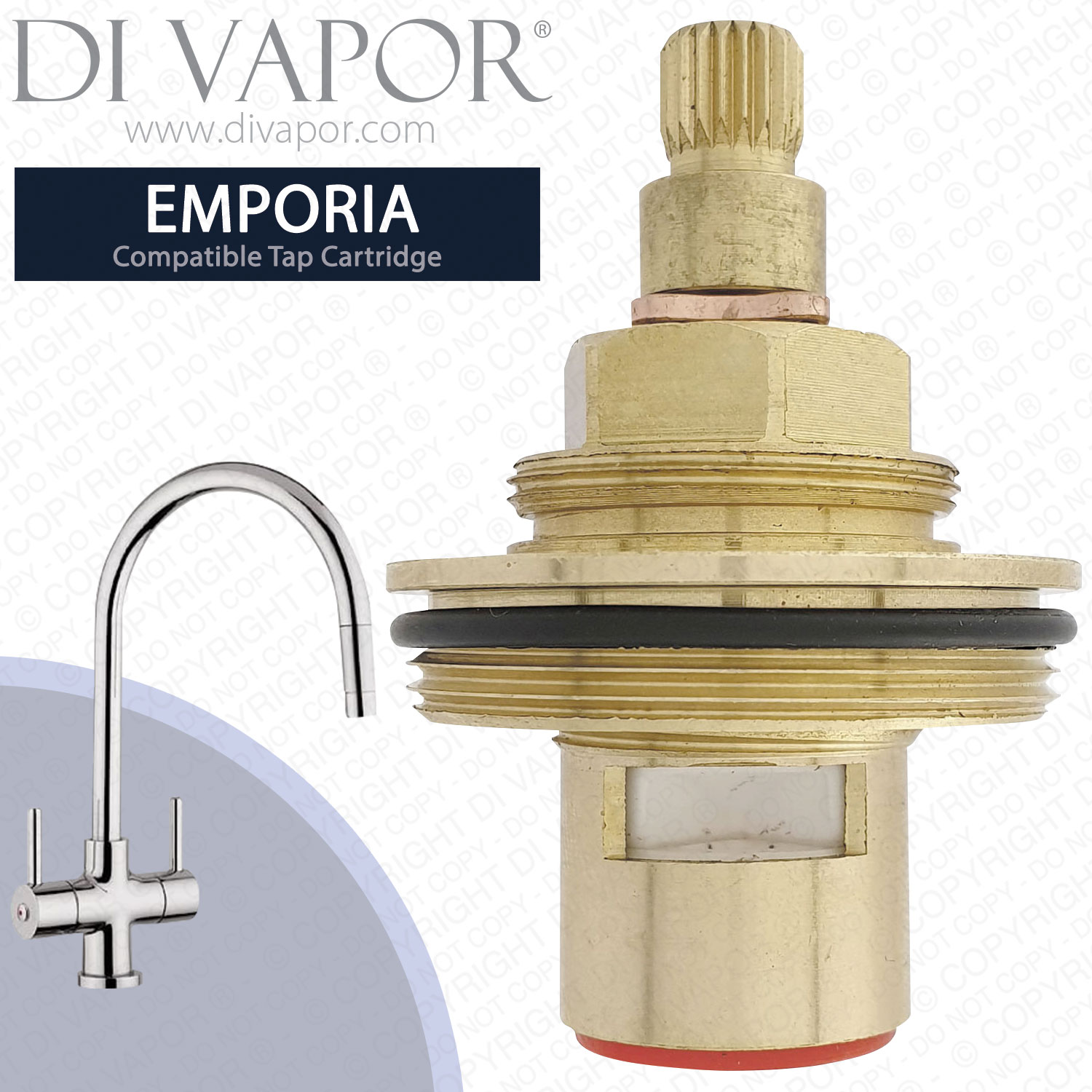

The Clearwater Emporia tap valve compatible hot gland comes with a collar. It is a ceramic disc cartridge that opens with a clockwise quarter turn.

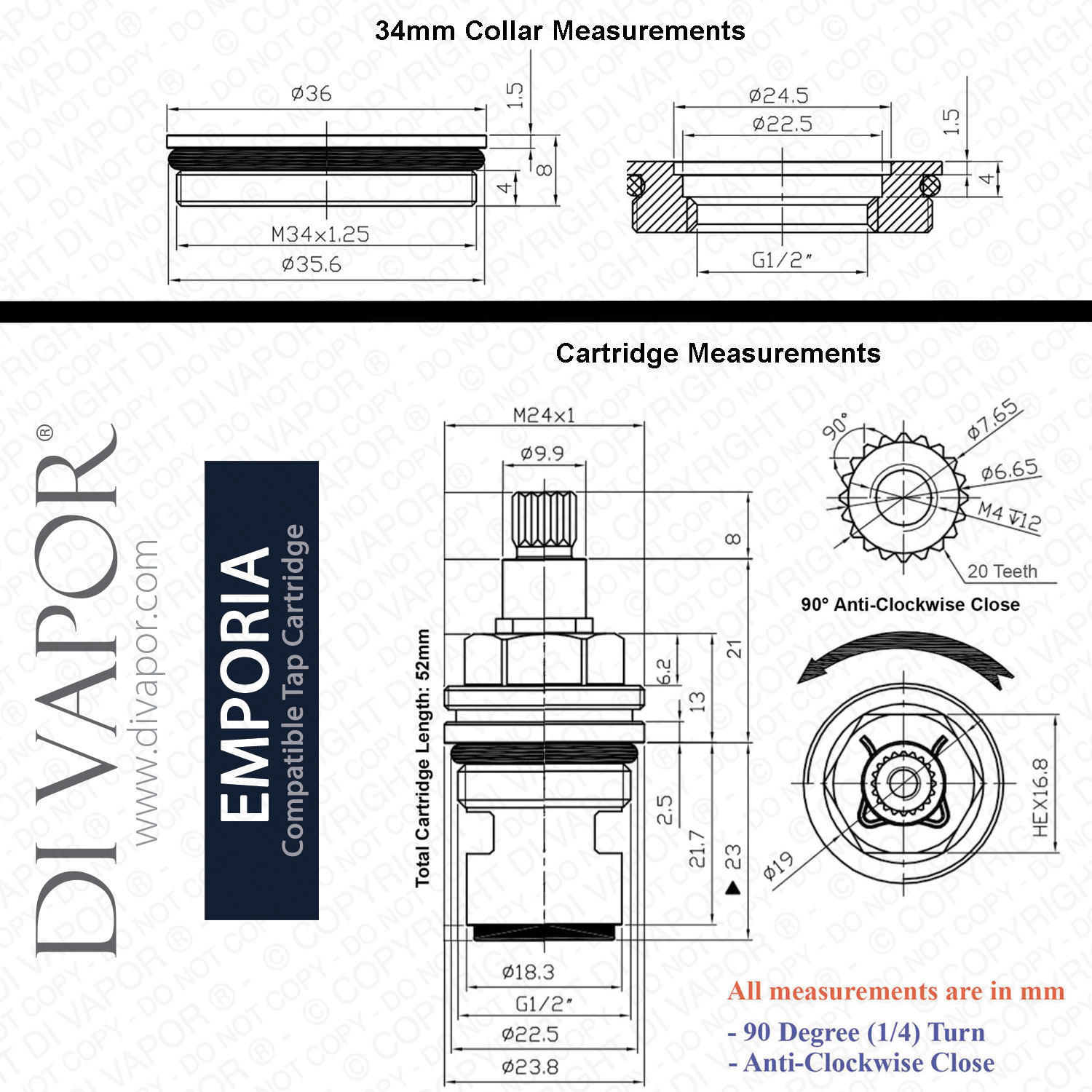

This cartridge measures:
| Length | 52mm |
|---|---|
| Nut Height | 6.2mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Splines | 7.65mm |
| Number of Spline Teeth/Notches | 20 |
(Please kindly count the number of notches the cartridge you have has as there is a version of the Clearwater Emporia cartridge with 28 spline notches.)
Collar Dimensions
| Collar Height | 8mm |
|---|---|
| Diameter to Widest Part | 36mm |
| Diameter at O-Ring | 35.6mm |
Di Vapor is here to help with your spares needs.
Please pop us a message if you need assistance identifying tap cartridges.
+ You can also reach us on WhatsApp (07754 173340).
We are at your service!
More Clearwater Emporia Kitchen Tap Valves
20 Spline Versions
| Cold Tap Cartridge with Collar | CW-EP86-20 |
|---|---|
| Hot Tap Cartridge | CW-EP46-20 |
| Cold Tap Cartridge | CW-EP45-20 |
28 Spline Versions
| Hot Tap Cartridge | CW-EP86-28 |
|---|---|
| Cold Tap Cartridge | CW-EP85-28 |
