Clearwater Emporia Cold Tap Cartridge with Collar Compatible Spare - 20 Spline Version - CW-EP86-20
Send a photo of your item and we'll help confirm it.
Summary
Clearwater Emporia Cold Tap Cartridge with Collar Compatible Spare - 20 Spline Version - CW-EP86-20
The replacement tap gland for the Clearwater Emporia Tap will be shipped out on the same business day for orders made before 3 PM (Monday to Friday).

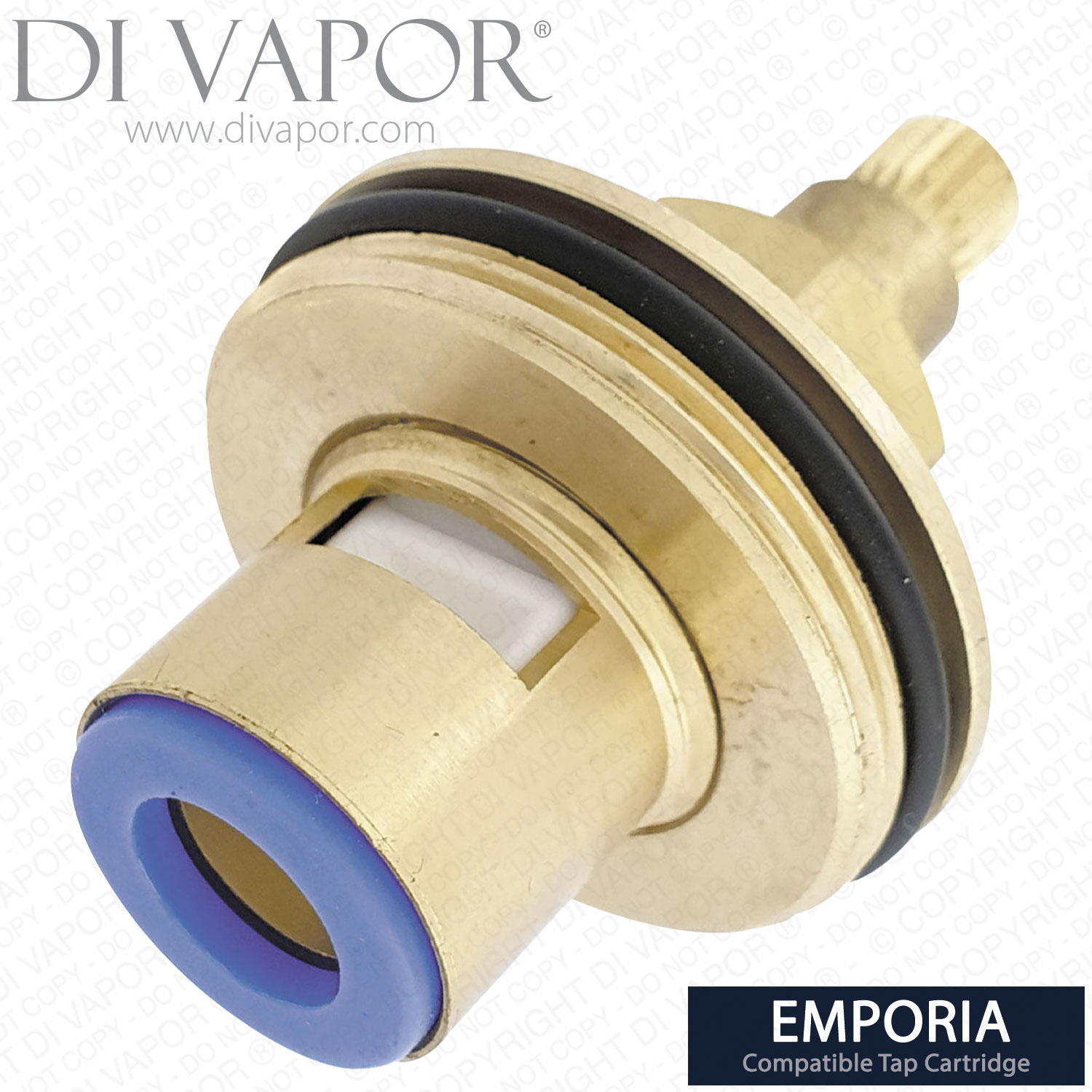

General Information: Clearwater Emporia Tap Valve
This kitchen tap valve is a compatible tap part which can be used with the Clearwater Emporia. It can be the answer to leaky taps due to a faulty cartridge.
Di Vapor is your friendly UK spares experts!
Please pop us a message if you have any questions or need assistance identifying tap cartridges.
+ You can also reach us on WhatsApp (07754 173340).
We are here to help with your spares needs!
It is important to mention that this spare cartridge has 20 spline teeth. Some Clearwater Emporia taps require a 28 toothed cartridge.

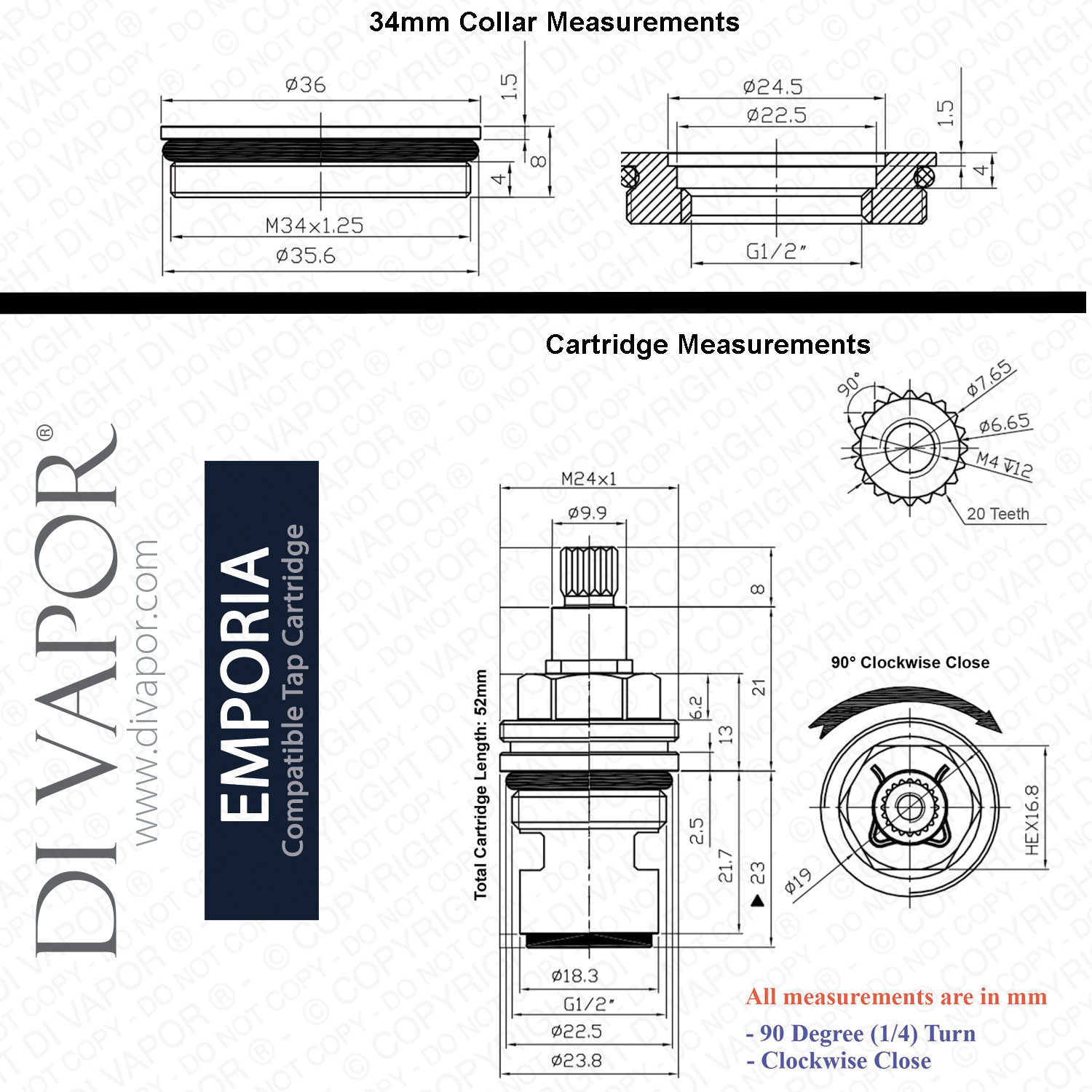

Cartridge Dimensions
| Length | 52mm |
|---|---|
| Nut Height | 6.2mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Splines | 7.65mm |
| Number of Spline Teeth/Notches | 20 |
Collar Dimensions
| Collar Height | 8mm |
|---|---|
| Diameter to Widest Part | 36mm |
| Diameter at O-Ring | 35.6mm |
Other Information
| Cartridge Type | Ceramic Disc Valve |
|---|---|
| Bottom Seal Colour | Blue (Cold) |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Anti-Clockwise |
Compatibility Information
| Compatible with | Clearwater |
|---|---|
| Tap Model | Emporia |
20 Spline Cartridges
| Hot Tap Valve with Collar | CW-EP87-20 |
|---|---|
| Cold Tap Valve | CW-EP45-20 |
| Hot Tap Valve | CW-EP46-20 |
28 Spline Cartridges
| Cold Tap Valve | CW-EP85-28 |
|---|---|
| Hot Tap Valve | CW-EP86-28 |
