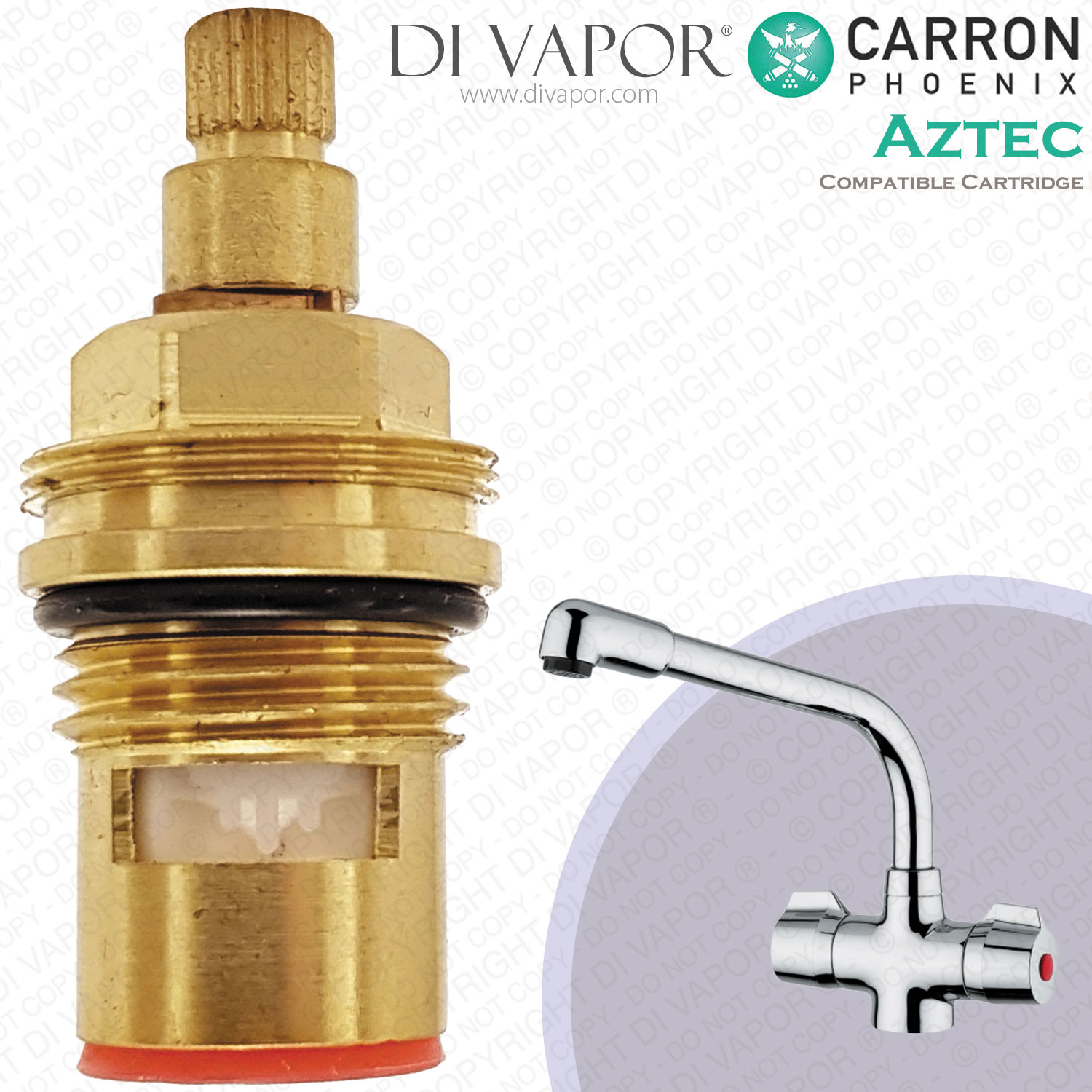

Carron Phoenix Aztec Hot Tap Valve - 52mm, 20 Spline Compatible Tap Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Carron Phoenix Aztec Hot Tap Valve - 52mm, 20 Spline Compatible Tap Cartridge. This is a 1/2" cartridge.
Carron Phoenix Aztec Tap Cartridge Measurements and Other Information
Mearuements:
| Total length | 52mm (5.2cm) |
|---|---|
| Diameter at widest point | 23.8mm (2.38cm) |
| Top spline diameter | 7.65mm |
| Splines | 20 |
Other information:
| Bottom seal colour | Red |
|---|---|
| Close direction | Anti-clockwise close (Clockwise open) |
| Original part number | 1212R and 3819R |
- This cartridge is a quarter turn ceramic disc tap cartridge for Carron Phoenix Aztec.

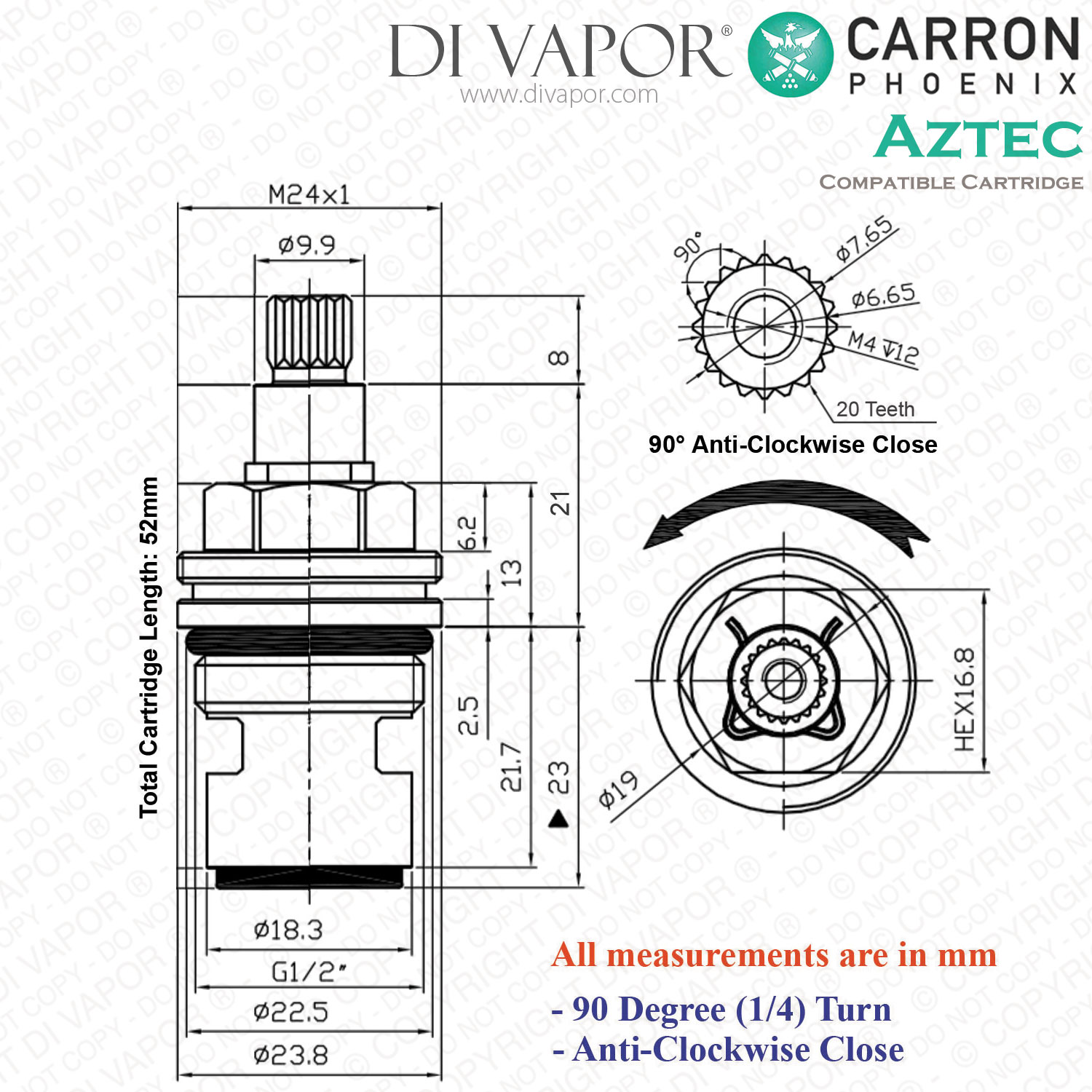

- Please refer to the second photo above for the illustration of the complete measurements.
- Compare the measurements of this Carron Phoenix Aztec tap cartridge compatible spare with the one you have. You can use a ruler to measure the cartridge to be replaced.
- Count the splines of the old cartridge. Mark the starting point with a pen or marker then begin counting from there. The number of splines should match with this Carron Phoenix Aztec tap spare cartridge for it to fit.
Frequently Asked Questions: Carron Phoenix Aztec Tap Cartridge – Hot Valve Compatible Spare Part
Question: I want to change both cartridges for a complete tap repair. What is the cold valve of this cartridge?
Answer: CP-AZ11 is the Carron Phoenix compatible cold side cartridge.
We provide a number of Carron Phoenix tap spares which are available (unless stated otherwise) and ready to ship. We ship worldwide.
Should you have any queries, or if you cannot find your tap model, please send us a message with tap/spare part details and photo. We are ready and eager to assist you in finding the spare part needed.
*Weekend messages will be accommodated first on Monday.
