Abode Genio Cold Kitchen Tap Cartridge Compatible Spare - AD8385
Send a photo of your item and we'll help confirm it.
Summary
Abode Genio Cold Kitchen Tap Cartridge Compatible Spare
Abode Genio Tap Cartridge: Spare Part Breakdown
This Abode Genio tap compatible cartridge replacement works effectively to stop a dripping tap.
To know if this spare part can be used in your tap, please contact us through:
+ Find a Spare Part free cartridge identification page
+ WhatsApp number: 07754 173340.
Di Vapor exists to serve your spares needs!

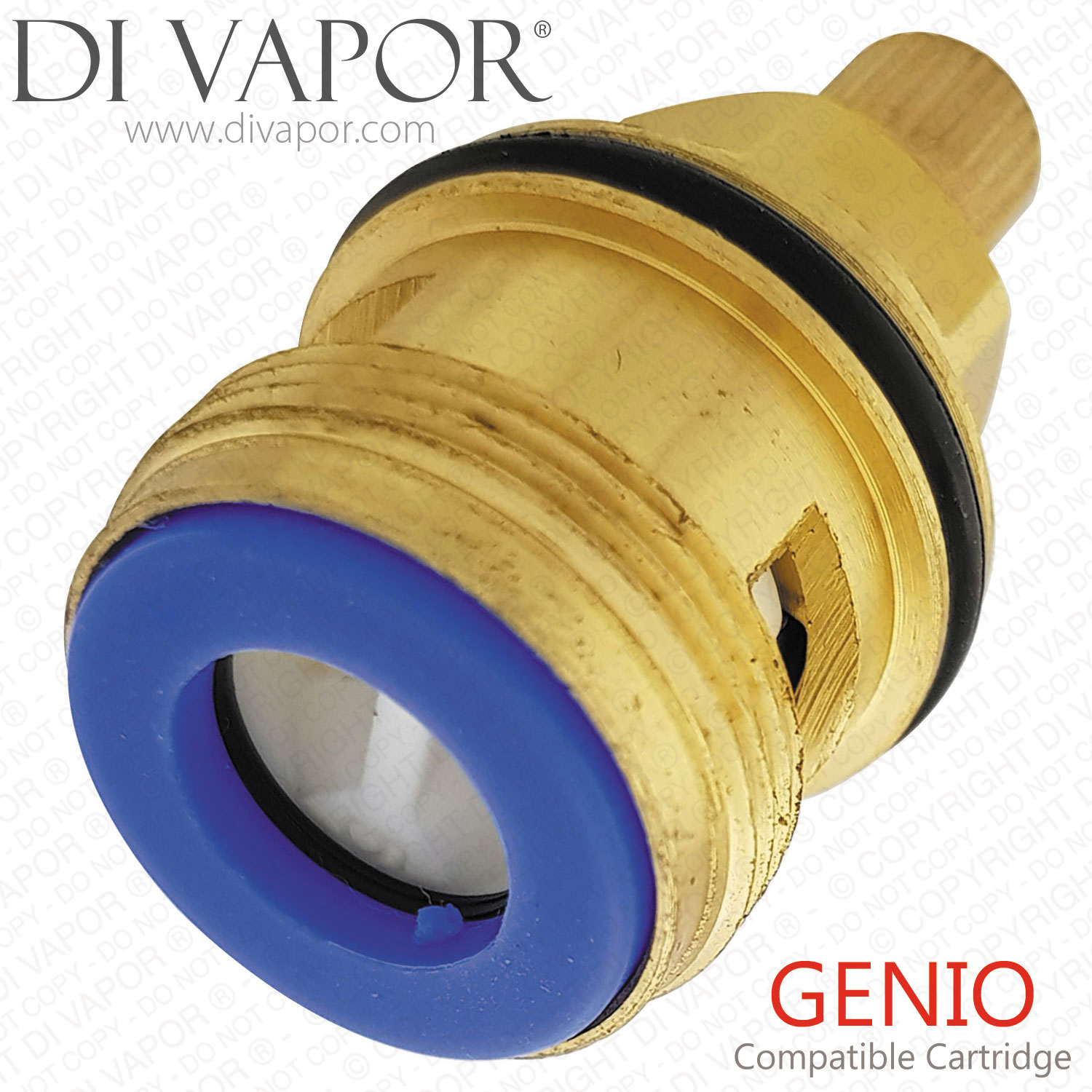

The Abode Genio tap cartridge is a compatible ceramic valve. Brass covers the ceramic disc internals. The spare part has one O-ring. The blue bottom seal signifies the part is for the cold side of the tap, and therefore, closes clockwise and opens anti-clockwise.
There are two generations of the Abode Genio tap cartridge. The first one has a two-sided nut and the other a six-sided nut.

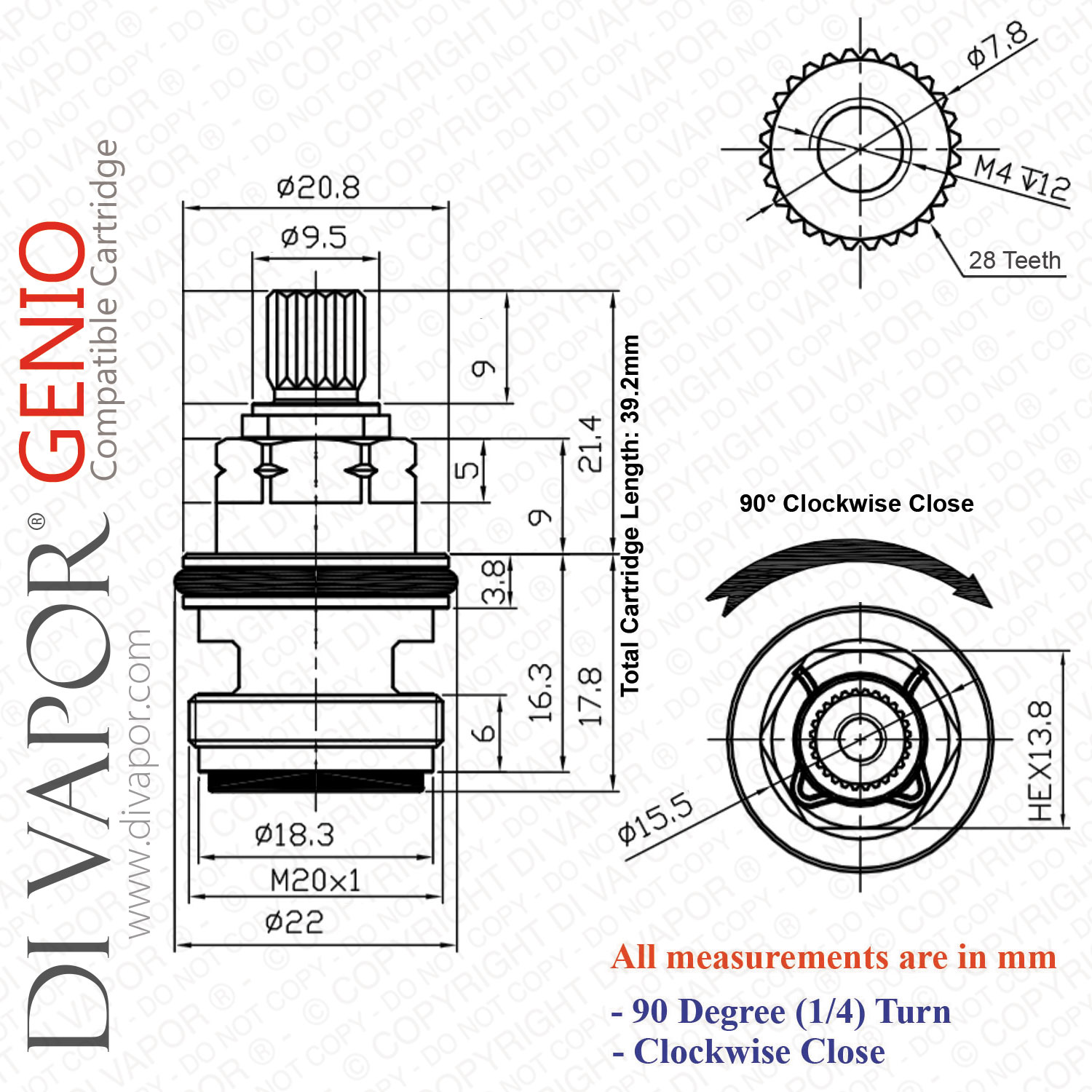

It is recommended to be aware of the measurements of this compatible Abode Genio tap cartridge. Approximate it with the measurements of the cartridge you have. In this way, you can establish if this spare part is the right fit. The second image in the gallery represents the measurements visually.
Technical Information
| Cartridge Length | 39.2mm |
|---|---|
| Diameter at Widest Part | 22mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Splines | 7.8mm |
| Spline Teeth Count | 28 |
Other Information
| Cartridge Type | Ceramic Disc Valve |
|---|---|
| Bottom Seal Colour | Blue (Cold) |
| Rotation Angle | 90° (Quarter Turn) |
Compatibility Information
| Compatible with | Abode |
|---|---|
| Tap Model | Genio |
| Hot Valve | AD8386 (Please visit the page for a simple cartridge installation guide.) |
Length, width and number of spline teeth are vital information to know when hunting for the right replacement kitchen tap part. When in doubt, you can contact us. Our contact details can be found in the subheading above. We will do our very best to help you.
Basic Plumbing Tips: Abode Genio Tap Cartridge Replacement
As a safety measure, the primary tap cartridge pre-installation tip is to close the Abode Genio hot and cold water supply.
1. Bear in mind the order of the parts you remove to access the Abode Genio tap cartridge.
2. The tools needed for tap cartridge replacement are a 2.5mm Allen key, screwdriver and a 12mm spanner (or adjustable spanner).
3. A handle/bush that refuses to separate from the tap may require extra force to pull it out. Hold the base and spout of the tap as you pull.
4. It can sometimes be challenging to push a new cartridge in the tap seat. Applying silicone grease on the O-ring of the replacement Abode Genio tap cartridge will help it seat and seal in the valve.
Please refer to the “Other Items” box below to see the fast-selling plumbers grease we have.
5. Need this Abode Genio spare part fast? Purchase the tap cartridge on a weekday (before 3 PM) and it will be dispatched on the same day.
