Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer (1/2 Inch) - 2010 to 2016 - Spare Parts 31161000 GEN1
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer 1/2 Inch
| Code | 31161000 |
|---|---|
| Year | 2010 - 2016 |

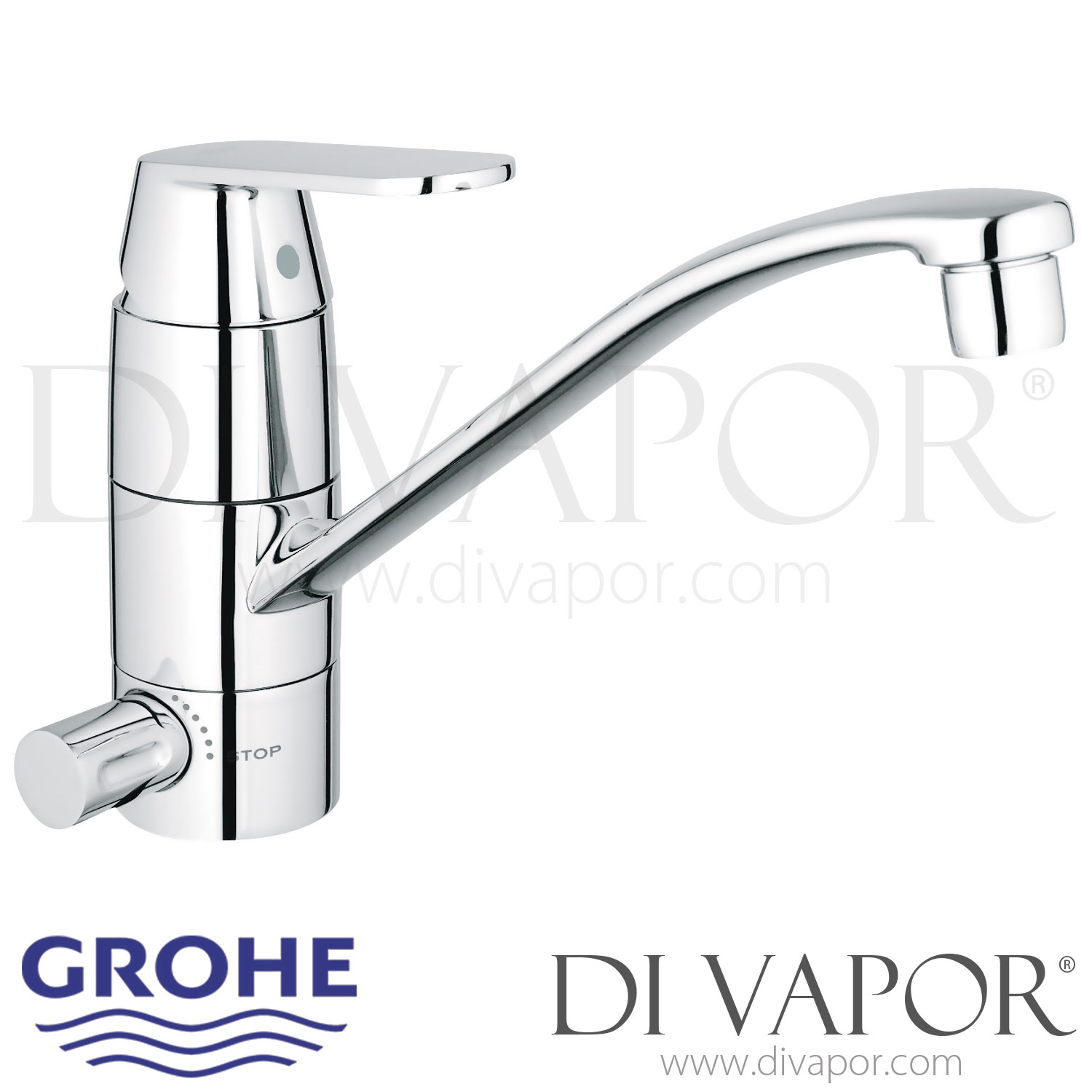

This spares page covers the GROHE Eurosmart Cosmopolitan 31161000 GEN1 single-lever sink mixer produced from 2010 to 2016. This deck-mounted kitchen tap uses a single control lever for water flow and temperature, a swivel spout for sink access, and a separate appliance shut-off control.
The internal ceramic cartridge controls mixed water delivery. The outlet mousseur regulates the water stream and reduces splashing, while the mounting bracket secures the mixer beneath the sink or worktop.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart Cosmopolitan |
| Category | Kitchen tap |
| Model code | 31161000 |
| Generation | GEN1 |
| Construction period | 2010 to 2016 |
| Mixer type | Single-lever sink mixer 1/2 inch with appliance shut-off control |

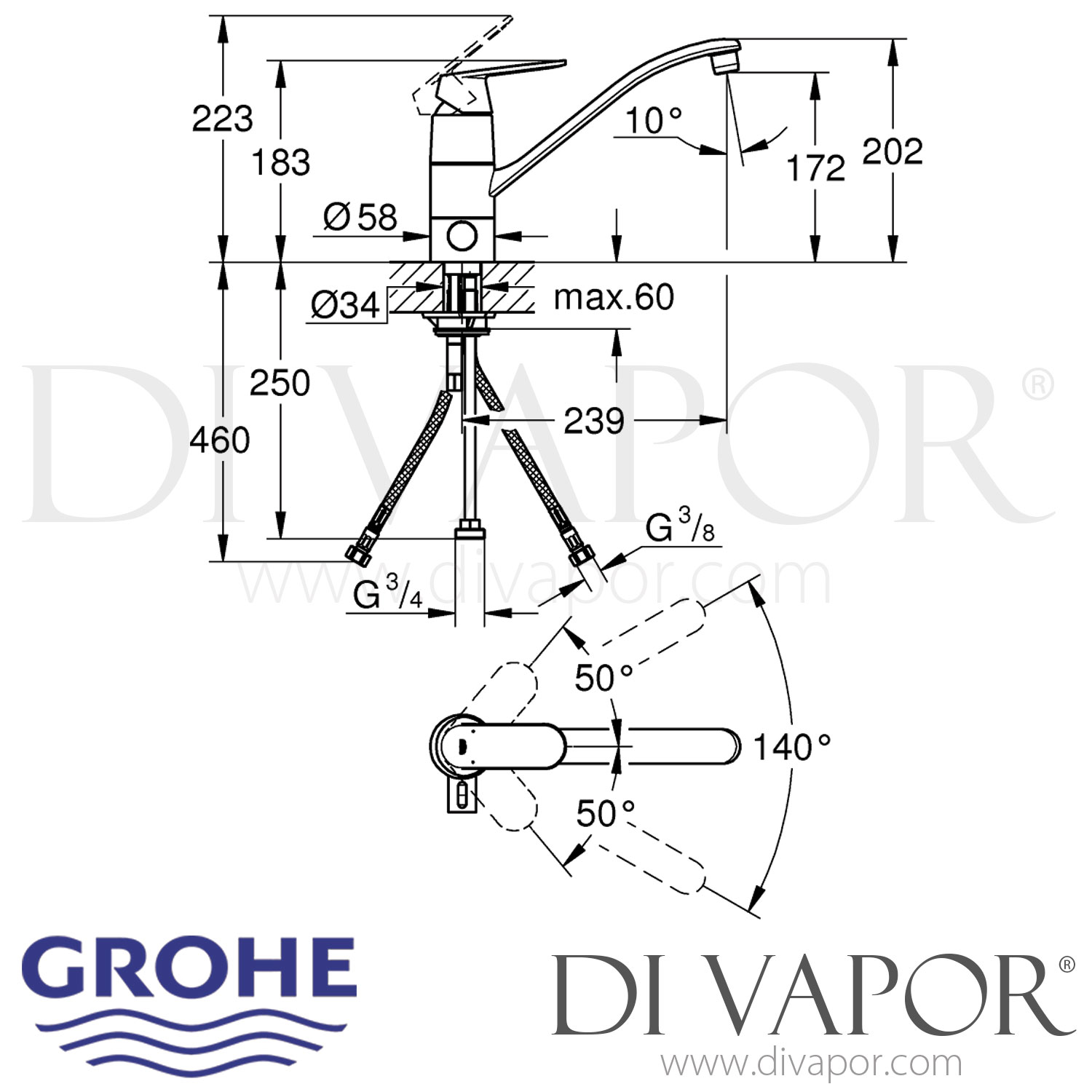

| Spout swivel range | 140 degrees |
| Spout projection | 239mm |
| Outlet height | 172mm |
| Height with the lever raised | 223mm |
| Mixer body diameter | 58mm |
| Required mounting hole diameter | 34mm |
| Maximum mounting surface thickness | 60mm |
| Hot and cold supply connections | G3/8 |
| Appliance connection | G3/4 |
| Minimum flow pressure | 0.5 bar |
| Recommended flow pressure | 1 to 5 bar |
| Maximum operating pressure | 10 bar |
| Approximate flow rate | 12 litres per minute at 3 bar |
| Recommended hot water inlet temperature | 60 C |
- Not suitable for operation with unpressurised storage heaters
Installation and Servicing
Flush the pipework thoroughly before and after installation. Isolate the water supplies before servicing the mixer, ensure the cartridge seals are seated correctly, and tighten the cartridge fixing screws evenly and alternately.
Before You Order Check

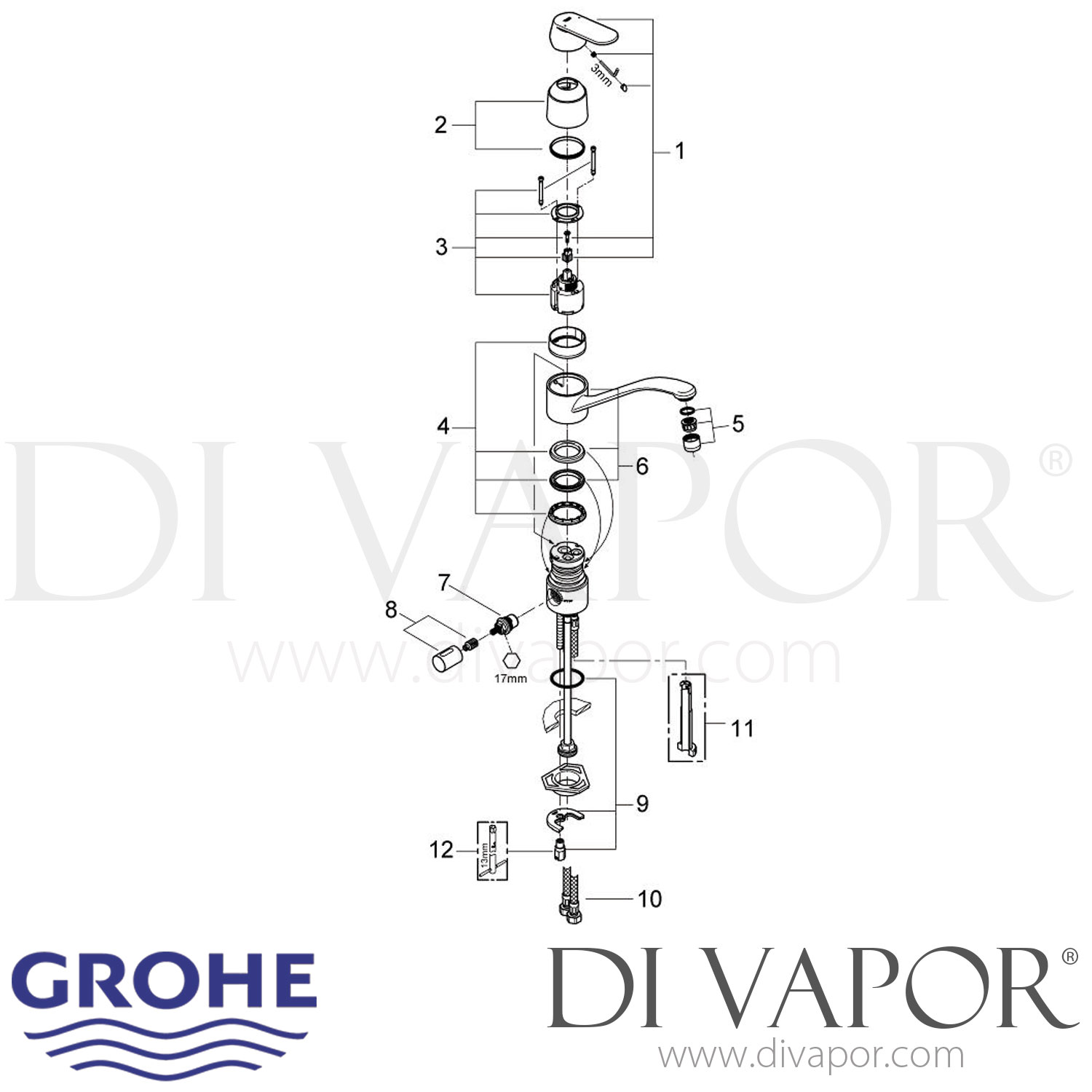

Confirm the 31161000 model code and generation before selecting parts. GEN1 is 2010 to 2016 and GEN2 is 2016 to 2019, so 2016 is an overlap year. Compare the installed component and exploded drawing with the required spare before ordering.
