Grohe 31161000 Eurosmart Cosmopolitan Single-Lever Sink Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 31161000 Eurosmart Cosmopolitan Single-Lever Sink Mixer 1/2 Inch
Year: 2019 - Present (June 2021)

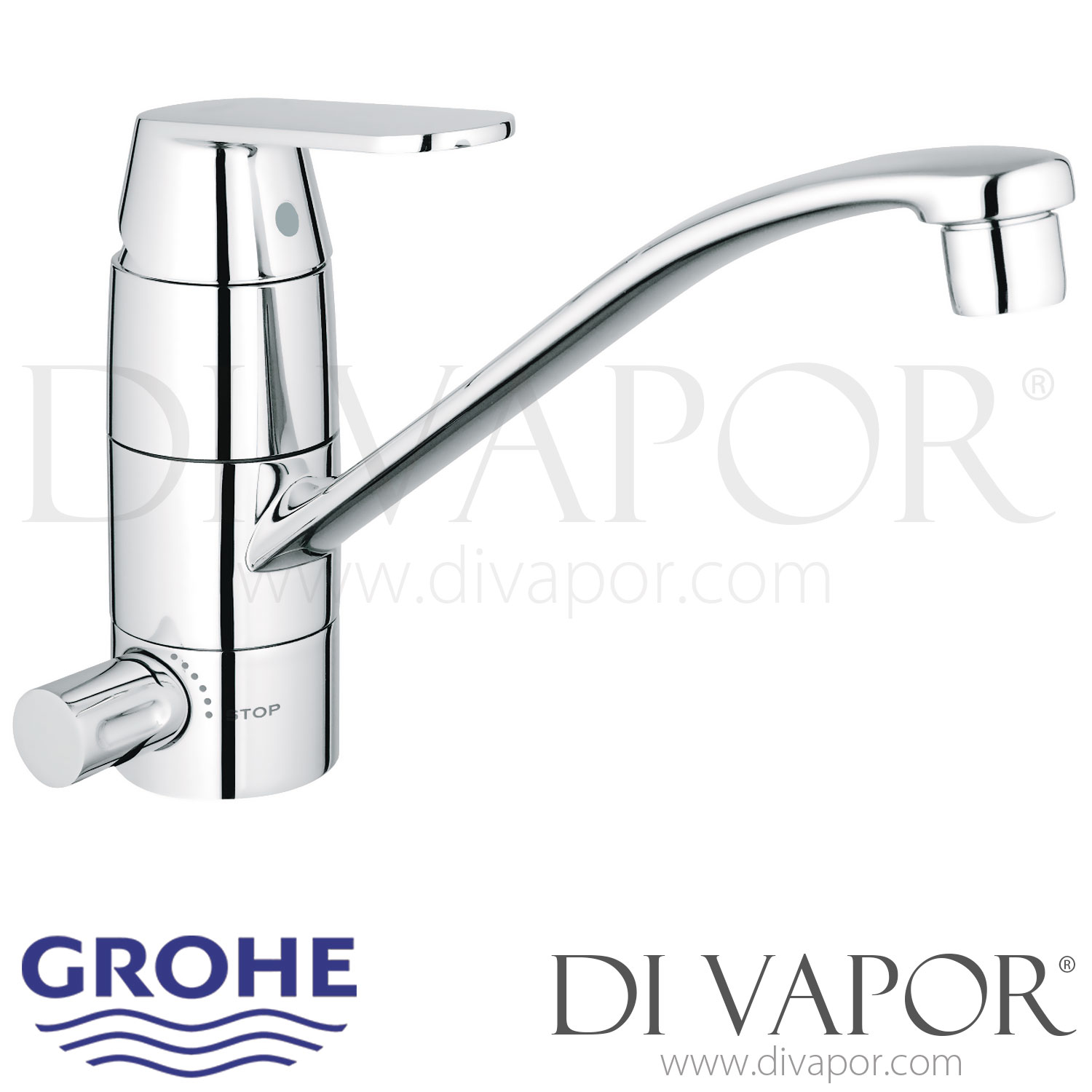

The Grohe 31161000 is a Eurosmart Cosmopolitan single-lever kitchen sink mixer with a separate, integrated shut-off control for an appliance water supply. This spare parts page covers the 2019-to-present generation of the chrome mixer.
The main lever controls the mixed-water flow and temperature. The swivel spout supplies water to the sink, while the separate side control allows the connected dishwasher or other appliance supply to be isolated independently.
Technical Details
| Brand | Grohe. |
|---|---|
| Range | Eurosmart Cosmopolitan. |
| Category | Kitchen tap. |
| Model code | 31161000. |
| Product type | Single-lever sink mixer with an integrated appliance shut-off. |
| Generation | 2019 to present. |
| Finish | Chrome. |
| Installation type | One-hole, monobloc installation. |

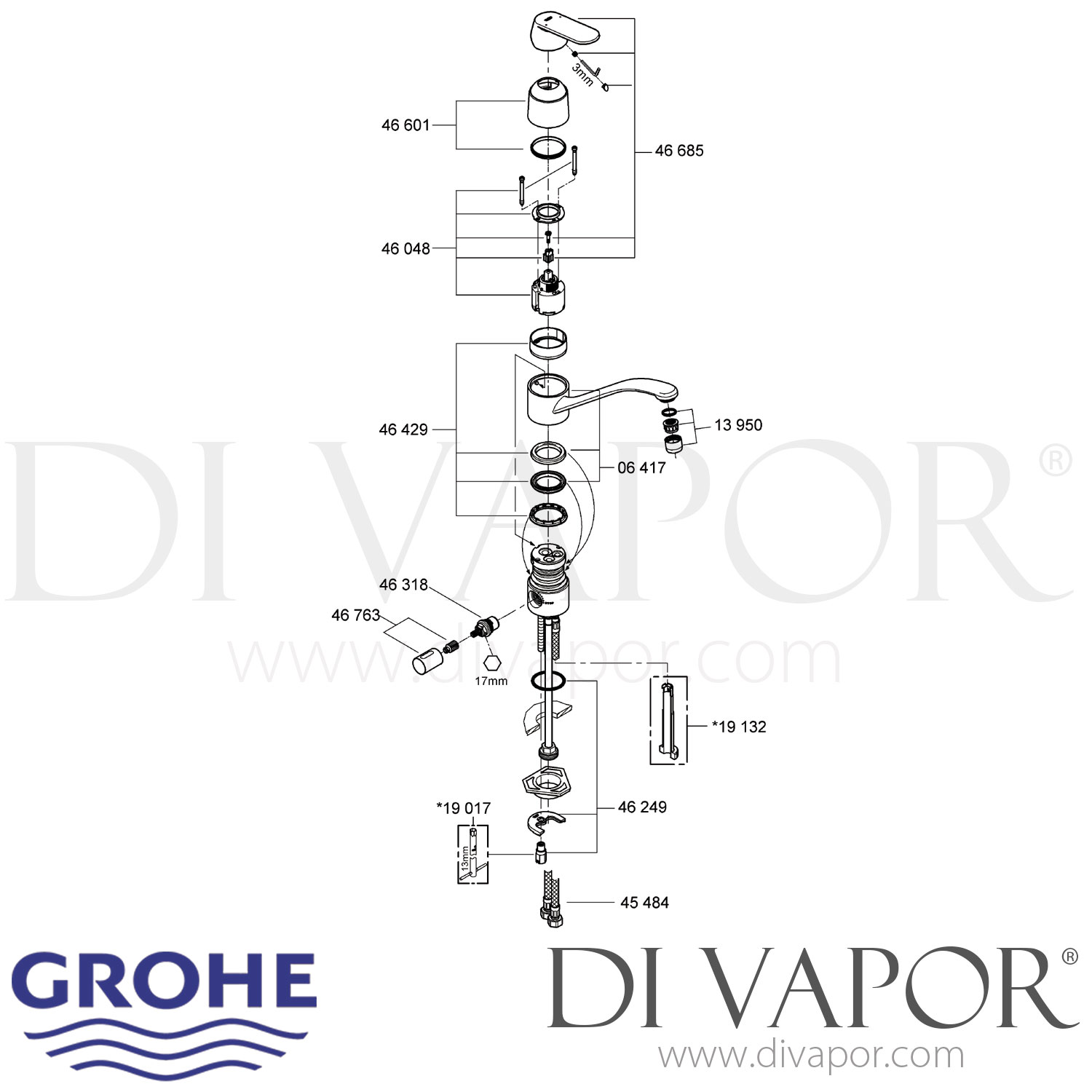

| Main cartridge | Grohe 46048000 46 mm ceramic mixer cartridge. |
| Spout movement | 140-degree swivel range. |
| Maximum flow rate | 8 litres per minute at 3 bar. |

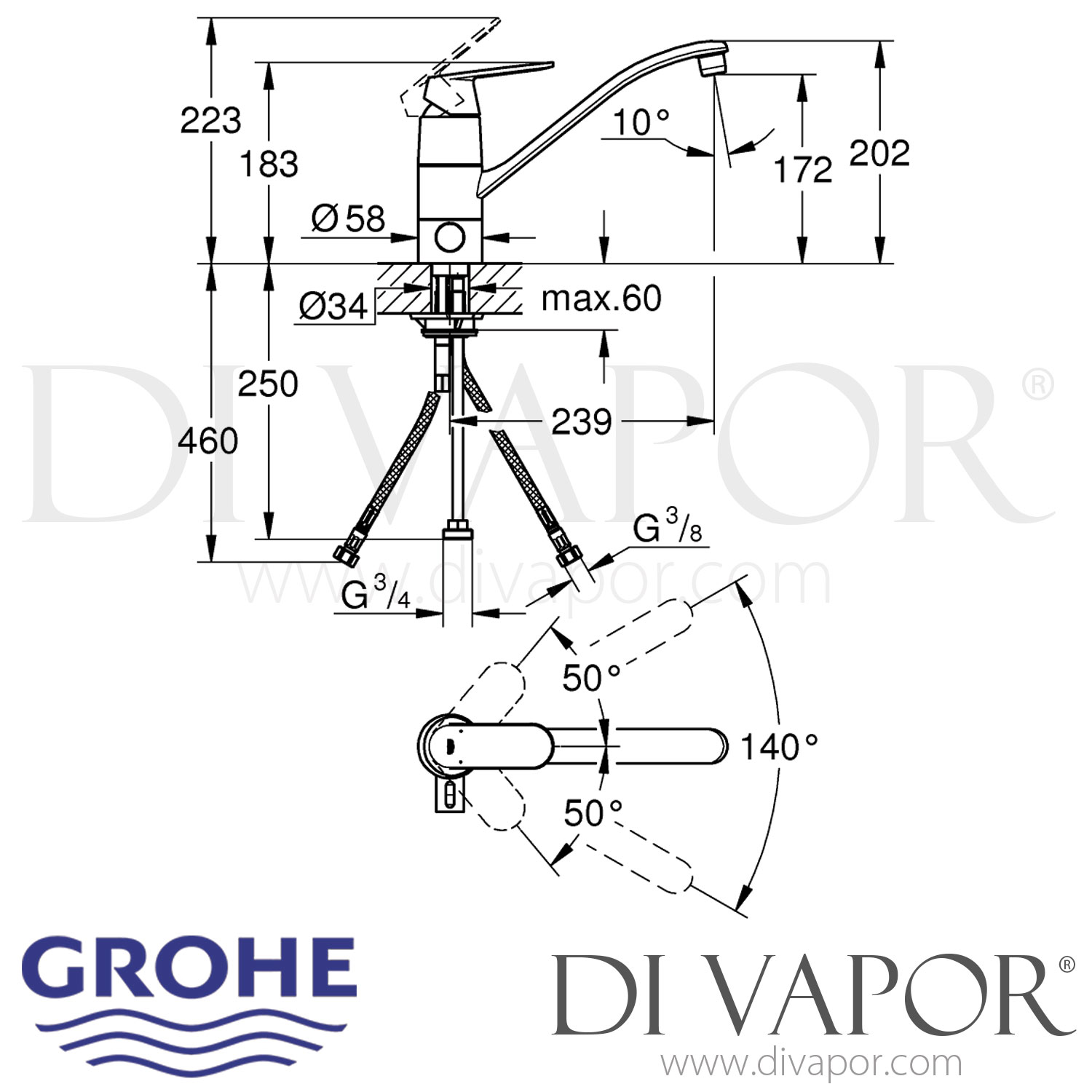

| Overall mixer height | 223 mm. |
| Outlet height | 172 mm. |
| Spout projection | 239 mm. |
| Mixer body diameter | 58 mm. |
| Required mounting-hole diameter | 34 mm. |
| Maximum sink or worktop thickness | 60 mm. |
| Hot and cold supply connections | G3/8. |
| Appliance shut-off connection | G3/4. |
Before You Order Check
Confirm that the tap is marked with model code 31161000, and check its installation period before selecting spare parts. More than one generation of this model is available, and the component arrangements can differ. The 1/2 Inch wording forms part of the model description and should not, by itself, be used to identify the supply connection size.
