Grohe Concetto Single-Lever Sink Mixer Kitchen Tap - 2010 to 2012 - Spare Parts 32659001 GEN1
Send a photo of your item and we'll help confirm it.
Summary
Grohe Concetto 32659001 GEN1 spare parts for the single-lever sink mixer kitchen tap produced from 2010 to 2012. This generation-specific page is intended to help identify the correct service components for the earlier version of the 32659001 mixer.

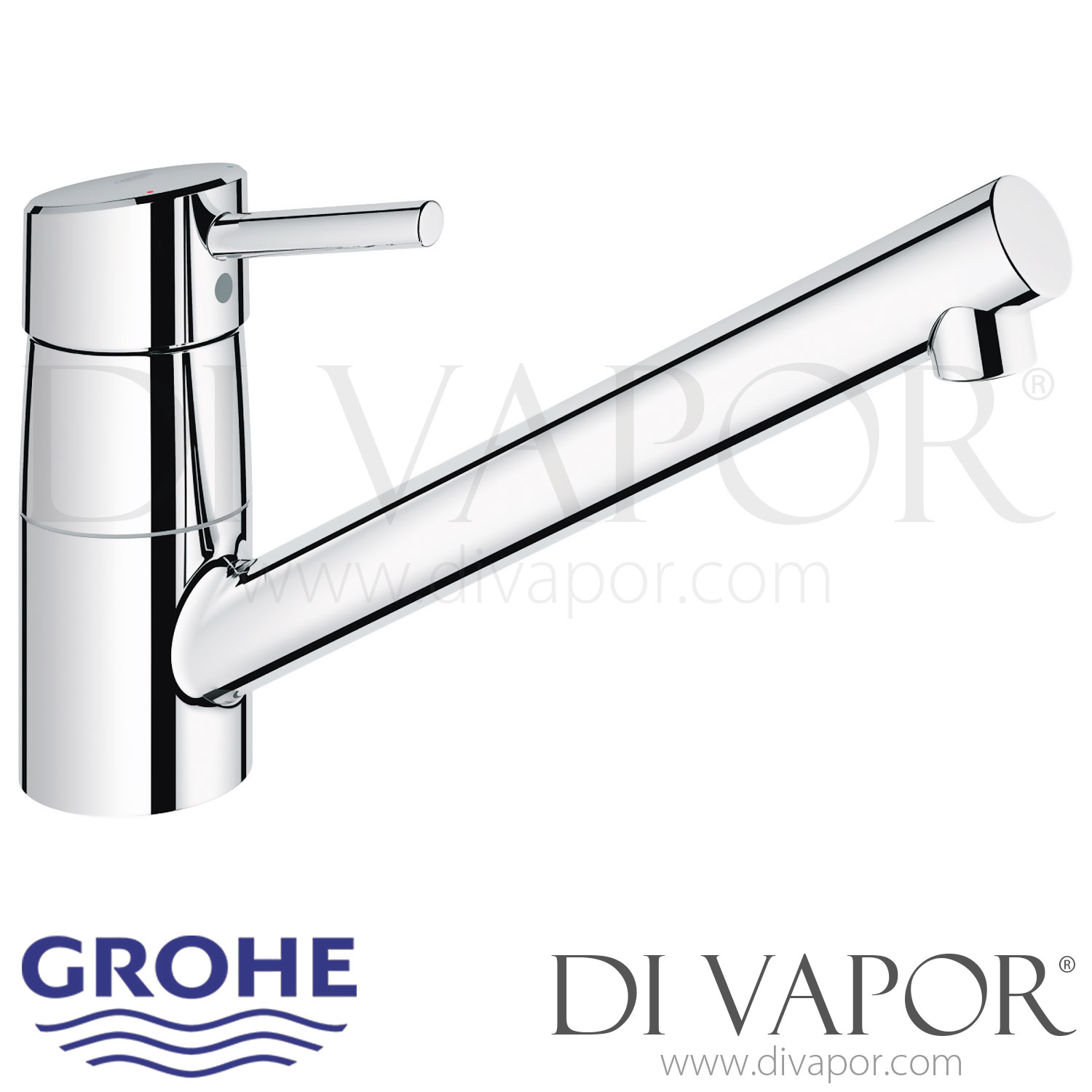

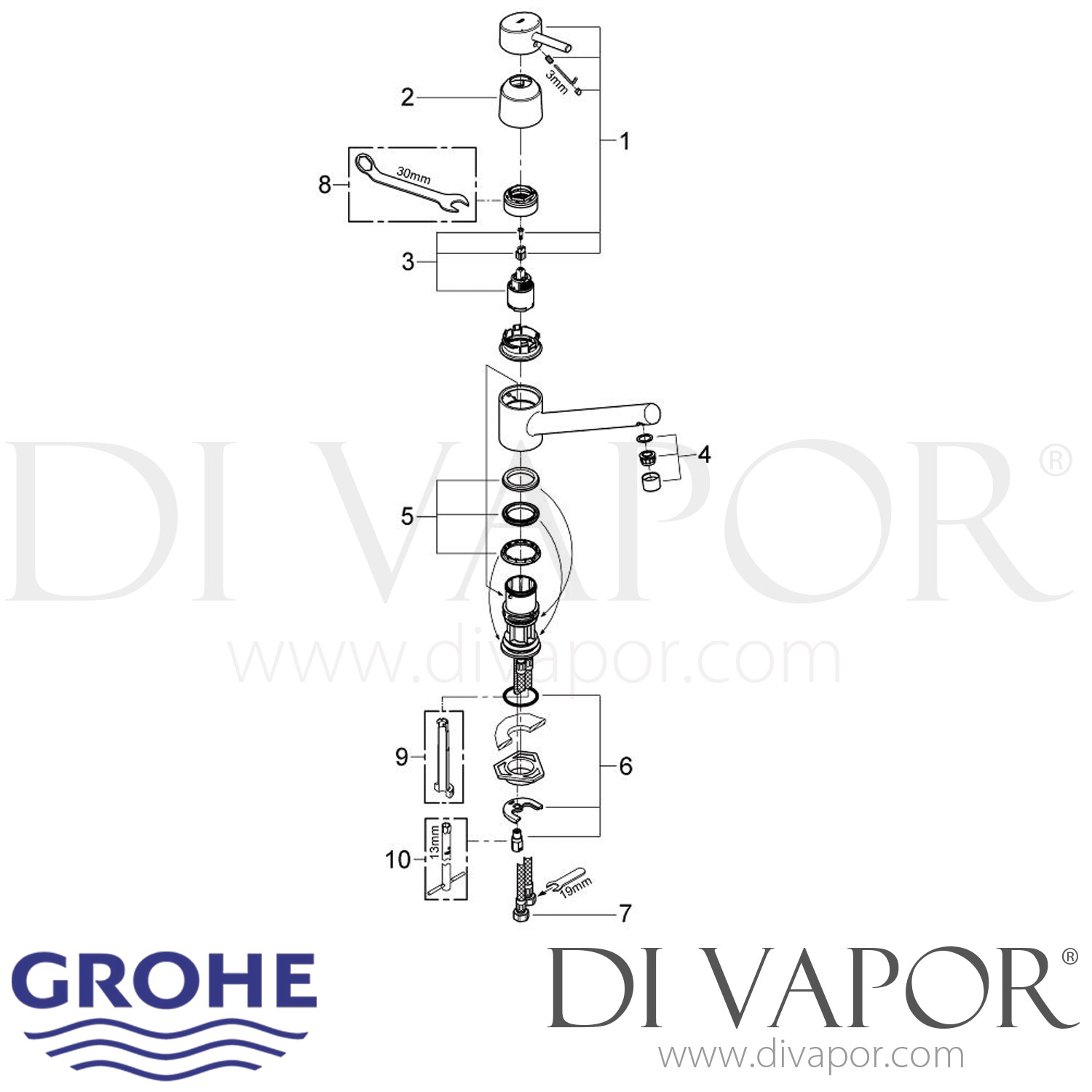

The mixer uses a 35 mm GROHE SilkMove ceramic cartridge to control water flow and temperature and has a swivelling cast spout for sink use. When servicing the mixer the Grohe spares listed below cover the principal control and mounting components shown for this GEN1 configuration.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Concetto |
| Category | Kitchen tap |
| Product code | 32659001 |
| Di Vapor generation | 32659001 GEN1 |
| Production period | 2010 to 2012 |
| Finish | Chrome |
| Installation | Single-hole installation |
| Cartridge system | GROHE SilkMove 35 mm ceramic cartridge |
| Spout | Swivelling cast spout |

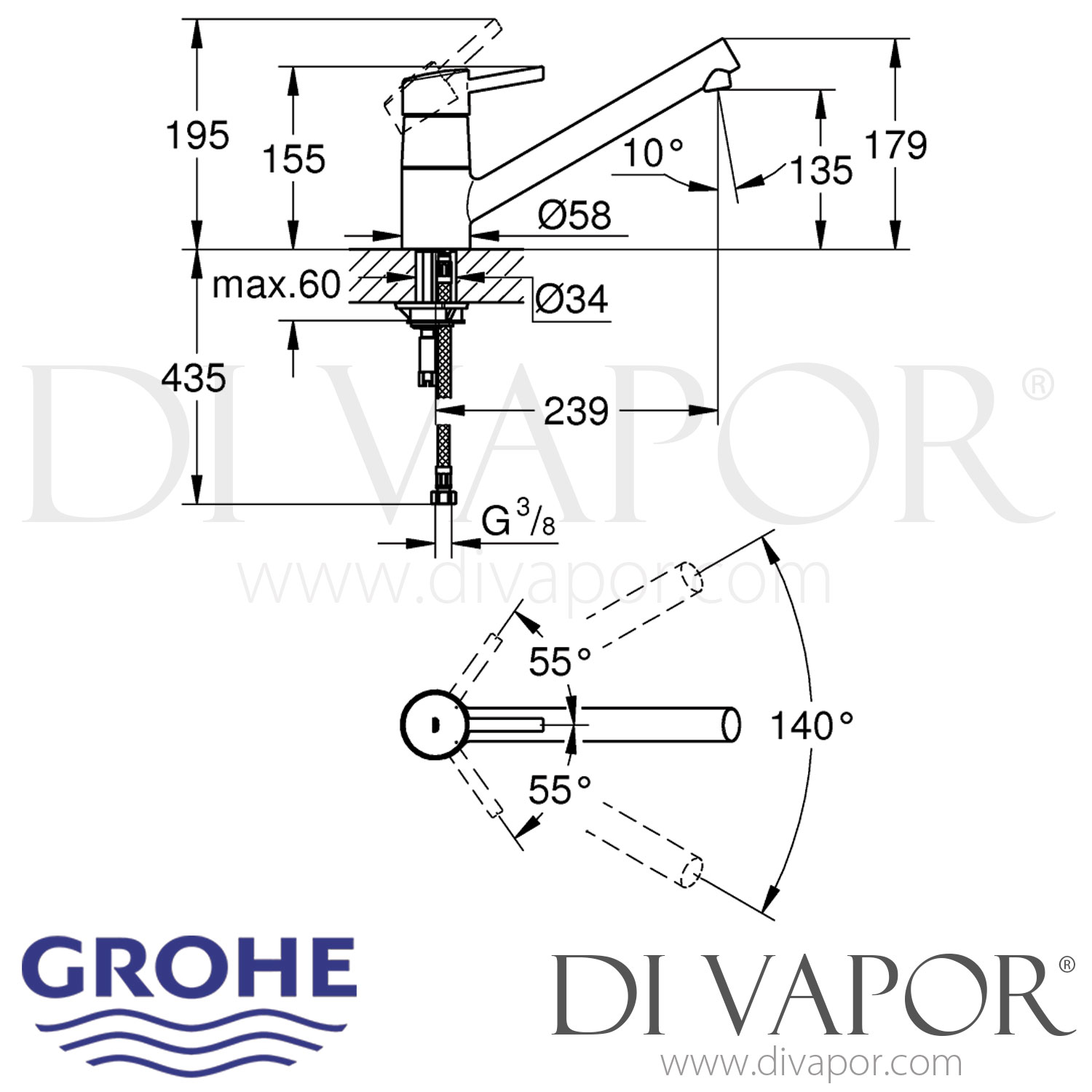

| Spout swivel area | 140 degrees |
| Horizontal spout reach | 239 mm |
| Outlet height | 135 mm |
| Base diameter | 58 mm |
| Mounting-hole diameter | 34 mm |
| Maximum mounting thickness | 60 mm |
| Flexible hose length | 435 mm |
| Supply connection | G 3/8 |
| Maximum flow rate at 3 bar | 13 l/min |
| EAN | 4005176886713 |
Before You Order
Check that the tap carries product code 32659001 and belongs to the 2010 to 2012 generation before selecting parts. Later versions retain the same base product code but have separate generation-specific spare-parts pages.
