Grohe Concetto Single-Lever Sink Mixer - 2017 to 2020 - Spare Parts 32663003 GEN1

SUMMARY

Spares for Grohe Concetto 32663003 GEN1 Single-Lever Sink Mixer Kitchen Tap Spare Parts 2017-2020

This spare-parts page covers the GROHE Concetto 32663003 single-lever sink mixer in the GEN1 service configuration used from July 2017 to April 2020. This chrome kitchen tap has a high swivel spout with a pull-out mousseur and is designed for single-hole deck mounting.

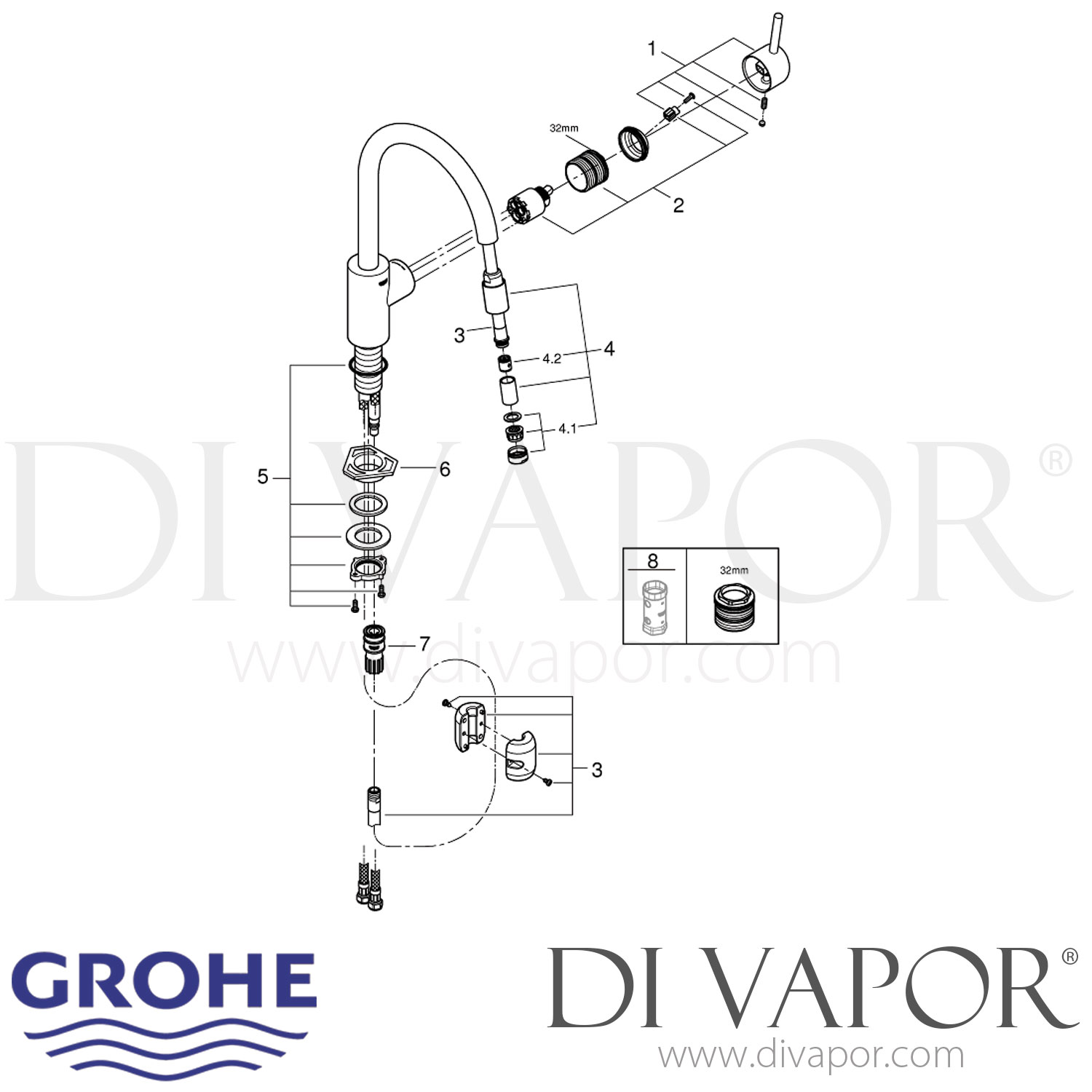

The mixer uses a GROHE SilkMove 35 mm ceramic cartridge to control water flow and temperature. The pull-out hose, mousseur, non-return valve and mounting components can be serviced separately. These Grohe tap spares provide the principal service parts available for maintaining this generation of the 32663003 mixer.

Technical Details

- - Brand: GROHE

- - Range: Concetto

- - Category: Kitchen tap

- - Product code: 32663003

- - Generation: GEN1

- - Service period: July 2017 to April 2020

- - Finish: Chrome

- - Mixer type: Single-lever sink mixer with high swivel spout and pull-out mousseur

- - Cartridge: GROHE SilkMove 35 mm ceramic cartridge

- - Spout swivel: 360 degrees

- - Maximum flow rate: 9.5 l/min at 3 bar

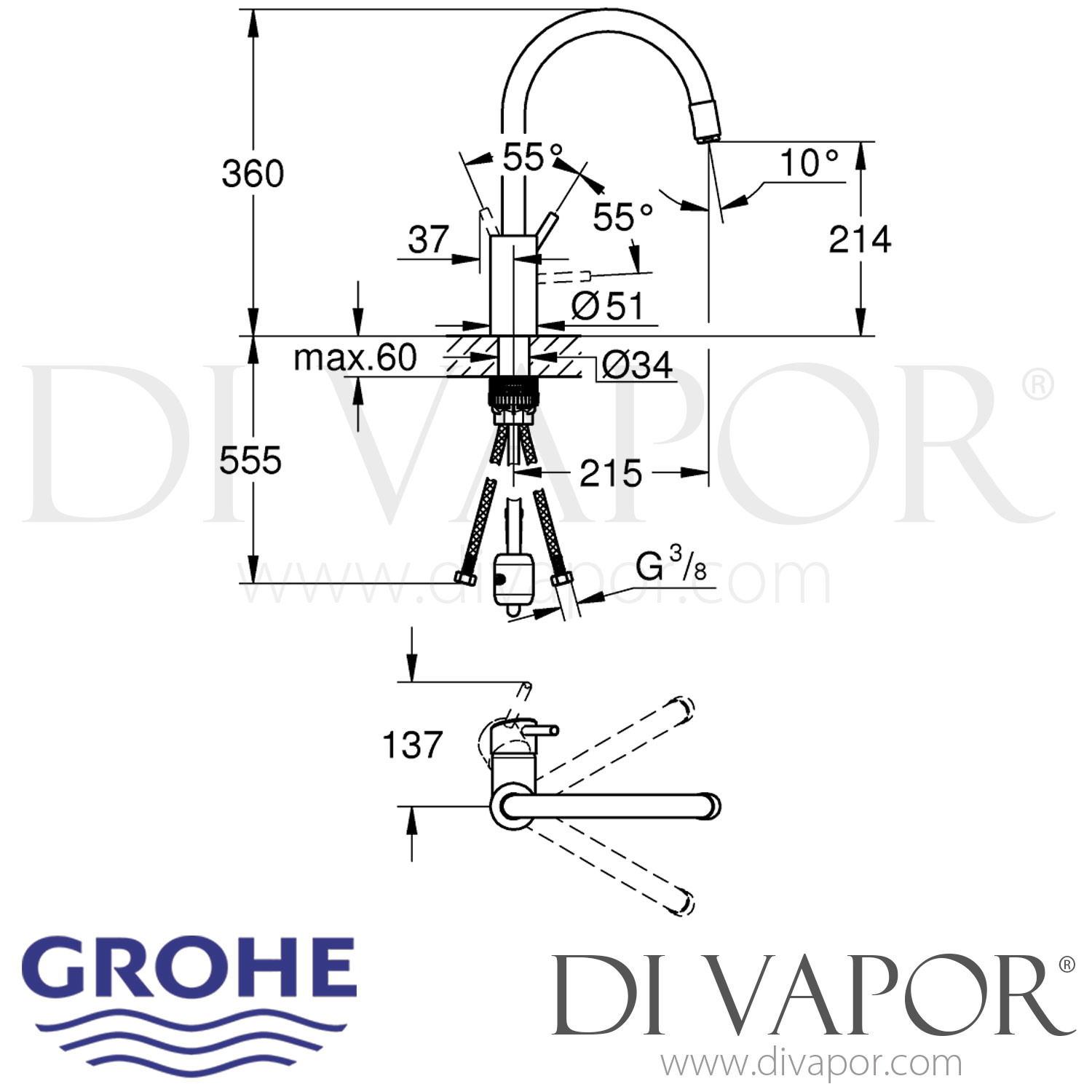

- - Overall height: 360 mm

- - Outlet height: 214 mm

- - Spout reach: 215 mm

- - Base/body diameter: 51 mm

- - Tap-hole diameter: 34 mm

- - Maximum deck thickness: 60 mm

- - Supply connections: G 3/8

- - Supply pressure: 0.5 to 10 bar

- - Recommended operating pressure: 1 to 5 bar

- - Maximum hot-water temperature: 70 C

- - Recommended hot-water temperature: 60 C

- - EAN: 4005176466854

Before You Order

Check that the mixer code is 32663003 and confirm the installation period or service generation before selecting parts. Later 32663003 mixers use a different fixing and coupling arrangement, so the model number alone should not be used to identify every service component.
