Grohe 32663003 Concetto Single-Lever Sink Mixer Spare Parts

SUMMARY

Grohe 32663003 Concetto Single Lever Sink Mixer Kitchen Tap Spare Parts

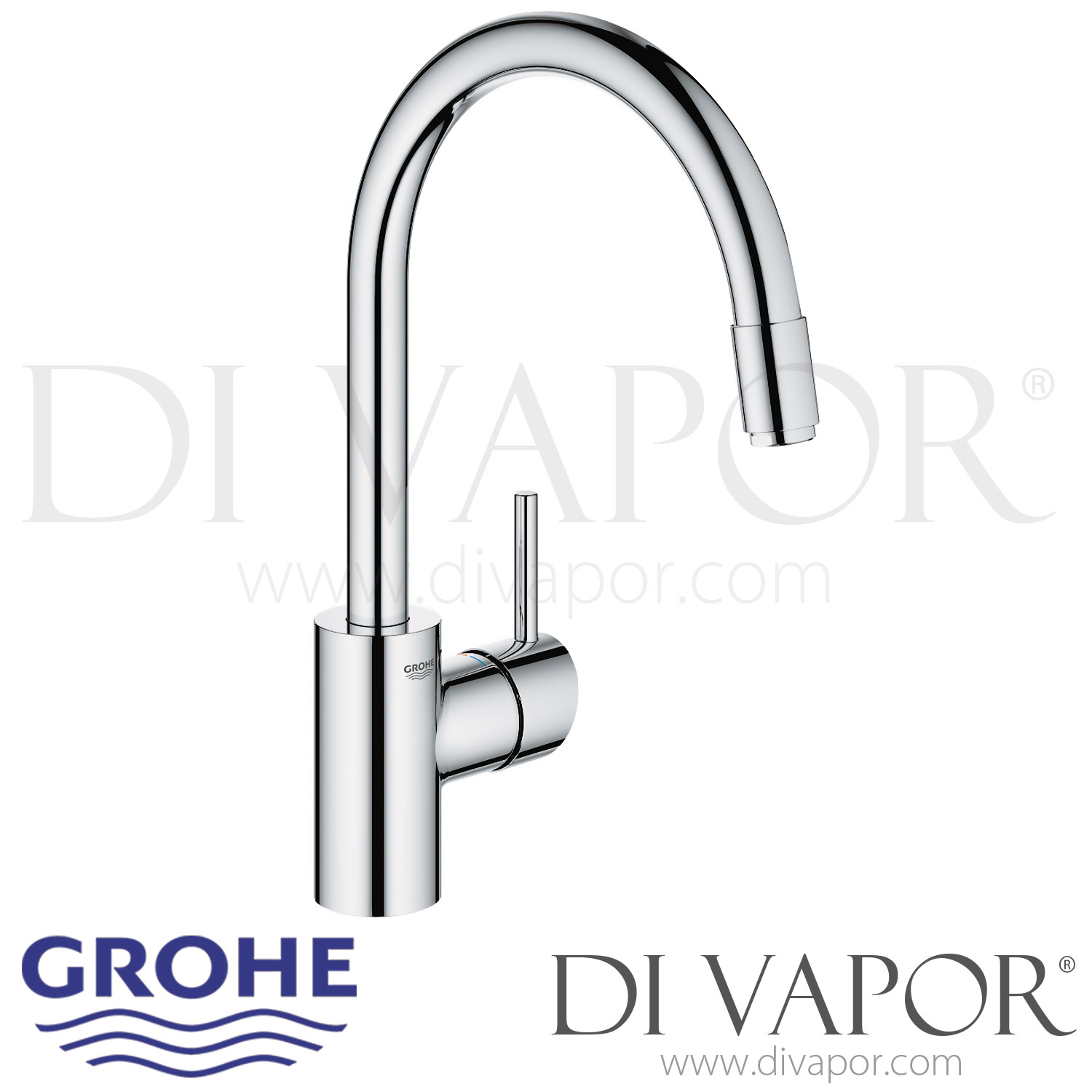

The Grohe 32663003 Concetto is a chrome single-lever kitchen sink mixer with a high C-spout and pull-out mousseur. This spares listing covers service components for the 32663003 tap and helps identify the correct parts by exact Grohe reference number.

The mixer uses a 35 mm Grohe SilkMove ceramic cartridge to control water flow and temperature, while the pull-out outlet is connected through a dedicated tap hose. When selecting Grohe spare parts for this model, check the existing component number and production generation because some fixing and service parts changed during the production life of 32663003.

Technical Details

- - Brand: Grohe

- - Range: Concetto

- - Category: Kitchen tap

- - Product code: 32663003

- - Finish: Chrome

- - Installation: Single-hole

- - Spout: High tubular C-spout with pull-out mousseur

- - Cartridge: 35 mm Grohe SilkMove ceramic cartridge

- - Spout swivel area: 360 degrees

- - Maximum flow rate: 9.5 l/min at 3 bar

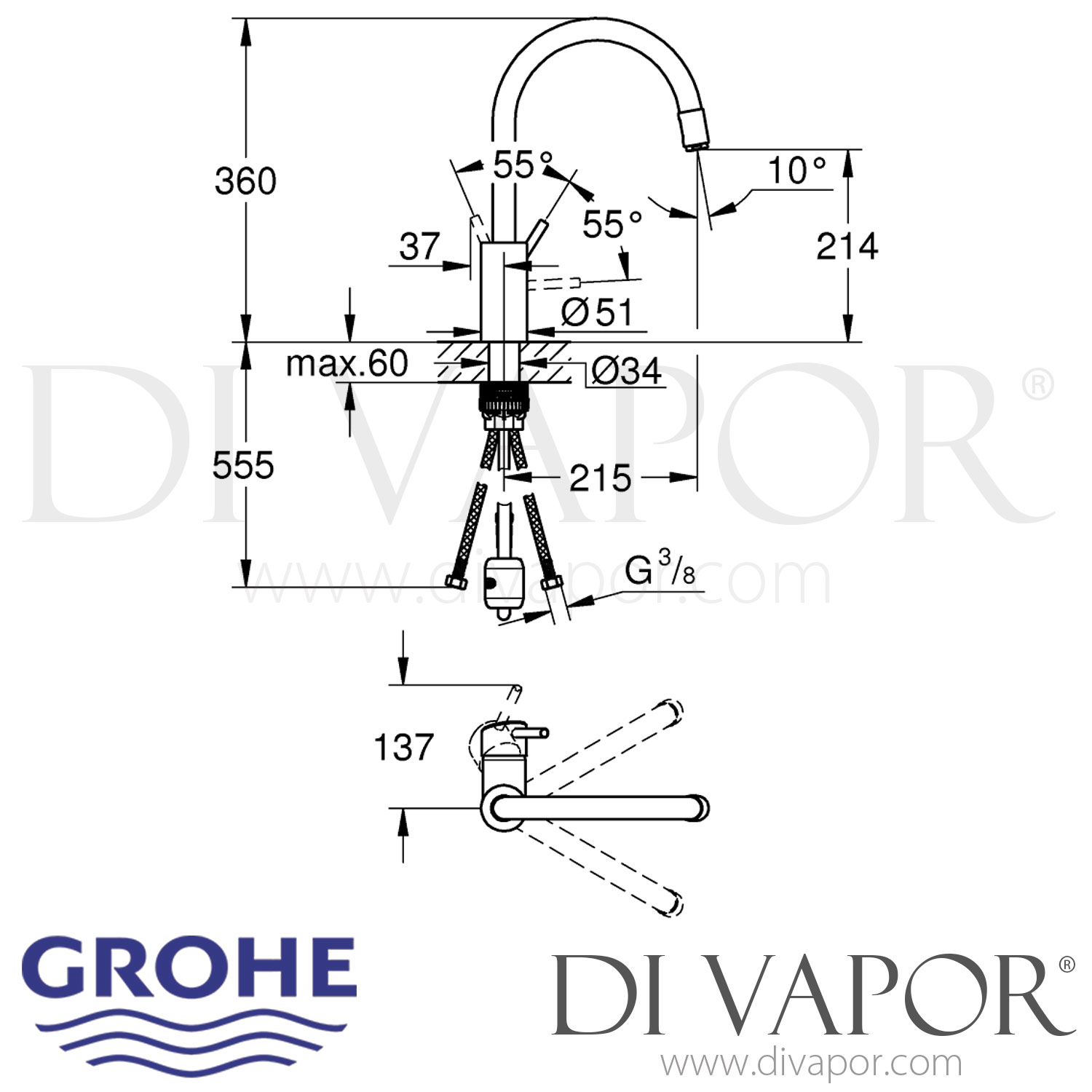

- - Overall height: 360 mm

- - Spout outlet height: 214 mm

- - Spout reach: 215 mm

- - Body/base diameter: 51 mm

- - Required mounting hole diameter: 34 mm

- - Maximum deck/worktop thickness: 60 mm

- - Water connection size: G 3/8

- - EAN: 4005176466854

Other Available Generations

- - Grohe Concetto 32663003 Single Lever Sink Mixer 2017 to 2020 Spare Parts

Before You Order

- - Check that the tap body is marked or documented as Grohe 32663003.

- - Compare the existing spare-part number with the replacement being ordered.

- - Check the production generation where mounting hardware or under-deck components are required, as these parts changed during the service history of 32663003.
