Grohe Concetto Single-Lever Sink Mixer (1/​2 Inch) - 2014 to 2015 - Tap Spare Parts 30273001 GEN1

SUMMARY

Tap Spares for Grohe 30273001 Concetto Single-Lever Sink Mixer 1/2 Inch Tap

Year: 2014 - 2015

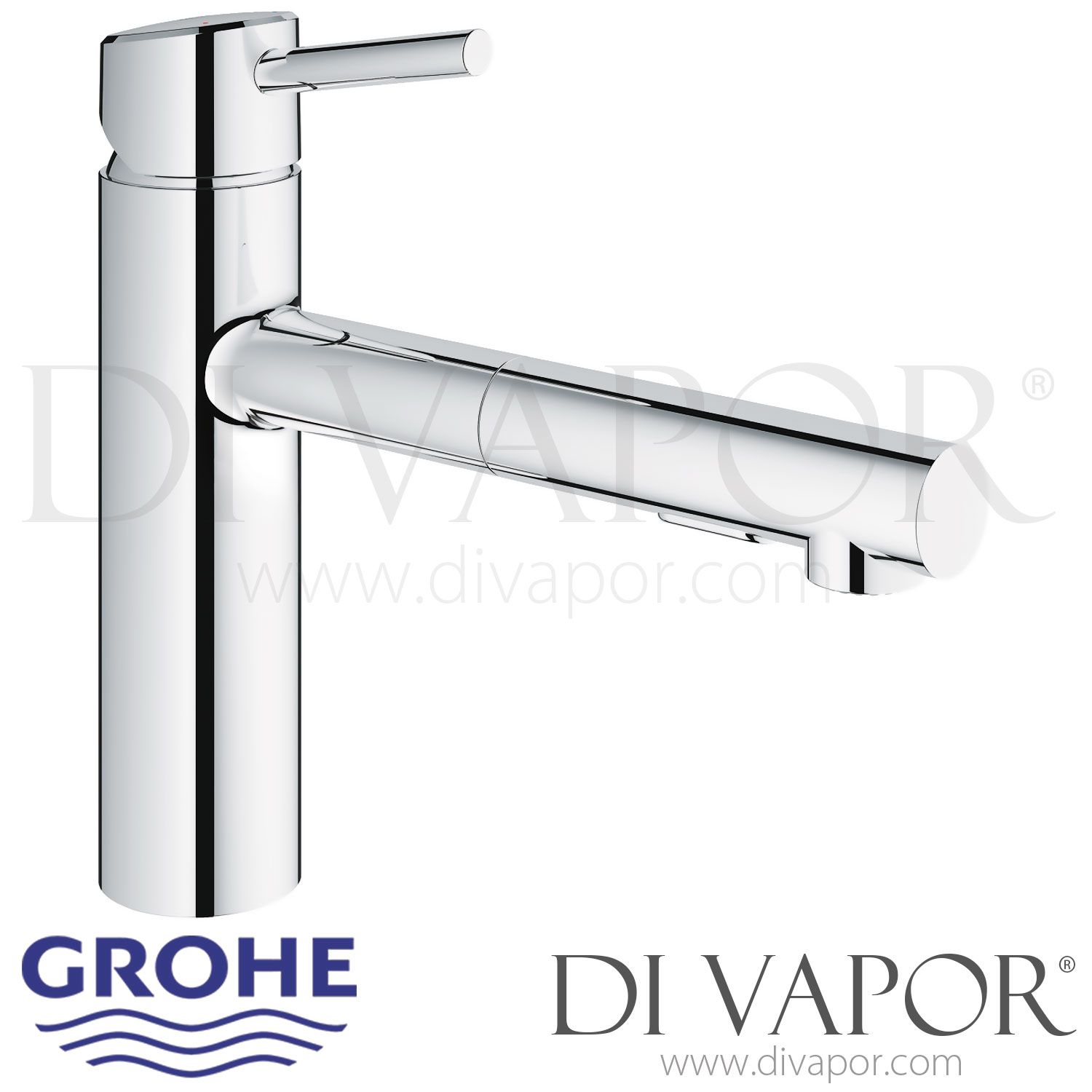

Grohe Concetto 30273001 GEN1 is the 2014 to 2015 version of the Concetto single lever sink mixer 1/2 inch kitchen tap, with a pull-out dual-spray outlet and chrome finish. This spares page is for identifying and ordering the correct service components for this production generation.

The mixer uses a 35 mm GROHE SilkMove ceramic cartridge and a pull-out spray arrangement with backflow protection. Matching the generation is important because the GEN1 hose arrangement differs from the later version of 30273001, so parts should be checked against the existing tap before ordering.

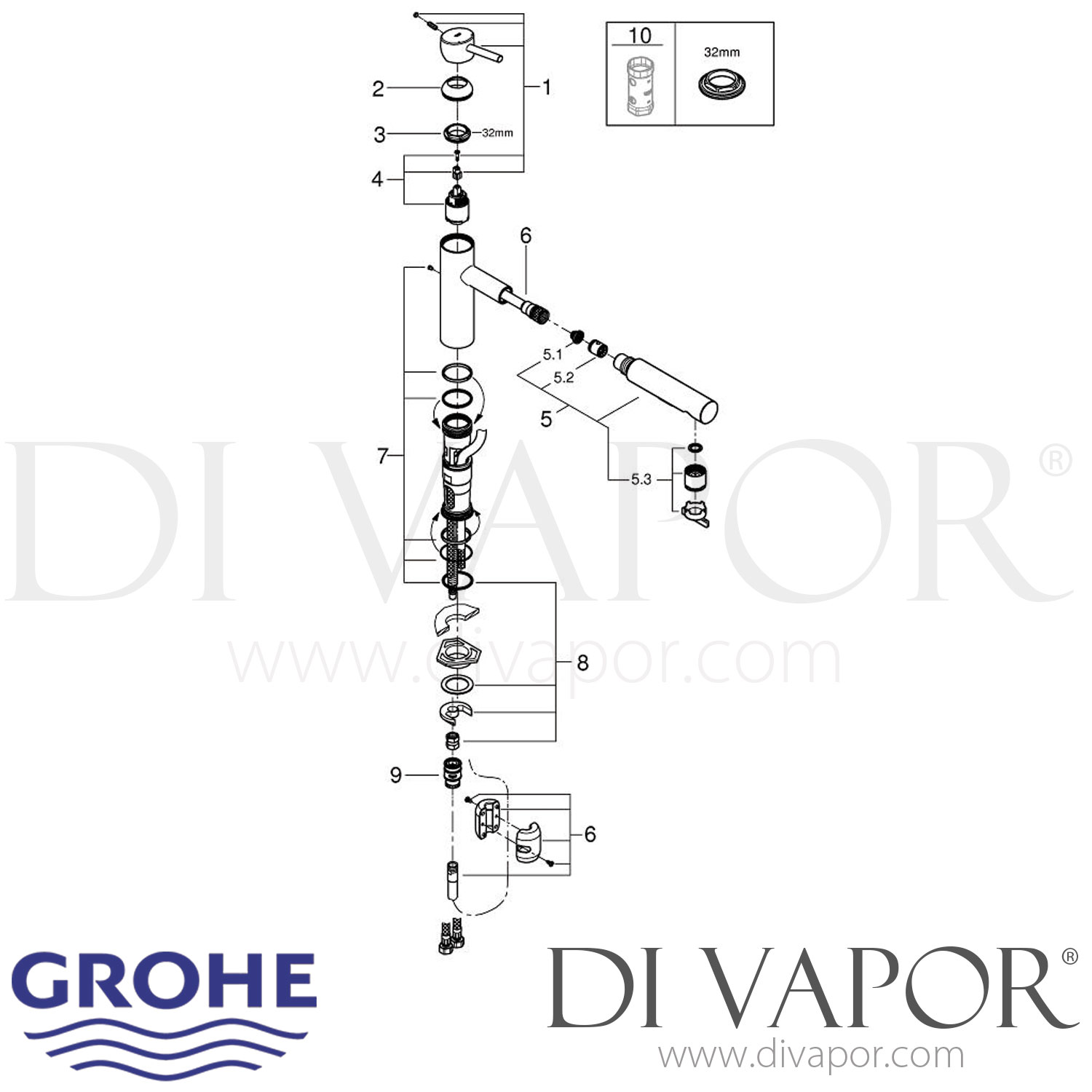

For routine servicing, the available Grohe spare parts below include the operating cartridge, non-return valve and optional 34 mm service spanner used for relevant maintenance work.

Technical Details

- - Brand: GROHE

- - Range: Concetto

- - Category: Kitchen tap

- - Product code: 30273001

- - Generation: GEN1

- - Production period: May 2014 to November 2015

- - Control: Single lever

- - Installation: Single-hole deck mounted

- - Finish: Chrome

- - Cartridge: GROHE SilkMove 35 mm ceramic cartridge, code 46374000

- - Spout: Medium-height pull-out spout with dual spray

- - Spray functions: Laminar flow and SpeedClean shower jet, with automatic return to laminar spray

- - Swivel range: 100 degrees

- - Maximum flow rate: 7.5 litres per minute at 3 bar

- - Backflow protection: Yes

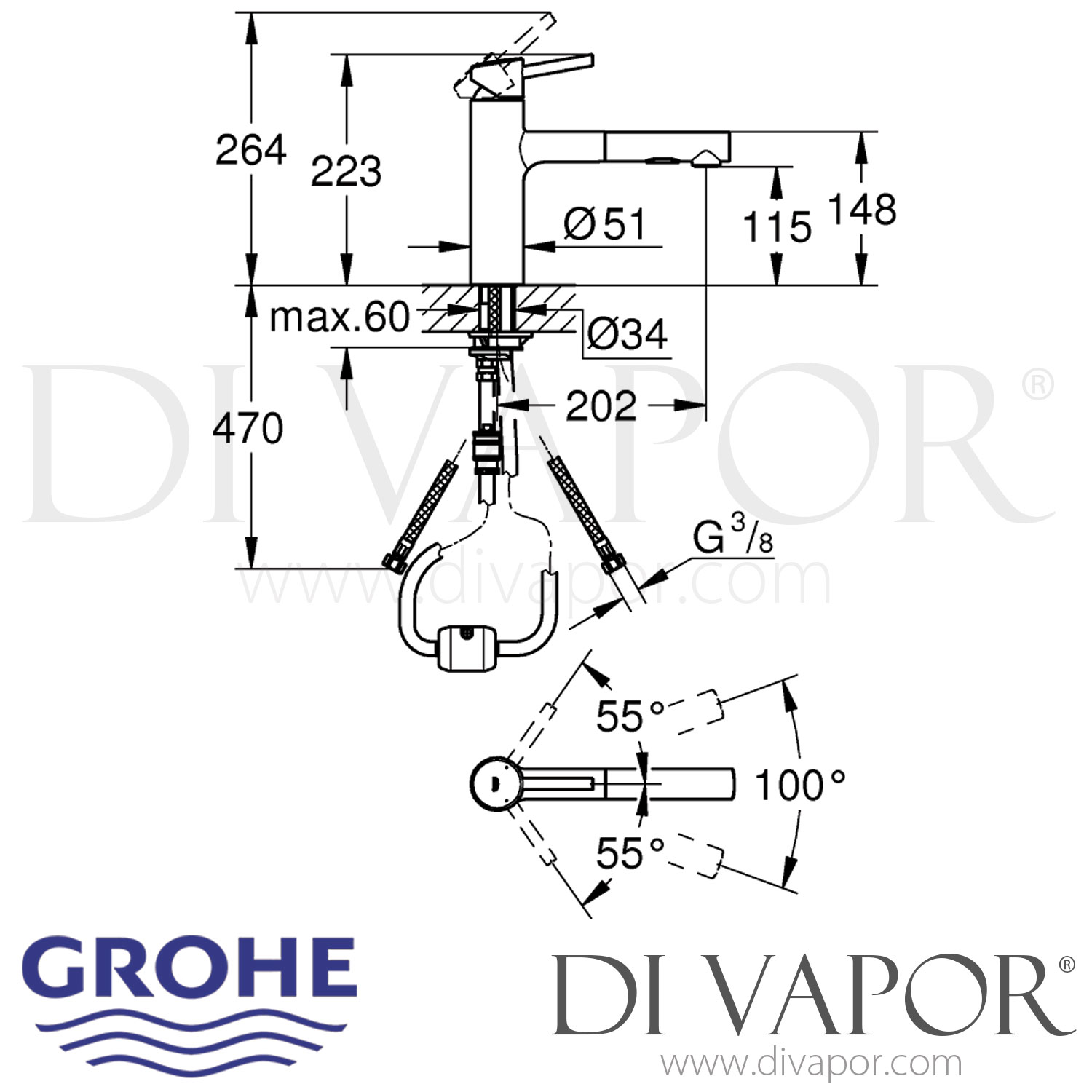

- - Overall height: 264 mm

- - Spout projection: 202 mm

- - Outlet height: 148 mm

- - Tap body diameter: 51 mm

- - Mounting bore: 34 mm

- - Maximum mounting surface thickness: 60 mm

- - Supply connections: G3/8

- - GEN1 metal hose: 46174000

- - EAN: 4005176314964

Other Tap Generation

- - Grohe 30273001 Concetto Single-Lever Sink Mixer 1/2 Inch Tap - Year: 2015 - Present (June 2021) Spare Parts

Before You Order

Check the full 30273001 product code, the GEN1 production period and the removed component before ordering. The later Version 2 uses hose 48293000, whereas this GEN1 version uses hose 46174000, so later-generation parts should not be assumed to fit this 2014 to 2015 tap.
