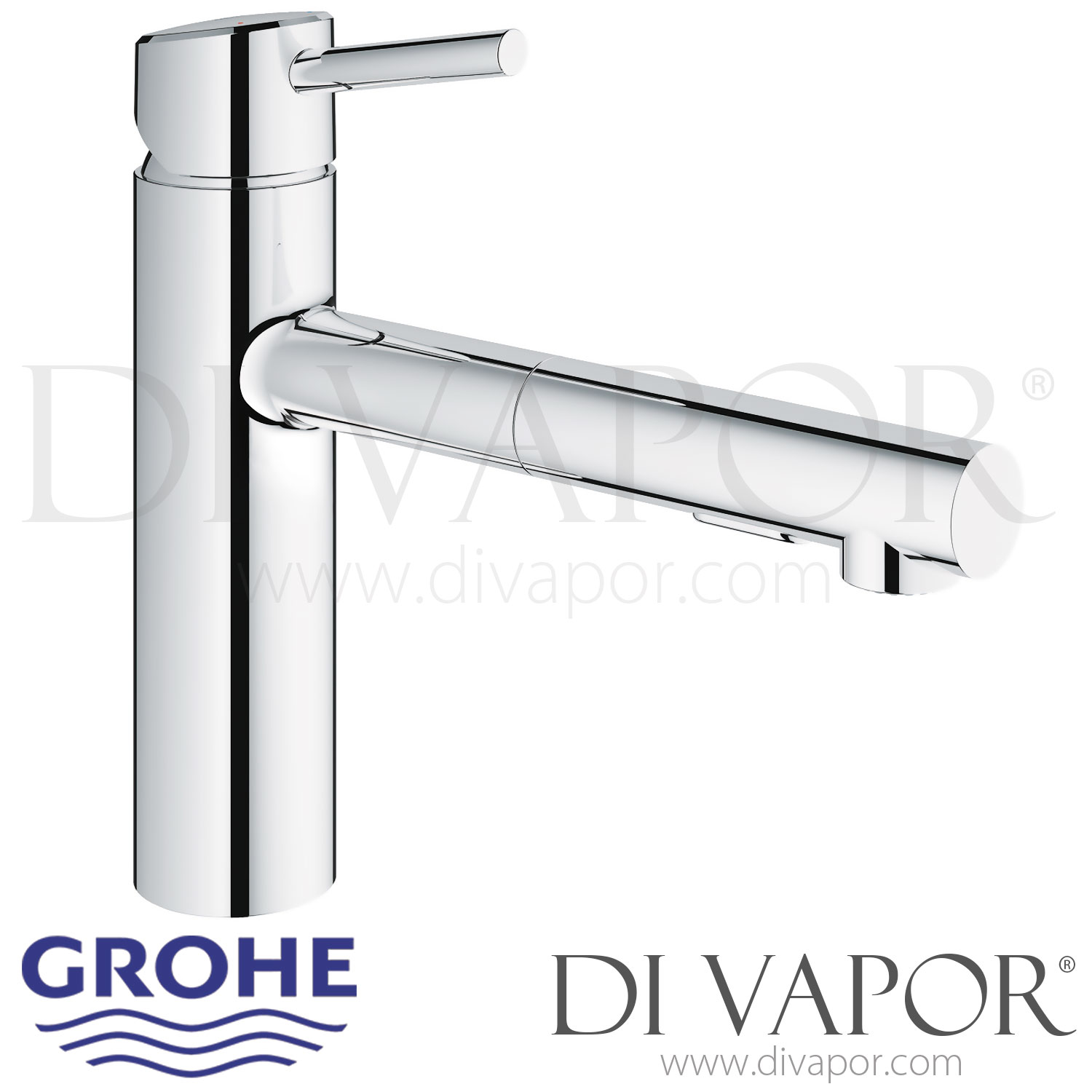

Grohe 30273001 Concetto Single-Lever Sink Mixer (1/​2 Inch) Tap Spare Parts

SUMMARY

Tap Spares for Grohe 30273001 Concetto Single-Lever Sink Mixer 1/2 Inch Tap

Year: 2015 - Present (June 2021)

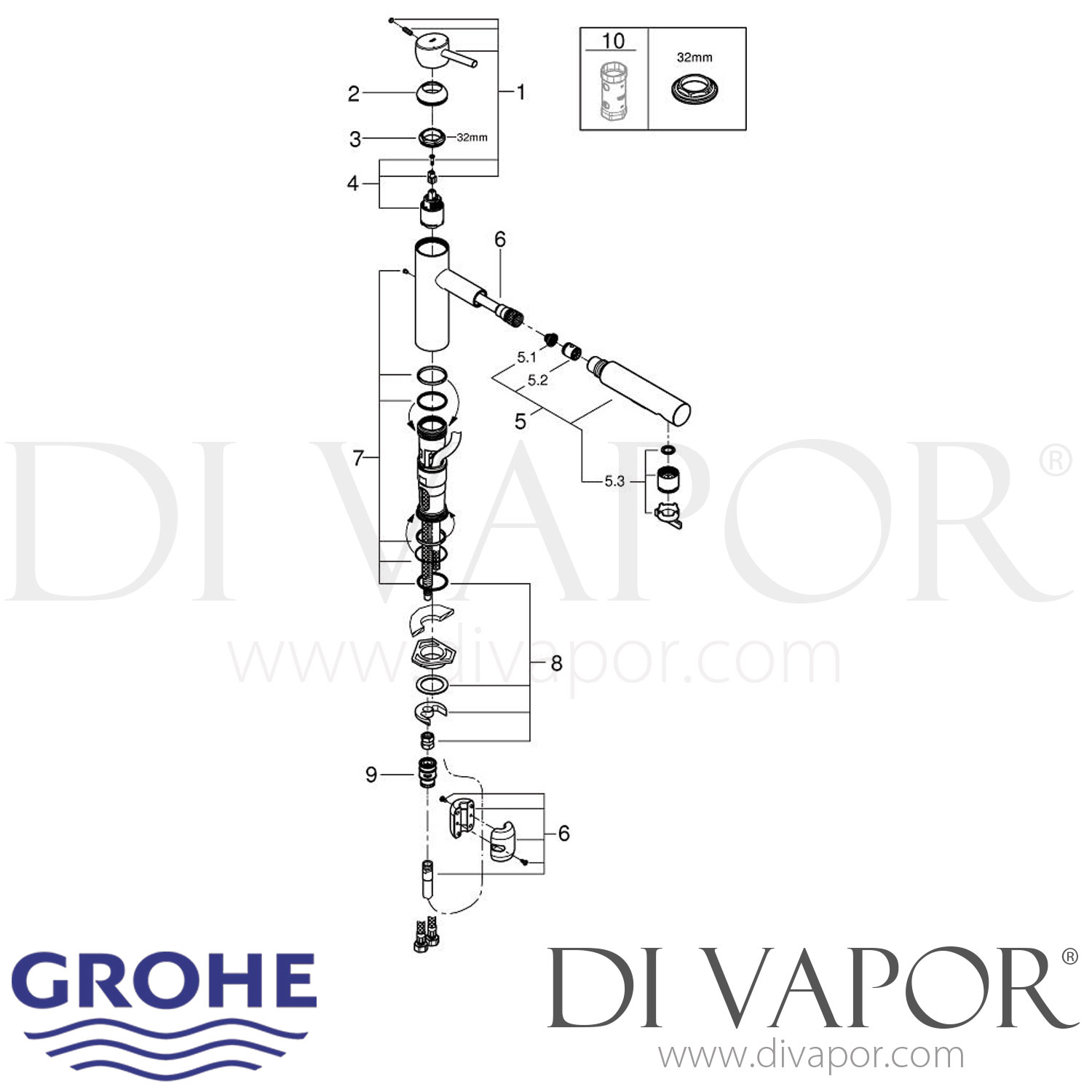

Grohe 30273001 Concetto single-lever sink mixer spare parts for the 1/2 inch, single-hole kitchen tap. This later spare parts configuration applies from 2015 onwards, with GROHE documentation identifying the revised component arrangement from November 2015.

The mixer uses a 35mm GROHE SilkMove ceramic cartridge and a medium-height, pull-out metal spray with two spray patterns. The cast swivel spout has a 100-degree swivel range, while the pull-out outlet incorporates backflow protection. Use this page to identify the correct Grohe spare parts for the 30273001 configuration before ordering, particularly where an earlier-generation mixer may be installed.

Technical Details

- - Brand: Grohe

- - Range: Concetto

- - Category: Kitchen tap

- - Product code: 30273001

- - Product type: Single-lever sink mixer, 1/2 inch

- - Installation: Single-hole, deck-mounted mixer

- - Finish: Chrome

- - Cartridge: 35mm GROHE SilkMove ceramic cartridge

- - Outlet: Metal pull-out spray with two spray modes

- - Spout: Cast swivel spout

- - Spout swivel range: 100 degrees

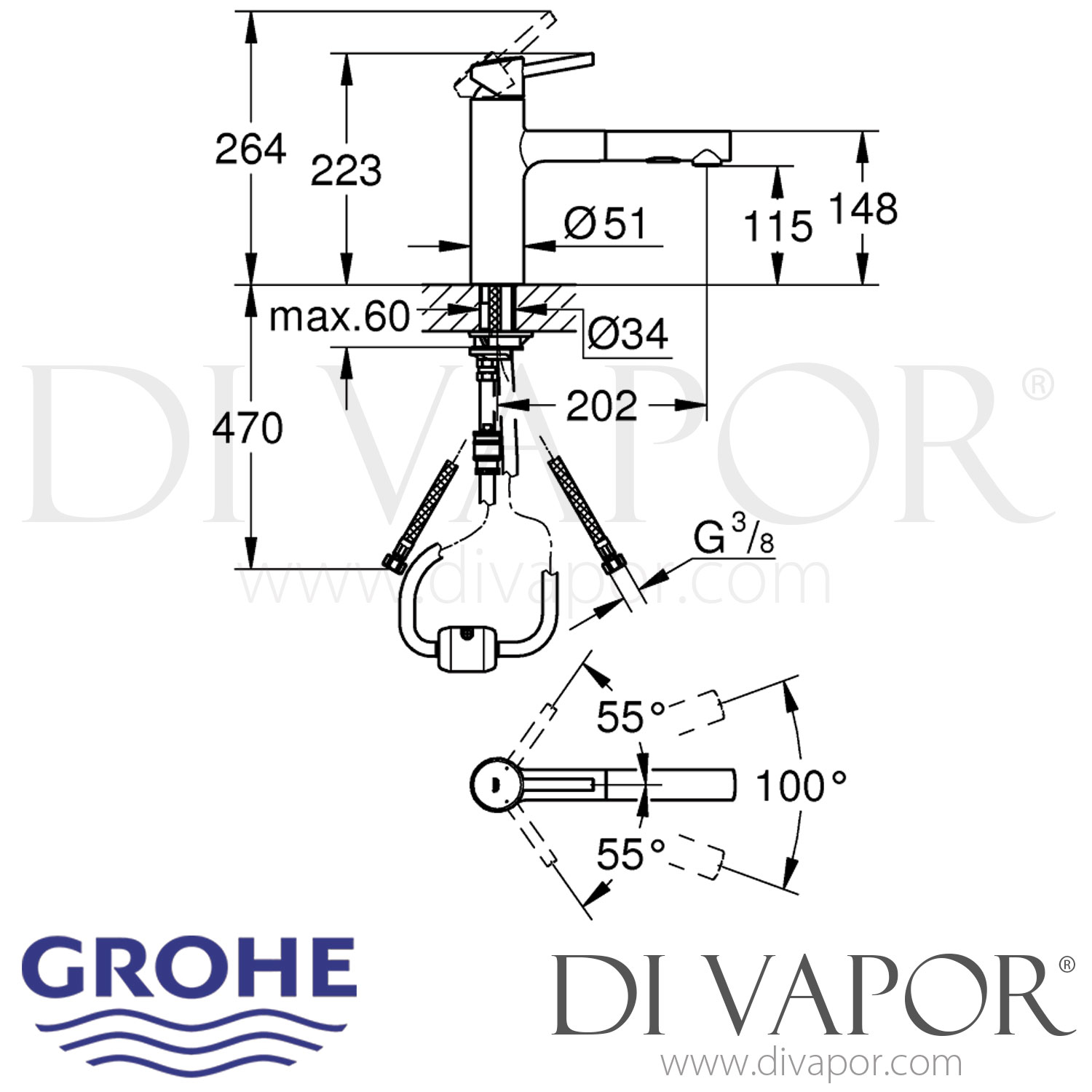

- - Overall maximum height: 264mm

- - Spout projection: 202mm

- - Outlet height: 115mm

- - Tap body diameter: 51mm

- - Mounting bore: 34mm

- - Maximum mounting-surface thickness: 60mm

- - Flexible inlet connections: G 3/8

- - Backflow protection: Non-return valve incorporated into the pull-out outlet assembly

- - EAN: 4005176314964

Other Available Generations

- - Grohe 30273001 Concetto Single-Lever Sink Mixer GEN1 2014 to 2015 Spare Parts

Before You Order

Check the production generation of the mixer before selecting parts. There is an earlier 30273001 GEN1 configuration for 2014 to 2015, and some components differ between generations.
