Grohe 45443000 Diverter Cartridge for Grohsafe Recessed Shower - (45443 000)

SUMMARY

Grohe 45443000 Diverter Cartridge for Grohsafe Recessed Shower - (45443 000)

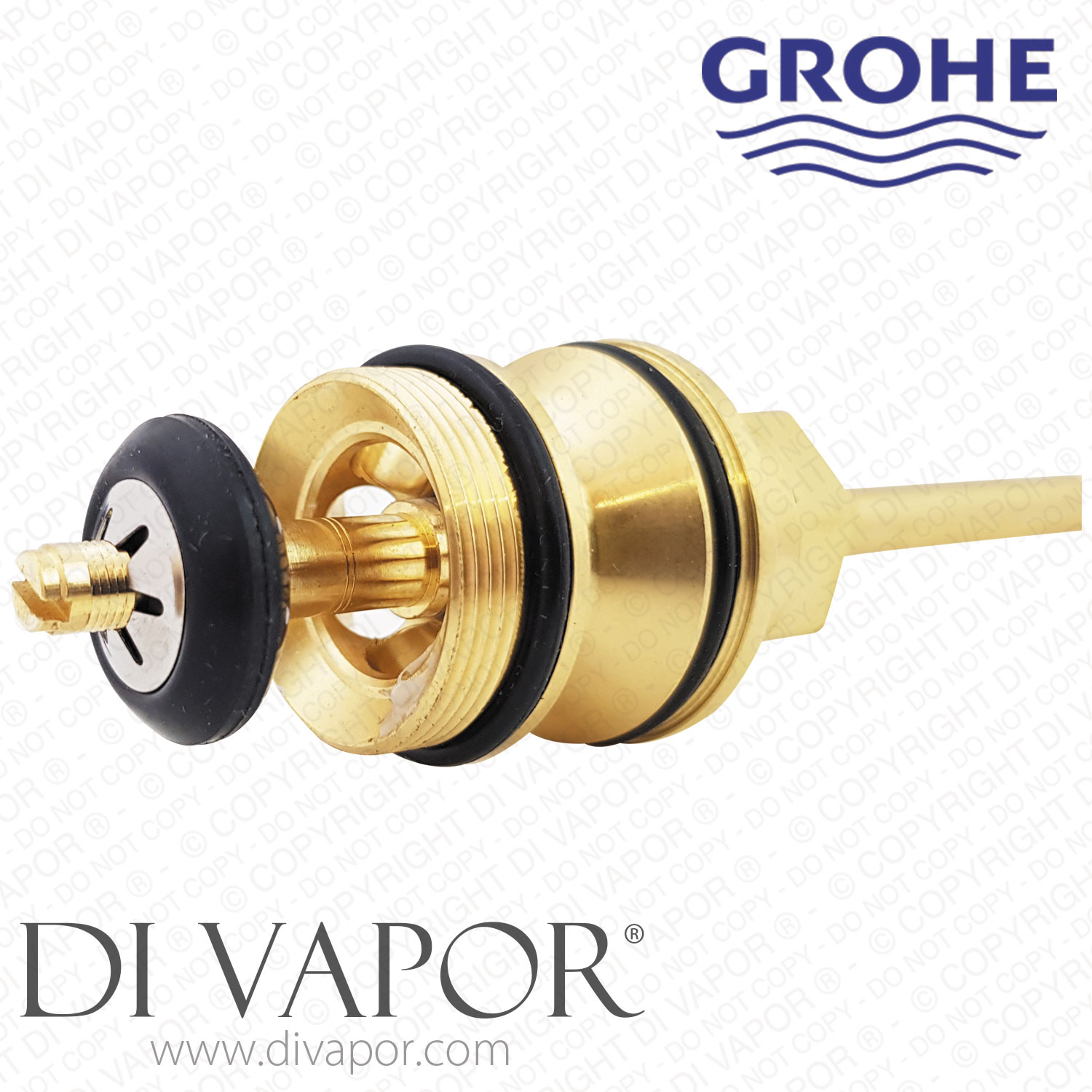

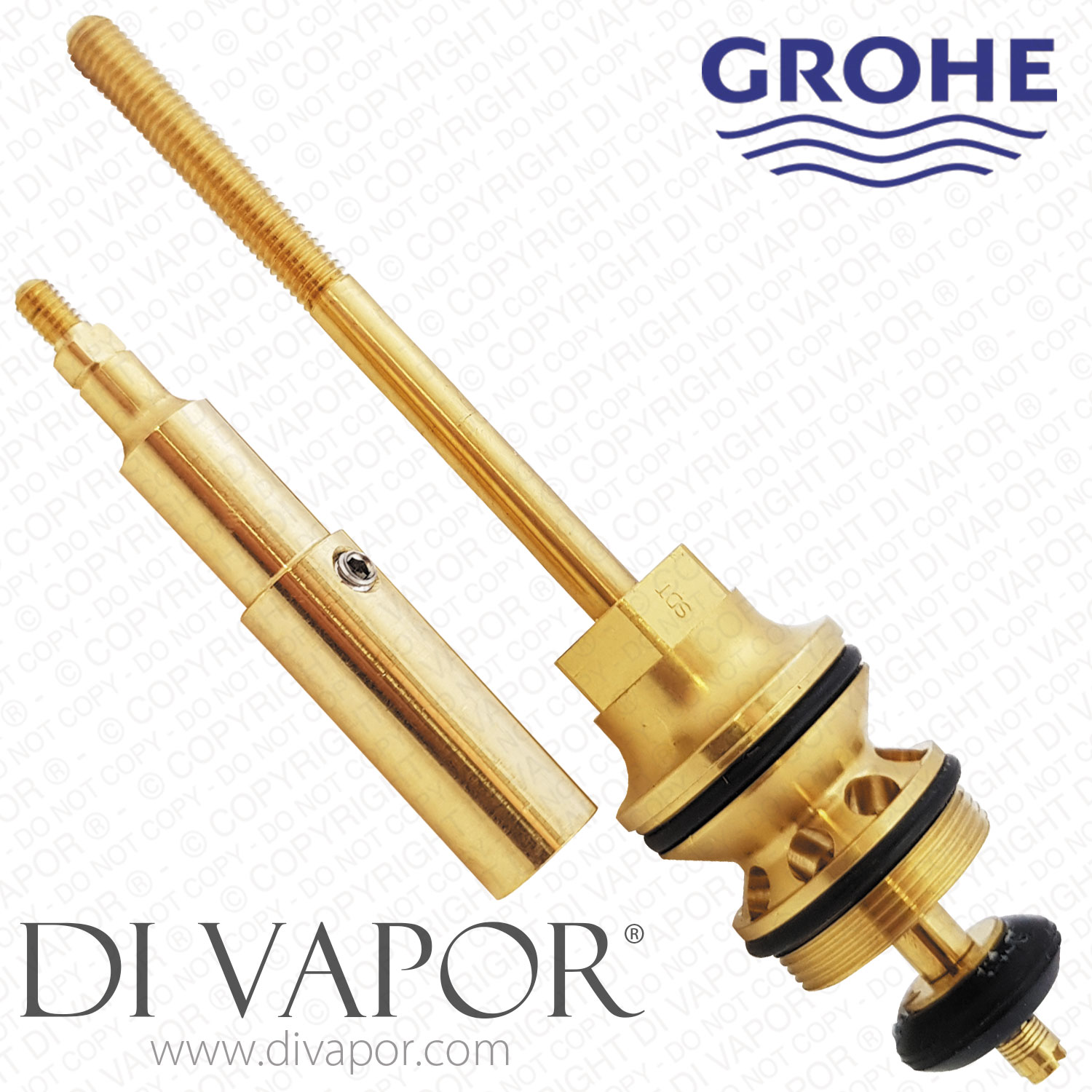

The Grohe 45443000 diverter cartridge, also shown as 45443 000, is a screw-in 3-way diverter used in a wide range of Grohe deck-mounted bath/shower combinations as well as the Grohsafe recessed shower system. It controls the changeover of water flow between bath and shower outlets.

Replacing a worn diverter can restore positive outlet selection where the control has become difficult to operate, no longer changes outlet correctly or allows water to pass through the unwanted bath or shower outlet. A worn flow or diverter component can also be associated with water dripping from the shower head or spout when the fitting is turned off.

Technical Details

- - Part code: 45443000

- - Alternative code format: 45443 000

- - Part type: screw-in 3-way diverter cartridge

- - Function: directs water flow between bath and shower outlets

- - Direct service seals specified for the diverter include 0128300M sealing washer 6 x 2 mm and 0120500M sealing washer

- - 45444000 is a separate mounting / shank-fastening set and is not a replacement code for 45443000

Confirmed Models Using 45443000

- - Grohe Veris 19362000 5-Hole Bath/Shower Combination

- - Grohe Veris 19373000 4-Hole Single-Lever Bath Combination

- - Grohe Concetto 19576001 4-Hole Single-Lever Bath Combination

- - Grohe Concetto 19576002 4-Hole Single-Lever Bath Combination

- - Grohe Concetto 19576EN1 4-Hole Single-Lever Bath Combination

- - Grohe Lineare 19577001 4-Hole Single-Lever Bath Combination

- - Grohe Lineare 19577EN1 4-Hole Single-Lever Bath Combination

- - Grohe Lineare 19577AL1 4-Hole Single-Lever Bath Combination

- - Grohe Lineare 19577DC1 4-Hole Single-Lever Bath Combination

- - Grohe Lineare 19965001 3-Hole Single-Lever Bath Combination

- - Grohe Essence 19578000 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19578001 4-Hole Single-Lever Bath Combination

- - Grohe Essence 1957800A 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19578EN0 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19578ENA 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19578AL1 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19578DC1 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19578GN1 4-Hole Single-Lever Bath Combination

- - Grohe Essence 19976001 3-Hole Single-Lever Bath Combination

- - Grohe Allure Brilliant 19787000 4-Hole Single-Lever Bath Combination

- - Grohe Allure Brilliant 19787001 4-Hole Single-Lever Bath Combination

- - Grohe Eurocube 19897000 4-Hole Single-Lever Bath Combination

- - Grohe Eurocube 19897001 4-Hole Single-Lever Bath Combination

- - Grohe Eurocube 19897GN1 4-Hole Single-Lever Bath Combination

- - Grohe Eurocube 19966000 3-Hole Bath Combination

- - Grohe Grandera 19919000 5-Hole Bath Combination

- - Grohe Grandera 1991900A 5-Hole Bath Combination

- - Grohe Grandera 19919EN0 5-Hole Bath Combination

- - Grohe Grandera 19919ENA 5-Hole Bath Combination

- - Grohe Grandera 19936000 4-Hole Bath Combination

- - Grohe Grandera 19936EN0 4-Hole Bath Combination

- - Grohe Grandera 19936IG0 4-Hole Bath Combination

- - Grohe Eurostyle Cosmopolitan 23048002 4-Hole Single-Lever Bath Combination

- - Grohe Eurostyle Cosmopolitan 23048003 4-Hole Single-Lever Bath Combination

- - Grohe Eurodisc Cosmopolitan 19574002 4-Hole Single-Lever Bath Combination

- - Grohe Eurodisc Cosmopolitan 19574002 GEN1 4-Hole Single-Lever Bath Combination

- - Grohe Atrio 25049000 5-Hole Bath Combination

- - Grohe Atrio 25049003 5-Hole Bath Combination

- - Grohe Atrio 25049EN0 5-Hole Bath Combination

- - Grohe Atrio 25049EN3 5-Hole Bath Combination

- - Grohe Atrio 25065000 5-Hole Bath/Shower Combination

- - Grohe Atrio 19922003 5-Hole Bath Combination

- - Grohe Atrio 19922AL3 5-Hole Bath Combination

- - Grohe Atrio 29407AL0 5-Hole Bath Combination

- - Grohe Atrio 29407DC0 5-Hole Bath Combination

- - Grohe Atrio 29407DA0 5-Hole Bath Combination

- - Grohe Atrio 29407DL0 5-Hole Bath Combination

- - Grohe Atrio 29408GL0 5-Hole Bath Combination

- - Grohe Atrio Private Collection 25224GL0 5-Hole Bath Combination

- - Grohe Allure 25083000 5-Hole Bath Combination

- - Grohe Allure 25083001 5-Hole Bath Combination

- - Grohe Allure 25097000 5-Hole Bath/Shower Combination

- - Grohe Allure 25097001 5-Hole Bath Combination

- - Grohe Talia 25597000 5-Hole Bath/Shower Combination

- - Grohe Plus 29307003 4-Hole Bath Combination

- - Grohe Plus 29307EN3 4-Hole Bath Combination

- - Grohe Plus 29307AL3 4-Hole Bath Combination

- - Grohe Plus 29307DC3 4-Hole Bath Combination

- - Grohe Grohsafe 35235000 / 35 235 Recessed Shower Valve

Before You Order

Check the existing diverter, mixer documentation or spare-parts diagram for 45443000 or 45443 000 before ordering. Do not identify this cartridge from diameter or partial measurements alone, as visually similar Grohe diverters can have different internal connections and applications.

Installation Note

The diverter cartridge is a removable screw-in service component. Isolate the hot and cold water supplies before dismantling the mixer. Access to the cartridge and the trim components that must be removed first varies according to the bath/shower mixer or recessed valve in which it is installed.

Related Spares You May Need

- - Grohe 45888000 3/4" Quarter Turn Flow On/Off Cartridge Clockwise Close
