Grohe 33558003 Eurostyle Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

Tap Spares for Grohe 33558003 Eurostyle Single-Lever Basin Mixer 1/2 Inch S-Size

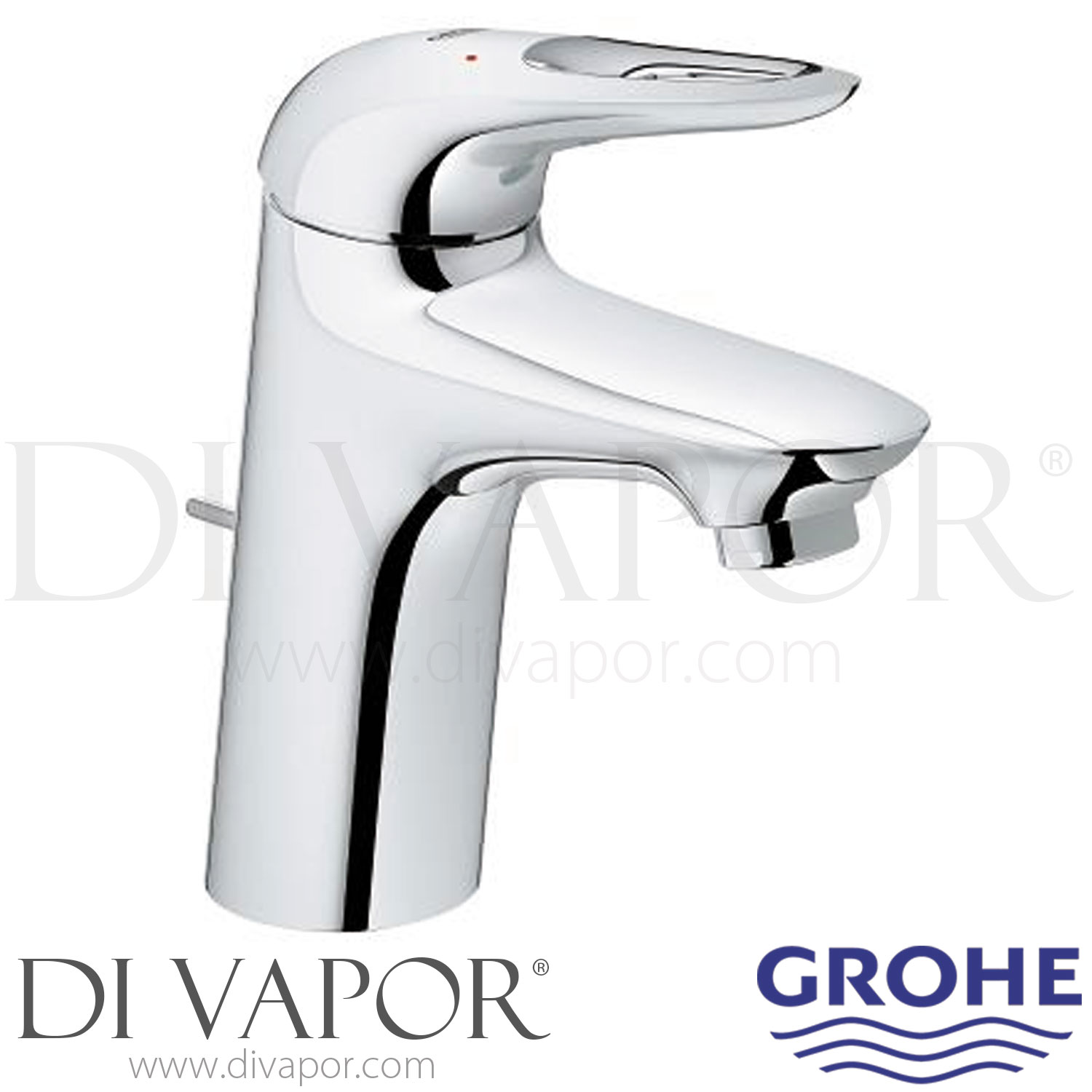

The Grohe 33558003 Eurostyle is a chrome S-Size single-lever basin mixer for single-hole basin installation. It uses a single loop metal lever to control hot and cold water through a 35 mm GROHE SilkMove ceramic cartridge and is supplied with flexible connection hoses and a 1 1/4 inch pop-up waste set.

The mixer incorporates an adjustable flow-rate limiter and temperature limiter, with a stated maximum flow rate of 5 l/min at 3 bar. GROHE FastFixation is used for the mounting arrangement. A range of Grohe spare parts is available for servicing the operating mechanism, cartridge, waste linkage and installation components without replacing the complete mixer.

Technical Details

- - Brand: GROHE

- - Range: Eurostyle

- - Category: Basin mixer

- - Product code: 33558003

- - Size: S-Size

- - Finish: Chrome

- - Installation: Single-hole basin installation

- - Cartridge: 35 mm GROHE SilkMove ceramic cartridge

- - Flow control: Adjustable flow-rate limiter

- - Temperature control: Temperature limiter

- - Maximum flow rate: 5 l/min at 3 bar

- - Installation system: GROHE FastFixation

- - Waste: Pop-up waste set 1 1/4 inch

- - Flexible hose connection: G3/8

- - Overall height: 210 mm

- - Spout reach: 110 mm

- - Spout outlet height: 84 mm

- - Base diameter: 50 mm

- - Tap-hole diameter: 34 mm

- - Maximum basin or worktop thickness: 30 mm

- - Spare-parts generation: January 2015 onwards

- - EAN: 4005176334139

Before You Order Check

Before you order check the complete mixer code 33558003 and compare the required service component with the January 2015 onwards spare-parts breakdown. Earlier 33558001 Eurostyle assemblies use different lever, trim and mounting-kit references, so these generation-specific parts should not be selected by appearance alone.
