Grohe 3355220E Eurostyle Cosmopolitan Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

Tap Spares for Grohe 3355220E Eurostyle Cosmopolitan Single-Lever Basin Mixer 1/2 Inch S-Size

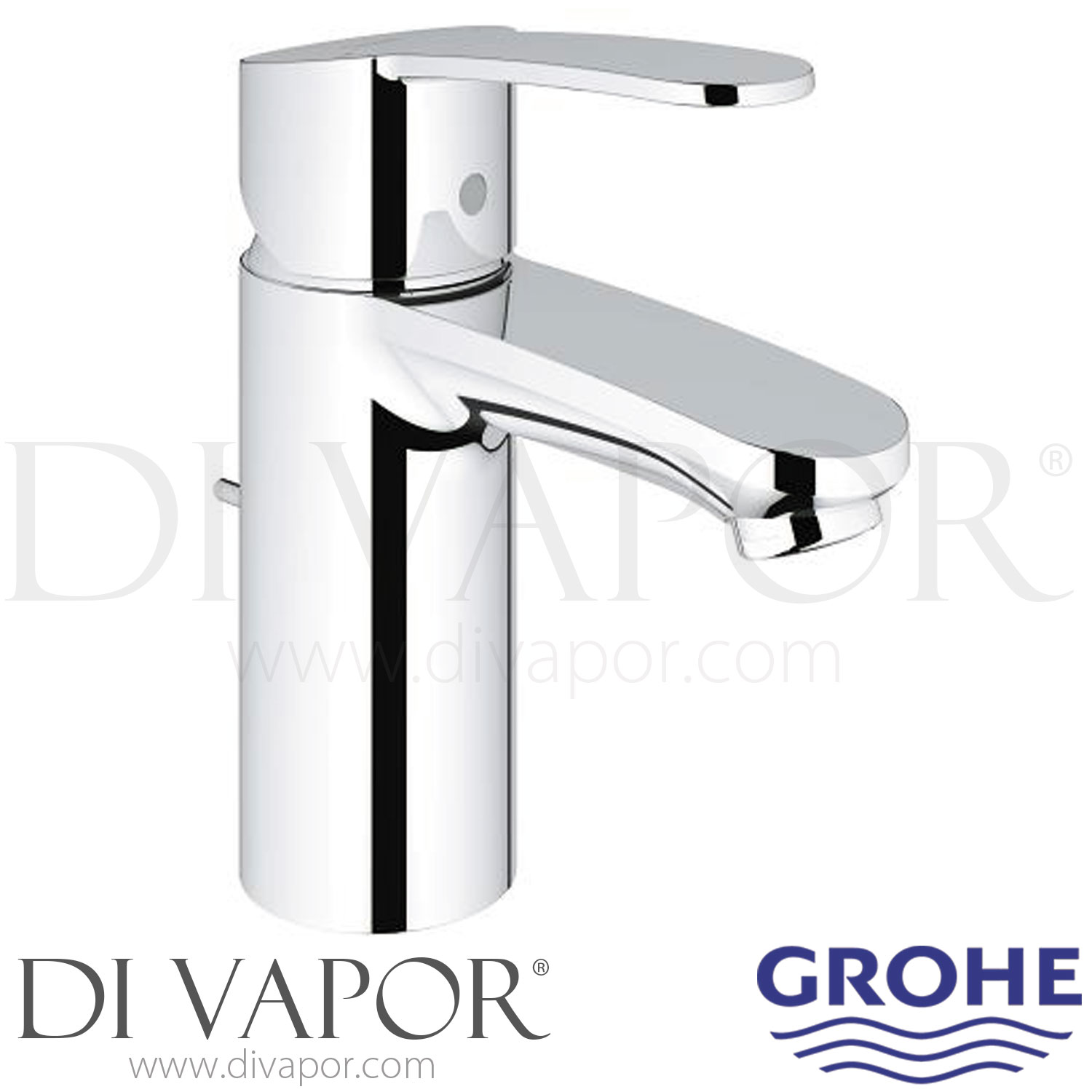

Spare parts for the Grohe 3355220E Eurostyle Cosmopolitan single-lever basin mixer 1/2 inch S-Size in chrome. This basin mixer uses a 35mm ceramic cartridge for water flow and temperature control and is supplied with flexible connection hoses and a pop-up waste arrangement.

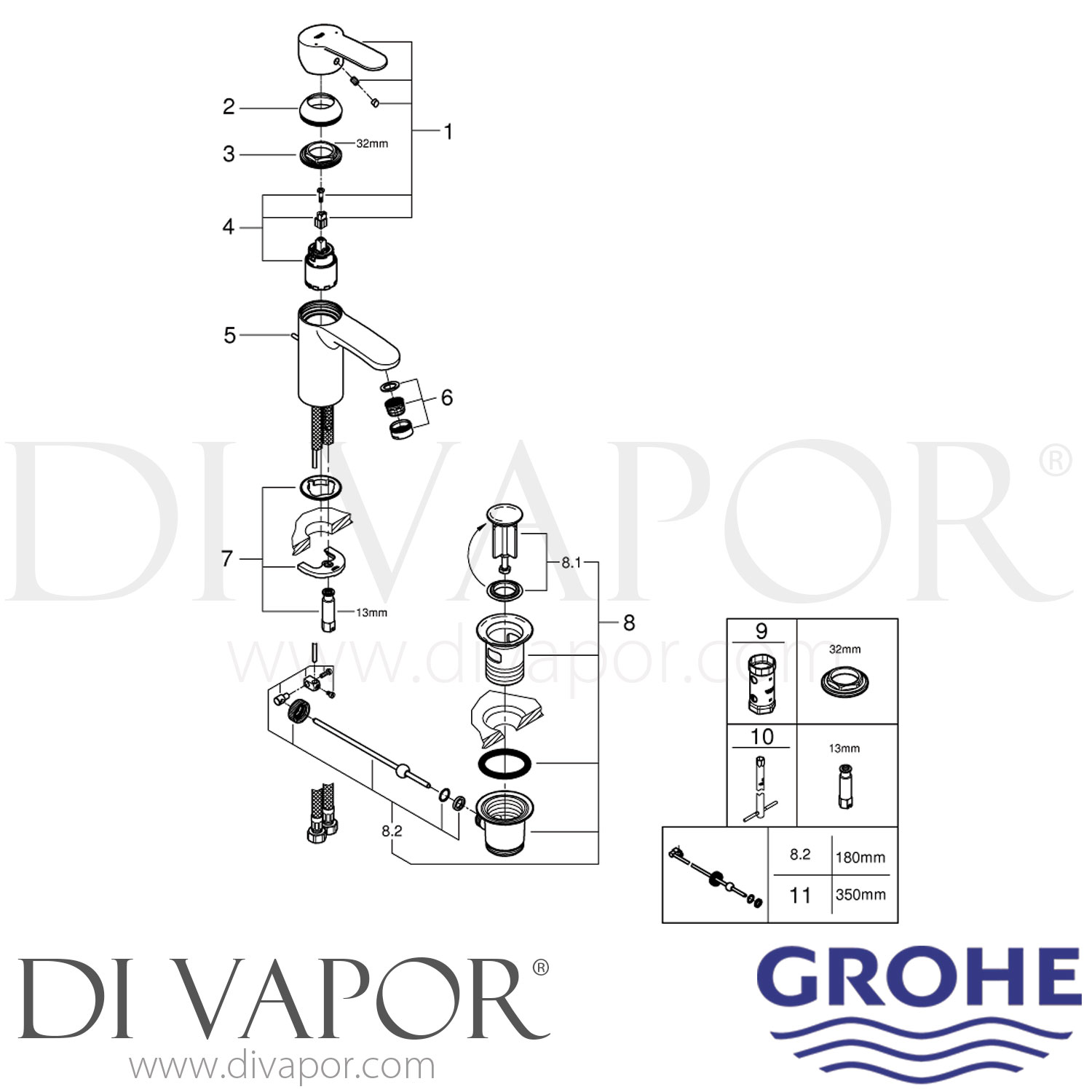

The mixer incorporates an adjustable flow-rate limiter, temperature limiting function and a SpeedClean mousseur. Current GROHE specification data gives a maximum flow of 5 l/min at 3 bar. For ongoing servicing, the Grohe spares below cover key internal control parts, waste linkage components and a service tool used with this mixer.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle Cosmopolitan

- - Category: Basin mixer

- - Product code: 3355220E

- - Finish: Chrome

- - Cartridge: 35mm ceramic cartridge

- - Flow control: Adjustable flow-rate limiter

- - Maximum flow: 5 l/min at 3 bar

- - Outlet: SpeedClean mousseur

- - Waste: Pop-up waste set 1 1/4 inch

- - Connections: Flexible connection hoses

- - EAN: 4005176886300

Before you order check

The spare-parts configuration for 3355220E changed in August 2017. Mixers produced from March 2010 to August 2017 have an earlier spare-parts arrangement that includes temperature limiter 46375000 as a separately listed component, while the later August 2017 onward configuration uses a revised parts breakdown. Check the age and existing components of the mixer before ordering generation-sensitive parts.
