Grohe 32830001 Eurosmart Cosmopolitan Single-Lever Basin Mixer L-Size Spare Parts

SUMMARY

Tap Spares for GROHE 32830001 Eurosmart Cosmopolitan L-Size Single-Lever Basin Mixer

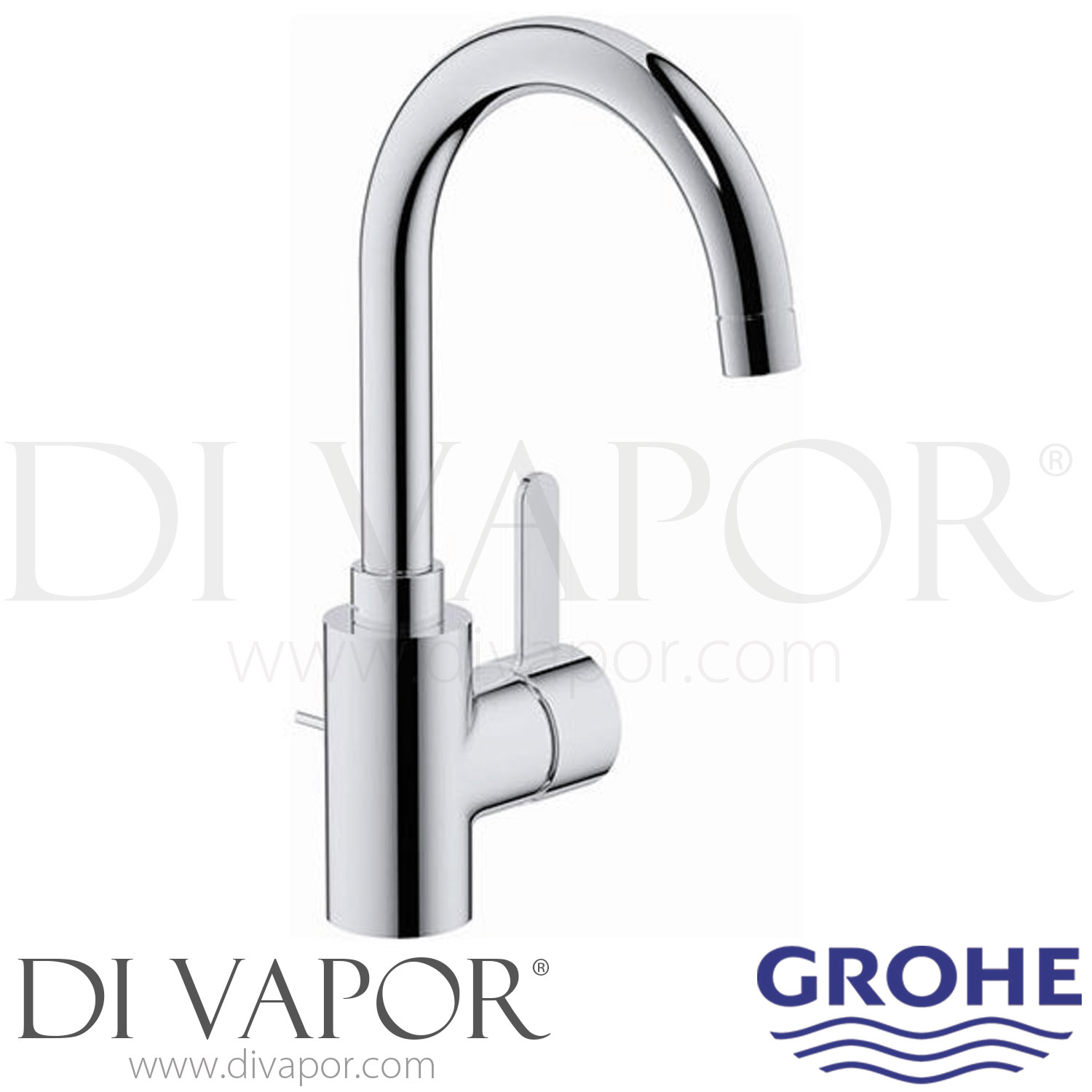

The GROHE 32830001 is a Eurosmart Cosmopolitan L-Size single-lever basin mixer with a tall swivelling tubular spout and a pull-rod-operated pop-up waste. This spare-parts page identifies service components and tools used to maintain the cartridge, controls and waste linkage of this specific basin mixer.

The mixer uses a 35mm ceramic cartridge to control the water flow and temperature. Cartridge wear may cause stiff or inconsistent lever movement, leakage around the lever or water continuing to drip from the spout after the mixer has been turned off. Waste-linkage rods may be required when the pop-up waste no longer opens, closes or seals correctly.

Technical Details

- - Range: GROHE Eurosmart Cosmopolitan

- - Category: Basin mixer

- - Product code: 32830001

- - Product type: Single-lever basin mixer 1/2 inch L-Size

- - Installation type: Single-hole deck-mounted monobloc mixer

- - Finish: Chrome

- - Cartridge type: GROHE SilkMove 35mm ceramic cartridge

- - Spout type: Swivelling tubular spout with mousseur

- - Spout swivel range: 150 degrees

- - Maximum stated flow rate: 13 litres per minute at 3 bar

- - Waste type: Pull-rod-operated pop-up waste 1 1/4 inch

- - Inlet connections: G3/8

- - Overall mixer height: 300mm

- - Spout outlet height: 202mm

- - Spout projection: 153mm

- - Body diameter: 48mm

- - Maximum mounting-surface thickness: 30mm

- - Separate internal waterways reduce contact between the water and the metal body of the mixer

Before You Order Check

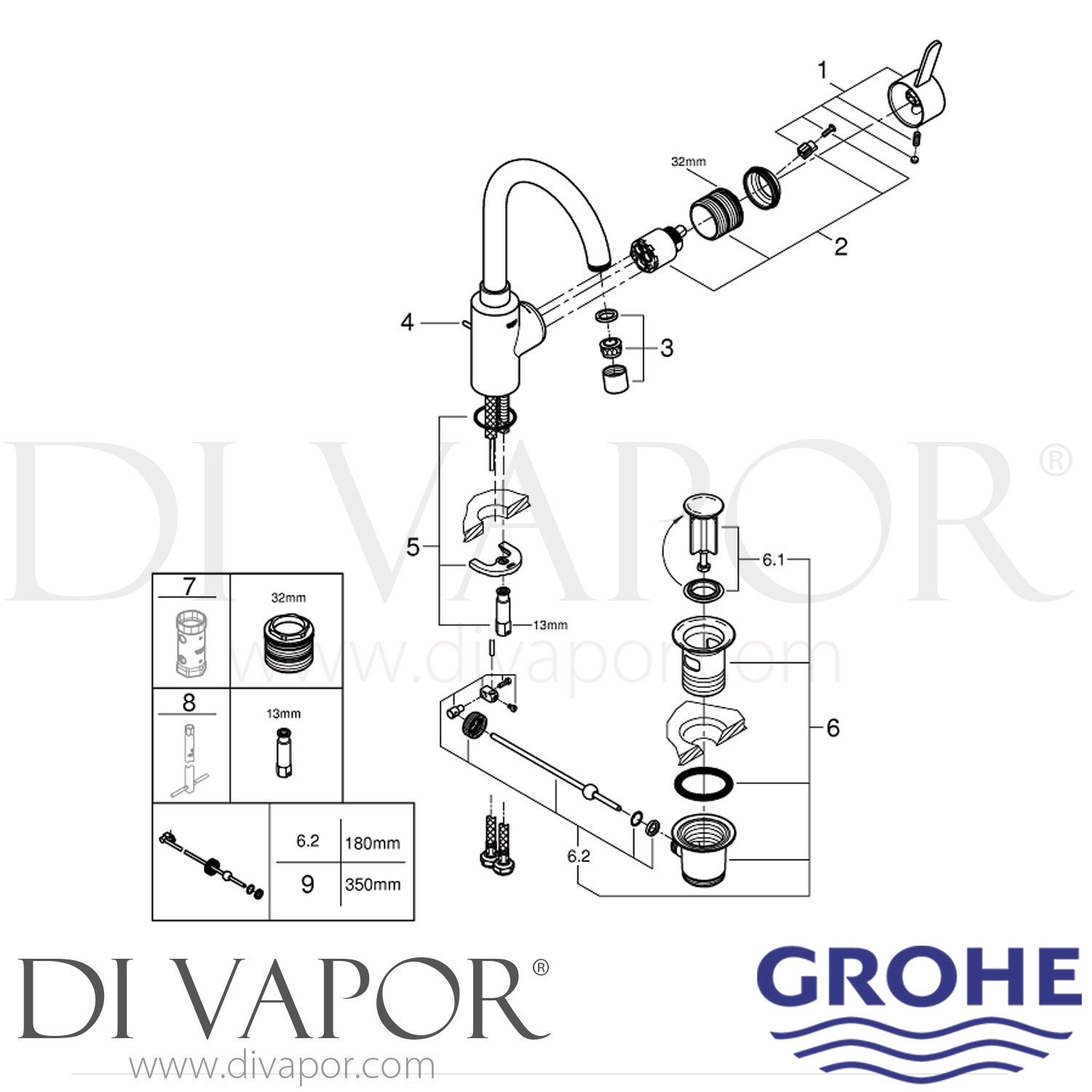

Check that the article number marked on the mixer or its original documentation is 32830001. Match the required component by its exact GROHE code and its position in the correct spares diagram before ordering.
