Grohe 3282500E Eurosmart Cosmopolitan Single-Lever Basin Mixer S-Size Spare Parts

SUMMARY

Spares for GROHE 3282500E Eurosmart Cosmopolitan Single-Lever Basin Mixer 1/2 Inch S-Size

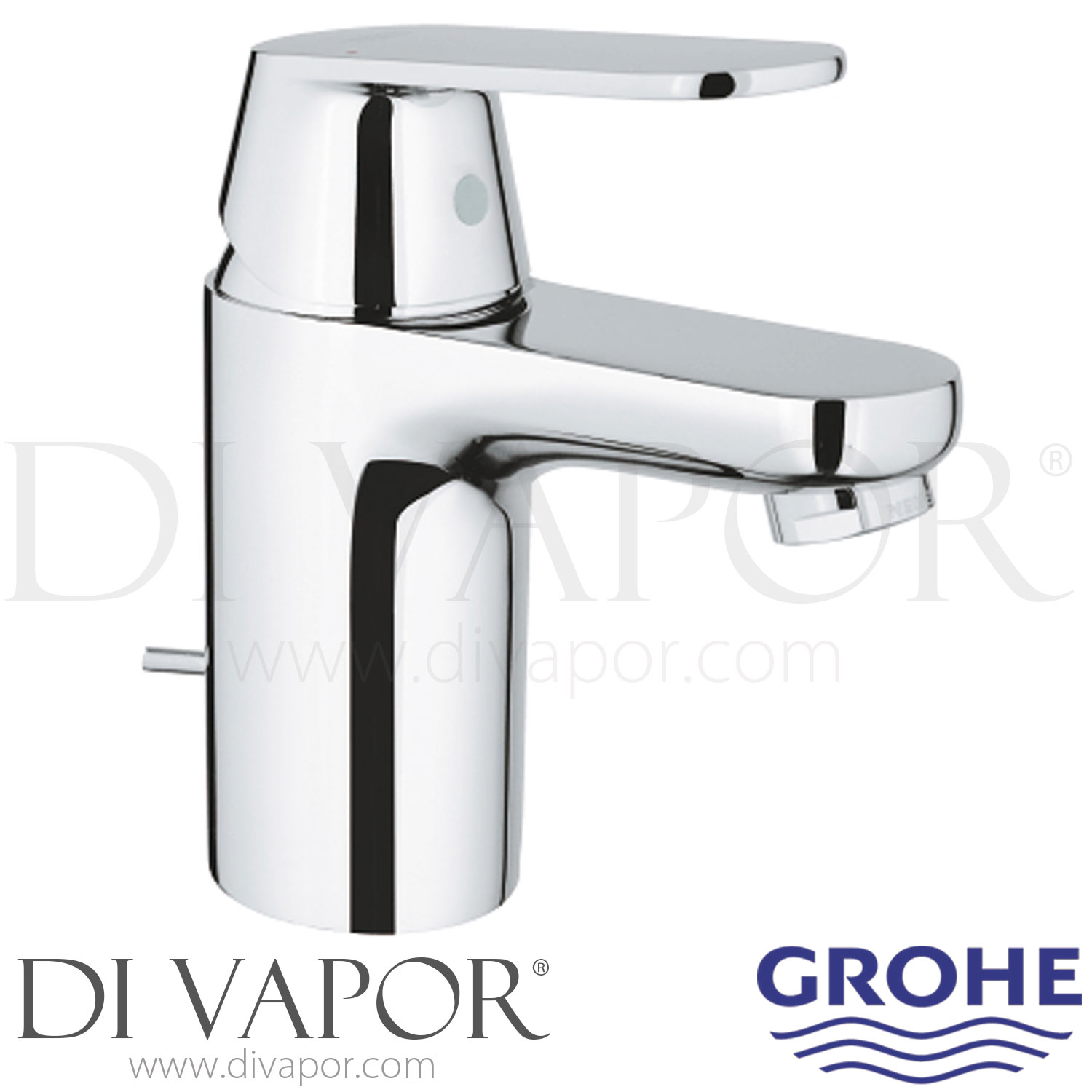

The GROHE 3282500E is a Eurosmart Cosmopolitan S-Size single-lever basin mixer designed for single-hole installation. One lever operates the water flow and blends the hot and cold supplies through a 35 mm ceramic cartridge. The chrome mixer includes a rod-operated pop-up basin waste.

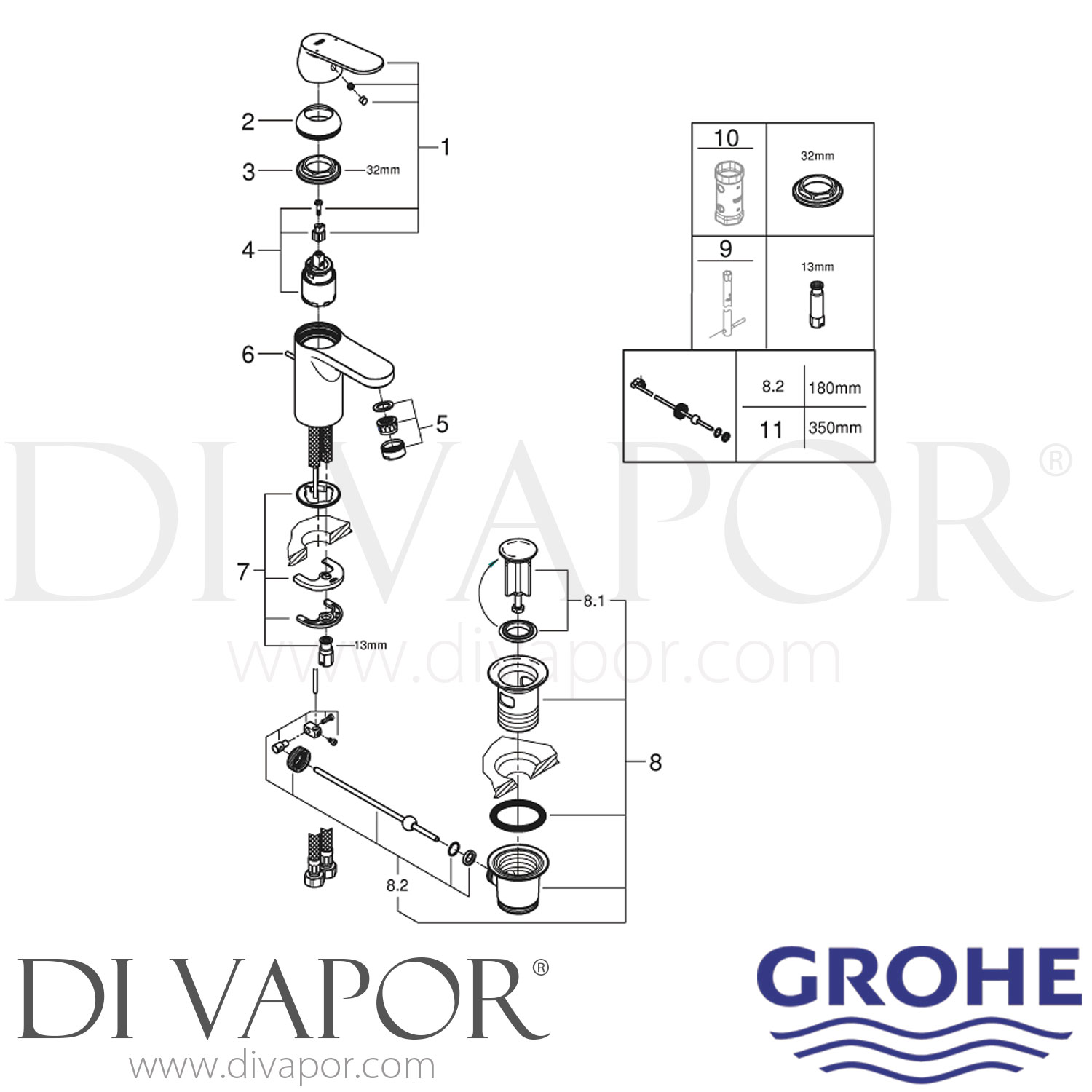

This spare parts page covers service components and tools identified for GROHE 3282500E. The mixer is the water-saving version with a maximum flow rate of approximately 5 litres per minute at 3 bar. GROHE lists 3282500E and 32825000 as separate product codes, so the complete code should be checked before ordering.

Technical Details

- - Brand: GROHE

- - Range: Eurosmart Cosmopolitan

- - Category: Basin mixer

- - Product type: Single-lever monobloc basin mixer

- - Product code: 3282500E

- - Product designation: 1/2 inch S-Size

- - Installation type: Single-hole basin installation

- - Finish: Chrome

- - Cartridge: 35 mm ceramic mixer cartridge

- - Maximum flow rate: Approximately 5 litres per minute at 3 bar

- - Adjustable minimum flow: Approximately 2.5 litres per minute

- - Overall mixer height: Approximately 186 mm

- - Spout projection: Approximately 93 mm

- - Outlet height: Approximately 77 mm

- - Base diameter: Approximately 50 mm

- - Required mounting hole: Approximately 34 mm diameter

- - Maximum mounting-surface thickness: Approximately 30 mm

- - Flexible supply connections: G3/8

- - Waste connection: G1 1/4

- - Waste type: Rod-operated pop-up waste

- - Spare-parts diagram period: From August 2017 onward

Function and Servicing

The ceramic cartridge regulates the mixer flow and temperature. A stiff lever, inconsistent temperature adjustment, reduced shut-off control or water continuing to pass from the spout can indicate cartridge wear, debris or damage. The red screw coupling secures the cartridge assembly and should be inspected during servicing.

The standard horizontal rod forms part of the pop-up waste linkage. The separate 350 mm horizontal rod is an optional longer component and should only be selected when its additional length is required. The 34 mm socket spanner is a servicing tool rather than an installed mixer component.

Before You Order Check

Confirm that the full mixer code is 3282500E and do not rely on the Eurosmart Cosmopolitan range name or the appearance of the tap alone. Check the code on the installation paperwork or existing components where possible. When ordering waste linkage parts, compare the required rod length and the existing connection arrangement.
