Grohe 32824000 Eurosmart Cosmopolitan Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

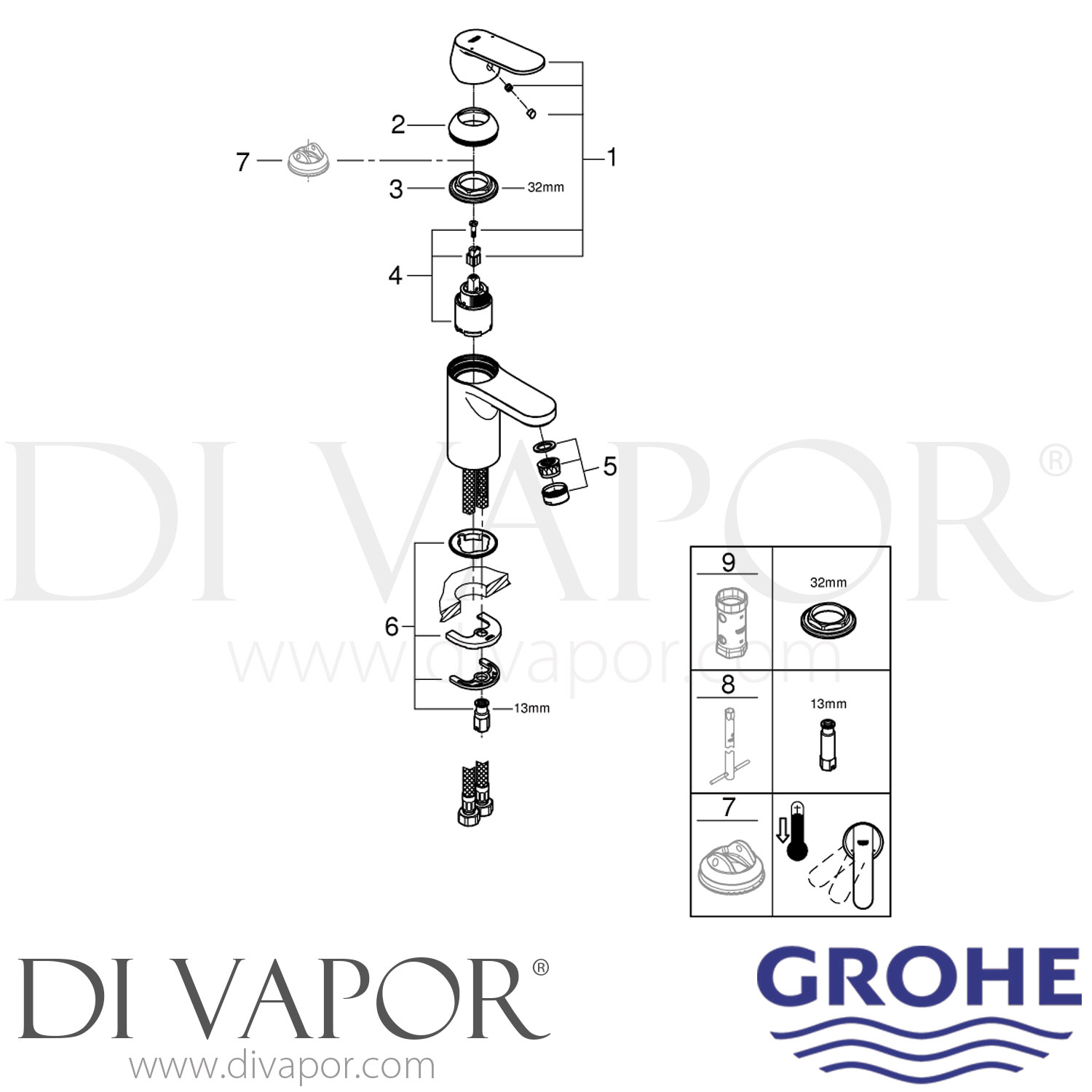

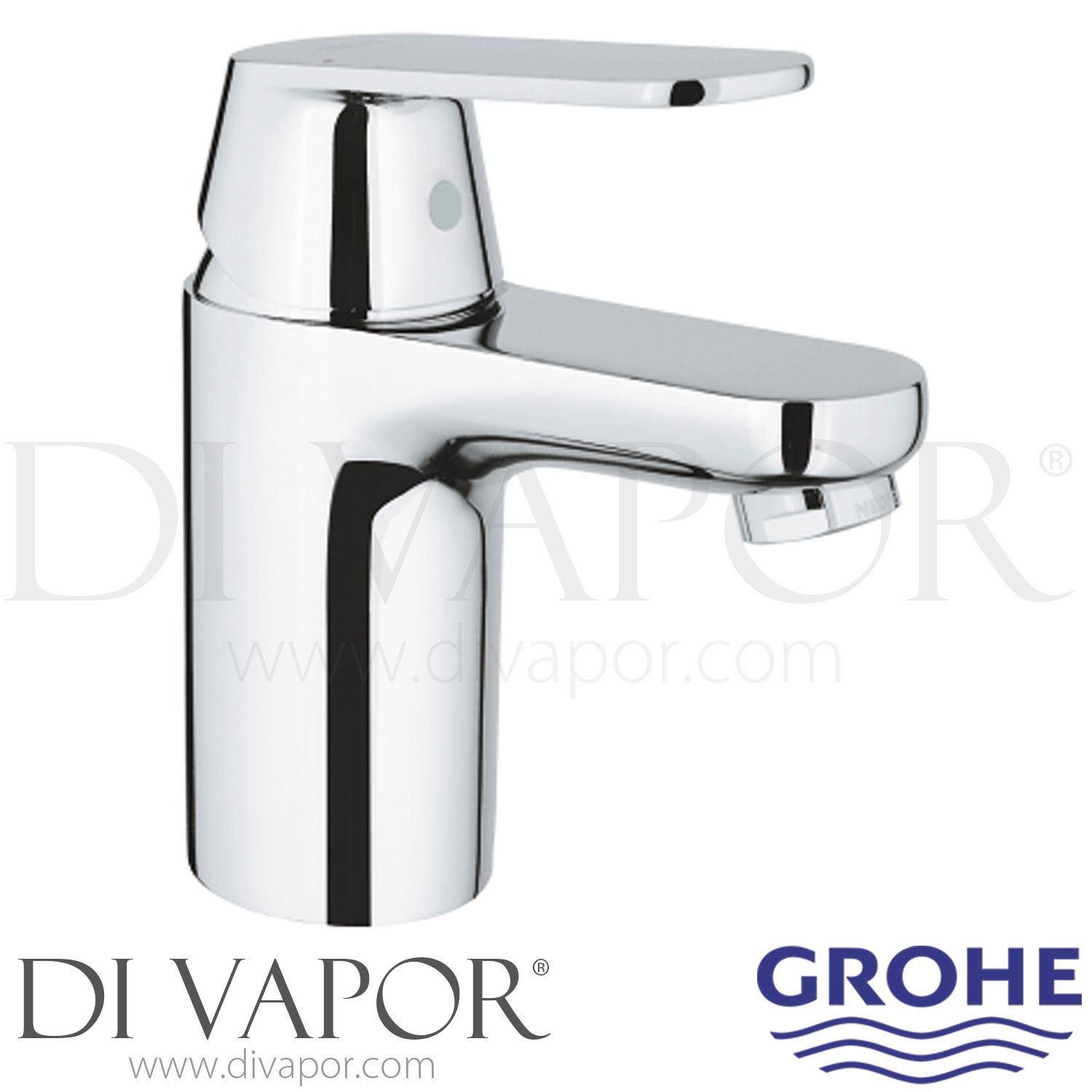

Spares for GROHE 32824000 Eurosmart Cosmopolitan Single-Lever Basin Mixer S-Size

The GROHE 32824000 spare-parts selection is for the Eurosmart Cosmopolitan single-lever basin mixer in the chrome S-Size configuration. This deck-mounted monobloc tap has a smooth body without a pop-up waste and uses one lever to control the mixed-water flow and temperature.

The mixer incorporates a 35mm GROHE SilkMove ceramic cartridge. Depending on the fault, servicing may involve replacing the cartridge, cartridge screw coupling or outlet mousseur rather than changing the complete tap. A worn cartridge can cause stiff lever movement, inconsistent flow or temperature control, or water dripping from the spout after the lever has been closed.

Technical Details

- - Brand: GROHE

- - Range: Eurosmart Cosmopolitan

- - Product code: 32824000

- - Category: Basin mixer

- - Mixer type: Single-lever monobloc basin mixer

- - Size: S-Size

- - Finish: Chrome

- - Installation: Single-hole deck-mounted installation

- - Cartridge: 35mm ceramic cartridge

- - Flexible hose connections: G3/8

- - Spout projection: Approximately 92mm

- - Spout outlet height: Approximately 78mm

- - Maximum mounting-surface thickness: 30mm

- - Minimum recommended flow pressure: 0.1 bar

- - Maximum operating pressure: 10 bar

- - Hot-water connection: Left

- - Cold-water connection: Right

- - Waste arrangement: Smooth body without pop-up waste

Before You Order Check

Confirm that the tap is GROHE Eurosmart Cosmopolitan model 32824000 and compare the required component code with the existing part. Similar GROHE basin mixers can use different handles, cartridges, mousseurs and fixing components despite having a similar external appearance.
