Grohe 32629002 Concetto Single-Lever Basin Mixer (1/​2 Inch) L-Size Spare Parts

SUMMARY

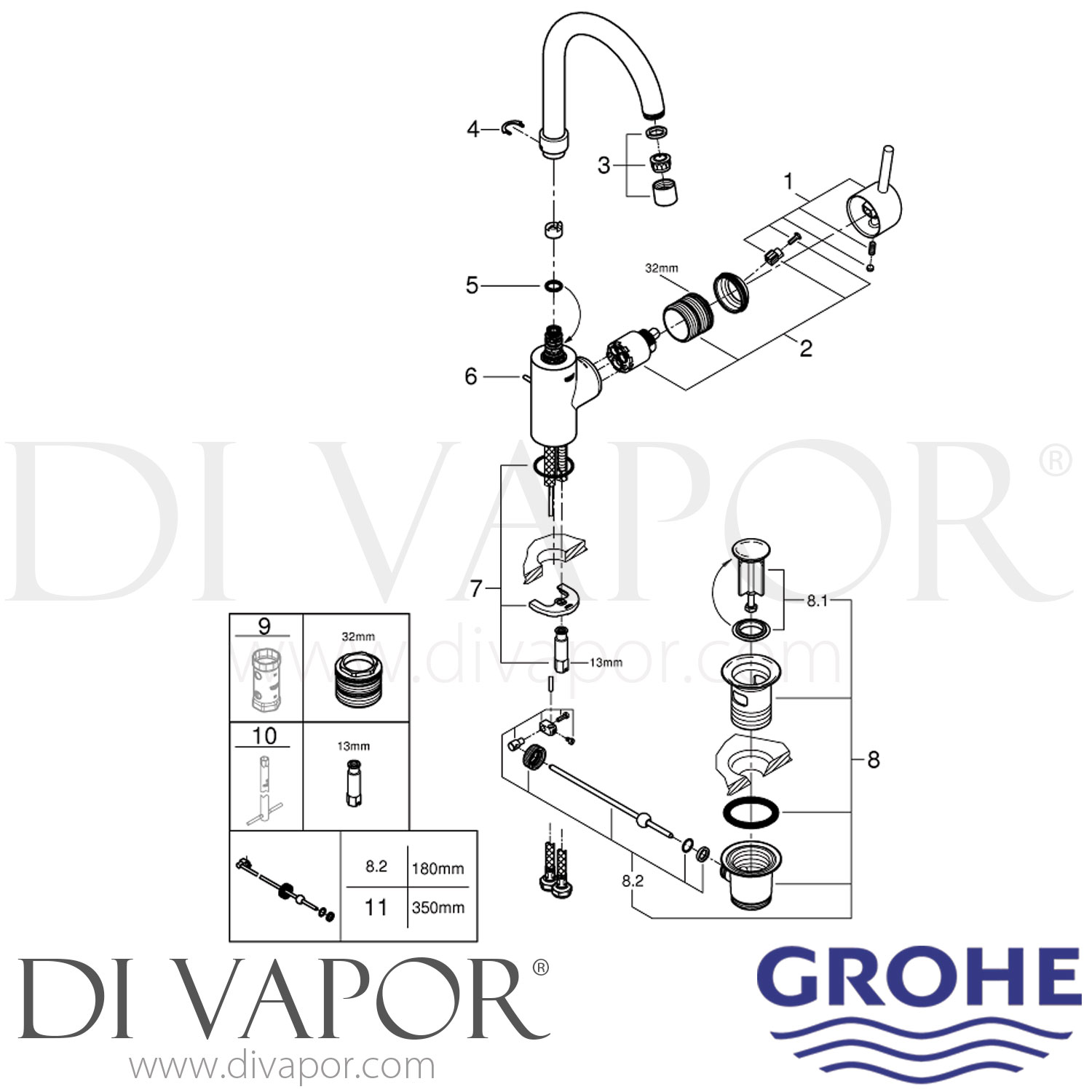

Tap Spares for Grohe 32629002 Concetto Single-Lever Basin Mixer 1/2 Inch L-Size

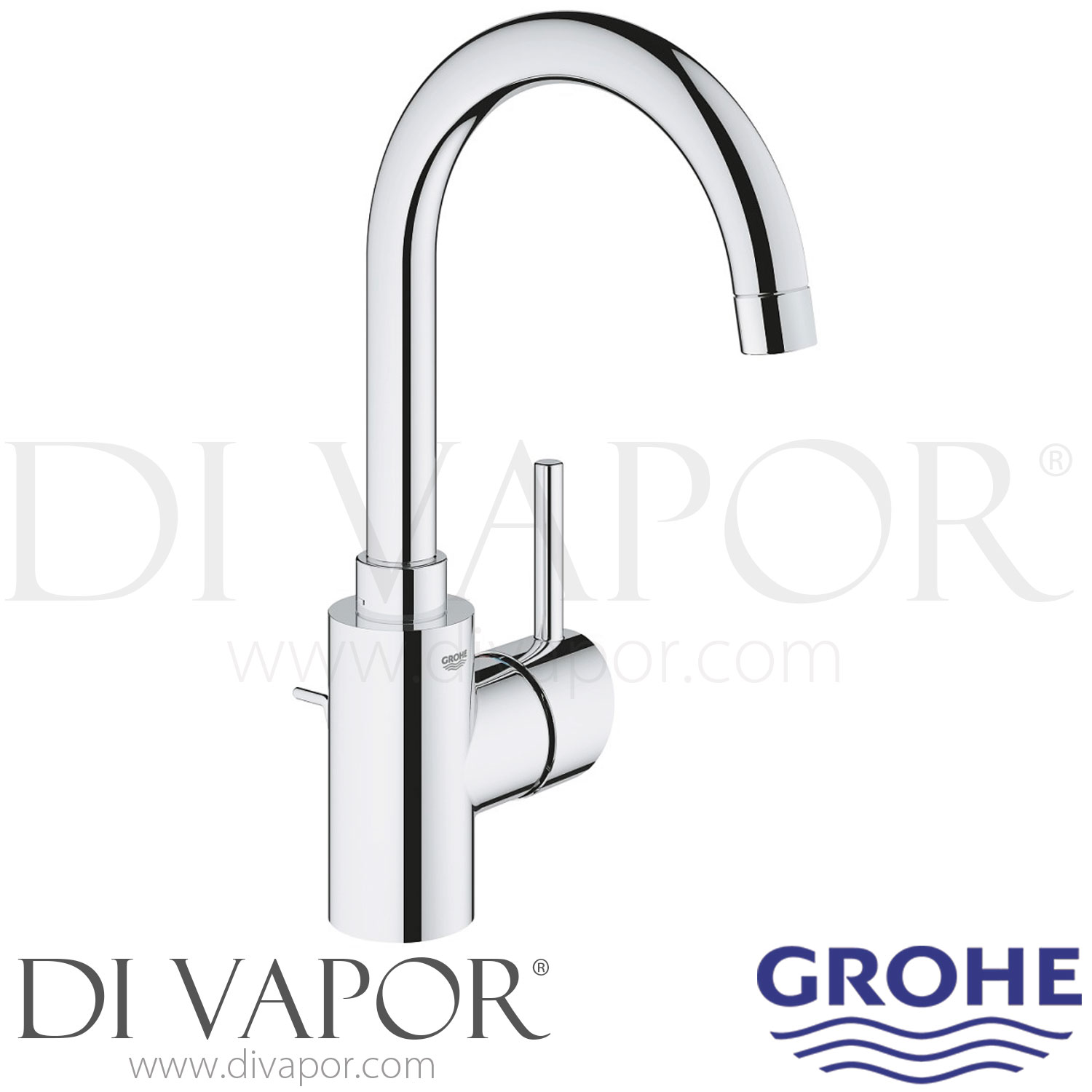

The Grohe 32629002 Concetto is a single-lever L-Size basin mixer with a high swivel tubular spout, designed for deck-mounted installation on a wash basin. This spare-parts reference covers the service components identified for product code 32629002.

The mixer uses a 35 mm GROHE SilkMove ceramic cartridge to control water flow and temperature. It also incorporates a mechanically operated pop-up waste, flexible connection hoses, and a swivel spout with a restricted 150-degree movement. When servicing this mixer, the Grohe spare parts listed below can help identify the correct cartridge, waste linkage components, and service tools for the job.

Technical Details

- - Brand: GROHE.

- - Range: Concetto.

- - Category: Basin mixer.

- - Product code: 32629002.

- - Size: L-Size.

- - Finish: Chrome.

- - Cartridge: 35 mm GROHE SilkMove ceramic cartridge.

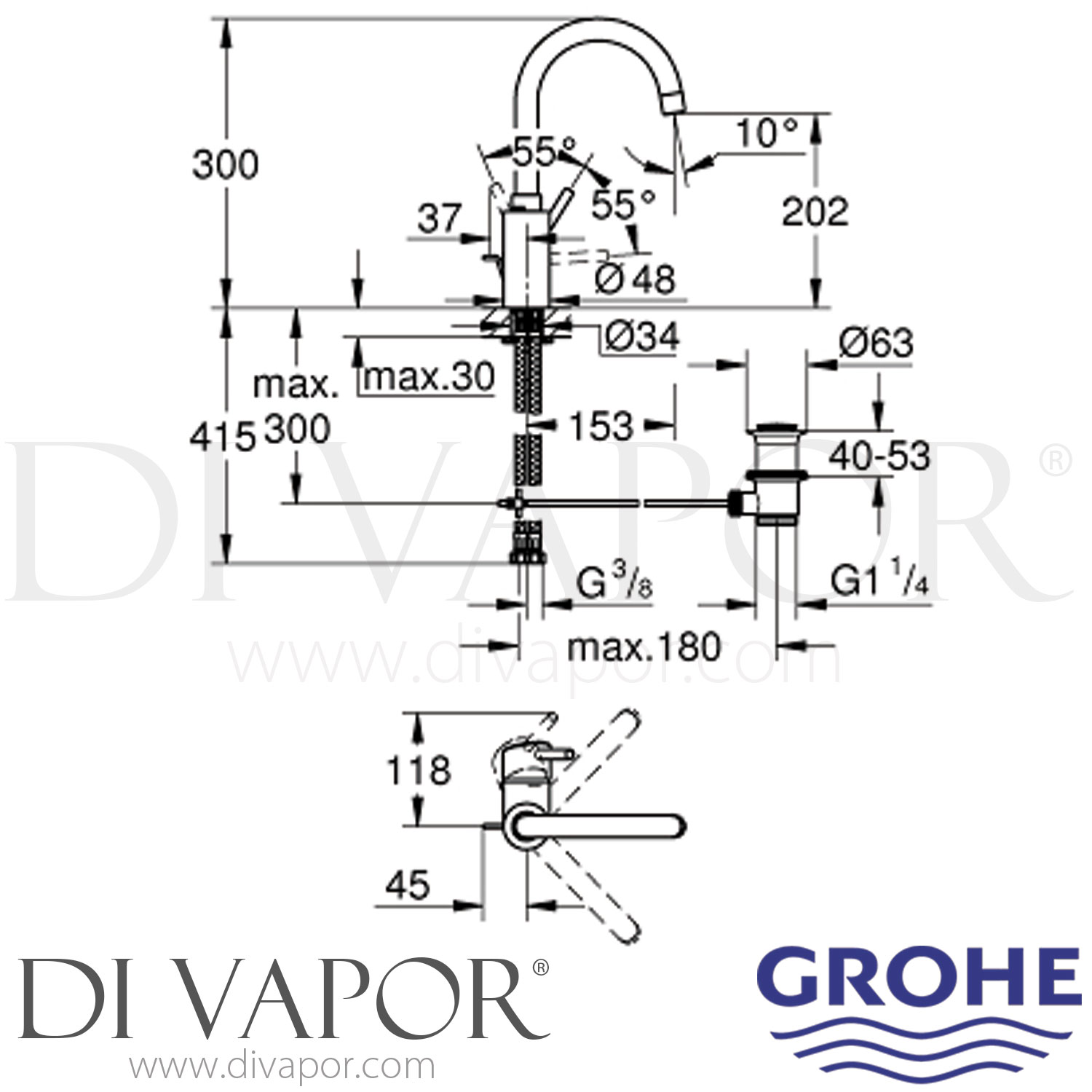

- - Overall mixer height: 300 mm.

- - Spout outlet height: 202 mm above the mounting surface.

- - Spout projection: 153 mm.

- - Main body diameter shown: 48 mm.

- - Required mounting hole: 34 mm.

- - Maximum mounting surface thickness: 30 mm.

- - Spout: Swivel tubular spout with a 150-degree swivel range.

- - Supply connections: Flexible connection hoses with G 3/8 connections.

- - Waste: Mechanically operated 1 1/4 inch pop-up waste.

- - EAN: 4005176472619.

Before You Order

Check the product code on the original mixer documentation and compare the required spare with the existing component before ordering. The earlier Concetto 32629001 uses a different spare parts arrangement, so parts should not be carried across solely because the mixers are from the same range.
