Grohe 3246920E Eurodisc Cosmopolitan Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

Spares for Grohe 3246920E Eurodisc Cosmopolitan Single-Lever Basin Mixer 1/2 Inch S-Size

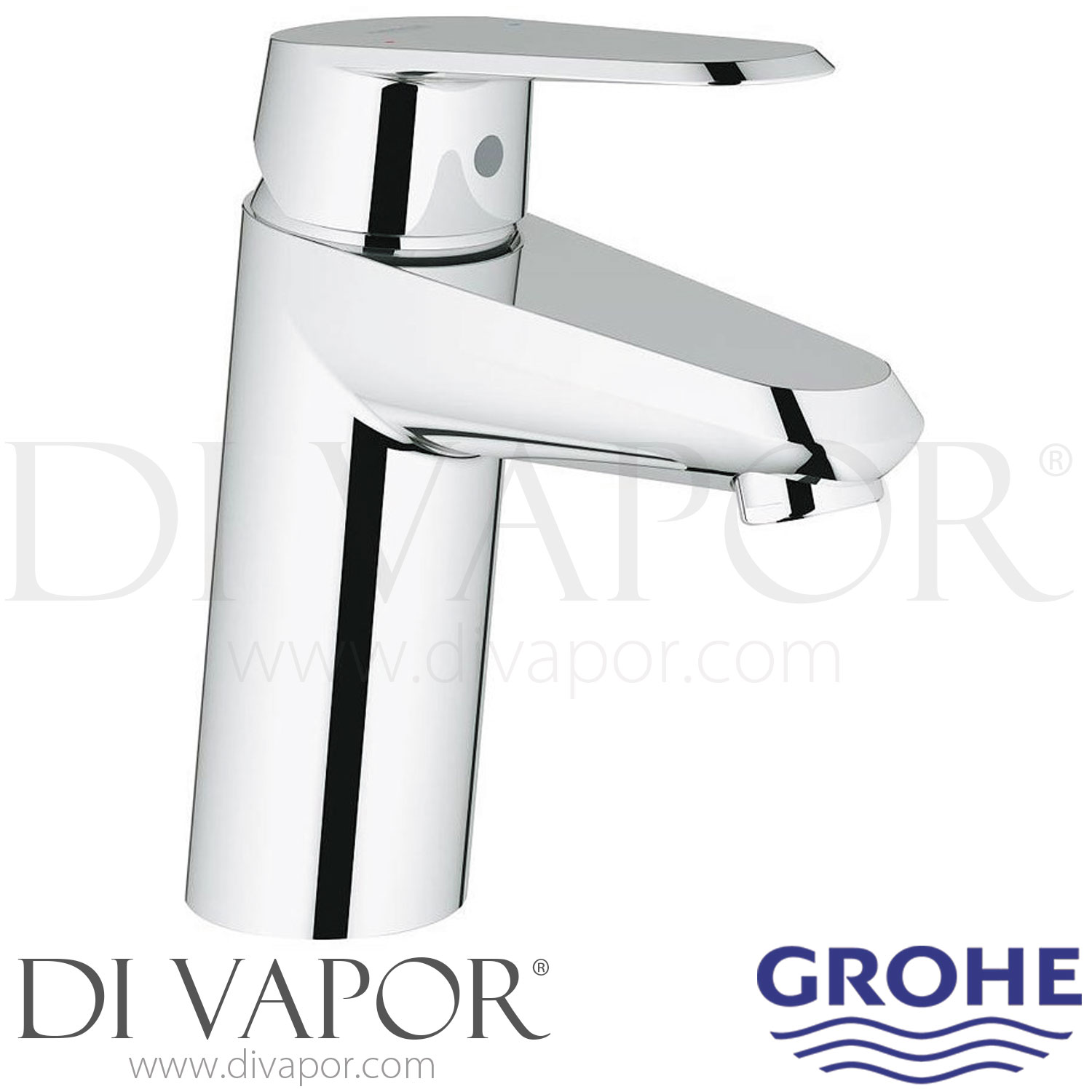

The GROHE 3246920E Eurodisc Cosmopolitan is a chrome single lever basin mixer in S-Size, designed for monobloc installation with a smooth body and flexible supply connections. This page brings together Grohe tap spare parts and servicing components identified for the 3246920E basin mixer.

The mixer uses a 35 mm GROHE SilkMove ceramic cartridge to regulate water flow and temperature through the single lever. Service parts are available for key internal components, including the cartridge and screw coupling, while the dedicated socket spanner can assist with servicing and removal where required.

Technical Details

- - Brand: GROHE

- - Range: Eurodisc Cosmopolitan

- - Category: Basin mixer

- - Model code: 3246920E

- - Size: S-Size

- - Finish: Chrome

- - Installation: Monobloc

- - Body type: Smooth body

- - Lever: Metal single lever

- - Cartridge: 35 mm GROHE SilkMove ceramic cartridge

- - Flow control: Adjustable flow-rate limiter, with an adjustable minimum flow rate of 2.5 l/min

- - Temperature control: Adjustable temperature limiter

- - Spout projection: 116 mm

- - Spout outlet height: 87 mm

- - Base diameter: 50 mm

- - Mounting hole diameter: 34 mm

- - Maximum mounting surface thickness: 30 mm

- - Flexible connection length: 350 mm

- - Supply connections: G3/8

- - EAN: 4005176908835

Before You Order

GROHE documentation separates spare parts information for 3246920E into a February 2011 to August 2017 period and an August 2017 onwards period. Check the full model code, installation age and existing component before ordering, as the complete spare set should not be assumed to be identical across both production periods.
