Grohe 32468003 Eurostyle Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

Spares for Grohe 32468003 Eurostyle Single-Lever Basin Mixer 1/2 Inch S-Size

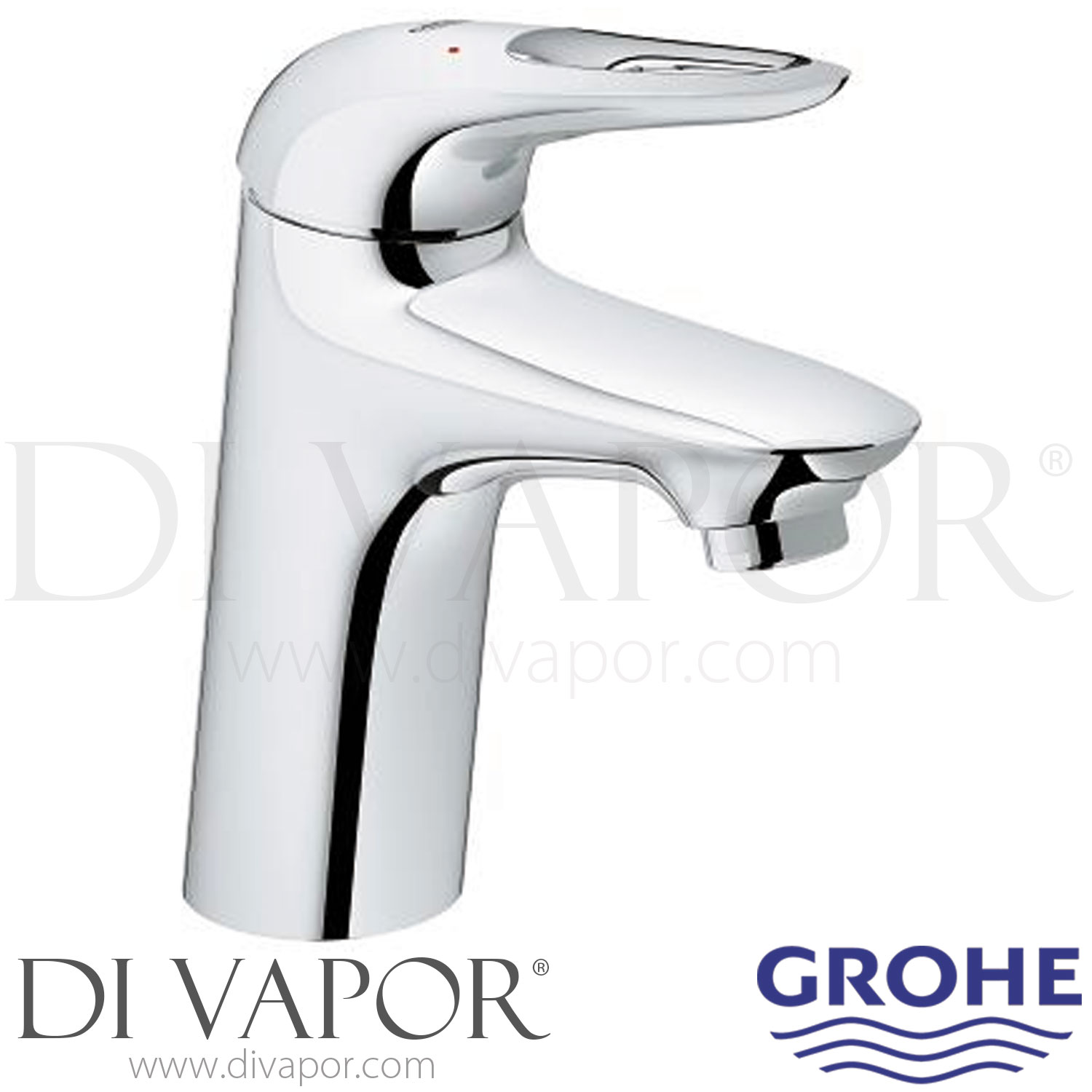

Grohe 32468003 is an Eurostyle 2015 single-lever basin mixer in chrome with a smooth body and S-Size proportions. The mixer uses a 35 mm ceramic cartridge to control water flow and temperature through the single loop-style lever and is supplied with flexible connection hoses.

The mixer incorporates an adjustable flow-rate limiter and temperature limiter, with a maximum flow rate of 5 l/min at 3 bar. GROHE FastFixation is used for installation. For maintenance and servicing, the Grohe spare parts listed below cover the main service items currently available for this exact mixer.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle 2015

- - Category: Basin mixer

- - Model code: 32468003

- - Size: S-Size

- - Finish: Chrome

- - Body: Smooth body

- - Lever: Metal loop lever

- - Cartridge: 35 mm ceramic single-lever mixer cartridge

- - Flow control: Adjustable flow-rate limiter

- - Temperature control: Temperature limiter

- - Maximum flow rate: 5 l/min at 3 bar

- - Installation system: GROHE FastFixation

- - Connections: Flexible connection hoses

- - Body diameter: 50 mm

- - Spout projection: 110 mm

- - Outlet height: 82 mm

- - Mixer height with lever closed: approximately 163 mm

- - Maximum lever-raised height: 210 mm

- - Maximum mounting-surface thickness: 30 mm

- - Mounting shank diameter: 34 mm

- - Flexible hose connection: G 3/8

- - Flexible hose length: 345 mm

- - Outlet angle: 14 degrees

- - EAN: 4005176334207

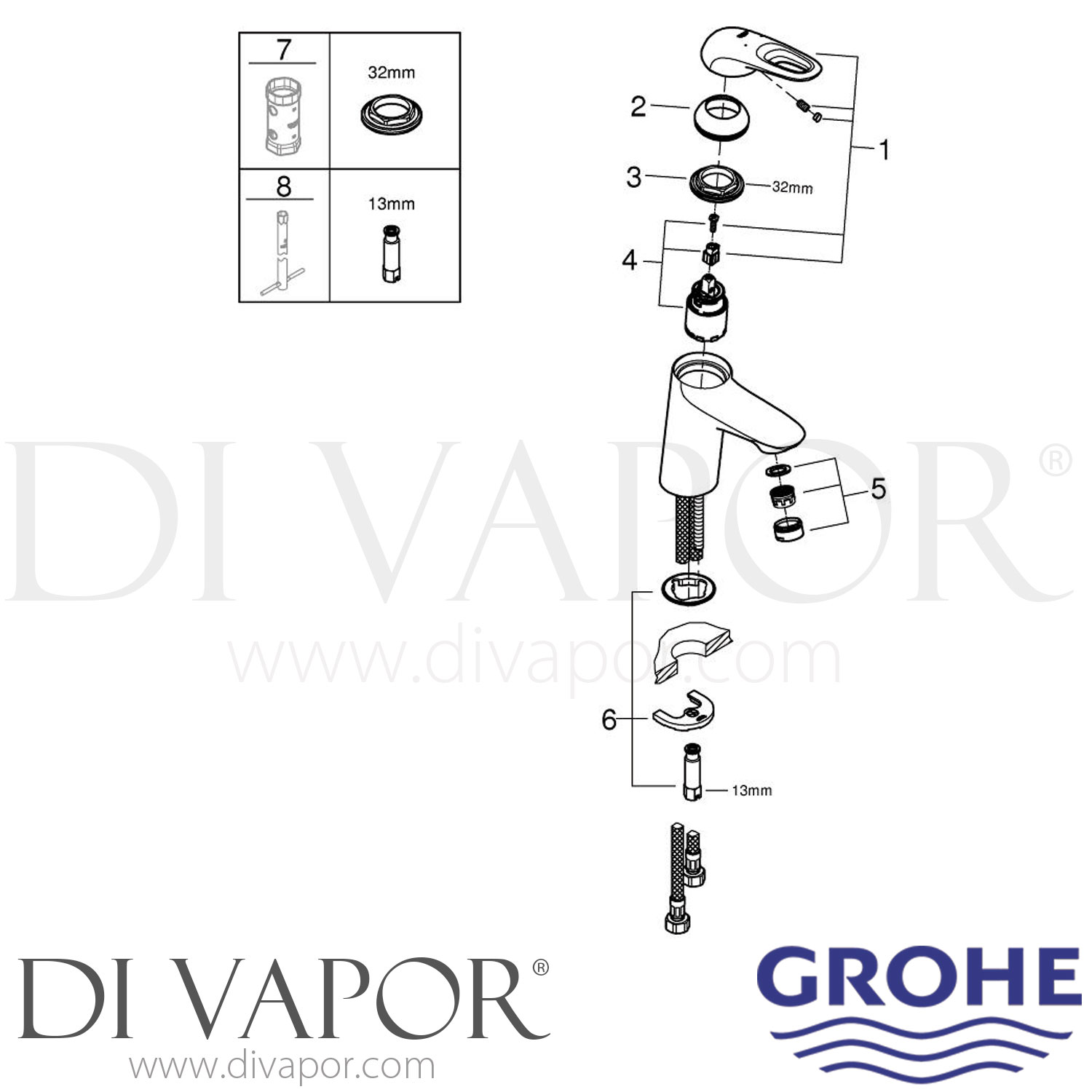

The 46374000 is the 35 mm ceramic single-lever mixer cartridge used to regulate flow and temperature in this mixer. The 46460000 is the red screw coupling used within the control assembly, while the 19332000 box spanner is an optional servicing tool rather than a working component of the tap.

Before you order check

- - Confirm that the mixer model code is 32468003 before selecting replacement components.

- - Check the code on the existing service part where accessible, particularly when replacing the cartridge or coupling.
