Grohe 29097003 Eurostyle Two-Hole Basin Mixer M-Size Spare Parts

SUMMARY

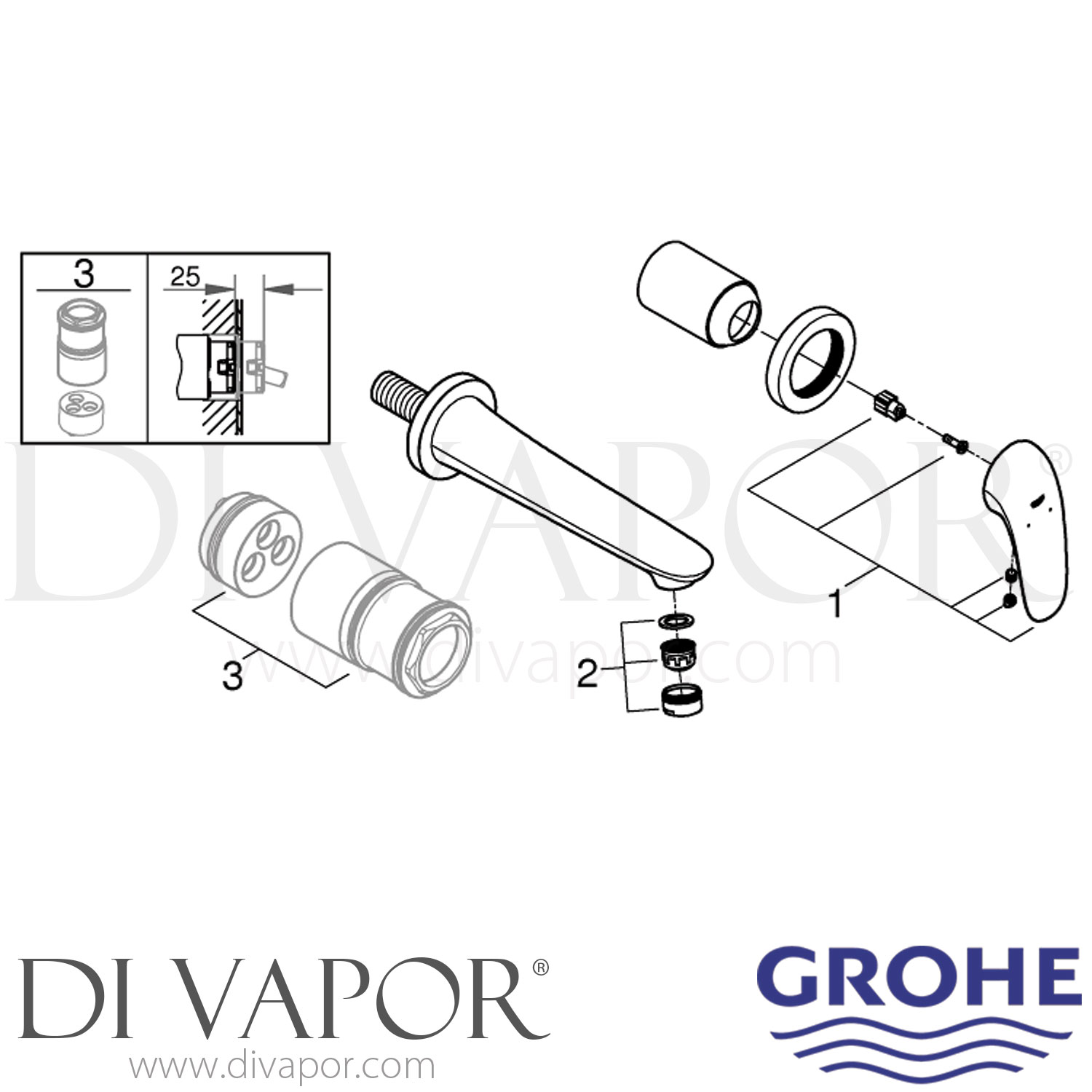

Spares for Grohe 29097003 Eurostyle Two-Hole Basin Mixer M-Size

Set for final installation 23 571 000.

Spare parts information for the Grohe 29097003 Eurostyle wall-mounted two-hole basin mixer, M-Size, in chrome. This final installation set combines the visible solid-metal lever and 203 mm basin spout and is designed for installation with the appropriate concealed mixer body.

The mixer uses a wall-mounted concealed installation, with the operating cartridge located inside the rough-in body behind the finished wall surface. For servicing the mixer and its concealed installation, the Grohe tap spares listed below cover the verified cartridge and service tool used with the associated concealed bodies.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle

- - Category: Basin mixer

- - Configuration: Wall-mounted two-hole basin mixer

- - Size: M-Size

- - Finish: Chrome

- - Lever: Solid metal

- - Centre distance: 110 mm

- - Spout projection: 203 mm

- - Maximum flow rate: 5 litres per minute at 3 bar

- - Outlet: GROHE AquaGuide adjustable mousseur

- - Concealed body supplied with the trim set: No

- - EAN: 4005176365133

Confirmed Installation Bodies

- - Grohe 23571000 Single-Lever Mixer 1/2 Inch Universal Concealed Body

- - Grohe 32635000 Single-Lever Mixer 1/2 Inch Concealed Body

Before You Order

Check the mixer code and concealed body before ordering spare parts, as the visible 29097003 trim and the concealed mixer body are separate assemblies. The service cartridge is fitted within the concealed body rather than the visible basin mixer trim.
