Grohe 23564003 Eurostyle Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

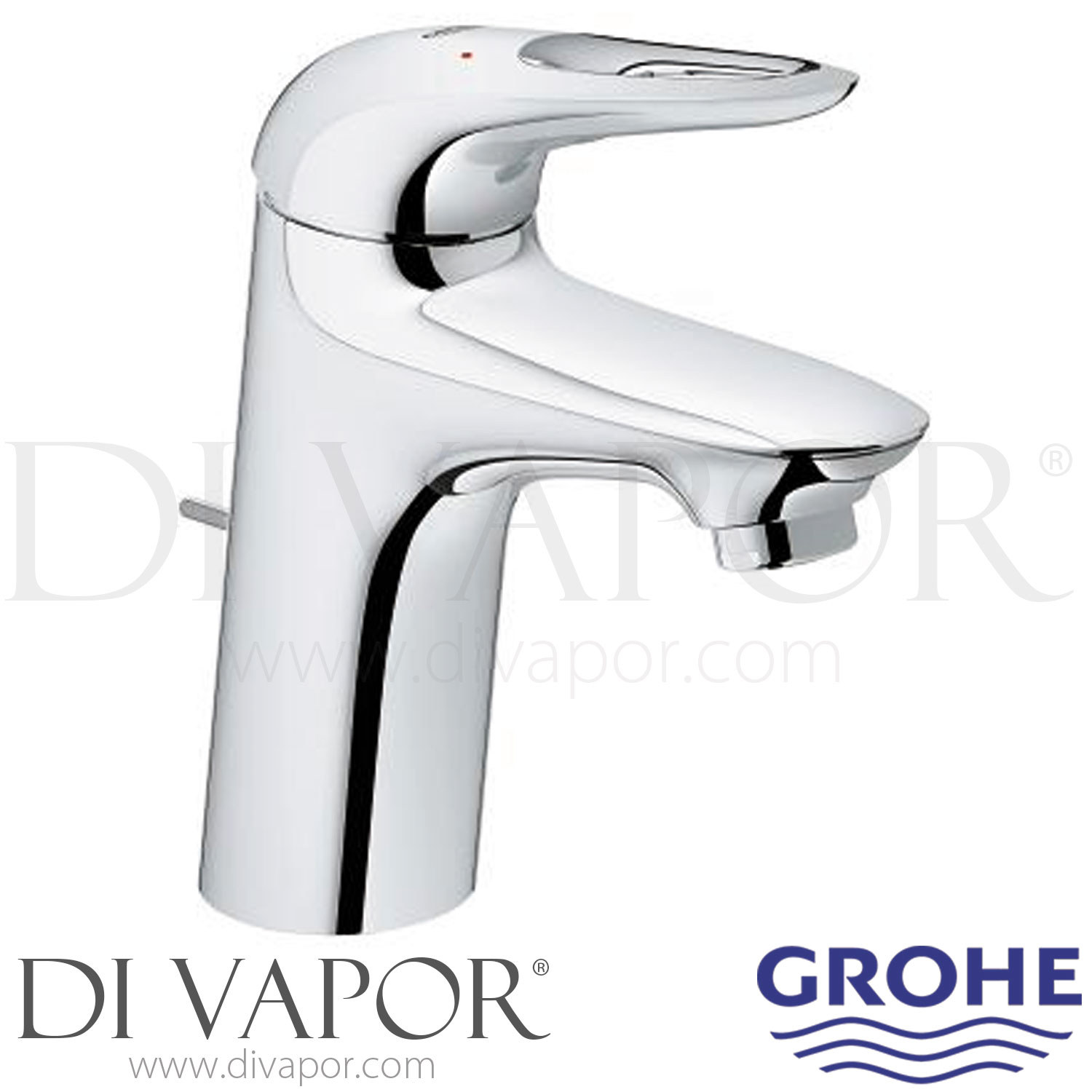

The GROHE 23564003 Eurostyle is a chrome single-lever basin mixer designed for single-hole installation on standard wash basins. It uses a 35 mm GROHE SilkMove ceramic cartridge to control water flow and temperature and is supplied with a pop-up waste system and flexible connection hoses.

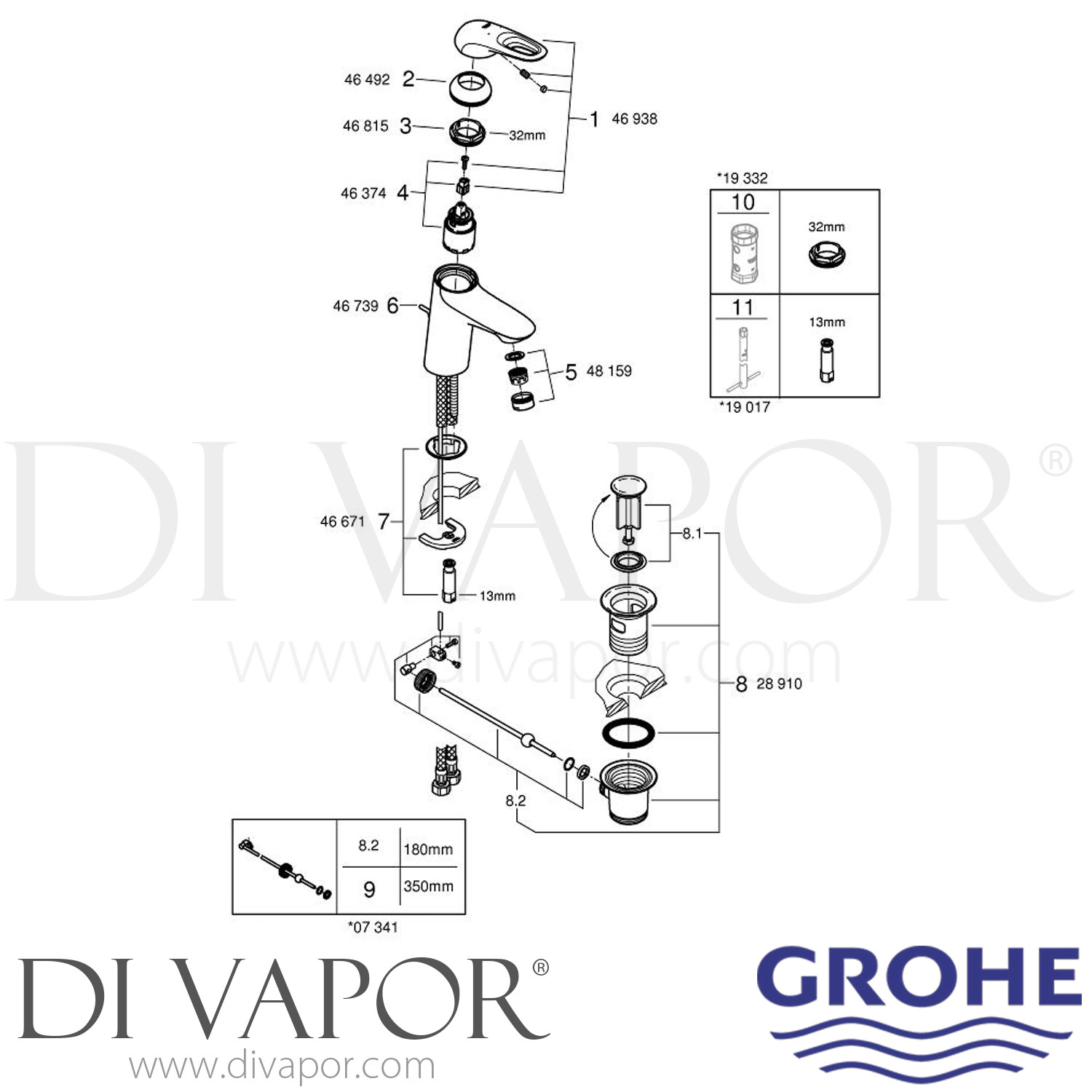

This spare-parts page brings together service components used with the 23564003 mixer. The available Grohe spare parts include the ceramic lever cartridge, waste operating rods and service box spanner, allowing individual components to be replaced without changing the complete tap.

Technical Details

- - Brand: GROHE

- - Range: Eurostyle

- - Category: Basin mixer

- - Product code: 23564003

- - Size: S-Size

- - Finish: Chrome

- - Installation: Single-hole installation

- - Control: Single loop metal lever

- - Cartridge: 35 mm GROHE SilkMove ceramic cartridge

- - Flow control: Adjustable flow rate limiter

- - Temperature control: Temperature limiter

- - Maximum flow rate: 5 l/min at 3 bar

- - Installation system: GROHE FastFixation

- - Waste: Pop-up waste set 1 1/4"

- - Connections: Flexible connection hoses

- - EAN: 4005176334146

Before You Order Check

Check that the basin mixer is model 23564003 and match the required component code against the existing part or the tap spare-parts diagram before ordering. Other Eurostyle basin mixers can use different internal and waste components despite having a similar external appearance.
