Grohe 19895000 Eurocube Two-Hole Basin Mixer S-Size Tap Spare Parts

SUMMARY

Tap Spares for Grohe 19895000 Eurocube Two-Hole Basin Mixer S-Size

Set for final installation for 23 200.

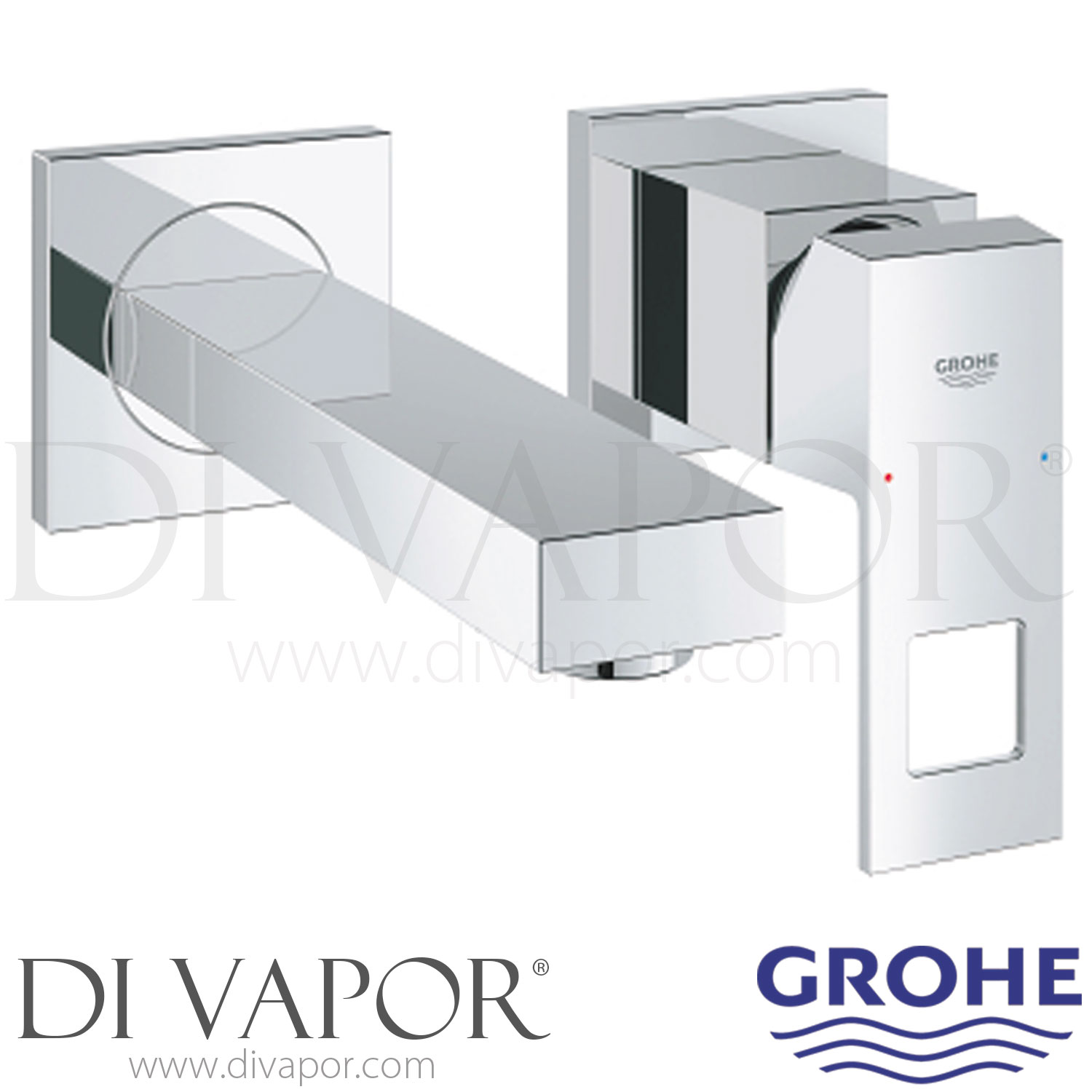

The Grohe 19895000 Eurocube is a two-hole, wall-mounted basin mixer S-Size final installation set in chrome. It forms the visible control and spout assembly of the basin mixer and is designed for installation with the Grohe 23200000 concealed mixer body. The concealed body is not supplied as part of the 19895000 trim set.

The mixer uses a separate wall-mounted lever control and spout, giving access to the concealed mixing valve installed behind the finished wall. The 171 mm projection spout incorporates a GROHE AquaGuide adjustable mousseur, allowing the direction of the water outlet to be adjusted to suit the basin installation. The metal lever operates the ceramic cartridge housed within the concealed body to control water flow and temperature.

When servicing this installation, the Grohe spare parts listed below include the ceramic cartridge used within the concealed mixer body and the dedicated 34 mm socket tool used for servicing the valve.

Technical Details

- - Brand: Grohe

- - Range: Eurocube

- - Category: Basin mixer

- - Product code: 19895000

- - Product type: Two-hole wall-mounted basin mixer final installation set

- - Size: S-Size

- - Finish: Chrome

- - Installation: Wall mounted

- - Concealed body supplied: No

- - Concealed body used: Grohe 23200000

- - Centre distance: 110 mm

- - Spout projection: 171 mm

- - Outlet: GROHE AquaGuide adjustable mousseur

- - Control: Metal single lever

- - Minimum recommended pressure: 1.0 bar

- - Flow rate: 13.00 litres per minute at 3 bar

- - EAN: 4005176901072

Confirmed Installation Body

- - Grohe 23200000 Single-Lever Mixer 1/2 Inch Concealed Body

Before You Order

- - Check that the mixer is the Grohe Eurocube 19895000 S-Size two-hole basin mixer trim before ordering parts

- - Confirm that the installation uses the Grohe 23200000 concealed body if ordering internal valve components

- - The 19895000 is the visible final installation set and does not include the concealed mixer body

- - Finish-specific lever and outlet parts differ between chrome and other Eurocube finishes, so check the complete product code before ordering visible trim components
