Grohe 19573002 Eurodisc Cosmopolitan Two-Hole Basin Mixer M-Size Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for Grohe 19573002 Eurodisc Cosmopolitan Two-Hole Basin Mixer M-Size
The Grohe 19573002 Eurodisc Cosmopolitan two-hole basin mixer M-Size is a chrome wall-mounted trim set for a concealed basin mixer installation. It provides the visible operating lever, metal rosette and basin spout, while the concealed mixer body is supplied separately.
The spout has a Grohe AquaGuide adjustable mousseur, allowing the outlet angle to be directed towards the basin. This Grohe spare parts reference identifies the approved concealed installation bodies and the service components associated with the mixer.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurodisc Cosmopolitan |
| Category | Basin mixer |
| Product code | 19573002 |
| Product type | Wall-mounted two-hole basin mixer trim set |
| Size | M-Size |
| Finish | Chrome with GROHE LongLife finish |
| Centre distance | 110 mm |
| Nominal spout projection | 170 mm |
| Rosette diameter | 68 mm |
| Outlet adjustment | 10 to 30 degrees |
| Connection | G 1/2 |
| Concealed-body installation depth | 45 to 75 mm |
| Concealed mixer body | Not included |
| EAN | 4005176887659 |
Confirmed Installation Bodies
- Grohe 23571000 Single-Lever Mixer 1/2 Inch Universal Concealed Body Spare Parts
- Grohe 32635000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts

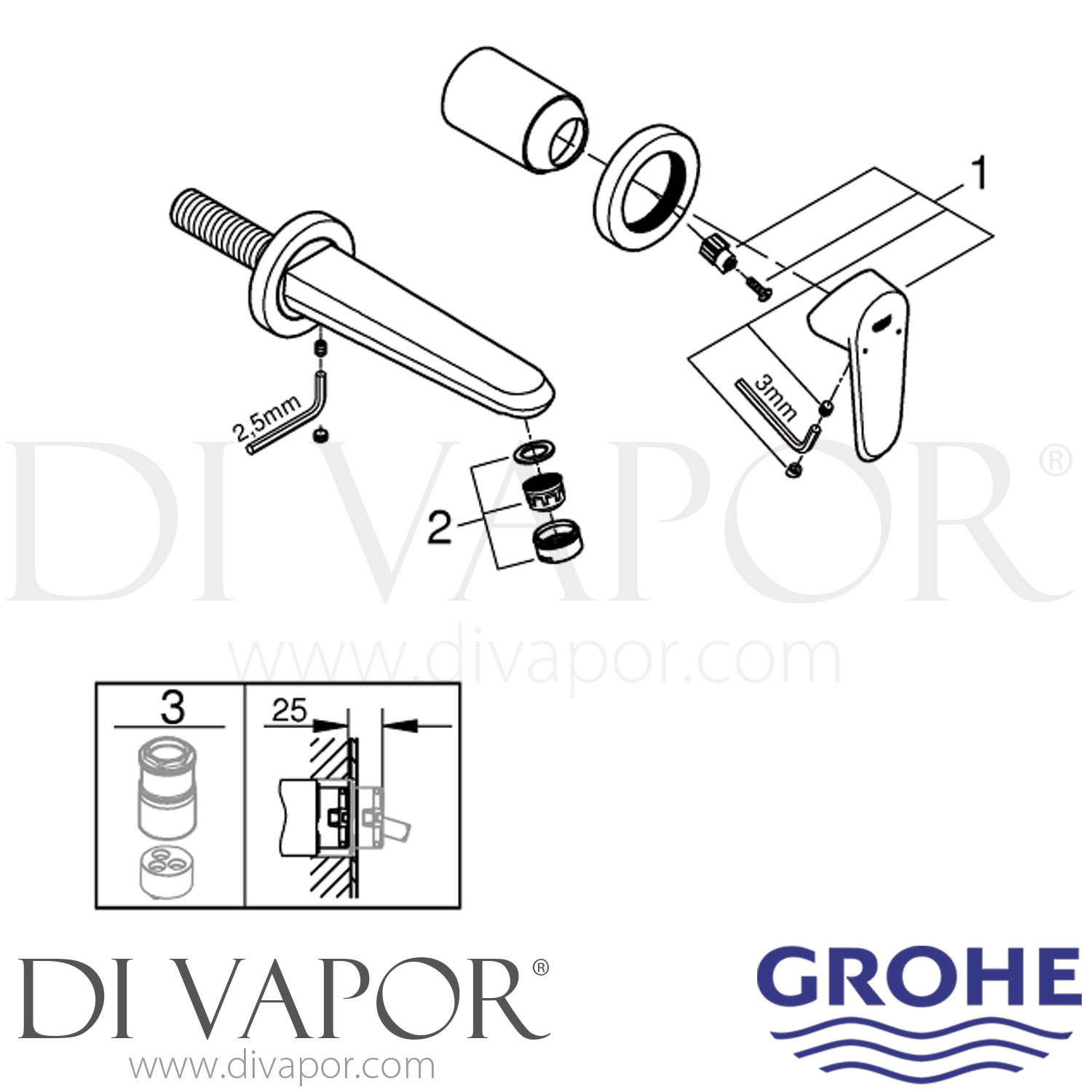

Manufacturer-Listed Service Parts
- Grohe 46742000 lever, listed for both the current and earlier spare configurations
- Grohe 64451000 flow straightener, listed for both the current and earlier spare configurations
- Grohe 46943000 optional extension, associated with the 23571000 concealed body and the current spare configuration
- Grohe 46627000 optional extension, associated with the 32635000 concealed body and the earlier spare configuration
Before You Order
Check the code on the concealed mixer body before ordering an extension. Both approved bodies use cartridge 46374000, but their extension codes differ. The cartridge is fitted inside the concealed body, rather than inside the visible 19573002 trim, and the 19332000 socket spanner is a service tool, not an installed component.
