Grohe 19381000 Eurosmart Cosmopolitan Two-Hole Basin Mixer S-Size Tap Spare Parts

SUMMARY

Tap Spares for Grohe 19381000 Eurosmart Cosmopolitan Two-Hole Basin Mixer S-Size

- Wall Mounted

- Set for Final Installation for 23 571 000

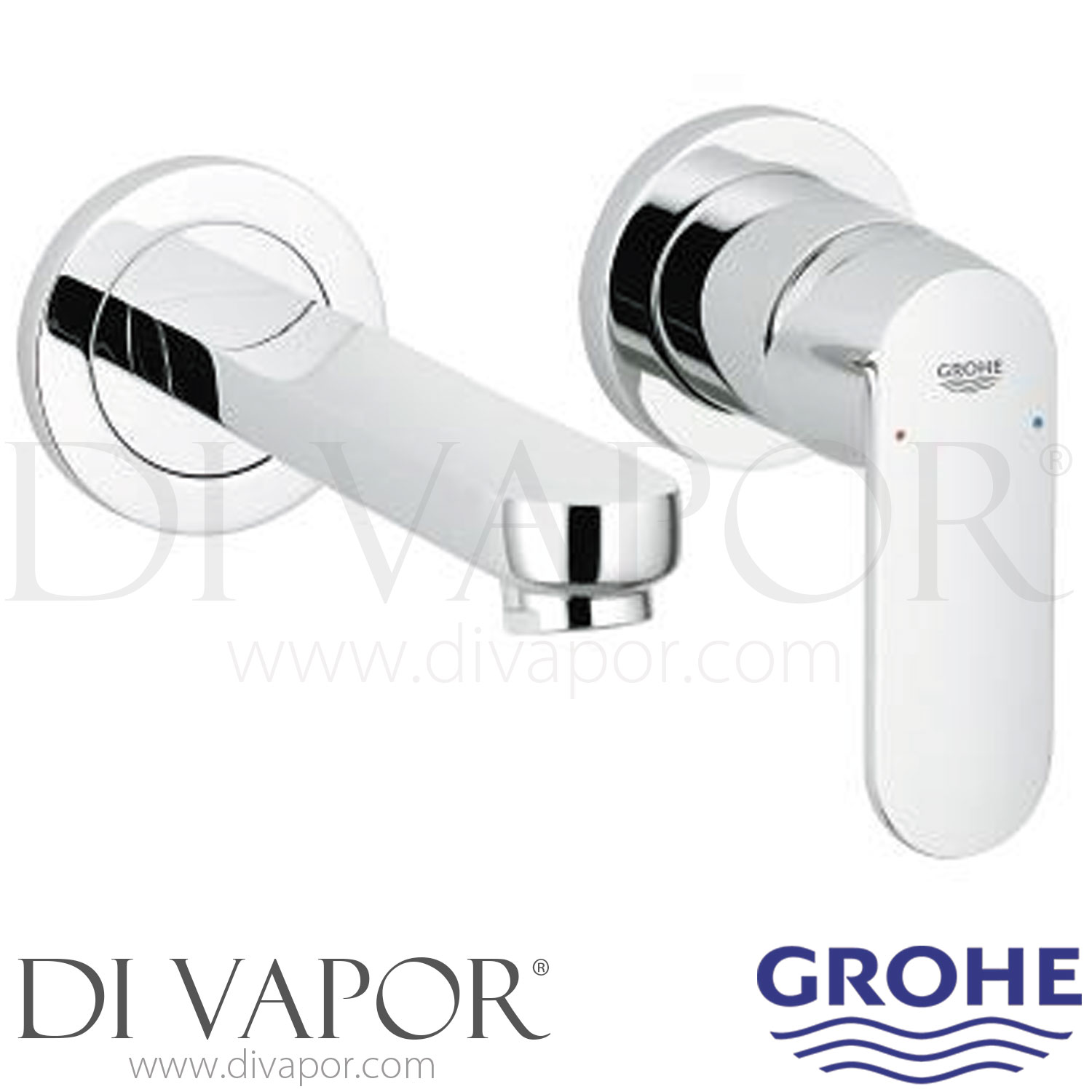

Grohe 19381000 Eurosmart Cosmopolitan two-hole basin mixer S-Size spare parts for the wall-mounted final trim set. The 19381000 uses a concealed single-lever mixer body behind the finished wall surface, with the exposed trim providing the operating lever and basin spout.

The mixer has a 110 mm centre distance and a 170 mm spout projection. It features a metal lever, metal escutcheon, chrome finish and GROHE AquaGuide adjustable mousseur. The concealed body is not included with the 19381000 final trim set.

Technical Details

- - Brand: Grohe

- - Product code: 19381000

- - Range: Eurosmart Cosmopolitan

- - Category: Basin mixer

- - Type: Two-hole wall-mounted basin mixer

- - Size: S-Size

- - Installation: Wall mounted

- - Centre distance: 110 mm

- - Spout projection: 170 mm

- - Lever: Metal

- - Escutcheon: Metal

- - Outlet: GROHE AquaGuide adjustable mousseur

- - Finish: Chrome

Concealed Mixer Bodies

- - Grohe 23571000 Single-Lever Mixer 1/2 Inch Universal Concealed Body

- - Grohe 32635000 Single-Lever Mixer 1/2 Inch Concealed Body

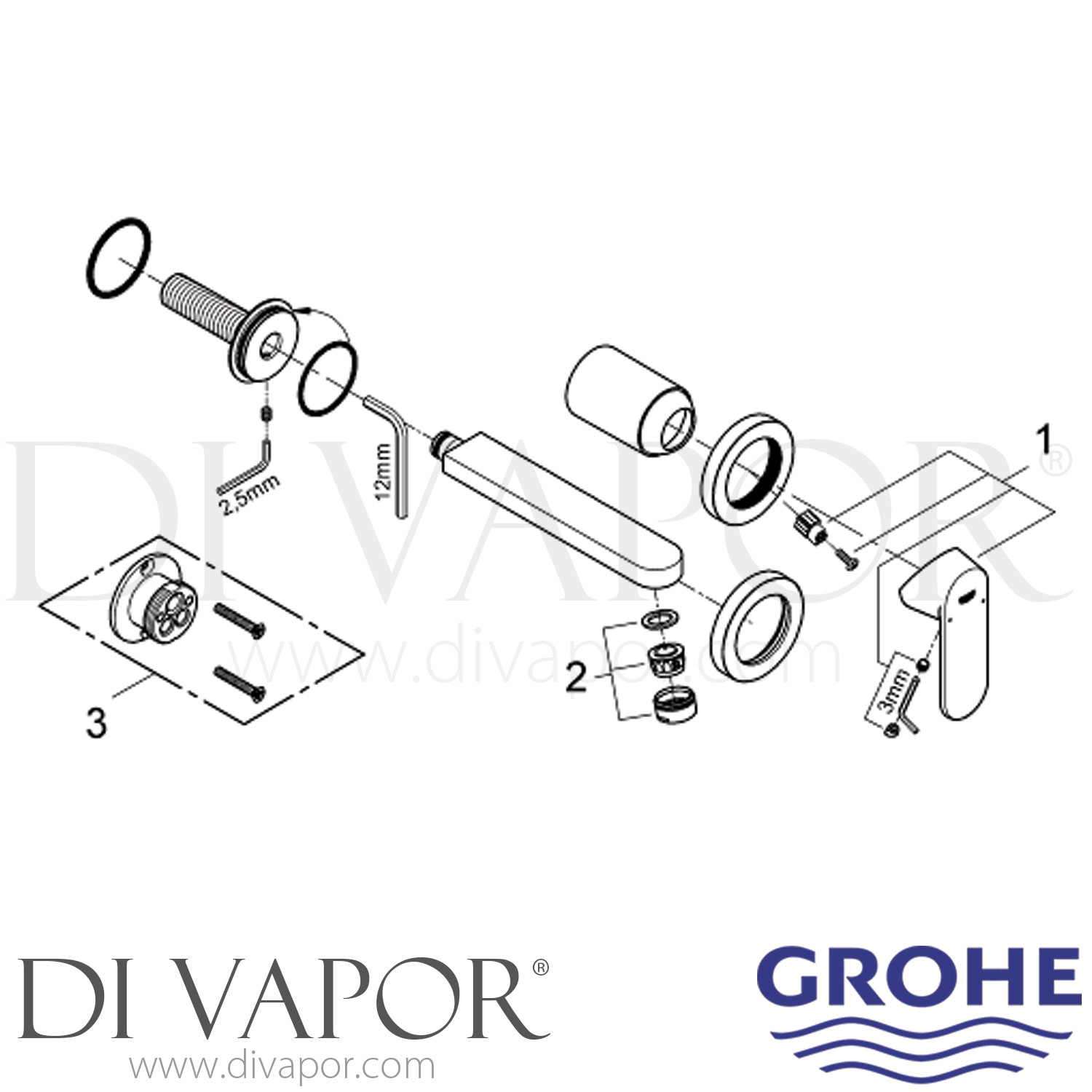

Before ordering, check the mixer code and concealed body installed behind the trim, particularly where the wall finish has already been completed. The Grohe spares listed below cover the cartridge and service tool shown for this mixer installation.
