KEROX K40A 40mm Mixer Tap Cartridge Replacement
SUMMARY
KEROX K40A (K-40A) 40mm Mixer Tap Cartridge Replacement
The KEROX K40A is a 40mm ceramic single lever mixer tap cartridge for mixer tap bodies that use the Kerox K40A / K-40A cartridge format. It controls both water flow and mixed water temperature through the movement of the tap lever.
This cartridge should be matched against the removed cartridge before ordering, using the body diameter, total length, handle carrier size and locating pin spacing. Do not select a replacement by diameter alone, as the underside locating pins and handle connection must also match.

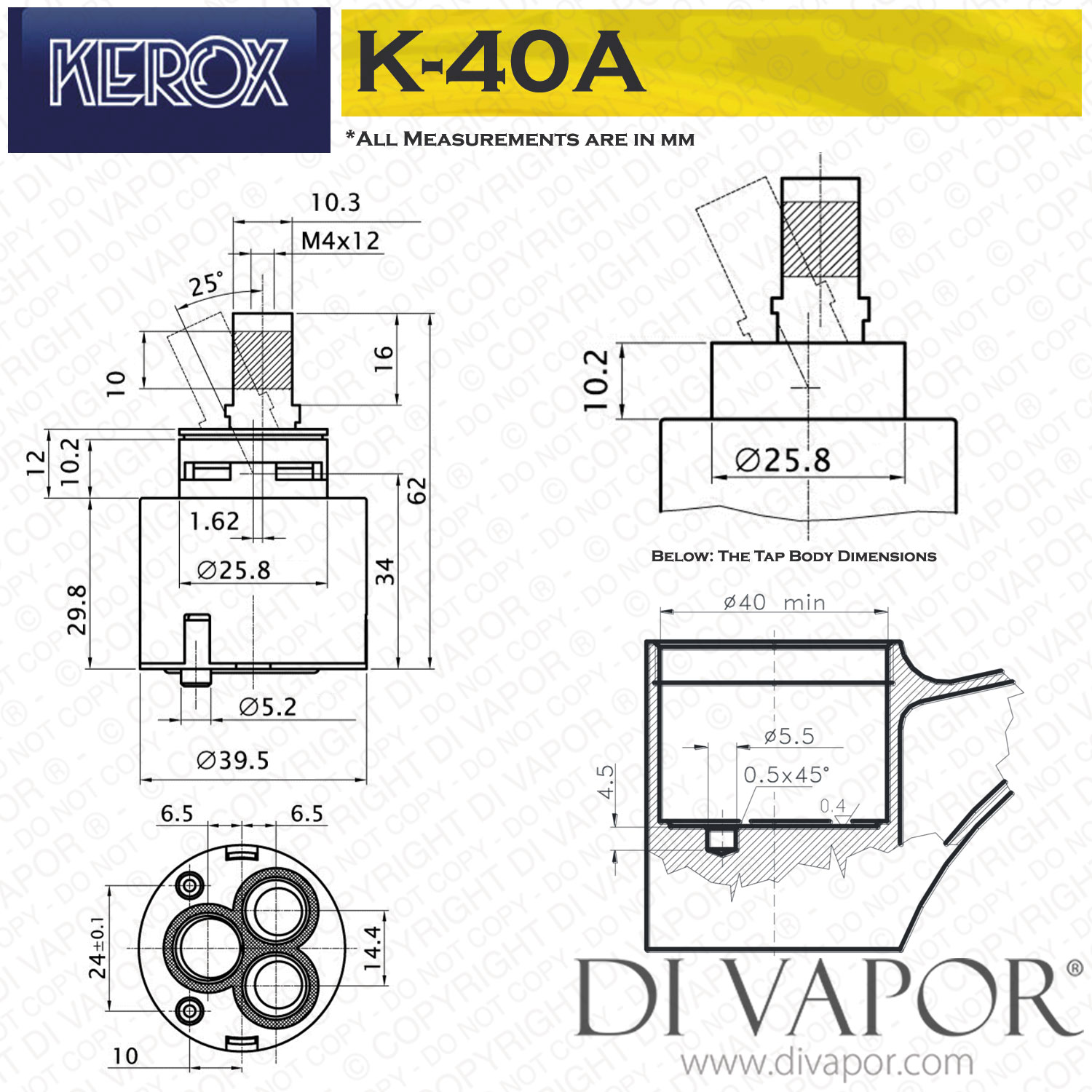

Technical Details
- - Part Number: KEROX-K40A
- - Code variant shown: K-40A
- - Cartridge type: ceramic single lever mixer tap cartridge
- - Barrel diameter: 40mm
- - Total length excluding locating pins: 62mm
- - Top square plastic handle lever diameter: 10.3mm x 9.9mm
- - Distance between locating pins at bottom: 24mm centre to centre
- - Kerox K-40 cartridge family function: conventional volume and temperature control
Before Ordering
- - Remove the old cartridge and compare the full shape before ordering.
- - Check the 40mm barrel diameter and 62mm body length excluding locating pins.
- - Check the 24mm centre to centre locating pin spacing on the underside.
- - Check the square plastic handle carrier size and orientation against the original tap handle.
- - Apply silicone grease to suitable seals during installation to help the cartridge seat correctly.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
