Shower Cartridge
Shower CartridgeTap Cartridge ReplacementTap CartridgeTap Cartridge SparesTap GlandTap Cartridges

Ceramic Tap Valve Cartridge - 1/2" BSP, Quarter Turn Clockwise Close - 52mm Height, 20 Teeth Spline - Cold Side

Part Number: DF8176

SALE: £12.95

You save: £17.04 (57%)
Price includes VAT
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

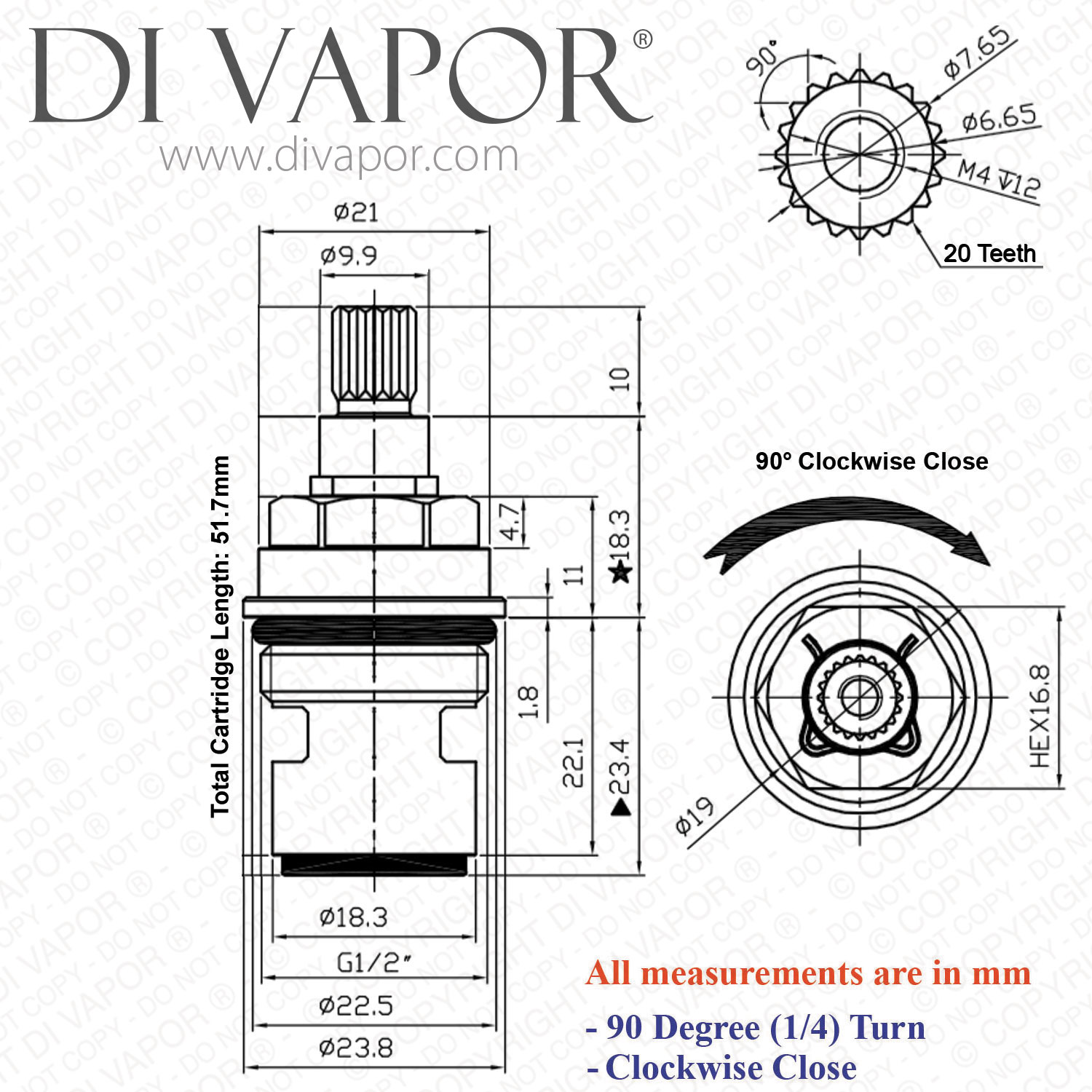

Ceramic Tap Valve Cartridge - 1/2" BSP, Quarter Turn Clockwise Close - 52mm Height, 20 Teeth Spline - Cold Side

Total Length (including bottom seal): 51.7mm
Diameter at Widest Point: 23.8mm
Top Spline Diameter: 7.65mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 18.3mm
Lower Thread: 22.5mm
Bottom Seal Colour: Blue (for cold side)

To unscrew your existing tap cartridge, you will need to turn it anti-clockwise. Likewise, to install the new one, you will need to turn it clockwise to screw it in. For tap cartridges that don't unscrew easily, try using a hammer to tap the end of the spanner. This will create a sharp jolt which will break the cartridge free of the limescale, grime and and rust that has been holding it in the valve.

Do be careful when tapping the end of the spanner with the hammer as it could dislodge the tap or shower from the wall, basin or sink and can even dislodge it from the connected hot and cold water pipes if it moves enough.
