Ceramic Tap Valve Cartridge - 1/2" BSP, Quarter Turn Anti-Clockwise Close - 52mm Height, 20 Teeth Spline - Hot Side

Part Number: DF8175

SALE: £12.95

You save: £17.04 (57%)
Price includes VAT
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description


Ceramic Tap Valve Cartridge - 1/2" BSP, Quarter Turn Anti-Clockwise Close - 52mm Height, 20 Teeth Spline - Hot Side

Total Length (including bottom seal): 51.7mm
Diameter at Widest Point: 23.8mm
Top Spline Diameter: 7.65mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 18.3mm
Lower Thread: 22.5mm

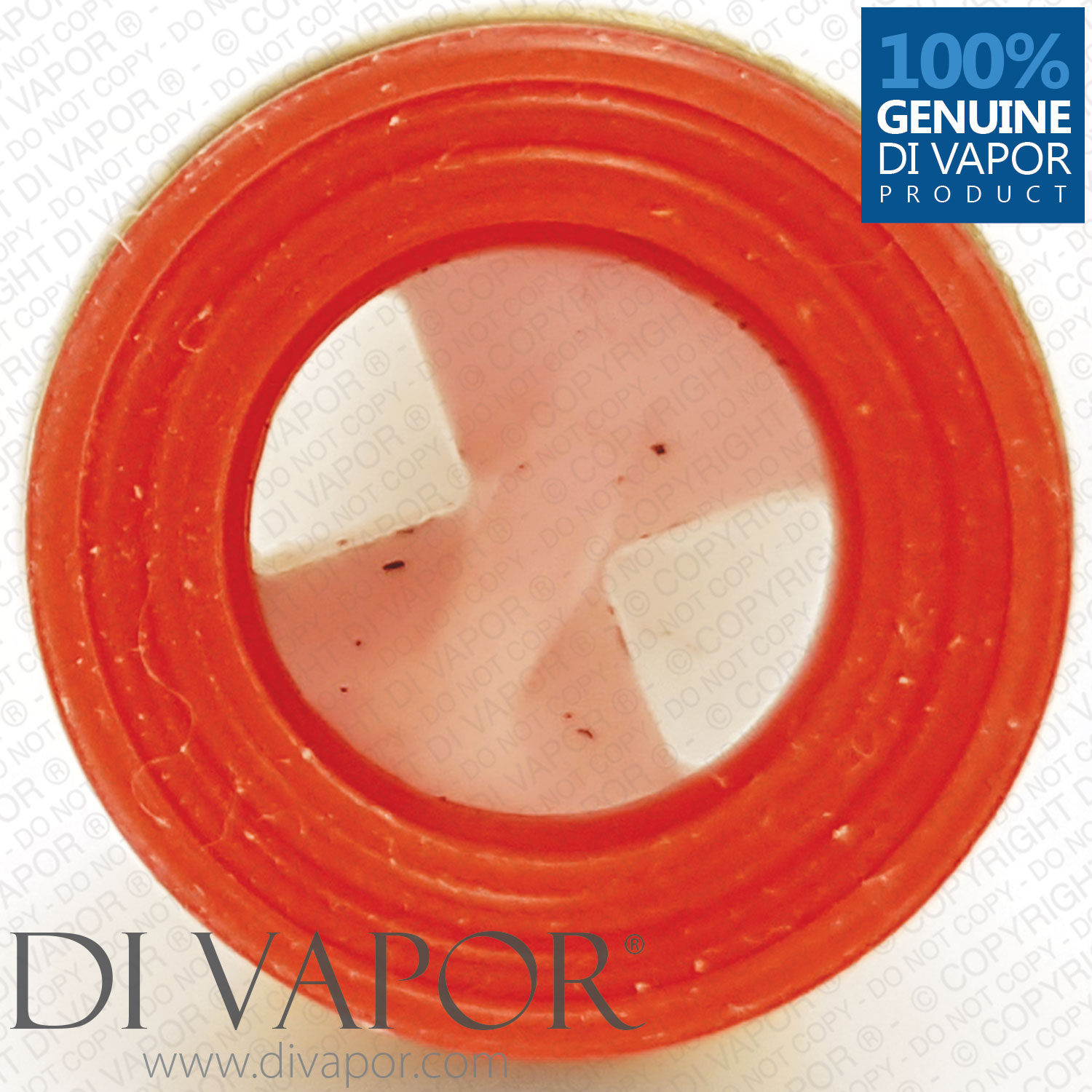

Bottom Seal Colour: Red (for hot side)

When installing the new cartridge, please make sure that there are no bits that are inside the shower valve or even stuck onto the cartridge. This can cause problems with creating a seal and can then cause water to seep through the seal and drip. One way to get rid of bits inside the valve is to use a towel, and stick it in side the valve, move it around to dry it off and loosen any loose debris. You can then remove the loose bits with a long instrument like a long thin paintbrush, or you can blow into the valve with force to push any bits out.

If you have little bits stuck on the cartridge, you can use the dry paintbrush to wipe it off. There's no right or wrong way to install it, just use some common sense. We recommend using silicone grease to prevent future drips.
