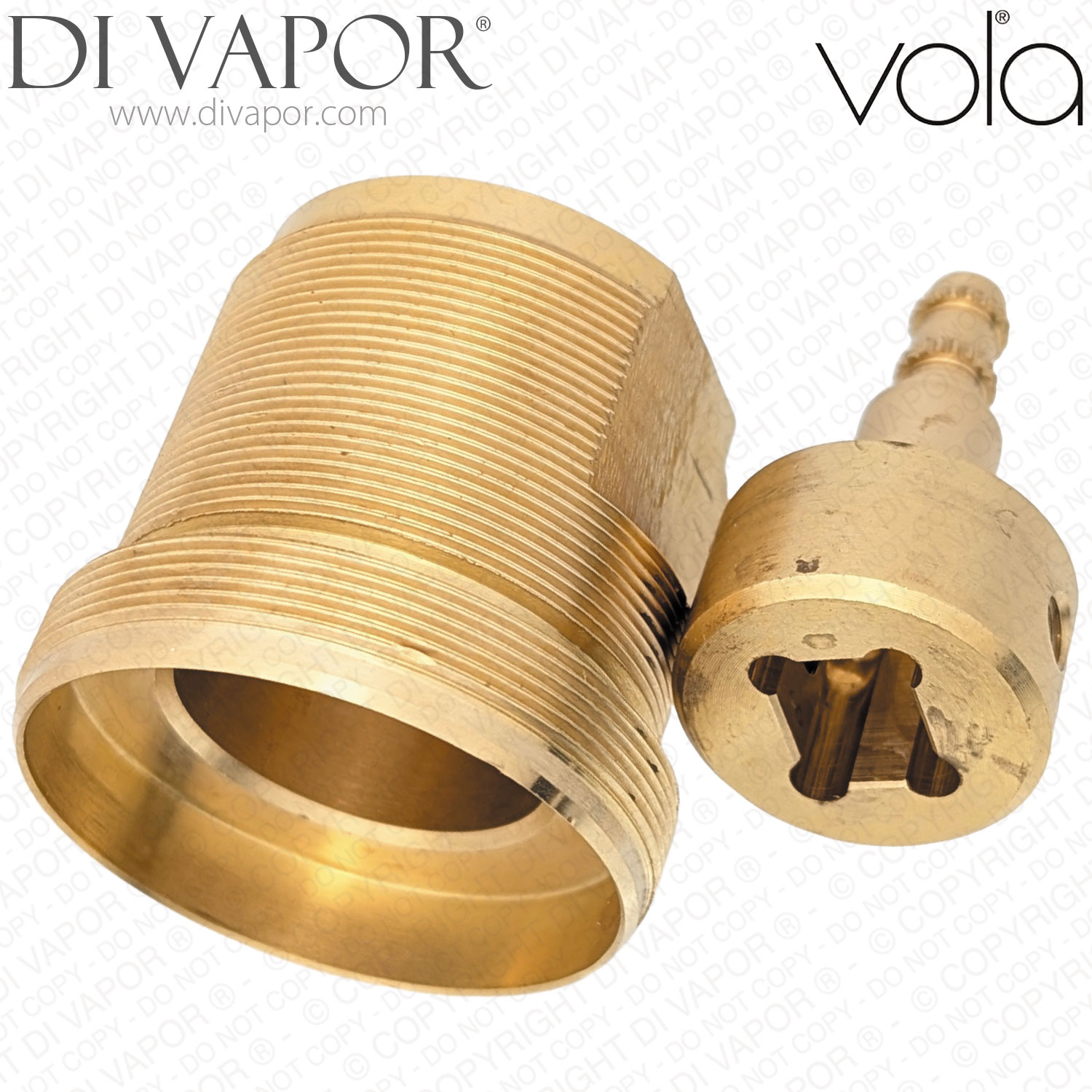

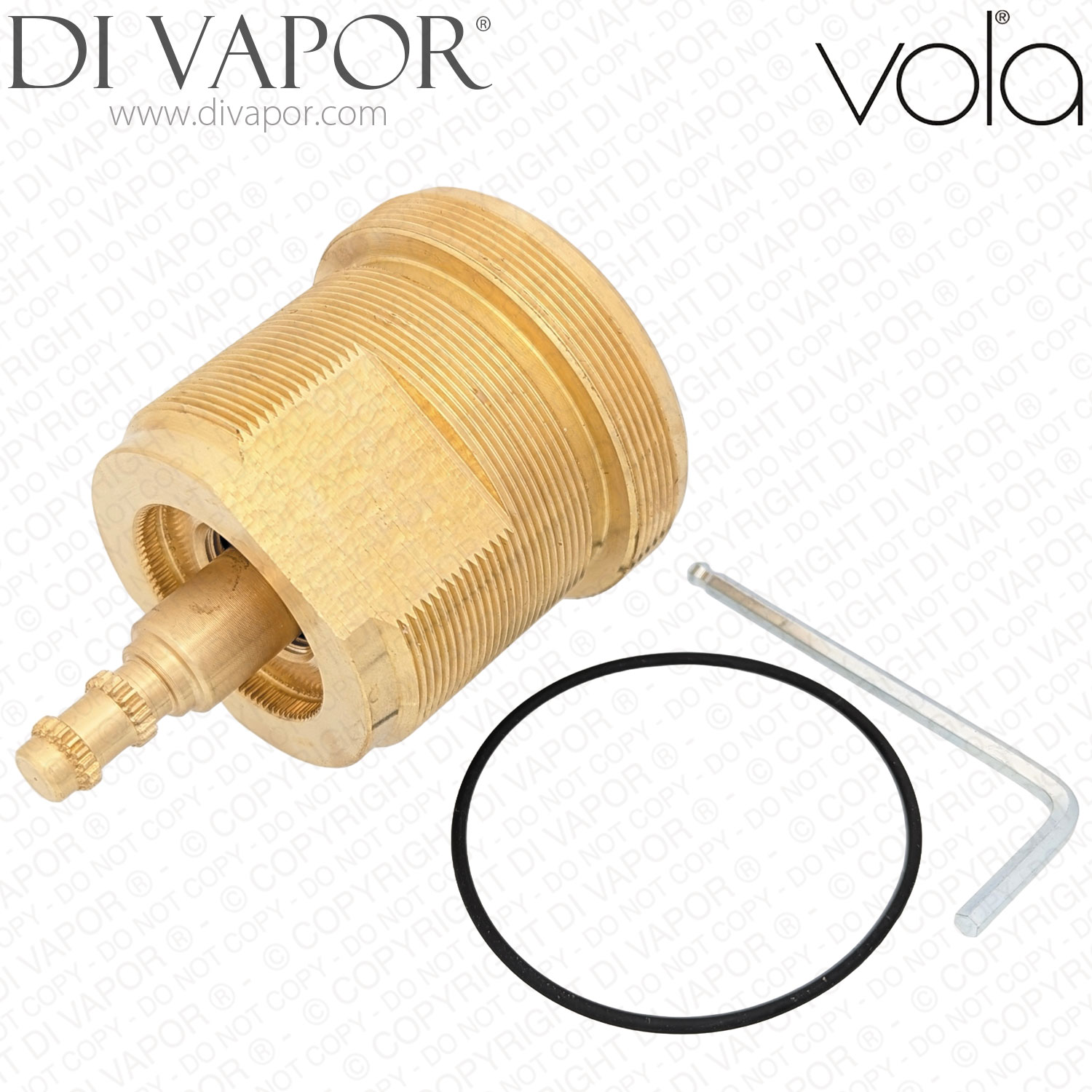

Vola Diverter for Build-In Mixer 5400 (VR5410)

SUMMARY

The Vola VR5410 is a diverter assembly for Vola 5400 and 5600 build-in mixer systems from 01/01/2018. It is used in the diverter section of the concealed mixer to direct water between the available outlets, depending on the model layout and trim arrangement fitted.

This part is not the old 5400 diverter used before 01/01/2018. Check the mixer age, wall depth and existing diverter reference before ordering, especially where an older 5400 installation or an extended wall build-up is involved.

Technical Details

- - Brand: Vola.

- - Part Number: VR5410.

- - Part type: diverter for build-in mixer.

- - Application: Vola 5400 and 5600 mixer diverter section from 01/01/2018.

- - Standard VR5410 wall finish / build-in depth: 3-15 mm.

- - X measurement from spindle end to finished wall: 37-49 mm.

- - Y measurement from cover-cap end to finished wall: 110-98 mm.

- - Connection size on the associated 5400 / 5400V mixer system: 3/4 inch.

Wall-Depth Variants for the VR5410 Diverter

- - VR5410 standard: 3-15 mm wall finish / build-in depth.

- - VR5410 + 10: 15-25 mm wall finish / build-in depth.

- - VR5410 + 20: 25-35 mm wall finish / build-in depth.

- - VR5410 + 30: 35-45 mm wall finish / build-in depth.

- - VR5410 + 40: 45-55 mm wall finish / build-in depth.

- - VR5410 + 50: 55-65 mm wall finish / build-in depth.

Confirmed Compatible Models

- - Vola Thermostatic Mixer with Diverter and Two Separate Outlet Sockets (5400) Spare Parts.

- - Vola Thermostatic Mixer with Diverter Without Outlet Sockets (5400V) Spare Parts.

- - Vola Thermostatic Mixer with Diverter and One Fixed Outlet Socket (5400FV) Spare Parts.

- - Vola Separate Diverter (5400DV) Spare Parts.

- - Vola 5400NV.

- - Vola 5400TV.

- - Vola 5400RV.

- - Vola 5600V.

Common Fault Symptoms

- - Difficulty selecting between outlets.

- - Water passing to the wrong outlet.

- - Outlet crossflow where more than one outlet runs unexpectedly.

- - Dripping from a shower head or spout after shut-off where the diverter or its seals are the failed part.

Pre-Order Check

Measure the finished wall depth before ordering. If your measurement falls outside the standard VR5410 range, choose the correct extended version rather than the standard part. If the old diverter cannot be identified, compare the existing part code and mixer date before fitting.

Related Spares You May Need

- - Vola Diverter for Build-In Mixer 5400 (VR5410+10).

- - Vola Diverter for Build-In Mixer 5400 (VR5410+20).

- - Vola Diverter for Build-In Mixer 5400 (VR5410+30).

- - Vola Diverter for Build-In Mixer 5400 (VR5410+40).

- - Vola Diverter for Build-In Mixer 5400 (VR5410+50).

- - Vola VR5268 4-Way Diverter Cartridge.

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved.

Use silicone grease on suitable O-rings and seals during cartridge or diverter servicing. Do not force the diverter if the wall-depth version is incorrect.
