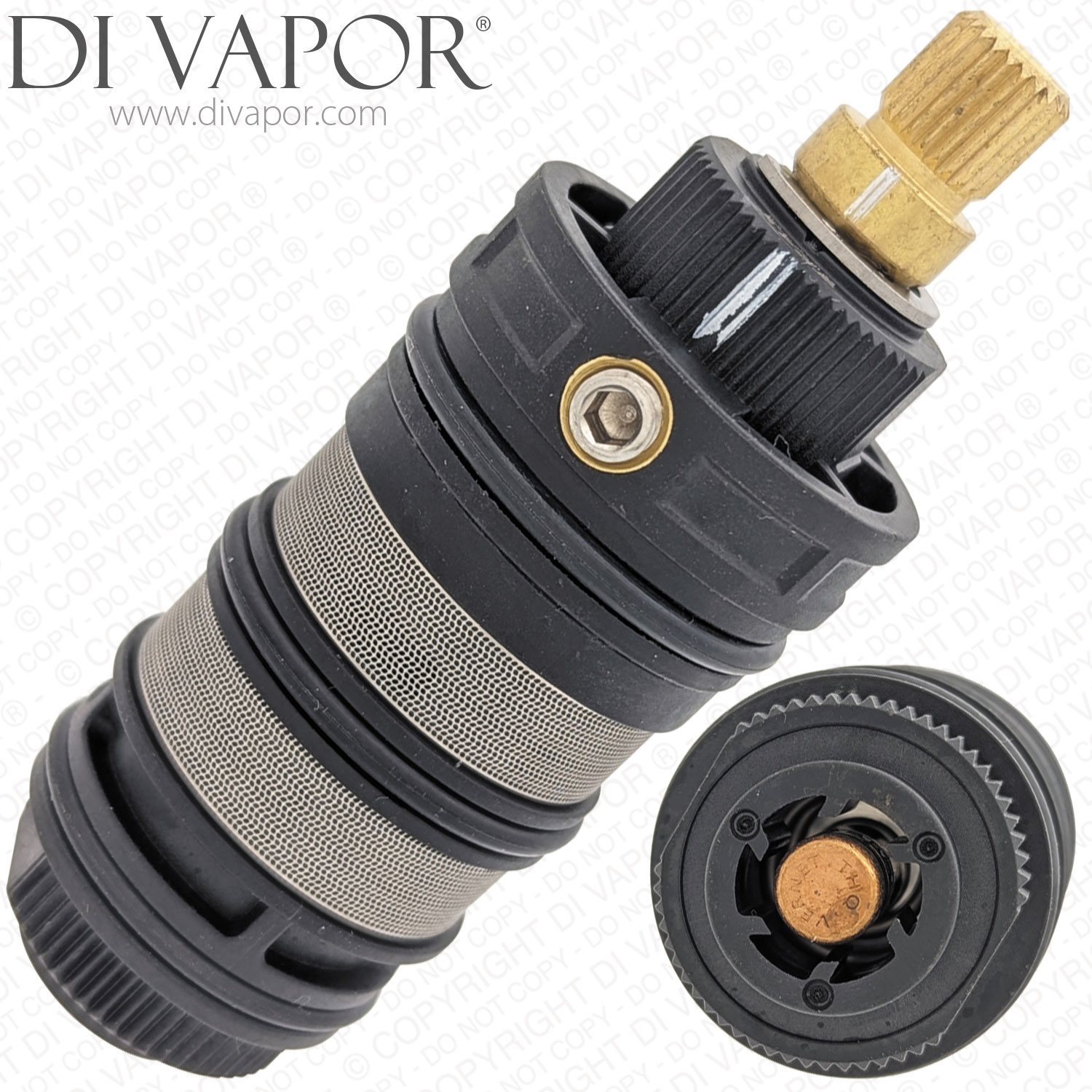

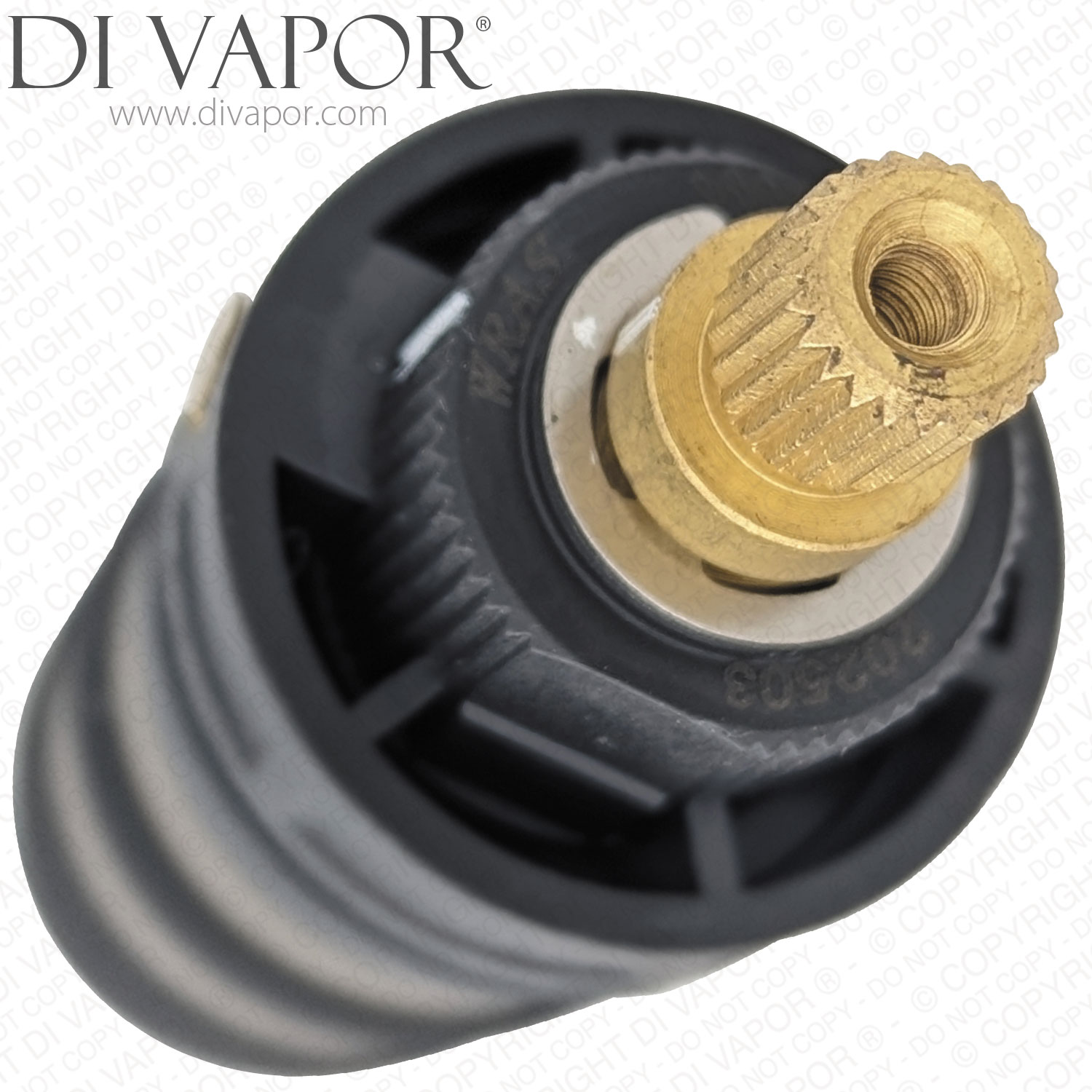

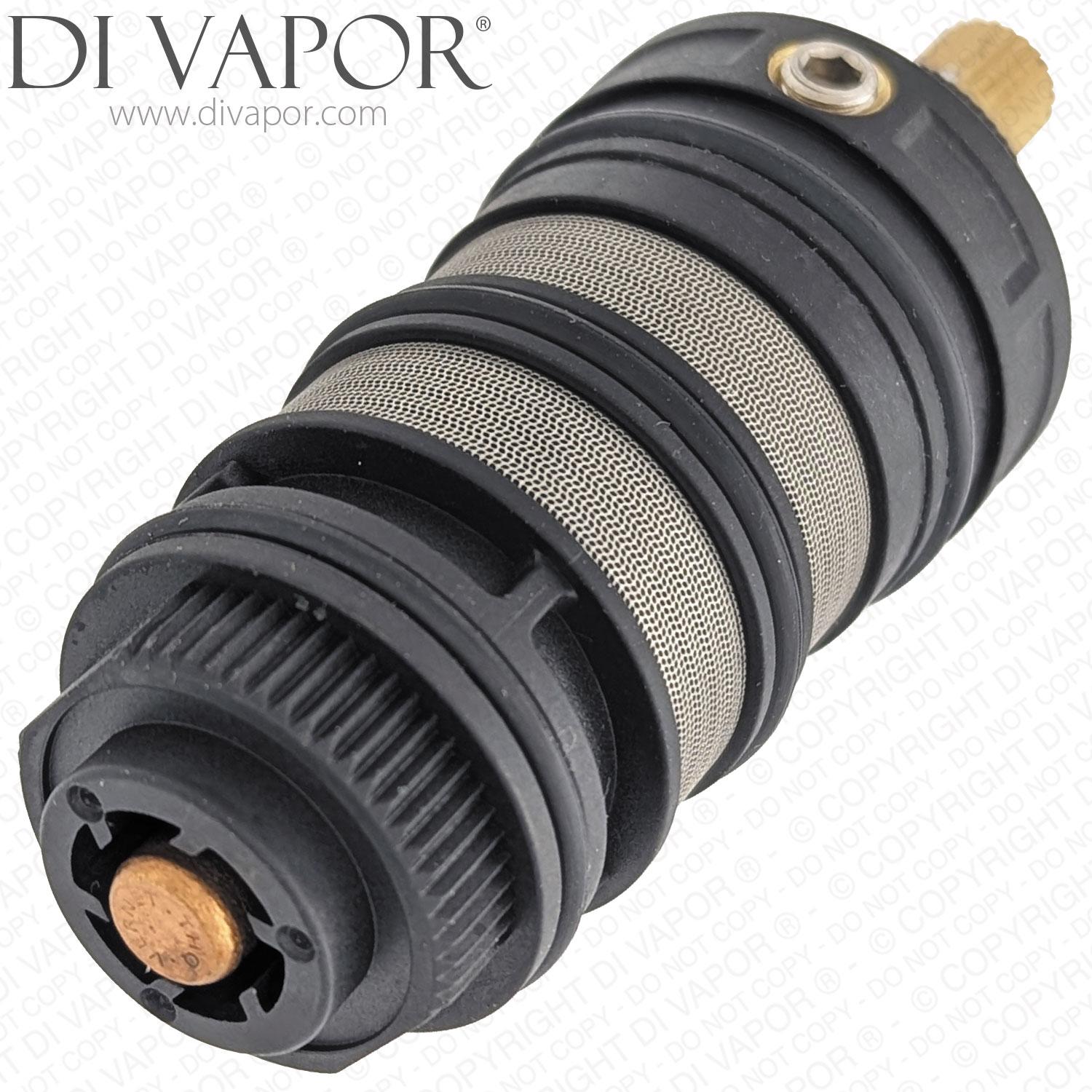

Victorian Plumbing THERMOCART5 Trafalgar /​ Chatsworth Thermostatic Cartridge

SUMMARY

Victorian Plumbing THERMOCART5 is a thermostatic cartridge for selected Trafalgar and Chatsworth shower valve and bath shower mixer assemblies.

The cartridge controls mixed water temperature inside the valve and helps maintain safer showering by responding to changes in hot and cold water supply. Replacement may be required where the valve no longer regulates temperature correctly or the outlet runs too hot or too cold despite adjustment.

Technical Details

- - Part Number: THERMOCART5

- - Cartridge type: thermostatic cartridge

- - Material: plastic

- - Length: 90mm

- - Diameter: 34mm

- - Spline count: 24 splines

Before You Order

Check the removed cartridge against the THERMOCART5 code and the listed measurements before ordering. Do not order from cartridge diameter alone because visually similar Victorian Plumbing cartridges can use different spline counts or valve applications.

Confirmed Compatible Models

- - Trafalgar Traditional Shower incl. Rigid Riser Fixed Head & Soap Basket - TFSK32

- - Chatsworth CHTBT16 1928 Traditional Deck Mounted Thermostatic Bath Shower Mixer

Troubleshooting

- - Symptom: shower temperature will not stabilise

- - Likely Cause: worn or scaled thermostatic cartridge

- - Solution: replace the THERMOCART5 cartridge after confirming the existing cartridge dimensions and spline count

- - Symptom: outlet runs mainly hot or mainly cold

- - Likely Cause: thermostatic control is not balancing the supplies correctly

- - Solution: inspect filters and supplies first then replace the cartridge if the valve body and supplies are otherwise sound

Related Spares You May Need

- - Trafalgar & Chatsworth FLOWCARTRIDGE10 Replacement Flow Rate Cartridge
