ZSPSBARCA13 Ultra Thermostatic Cartridge (Hudson Reed)

SUMMARY

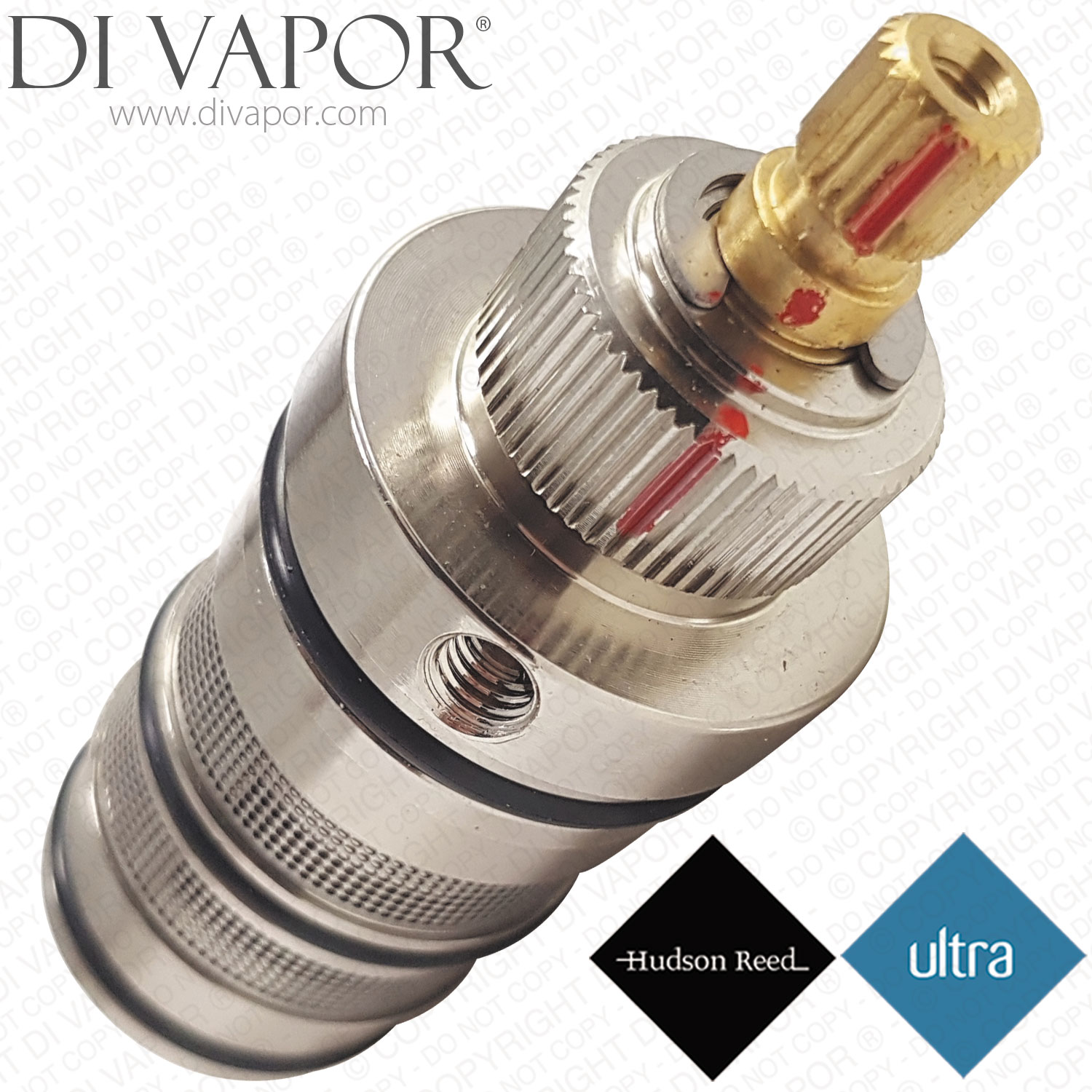

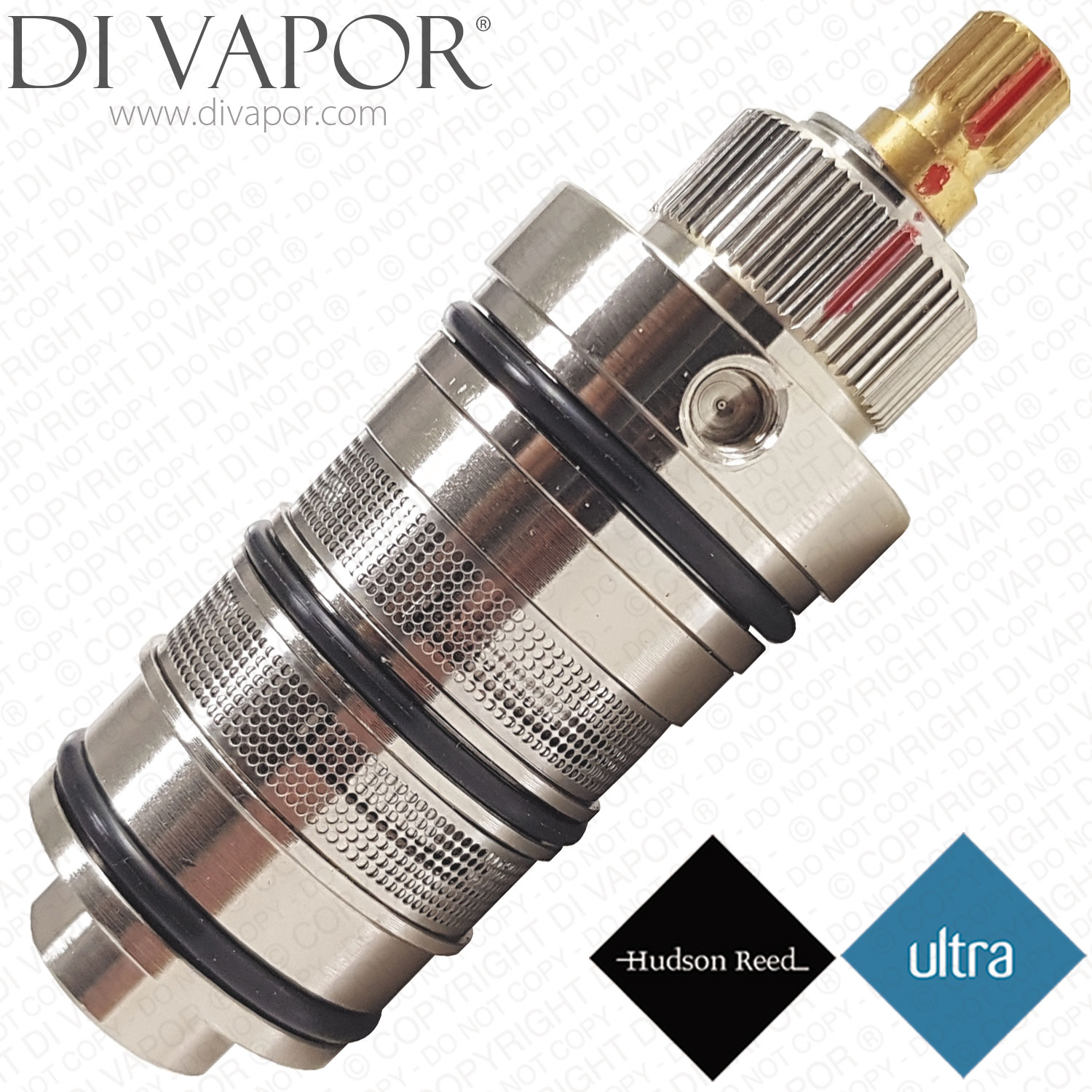

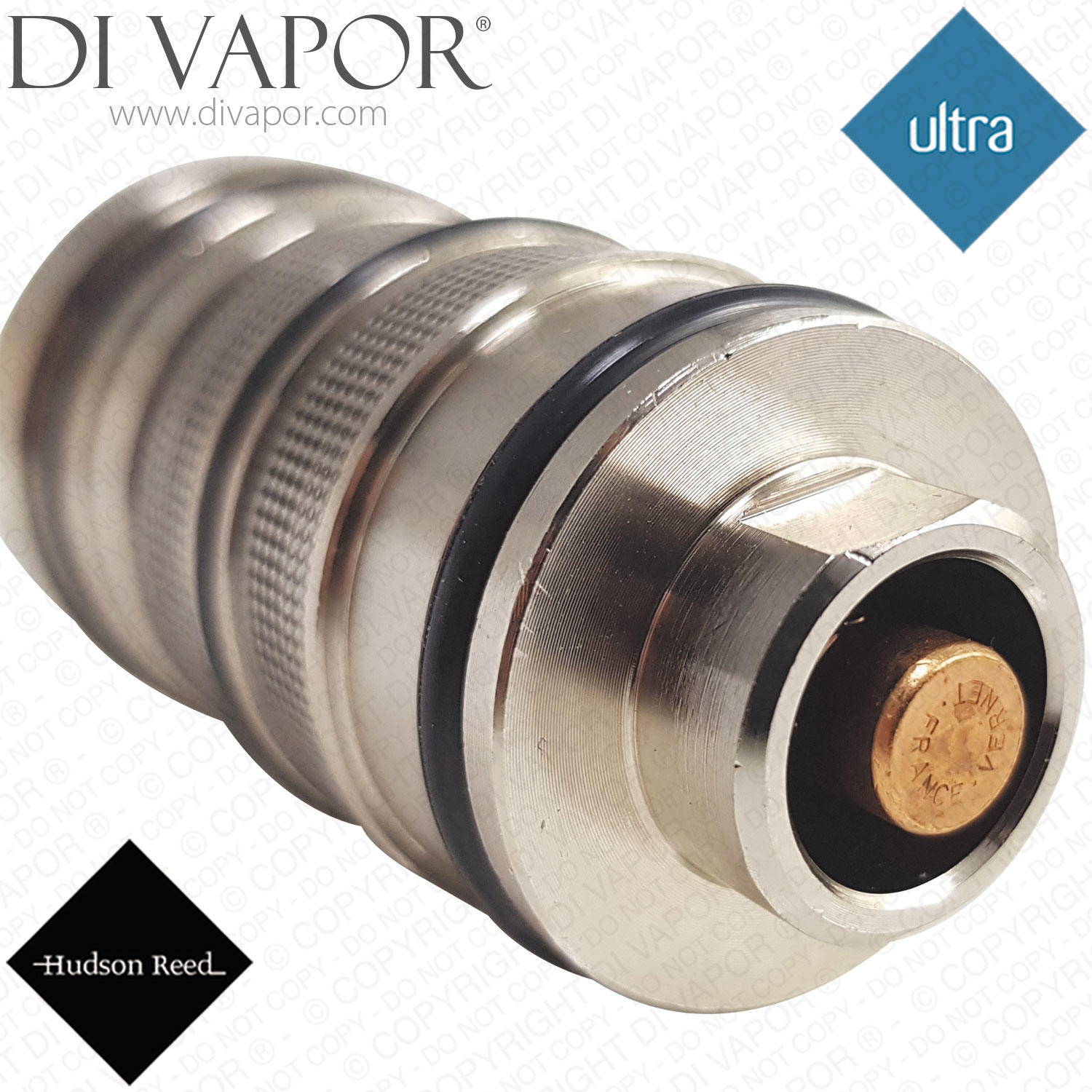

ZSPSBARCA13 Ultra Thermostatic Cartridge (Hudson Reed). Please note that the version of the cartridge in the photo has been changed so you'll no longer receive the same version of the cartridge in the photos.

Ultra cartridge ZSPSBARCA13 measures:
Length: 93.7mm (9.37cm)
Diameter of widest part: 34mm (3.4cm)

This Ultra / Hudson Reed spare part is fitted in shower towers:
- (PIN001) Hudson Reed Interval
- (PIN003) Hudson Reed Interval

- Husdon Reed Astral
- Hudson Reed Dusk
- Husdon Reed Lava
- Hudson Reed Shimmer
- Hudson Reed Surface

Ultra ZSPSBARCA13 Thermostatic Cartridge for Hudson Reed Shower Panels and Towers

The Ultra ZSPSBARCA13 is a thermostatic temperature-control cartridge used in selected Hudson Reed shower panels and shower towers. It fits inside the shower's mixing valve and regulates the mixed-water temperature.

This is the thermostatic cartridge, rather than the separate flow-control or diverter cartridge. Identifying which control is faulty helps ensure that the correct part is ordered for temperature regulation, water shut-off or outlet selection.

Important Product Version Information

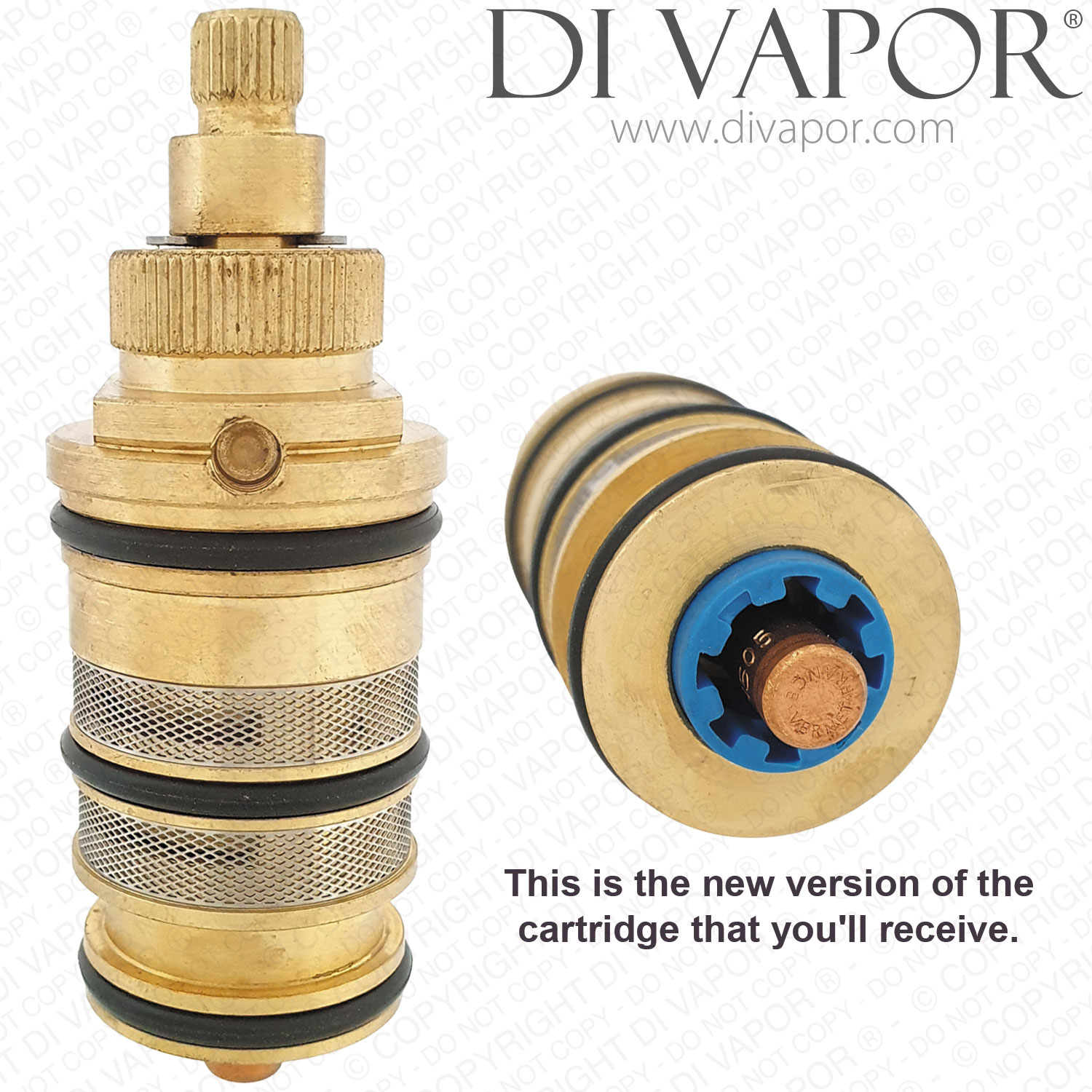

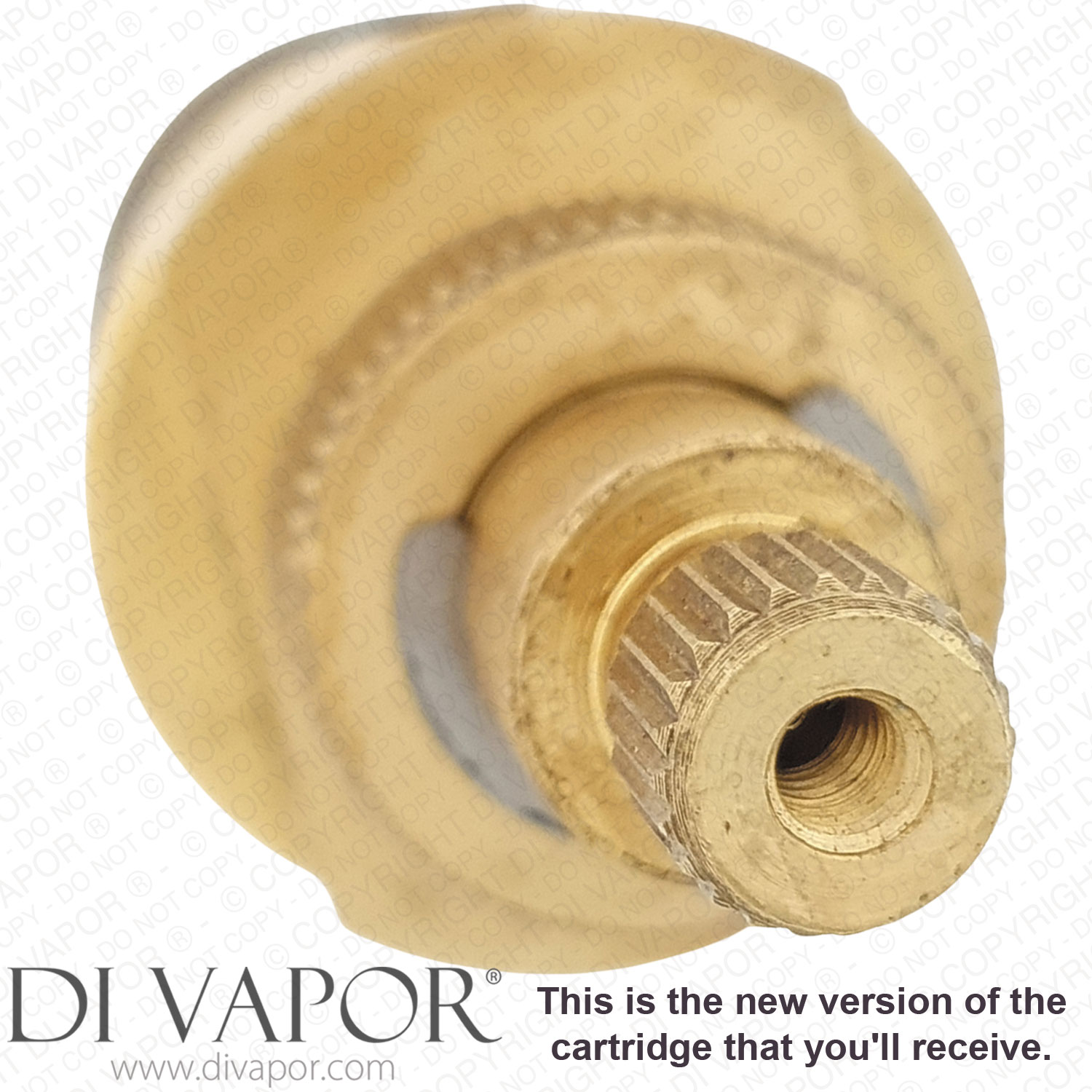

The supplied cartridge version has changed. You will no longer receive the version shown in the product photographs, so please confirm the part required before ordering if you are relying on its appearance.

Technical Details

- - Part Number: ZSPSBARCA13

- - Part type: thermostatic temperature-control cartridge

- - Fitting type: push-in

Confirmed Models Using This Cartridge

- - Hudson Reed Interval PIN001 fully recessed thermostatic shower panel and head

- - Hudson Reed Interval PIN003 shower tower

- - Hudson Reed Lava AS315 shower tower

- - Hudson Reed Astral AS326 shower tower

- - Hudson Reed Surface AS342 thermostatic shower panel

- - Hudson Reed Dusk AS344 shower tower

- - Hudson Reed Shimmer AS345 shower tower

Before Ordering

Check the shower's exact model code and identify the cartridge already fitted. Compare its overall dimensions, spindle and securing arrangement, rather than selecting a cartridge from its diameter or the shower's appearance alone. This is particularly important where different cartridge generations have been used.

Difficulty adjusting the temperature or unstable shower temperature may require investigation of the thermostatic cartridge, water supplies and filters. Water dripping from the shower when it is switched off does not, by itself, establish that the thermostatic cartridge needs changing; the separate shut-off mechanism should also be checked.

Fitting and Maintenance

Isolate the hot and cold water supplies before removing the cartridge. Follow the shower manufacturer's servicing and temperature-setting instructions. Apply a light coating of suitable silicone grease to the cartridge O-rings during installation, then check for leaks and correct temperature operation before using the shower.

Related Spares You May Need

- - Ultra ZSPSPR79 flow cartridge for ML panels - associated flow-control cartridge for Hudson Reed Astral AS326, Surface AS342, Dusk AS344 and Shimmer AS345

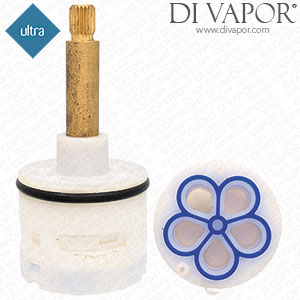

- - Hudson Reed ZSPSPR62 diverter cartridge - associated outlet-control cartridge for Hudson Reed Interval PIN001, Interval PIN003 and Lava AS315

- - TACSIL TAC86 3g cartridge silicone grease - for lubricating cartridge O-rings during installation

The flow and diverter cartridges perform different functions from ZSPSBARCA13 and must be selected for the exact shower model and fault.

Not sure which part you need? Use the Di Vapor part identification service for help.
